OEM parking camera Audi A3, A4, A5, A6, Q7 (BC ADI-01)

OEM parking camera for Audi

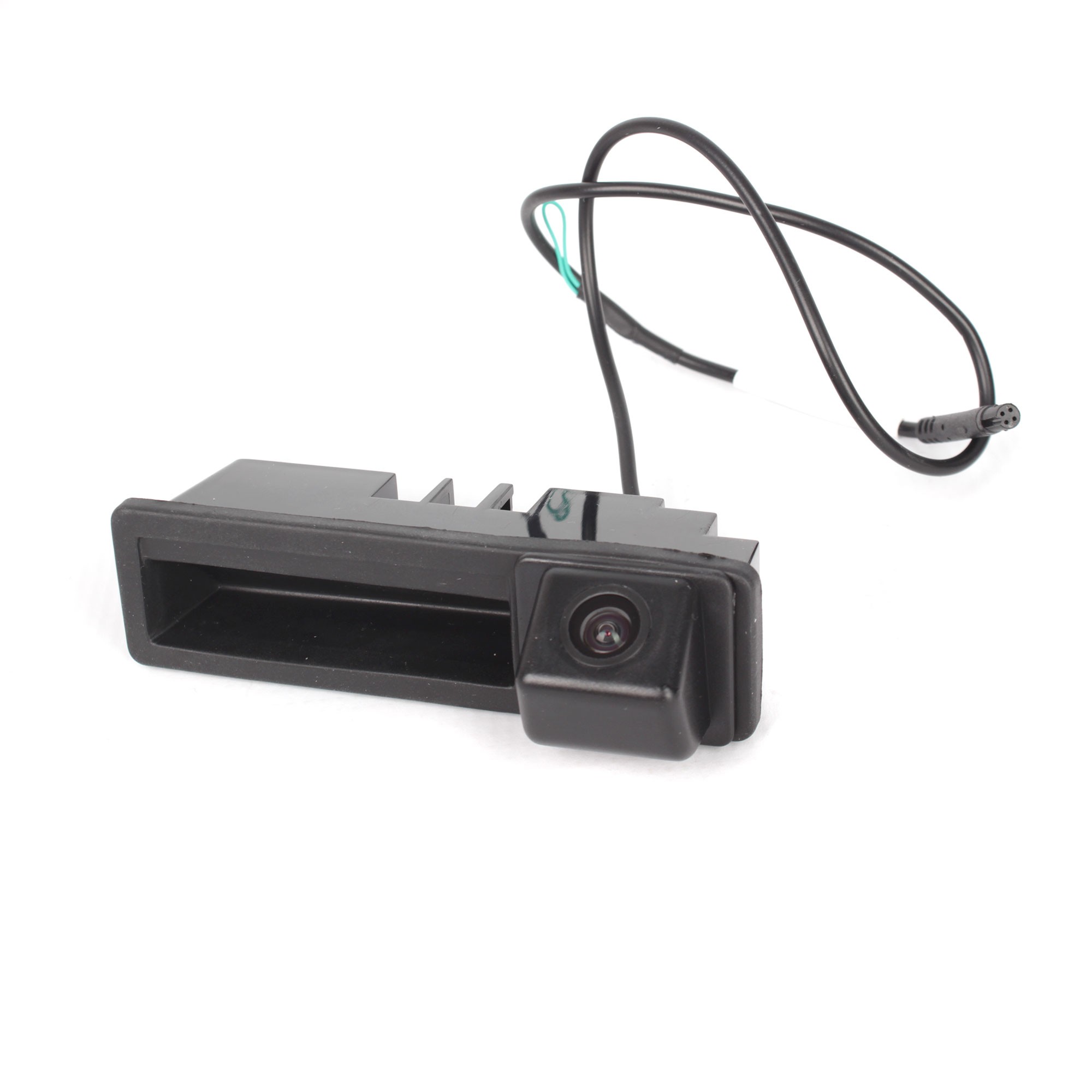

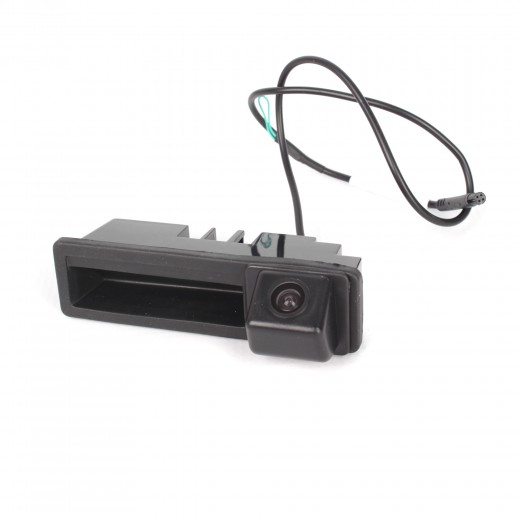

OEM color parking camera installed in the fifth door opening handle.

Camera suitable for the following vehicles:

  • Audi A3 [8P] (5/2003 -> 8/2012)
  • Audi A4 [B8] (2008 -> 2015)
  • Audi A5 (2012 -> 2014)
  • Audi A6 (2008 -> 2011)
  • Audi Q7 (2007 -> 2014)

Technical parameters of the OEM camera for Audi A3, A4, A5, A6, Q7:

  • sensing sensor: PC3089 1/3"
  • the option to turn on / off the display of auxiliary trajectories (guide lines)
  • electronic aperture: 1/60 1/10000 sec.
  • minimum illumination: 0.1 lux
  • signal / noise ratio: > 48 dB
  • TV system: NTSC
  • number of TV lines: 600
  • effective pixels: 668 × 576
  • weather protection: IP67
  • scanning angle: 170°
  • camera body: durable plastic "private housing"
  • image display: mirror image
  • white balance: automatic
  • operating temperature: from -30°C to +70°C
  • AGC, BLC, white balance: automatic

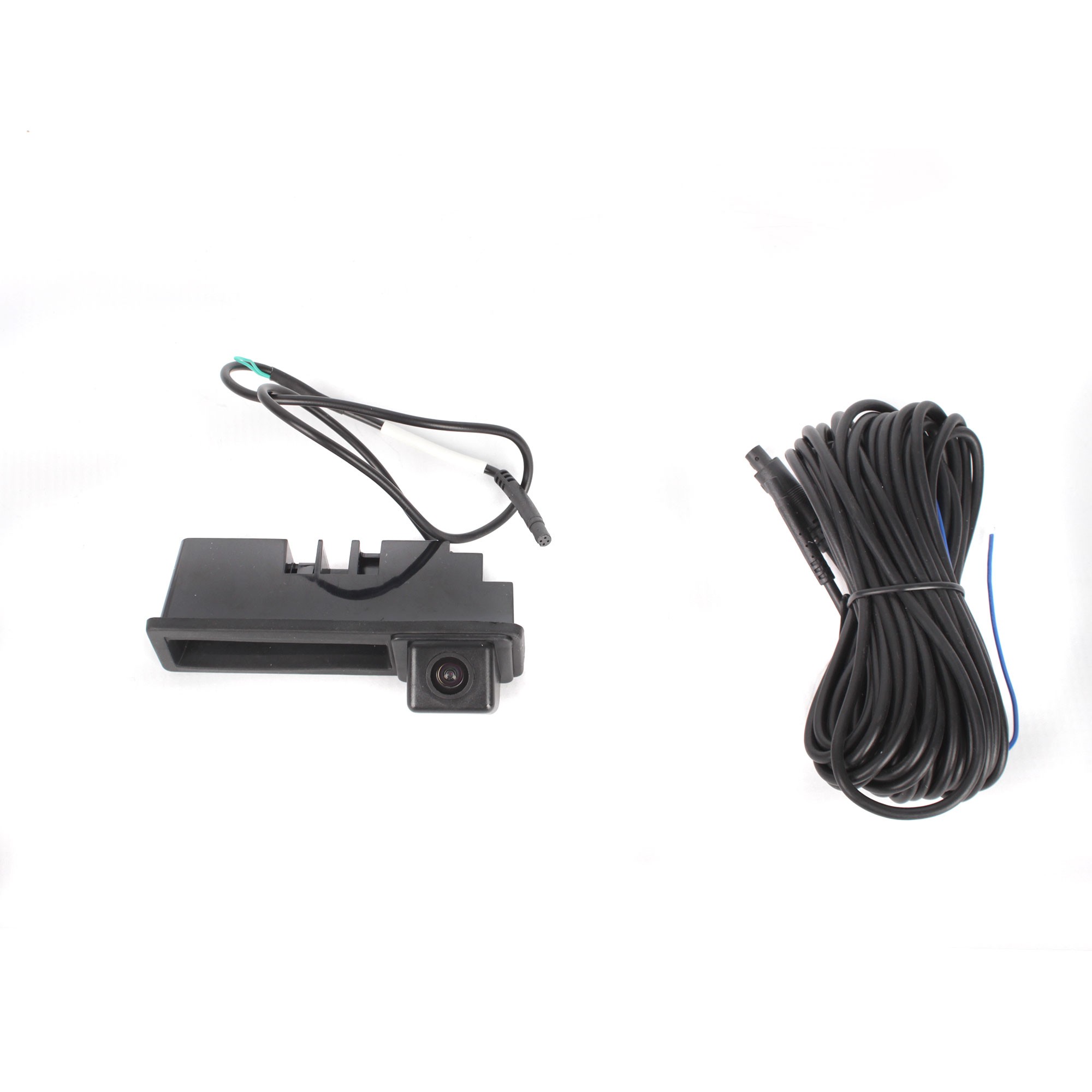

  • signal cable: length 6.2 m terminated with CINCH / RCA connector
  • video output: 1.0V / 75 ohm
  • power cable length: 1 m
  • power supply: 12 V DC
  • consumption: <1W

Camera dimensions:

  • base: 110 x 31 mm
  • installation depth: 30.5 mm
Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of
a video adapter for the parking camera!
Catalog numberBC ADI-01
BrandTSS Group
