OEM parking camera Audi A3, S3, A4, A5, S5, A6, Q7 (BC ADI-02)

A3 [8P] (03->10), S3 (07->), A4 [B6] (01->05) sedan / station wagon, A4 [B7] (05->08) sedan / station wagon, A5 (07- >), S5 (07->), A6 C5 saloon / station wagon, A6 [C6] (05->11) saloon / station wagon, Q7 (07->14)
More about the product
We will help you with your purchase
OEM parking camera Audi A3, S3, A4, A5, S5, A6, Q7 (BC ADI-02)

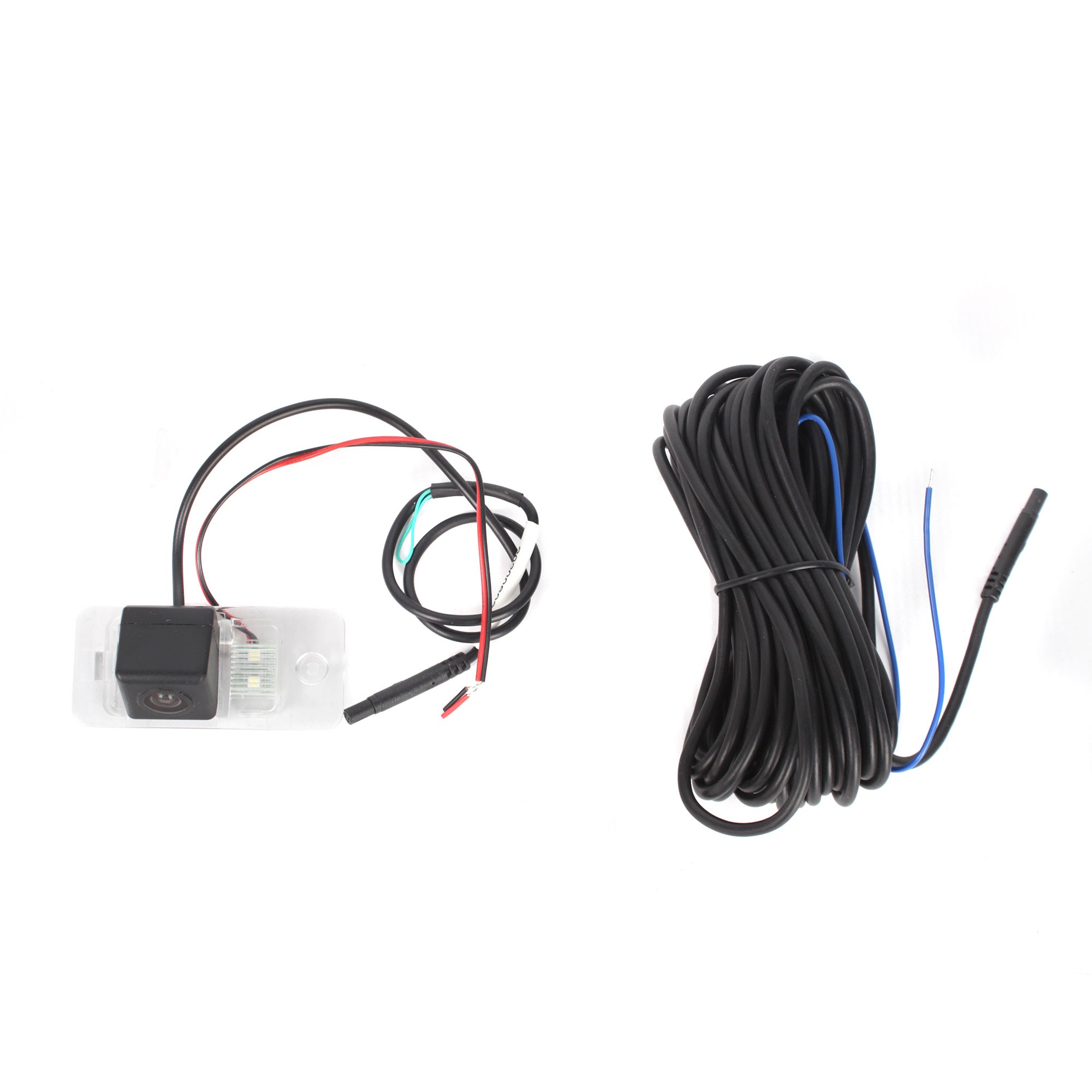

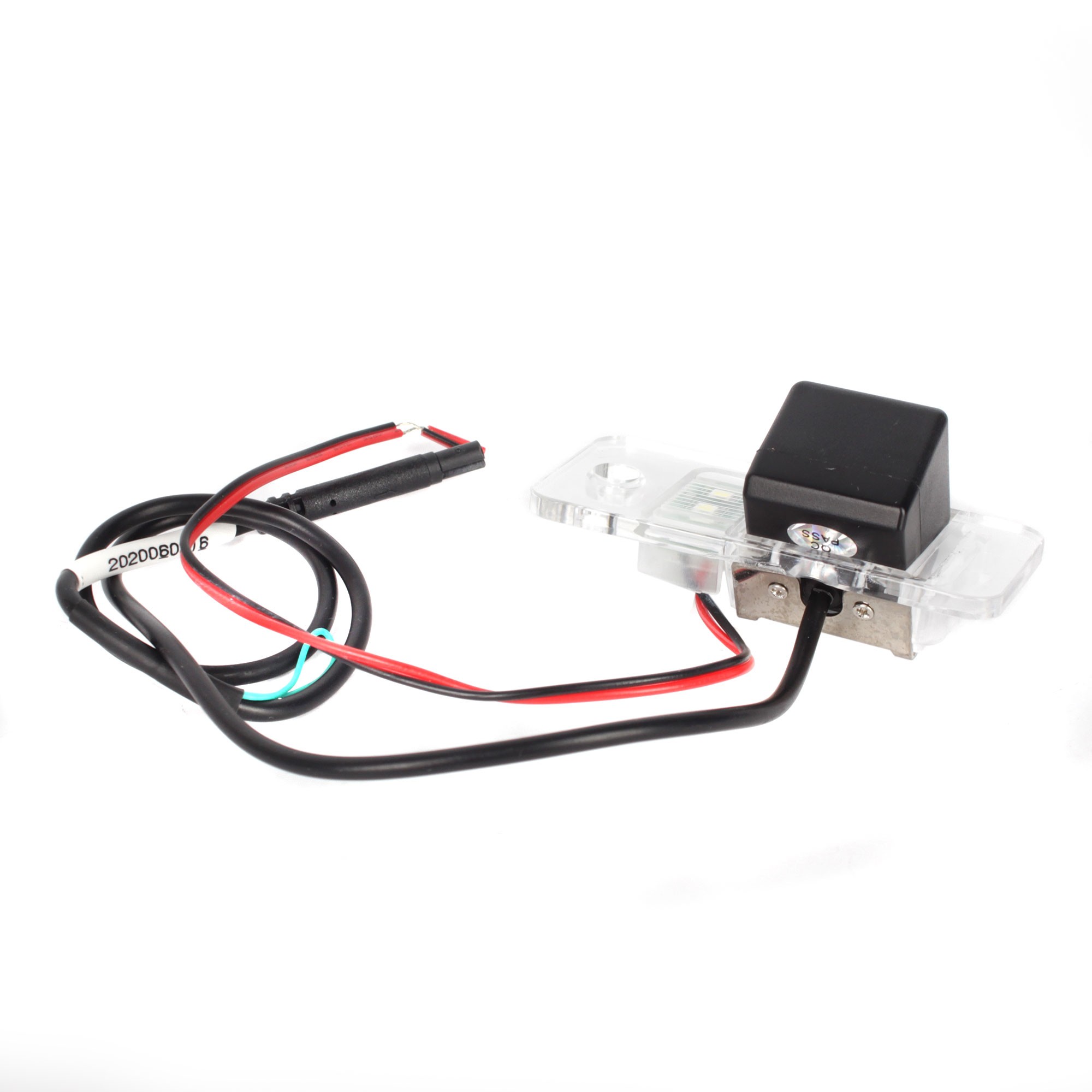

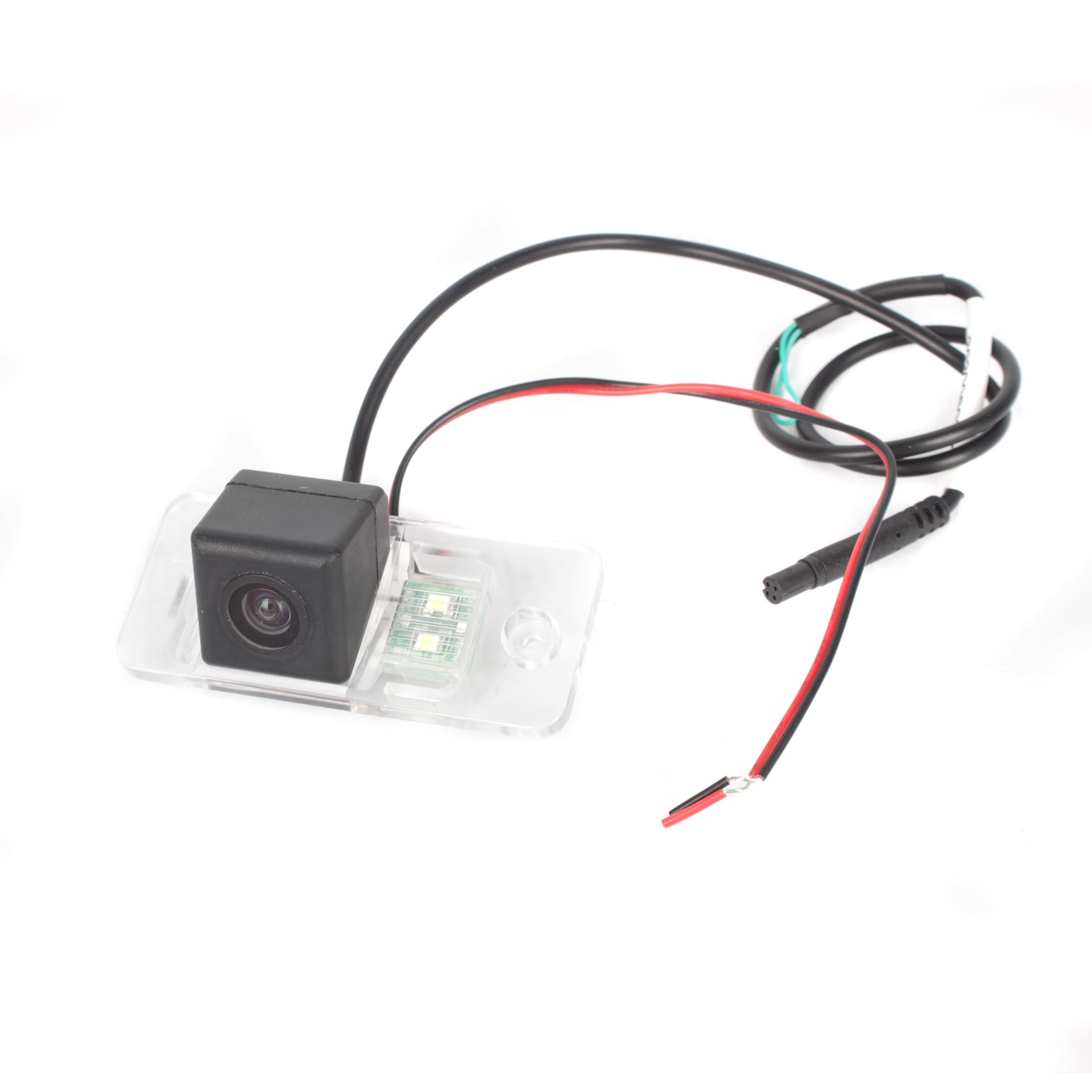

OEM parking camera for Audi

OEM color parking camera for installation in the rear license plate lamp. The camera includes a place to place the socket with the bulb from the original license plate light.

Camera suitable for the following vehicles:

  • Audi A3 [8P] (2003 -> 2010)
  • Audi S3 (2007 ->)
  • Audi A4 [B6] (2001 -> 2005) sedan / station wagon
  • Audi A4 [B7] (2005 -> 2008) sedan / station wagon
  • Audi A5 (2007 ->)
  • Audi S5 (2007 ->)
  • Audi A6 C5 sedan / station wagon
  • Audi A6 [C6] (2005 -> 2011) sedan / station wagon
  • Audi Q7 (2007 -> 2014)

Technical parameters of the OEM camera for Audi A3, S3, A4, A5, S5, A6, Q7:

  • sensing sensor: PC3089 1/3"
  • the option to turn on / off the display of auxiliary trajectories (guide lines)
  • electronic aperture: 1/60 1/10000 sec.
  • minimum illumination: 0.1 lux
  • signal / noise ratio: > 48 dB
  • TV system: NTSC
  • number of TV lines: 600
  • effective pixels: 668 × 576
  • weather protection: IP67
  • scanning angle: 170°
  • camera body: durable plastic "private housing"
  • image display: mirror image
  • white balance: automatic
  • operating temperature: from -30°C to +70°C
  • AGC, BLC, white balance: automatic
  • signal cable: length 6.2 m terminated with CINCH / RCA connector
  • video output: 1.0V / 75 ohm
  • power cable length: 1 m
  • power supply: 12 V DC
  • consumption: <1W

Camera dimensions:

  • base: 32 x 70 mm
  • distance between screw hole and tab: 58 mm
Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of
a video adapter for the parking camera!
Catalog numberBC ADI-02
BrandTSS Group
