OEM parking camera Audi (BC ADI-14)

A3 (04/12->), A4 (11->), A5 (11->), A6 (11/10->) (C7), Q7 (11->13)
More about the product
We will help you with your purchase

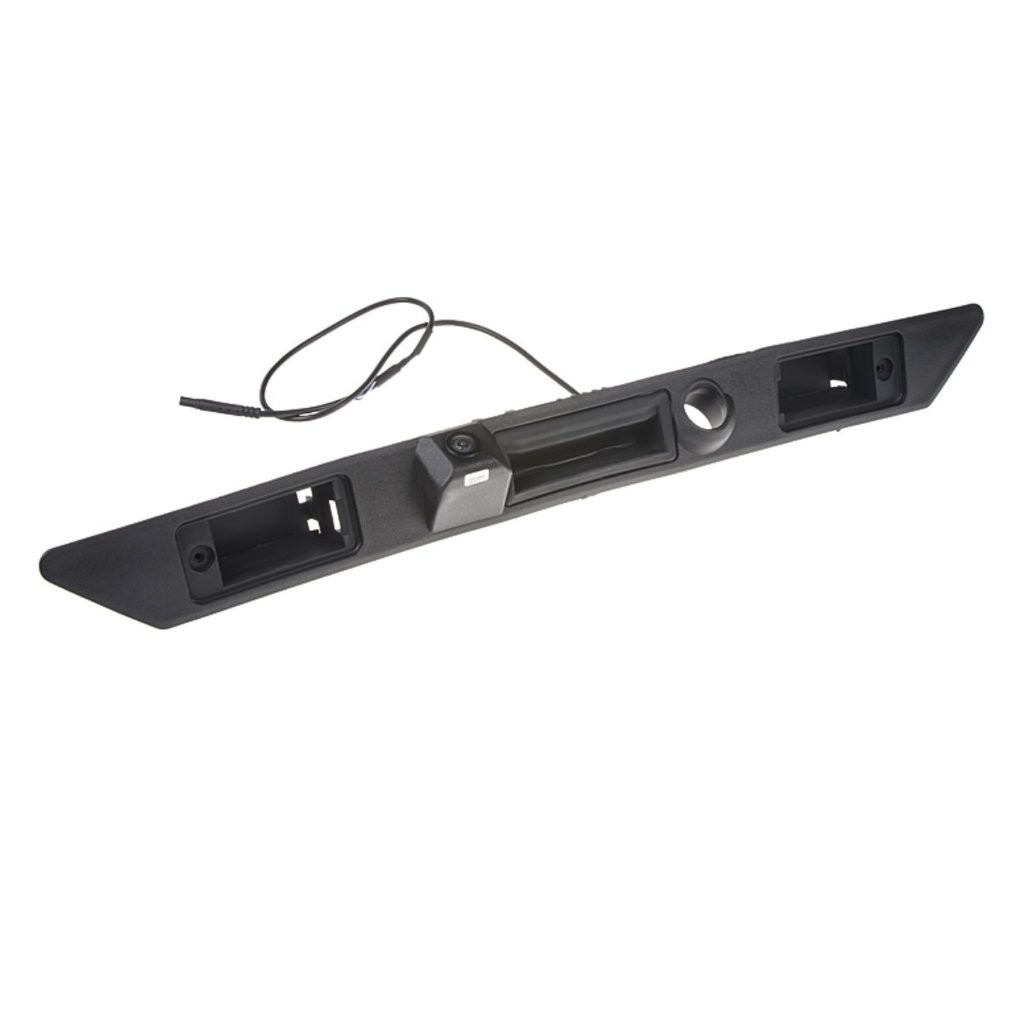

OEM parking camera Audi (BC ADI-14)

OEM parking camera for Audi

OEM color parking camera integrated into trunk controller. The camera replaces the original light housing and trunk switch handle. For Audi A4, A5, A6, Q7 vehicles.

Camera suitable for the following vehicles:

  • Audi A3 (04/2012 ->)
  • Audi A4 (2011 ->)
  • Audi A5 (2011 ->)
  • Audi A6 (11/2010 ->) (C7)
  • Audi Q7 (2011 -> 2013)

Technical parameters of the OEM camera for Audi:

  • sensing sensor: PC3089 1/3"
  • the option to turn on / off the display of auxiliary trajectories (guide lines)
  • electronic aperture: 1/60 1/10000 sec.
  • minimum illumination: 0.1 lux
  • signal / noise ratio: > 48 dB
  • TV system: NTSC
  • number of TV lines: 600
  • 668 × 576 effective pixels
  • weather protection: IP67
  • scanning angle: 170°
  • camera body: durable plastic "private housing"
  • image display: mirror image
  • white balance: automatic
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatic
  • signal cable: length 6.2 m terminated with CINCH / RCA connector
  • video output: 1.0V / 75 ohm
  • power cable length: 1 m
  • power supply: 12 V DC
  • consumption: <1W

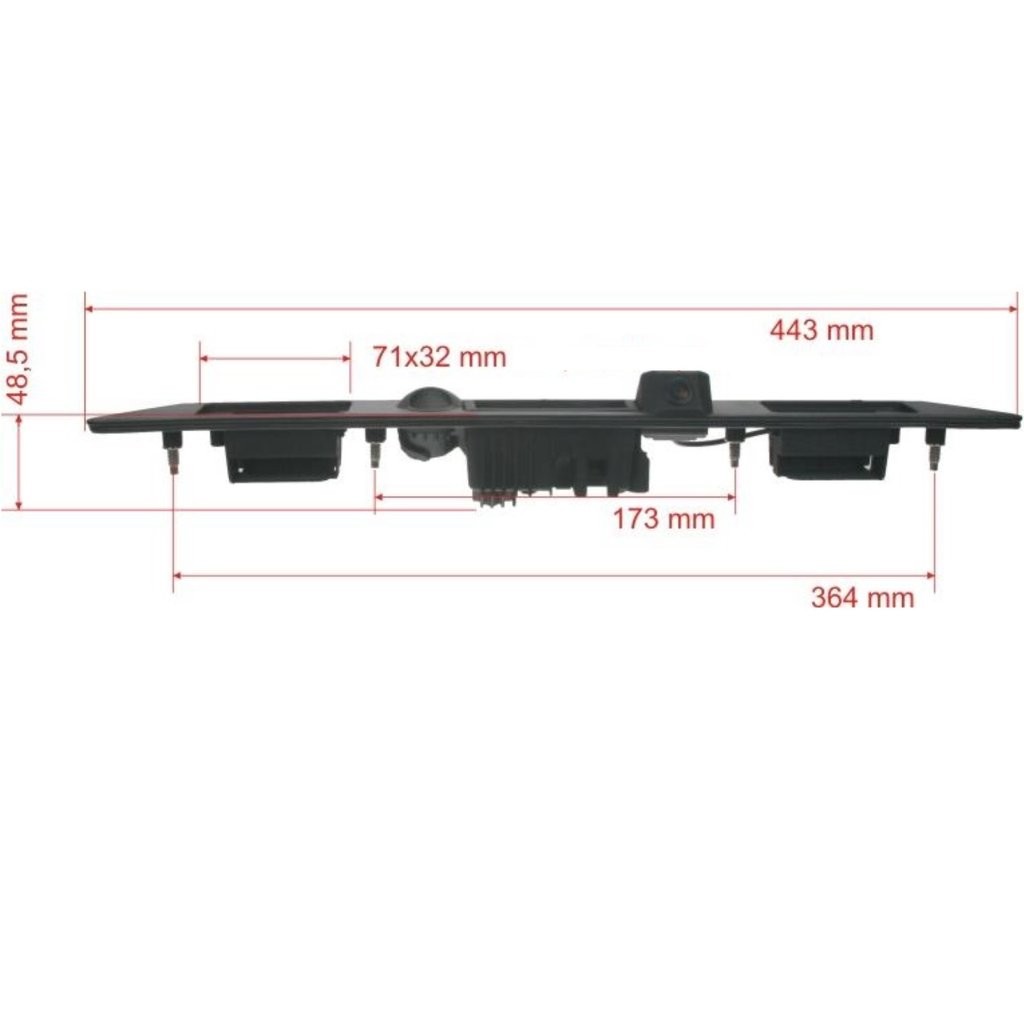

Camera dimensions:

  • length: 443 mm
  • bolt spacing: 173 mm and 364 mm
Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
Catalog numberBC ADI-14
BrandTSS Group
