OEM parking camera Ford Transit Custom (BC FORD CUSTOM16)

Transit Custom (V362) (16->)
More about the product
We will help you with your purchase
OEM parking camera Ford Transit Custom (BC FORD CUSTOM16)

OEM parking camera for Ford Transit Custom

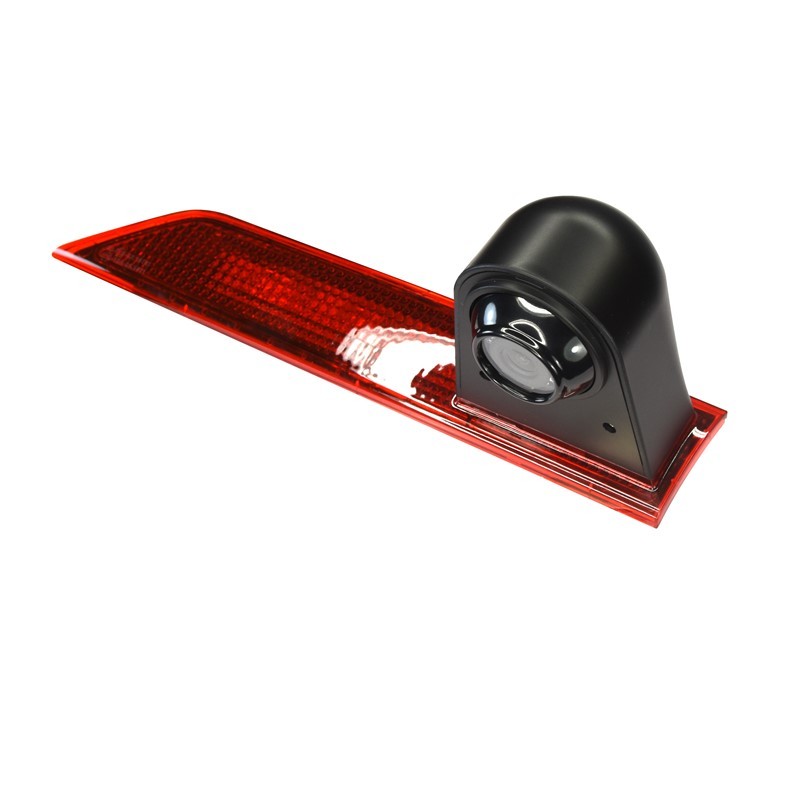

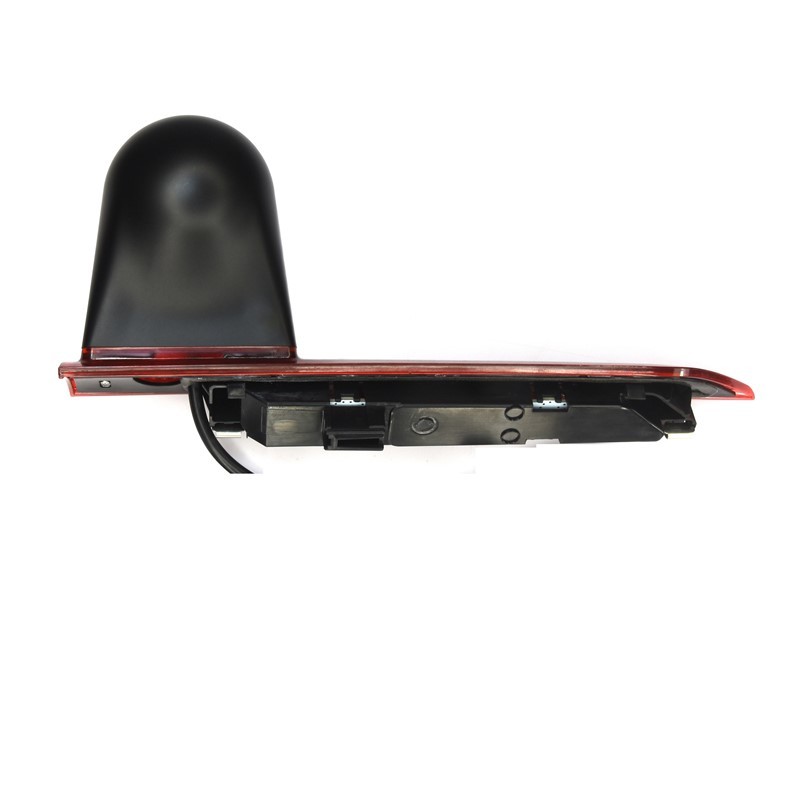

OEM parking camera integrated into the central brake light installed above the wing door. The camera body contains a brake light.

Camera suitable for the following vehicles:

  • Ford Transit Custom (V362) (2016 ->)

Technical parameters of OEM camera for Ford Transit Custom:

  • sensing sensor: PC3089 1/3"
  • electronic aperture: 1/60 1/10000 sec.
  • minimum illumination: 0.1 lux
  • IR auto-illumination (6 x LEDs)
  • signal / noise ratio: > 48 dB
  • TV system: NTSC
  • number of TV lines: 600
  • effective pixels: 668 × 576
  • weather protection: IP67
  • scanning angle: 170°
  • camera body: durable plastic "private housing"
  • image display: mirror image
  • white balance: automatic
  • operating temperature: from -30 °C to +70 °C
  • AGC, BLC, white balance: automatic
  • signal cable: length 6.2 m terminated with CINCH / RCA connector
  • video output: 1.0V / 75 ohm
  • power cable length: 1 m
  • power supply: 12 V DC
  • consumption: <1W

Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of
a video adapter for the parking camera!

Catalog numberBC FORD CUSTOM16
BrandTSS Group
