OEM parking camera Iveco Daily (BC IVE-03)

Daily IV. (11->14), Daily V. (14->)
More about the product
We will help you with your purchase
OEM parking camera Iveco Daily (BC IVE-03)

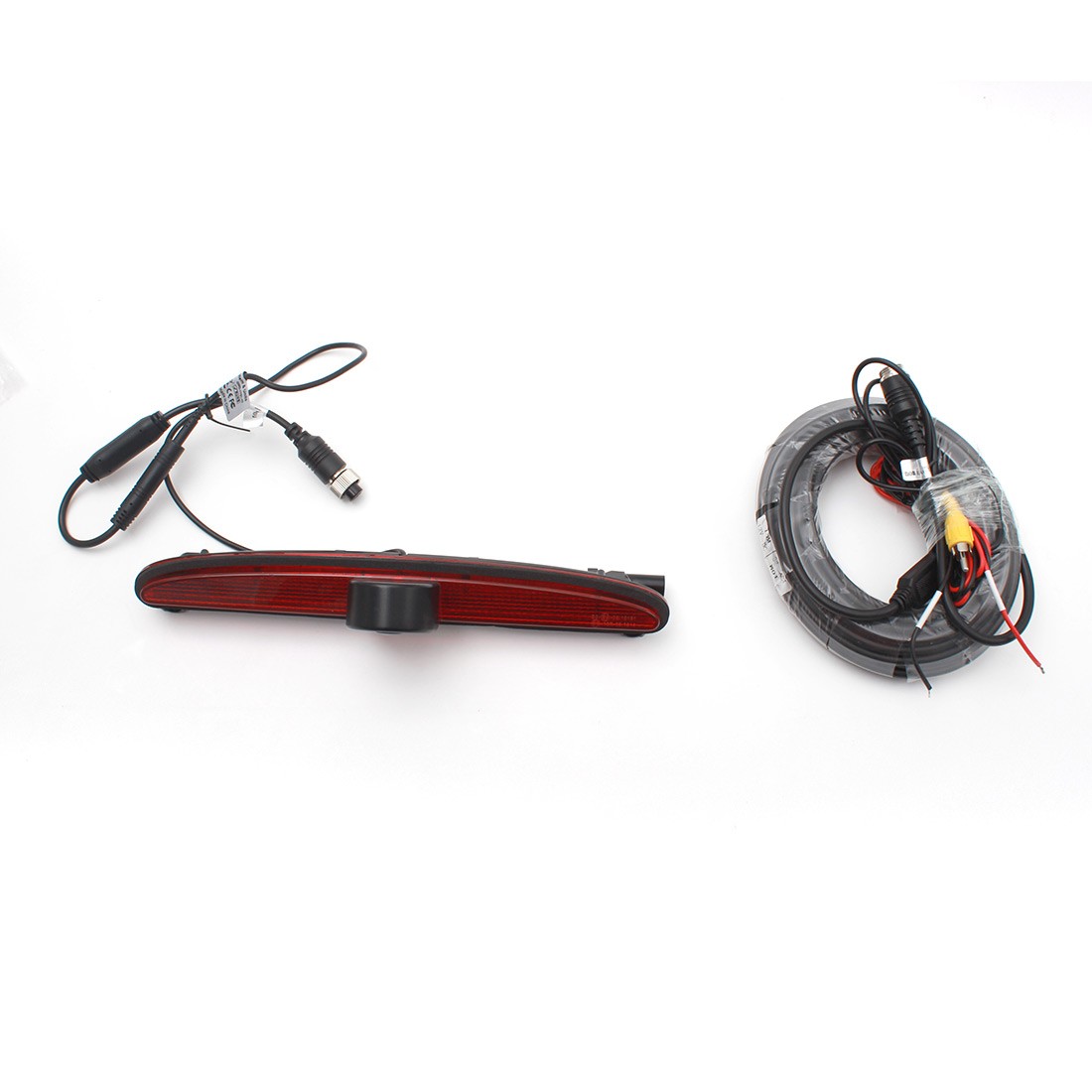

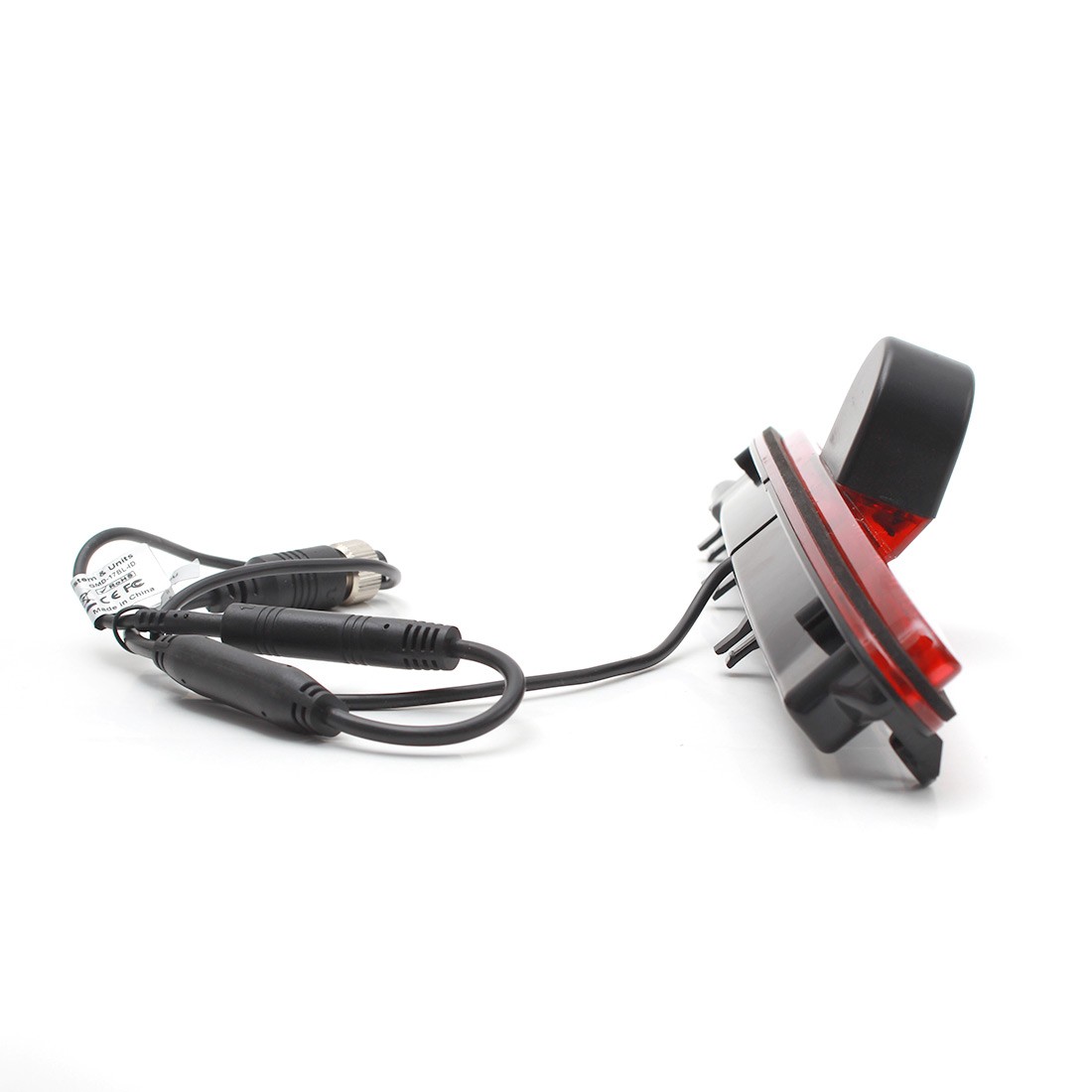

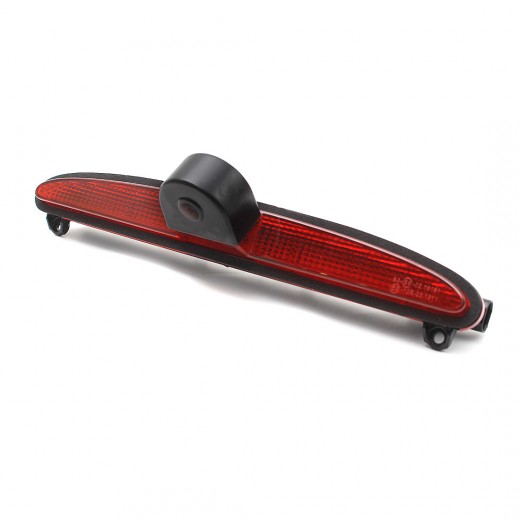

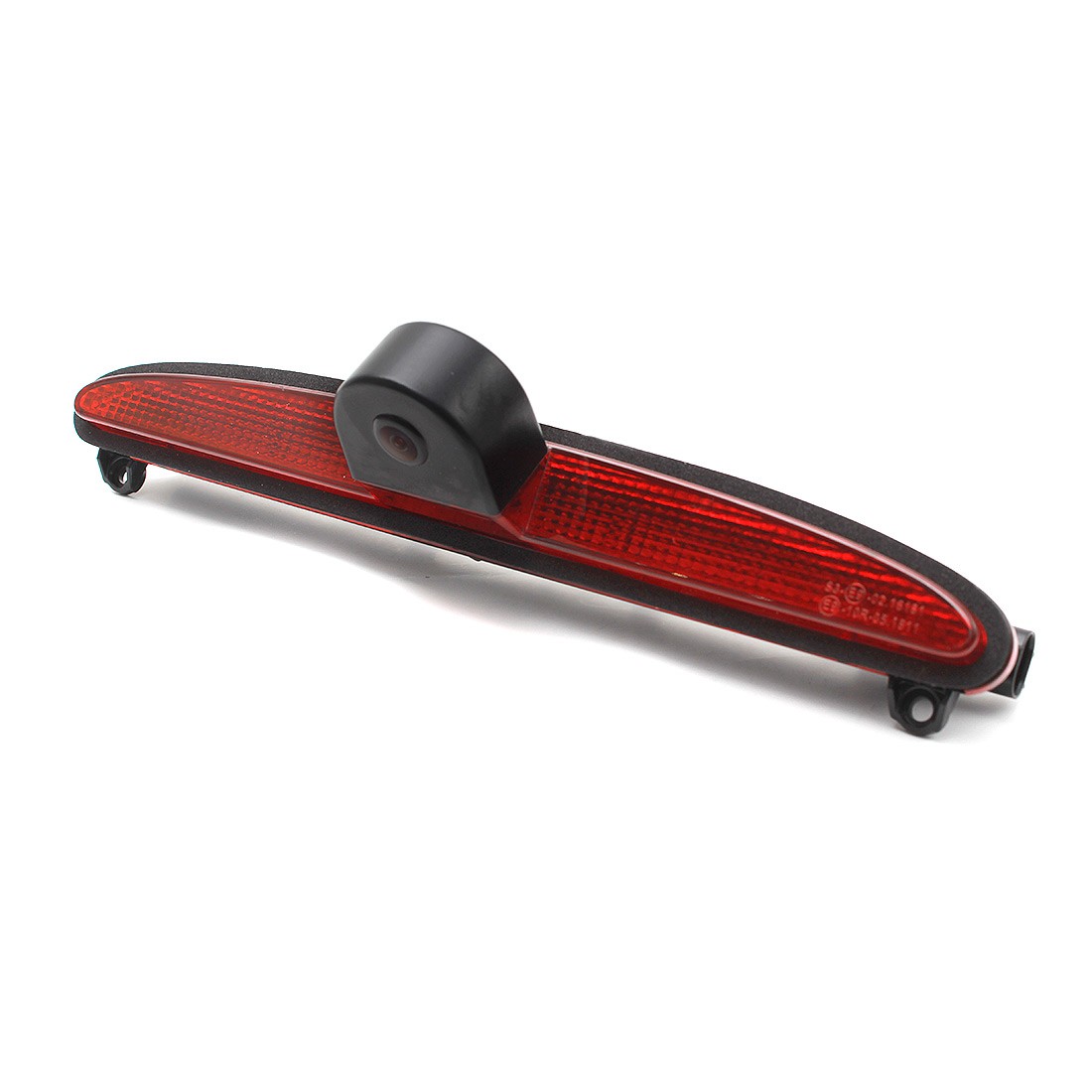

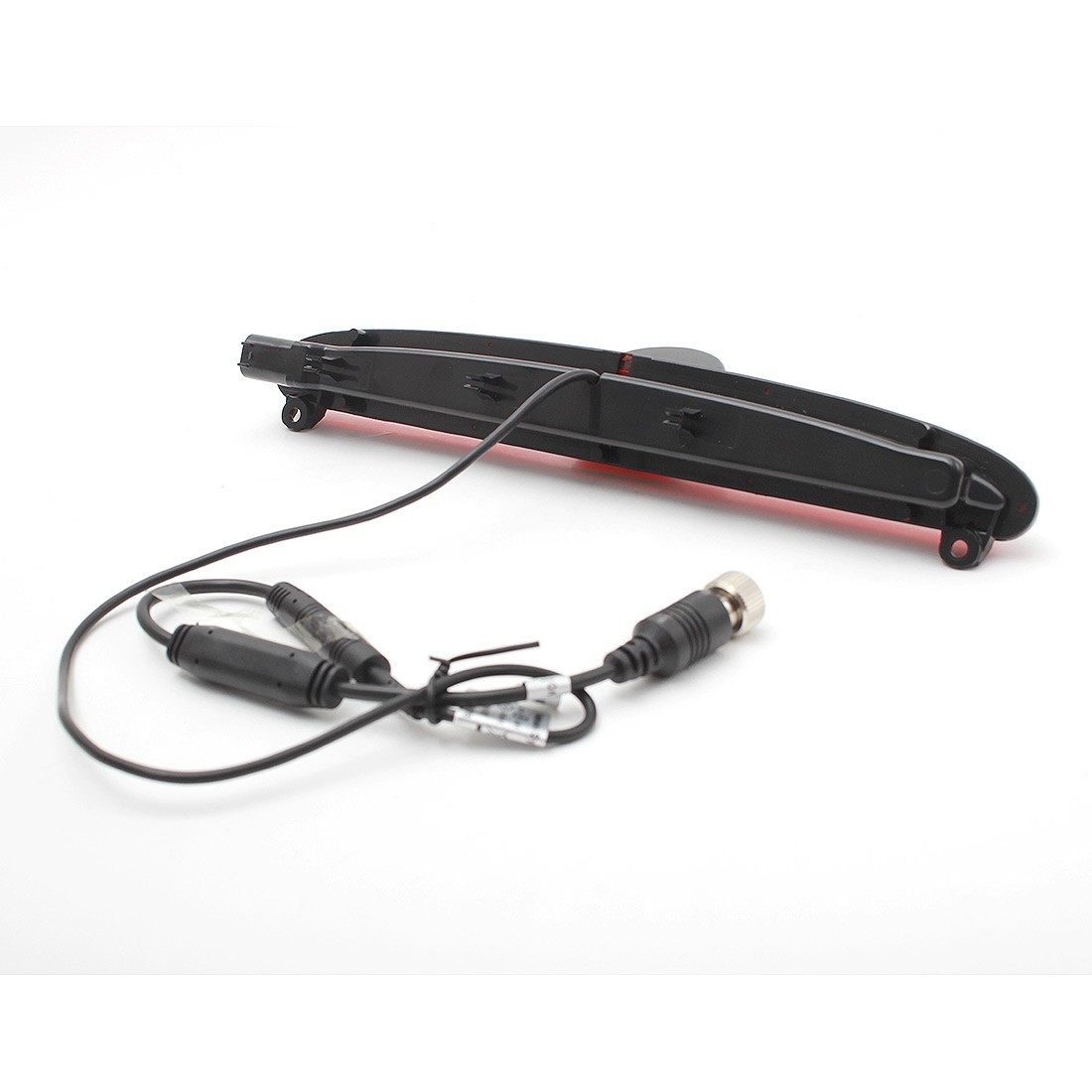

OEM parking camera for Iveco Daily

OEM parking camera   integrated in the central brake light installed above the rear fenders   doors for IVECO Daily IV vehicles, IN.   The camera is integrated in the central brake light located in the left wing door, which replaces the original brake light. The light signaling of the brake light is provided by integrated LEDs. The connector is identical to the original connector.

Designed for vehicles:

  • Iveco Daily IV. (2011 -> 2014)
  • Iveco Daily V. (2014 ->)

Technical parameters of OEM camera for Iveco Daily:

  • CCD 1/3" sensor chip
  • lens focal length: f: 2.8 mm
  • TV system: NTSC
  • video output: 1.0V / 75 ohm
  • scanning angle: 170°
  • weather protection: IP69K
  • camera connector: 4-pin screw
  • monitor side connector: CINCH (RCA)
  • cable length: 10 m
  • number of scanning pixels: 510 x 492
  • horizontal resolution: 420 TV lines
  • white balance: automatic
  • minimum lighting: 0.5 lux
  • signal / noise ratio: > 48 dB
  • electronic aperture: 1/60 to 1/100000 sec.
  • power consumption: <3W
  • supply voltage: 12 V
  • operating temperature: from -30 °C to +70 °C
  • homologated: yes

Camera dimensions:

  • base: 240 x 30 mm

Note:
The camera is intended for non-original (re-assembled) radios with CINCH/RCA input. Use with the original radio may require the connection of a video adapter for the parking camera!

Catalog numberBC IVE-03
BrandTSS Group
