OEM parking camera Renault, Opel, Nissan (BC REN-03)

OEM parking camera for Renault, Opel, Nissan

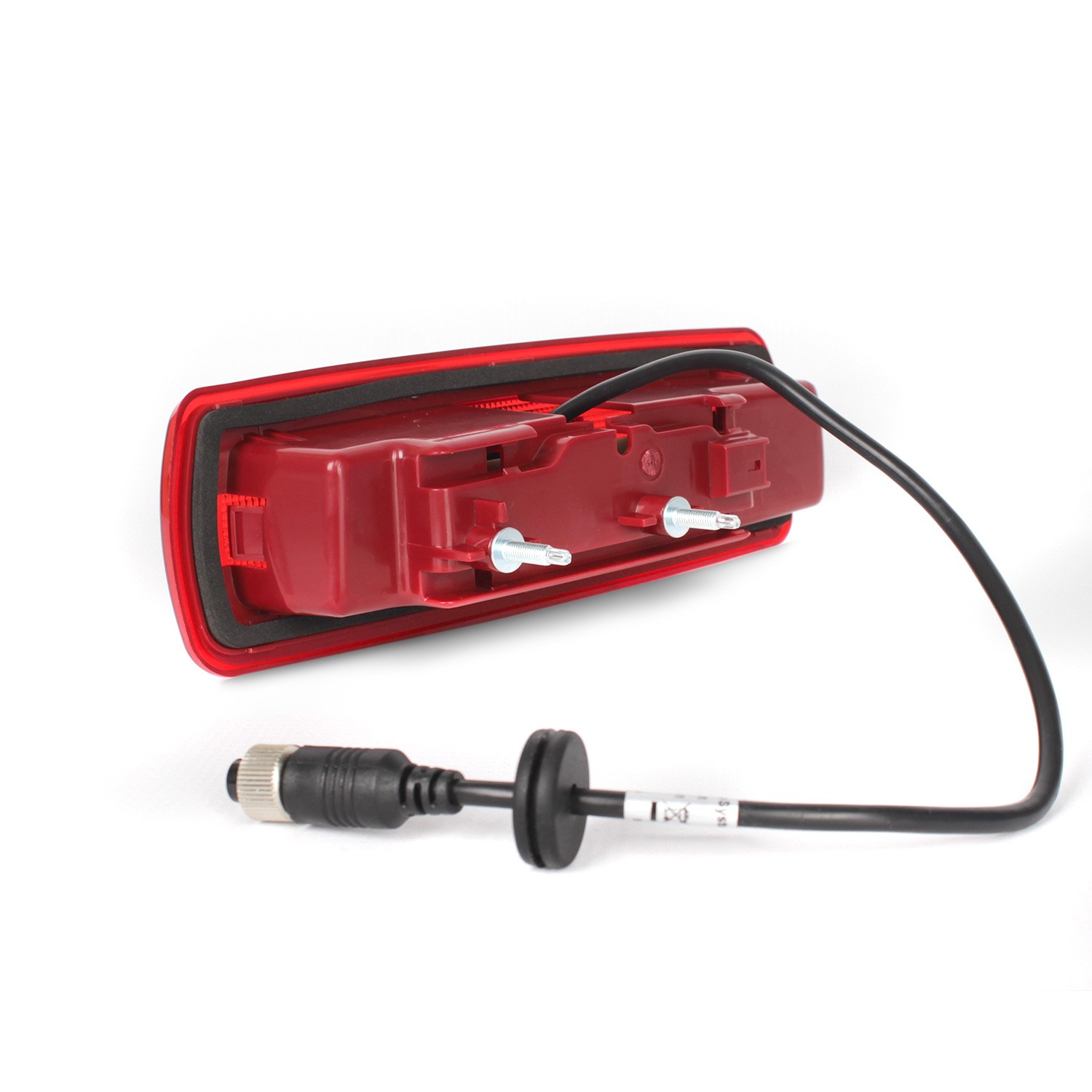

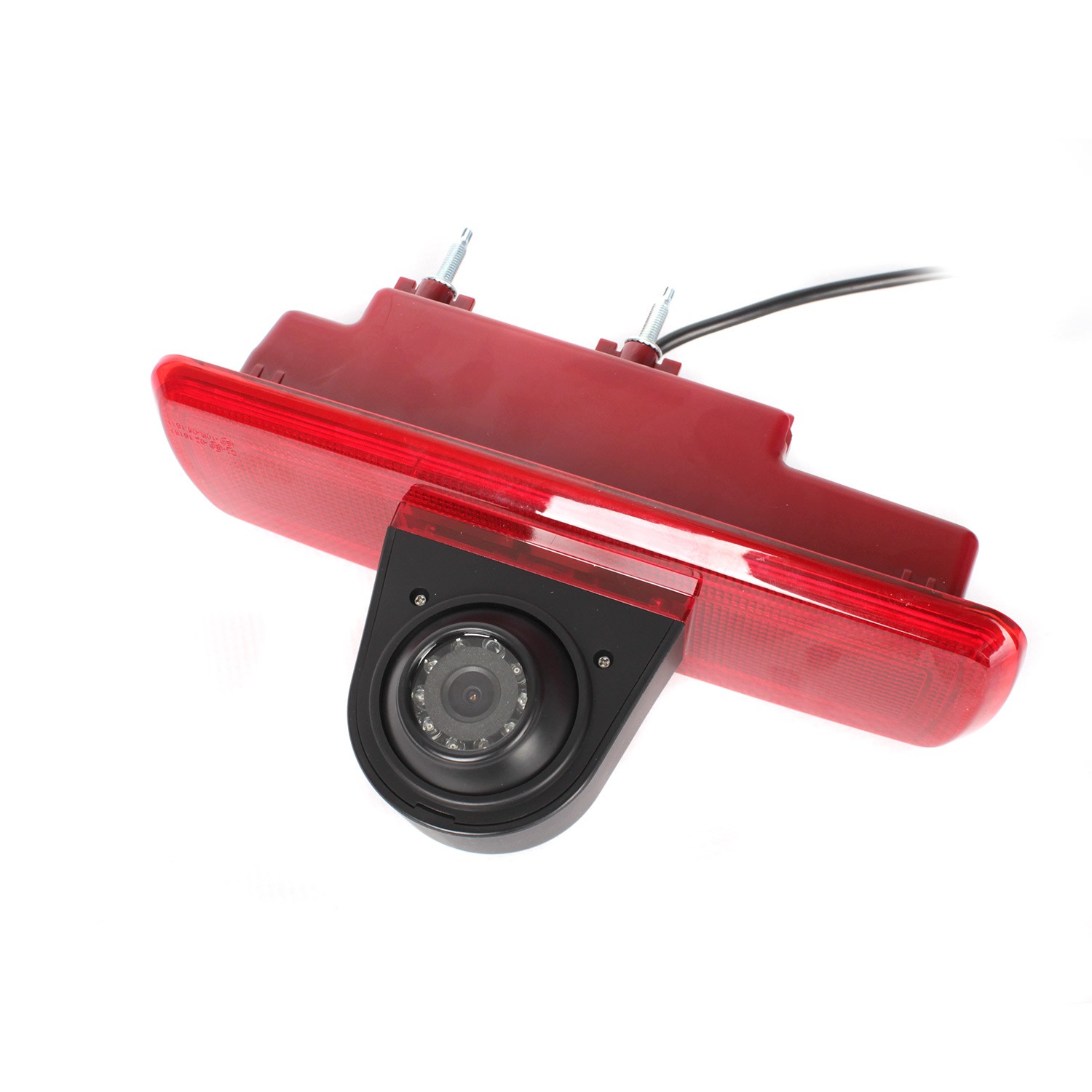

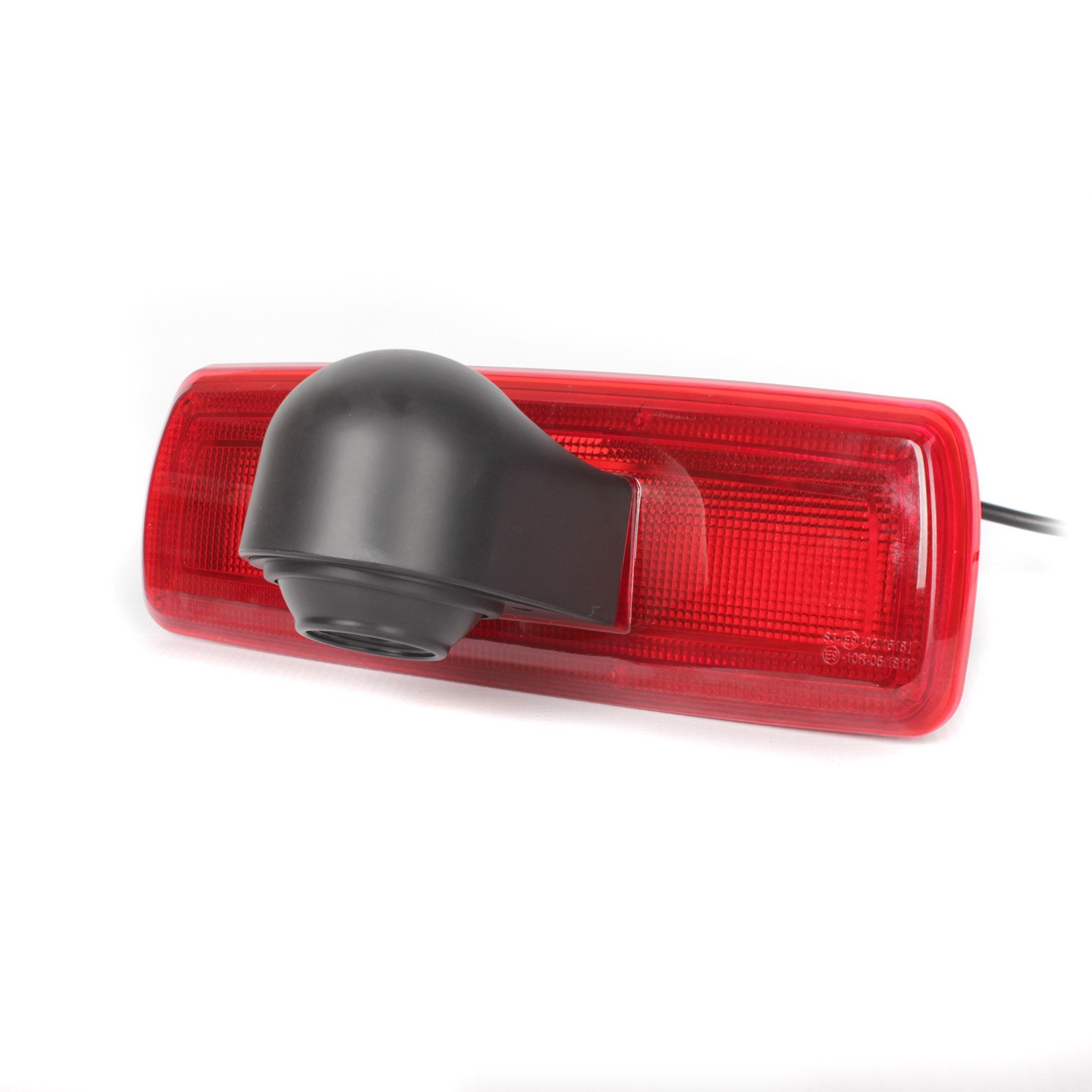

CCD parking camera integrated in the central brake light installed above the rear wing door for vans.

Camera suitable for the following vehicles:

• Renault Trafic III. (2014 ->)

• Opel Vivaro II. (2014 ->)

• Nissan NV300 (2016 ->)

Technical parameters of OEM cameras for Renault, Opel, Nissan:

• CCD Sharp 1/4" sensor chip
• illumination with IR LEDs (6 pcs.)
• lens diameter 14 mm
• electronic aperture: 1/50 1/10000 sec.
• minimum illumination: 0.1 lux
• signal-to-noise ratio: >48 dB
• TV system: NTSC
• number of TV lines: 420
• weather protection: IP68
• scanning angle: 170°
• video output: 1.0V /75 ohm
• white balance: automatic
• operating temperature: from -30°C to +70°C
• power and signal cable for the camera: approx. 80 cm
• signal cable length: 10 m terminated with CINCH connectors
• power cable length: 1 m

Note:
Compatibility must be checked according to vehicle design!
