OEM parking camera Volkswagen Crafter (BC VW-CRAFTER)

OEM parking camera for Volkswagen Crafter

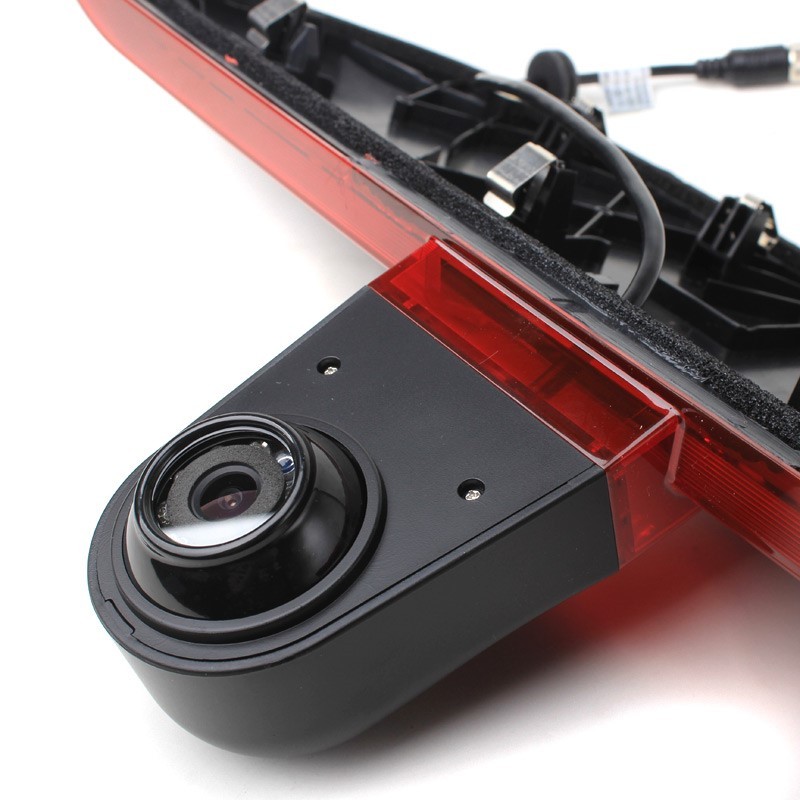

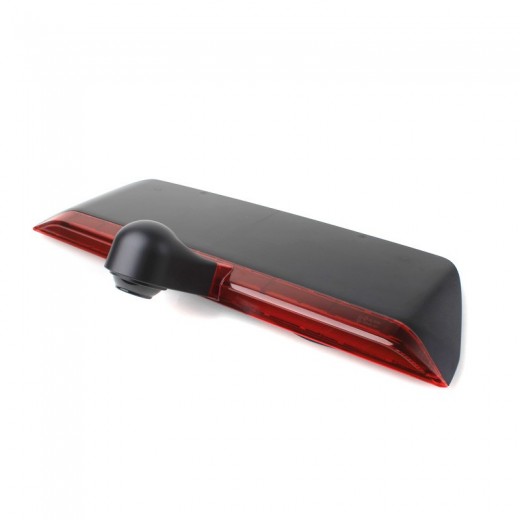

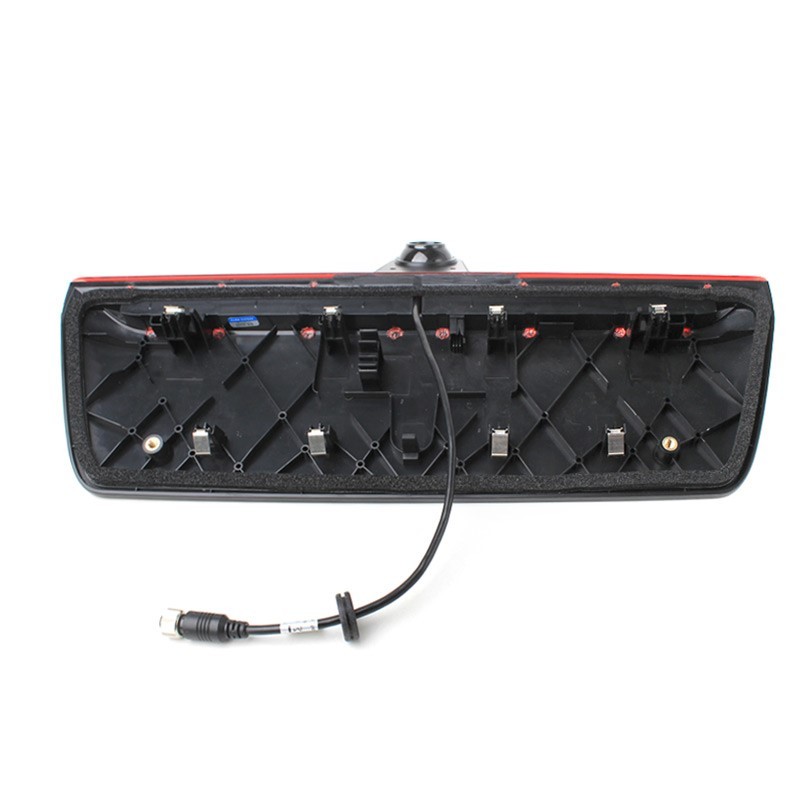

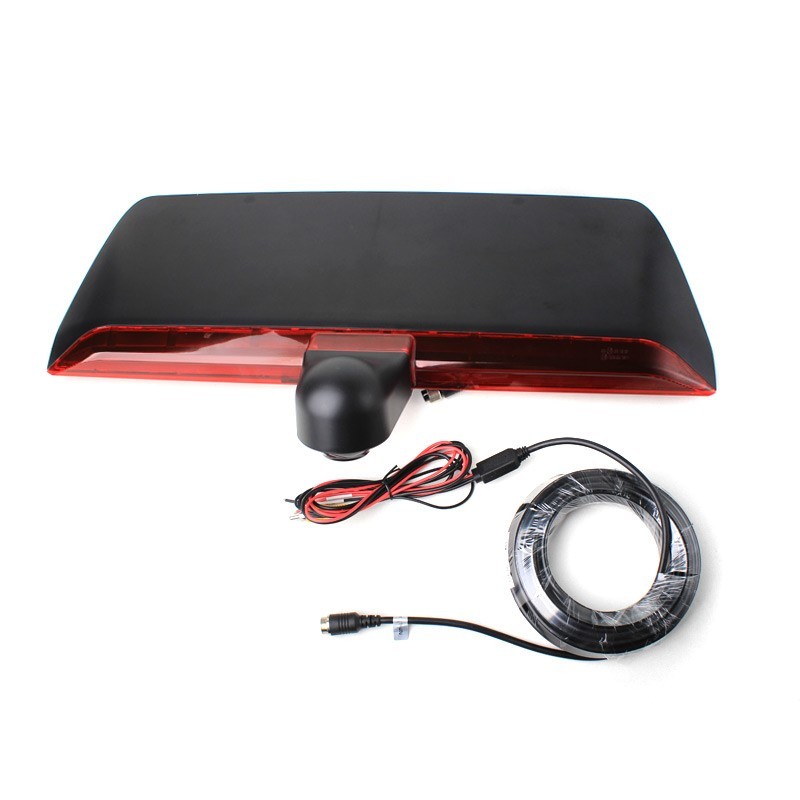

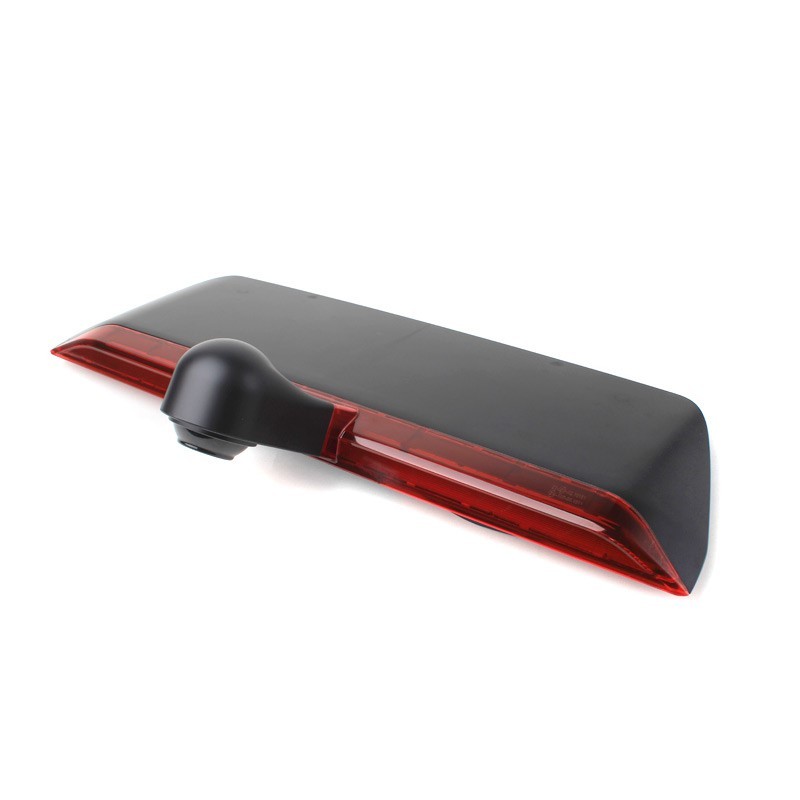

Parking camera integrated in the central brake light installed above the rear door for vans. The camera is homologated.

Camera suitable for the following vehicles:

• VW Crafter (2017 ->)

Technical parameters of OEM camera for Volkswagen Crafter:

• sensing sensor: PC3089 1/3"
• electronic aperture: 1/50 1/10000 sec.
• minimum illumination: 0.1 lux
• signal / noise ratio: > 48 dB
• TV system: NTSC
• number of TV lines: 420
• weather protection: IP68
• scanning angle: 170°
• camera body: durable plastic "private housing"
• image display: mirror image
• white balance: automatic
• operating temperature: from -30°C to +70°C
• AGC, BLC, white balance: automatic
• signal cable: length 10 m terminated with CINCH / RCA connector
• video output: 1.0V / 75 ohm
• power cable length: 1 m
• power supply: 12 V DC
• consumption: <1W
• homologation: E9 10R

Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
