OEM parking camera Volkswagen Transporter T6 and Caddy (BC VW-T6 LIFT)

OEM parking camera for VW Transporter T6

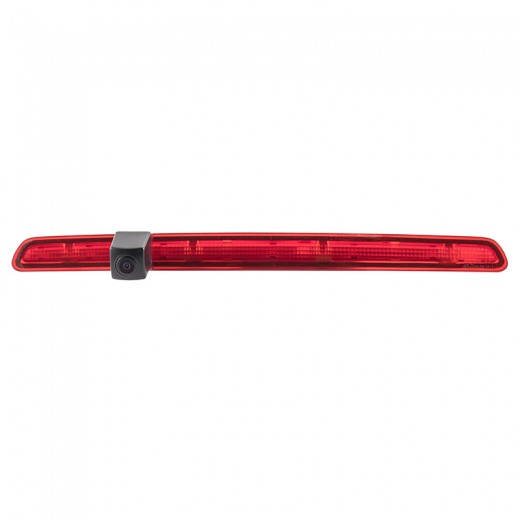

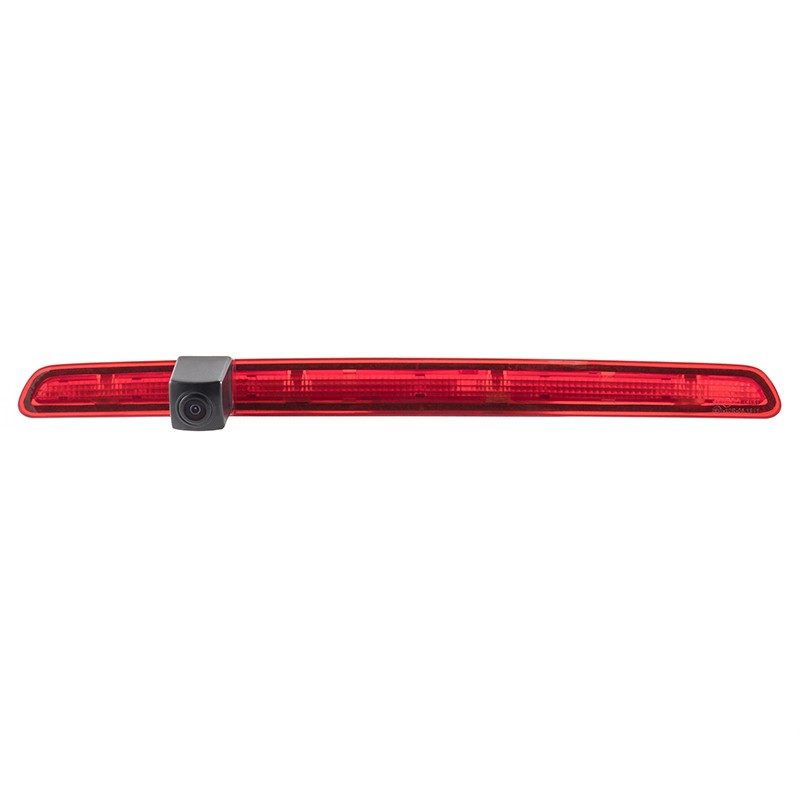

Parking camera integrated in the central brake light installed above the rear hinged door for VW Transporter T6 (15-) vans.   The camera is homologated.

Camera suitable for the following vehicles:

  • Volkswagen Transporter T6 (2015 ->) with hinged doors
  • Volkswagen Caddy [2K] (Facelift 2015 -> 2020) only for cars with hinged doors

Technical parameters of OEM camera for VW Transporter T5:

  • sensing sensor: PC3089 1/3"
  • electronic aperture: 1/50 1/10000 sec.
  • minimum illumination: 0.1 lux
  • signal/noise ratio: > 48dB
  • TV system: NTSC
  • number of TV lines: 420
  • weather protection: IP68
  • scanning angle: 170°
  • camera body: durable plastic "private housing"
  • image display: mirror image
  • white balance: automatic
  • operating temperature from -30 °C to +70 °C
  • AGC, BLC, white balance: automatic
  • signal cable: length 6.2 m terminated with CINCH / RCA connector
  • video output: 1.0V / 75 ohm
  • power cable length: 1 m
  • power supply: 12 V DC
  • consumption: <1W
  • homologation

Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!

Catalog numberBC VW-T6 LIFT
BrandTSS Group
