Parking assistant Keetec BS 410 LED

parking assistant with 4 black sensors and acoustic + visual signaling, intended for installation in the rear bumper of the vehicle
More about the product

We will help you with your purchase

Use our consulting room
You can return the goods to us within 14 days
Try the product at our store

Description and parameters
Comments0
Evaluation0
Category
Assembly

Parking assistant Keetec BS 410 LED

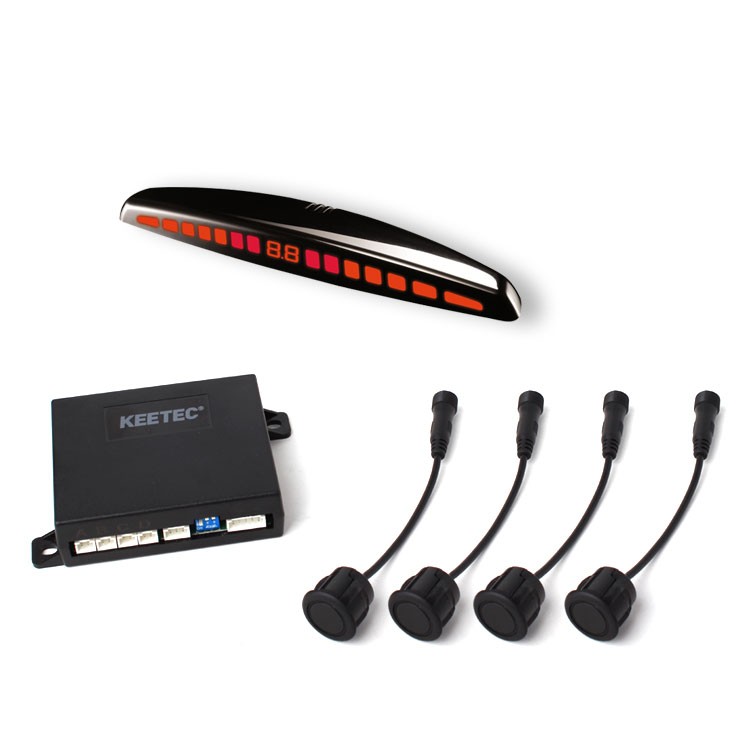

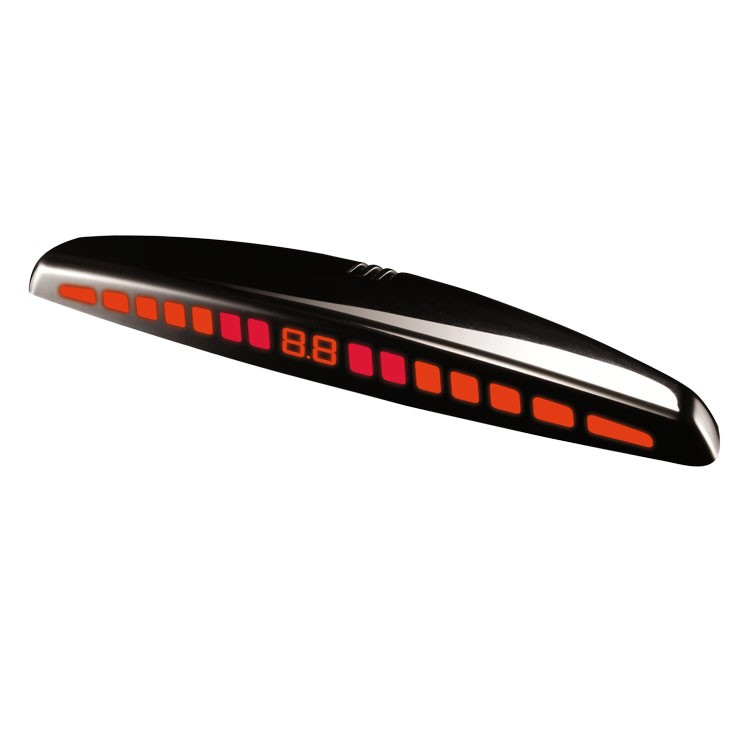

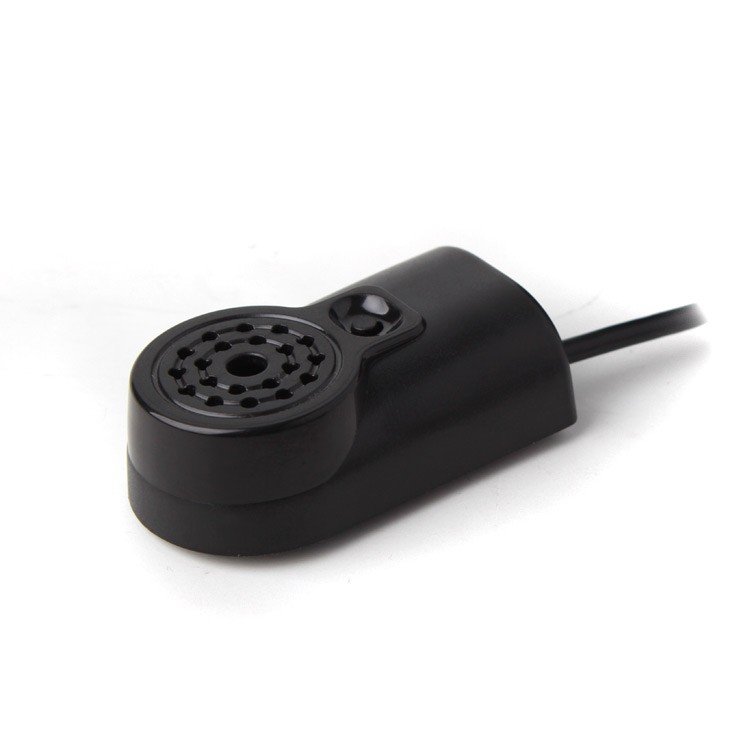

The system includes an Antihook function (ignoring the vehicle's towing device), automatic identification of a faulty sensor and is supplemented with sensitivity adjustment functions, a learning function, a buzzer with adjustable volume and frequency. The parking assistant can be supplemented with an LED display. The set includes 4 parking sensors, control unit, buzzer and wiring. Supply voltage 12 V.

System description

sensors with fixed mounting in the bumper
fast obstacle detection
visual and sound signaling (changing frequency of beeps) will announce the position of the obstacle
excellent coverage of the entire space behind the car, horizontal scanning angle up to 110° ± 15°
if the obstacle is within 30 cm of the vehicle, a continuous tone will sound
autodetection (automatic identification of a faulty sensor)
adjustable sensitivity of the sensors on the control unit (2 levels)
unique learning function (ignoring permanent obstacles - reserve, towing, frame ...)
additional wire to ignition (pink) for stable power supply (optional connection)
angular reduction directly in the package 0°, 4°, 10°
sensor core diameter 14 mm
required mounting hole 18.8 mm
the sensors are on a 10 cm cable with a waterproof connector, which ensures easy sensor replacement if necessary
length of wires to sensors 2.3 m
