Parking assistant Keetec BS 810 OEM

Keetec BS 810 OEM parking sensors

Eight-sensor parking assistant with flush-mounted 16 mm sensors, two buzzers with volume and pitch adjustment switches. The system is intended for installation in the front and rear bumper of the vehicle. The new control units allow setting the sensitivity of the sensors as well as setting the delay of switching off the front sensors in two levels.

System description

• acoustic signaling
• buzzers with volume and pitch adjustment switch
• sensors are mounted in the rear and front bumpers
• fast obstacle detection
• automatic detection of sensor damage
• if the obstacle is within 30 cm of the vehicle, a continuous tone will sound
• Antihook function - measurement shift + 20 cm (reserve, towing, frame, ...)
• sensor sensitivity settings
• delay of turning off the front sensors after releasing the brake pedal (8 s or 20 s)
• excellent coverage of the entire space behind the car, horizontal scanning angle 110° ± 15°
• required mounting hole 16 mm

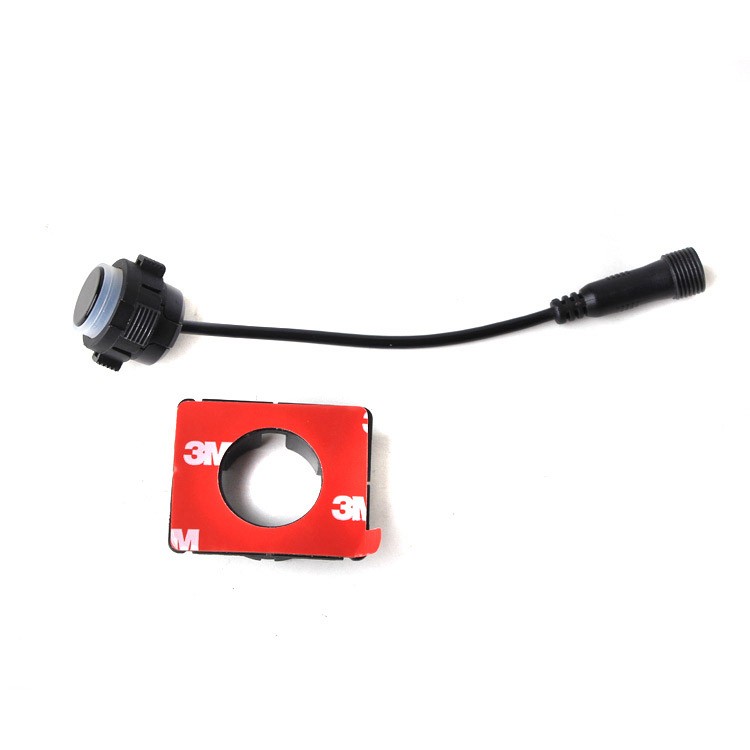

• the sensors are on a 10 cm cable with a waterproof connector, which ensures easy sensor replacement if necessary
• supply voltage: 12 V DC
• working power: <2.5W
• detection range (front/back): 0.3 - 1 m / 0.3 - 1.5 m

Package contents

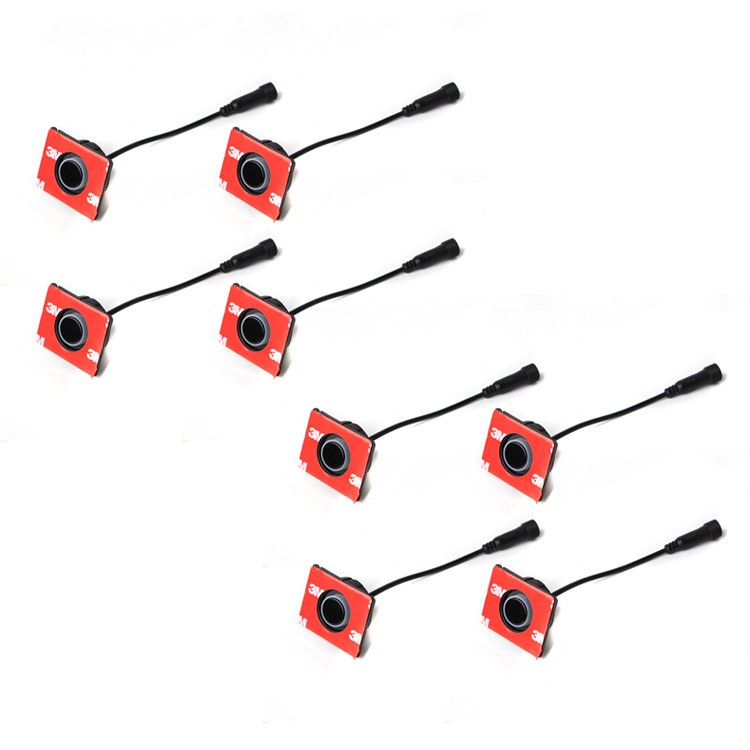

• parking sensors 8 pcs
• buzzer 2x
• control unit 2x

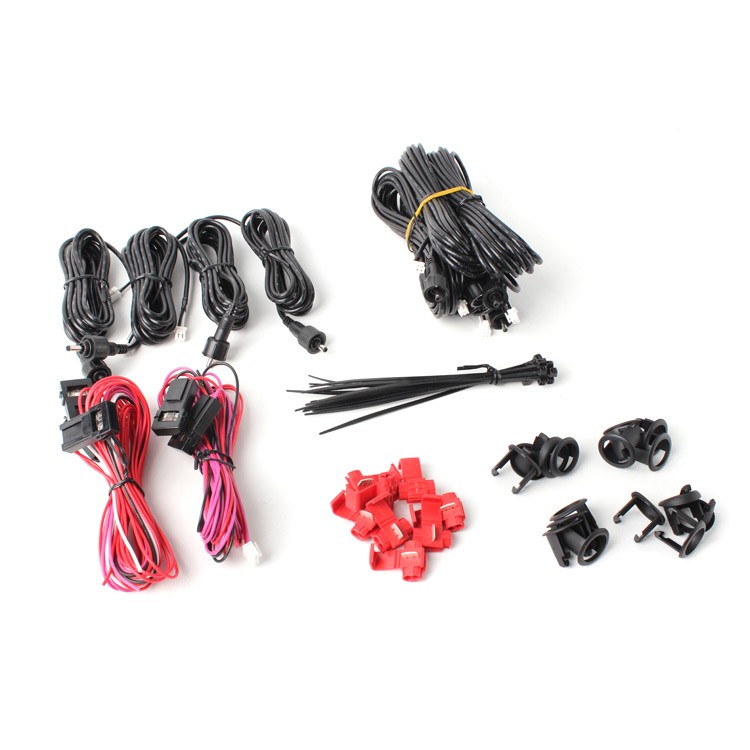

• cabling
• instructions
• warranty card

Notice

The control unit contains a 3PIN connector for connecting the display, old displays with a PIN connector are not compatible!
