Parking assistant Keetec BS 810 S

Parking sensors Keetec BS 810 S

Eight-sensor parking assistant with two buzzers with volume and pitch adjustment switches. The system is intended for installation in the front and rear bumper of the vehicle. The new control units allow setting the sensitivity of the sensors as well as setting the delay of switching off the front sensors in two levels.

System description

• acoustic signaling
• buzzers with volume and pitch adjustment switch
• sensors are mounted in the rear and front bumpers
• fast obstacle detection
• automatic detection of sensor damage
• if the obstacle is within 30 cm of the vehicle, a continuous tone will sound
• Antihook function - measurement shift + 20 cm (reserve, towing, frame ...)
• sensor sensitivity settings
• delay of turning off the front sensors after releasing the brake pedal (8 s or 20 s)
• excellent coverage of the entire space behind the car, horizontal scanning angle 110° ± 15°
• angular reduction directly in the package 0°, 4°, 10°

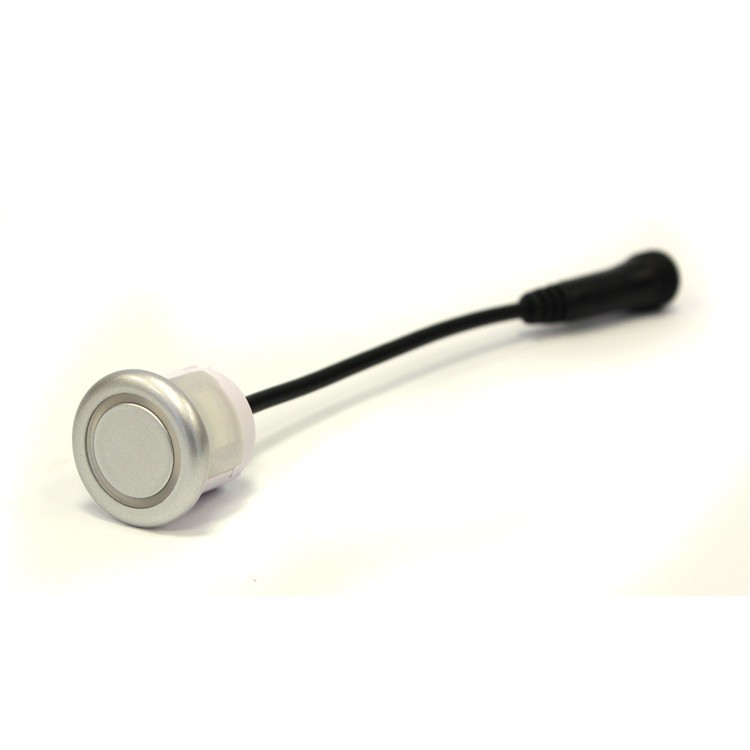

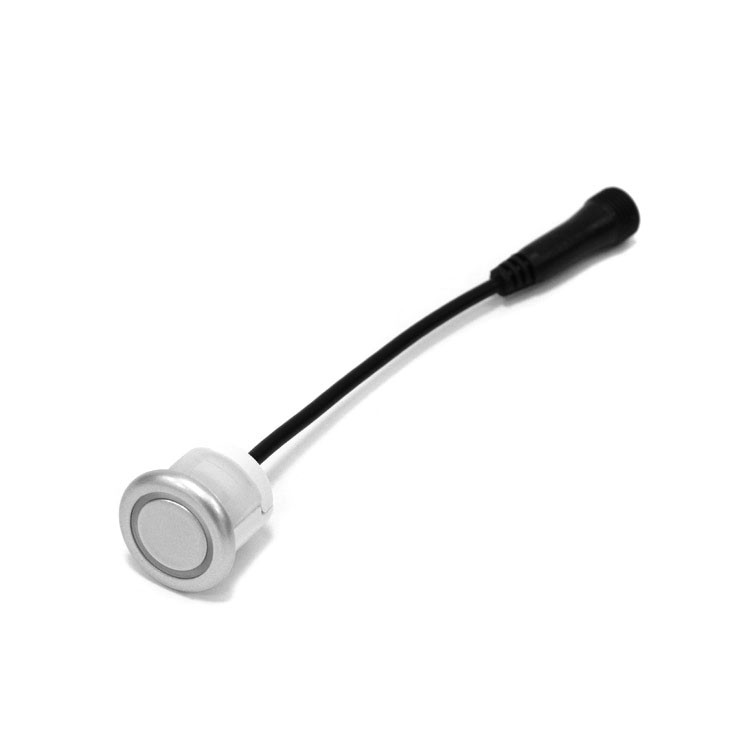

• sensor core diameter 14 mm
• required mounting hole 18.8 mm
• the sensors are on a 10 cm cable with a waterproof connector, which ensures easy sensor replacement if necessary
• supply voltage: 12 V DC
• working power: <2.5W
• detection range (front/back): 0.3 - 1 m / 0.3 - 1.5 m

Package contents

• parking sensors 8 pcs
• buzzer 2x
• control unit 2x
• cabling
• drill bit
• instructions
• warranty card

Notice

The control unit contains a 3 PIN connector for connecting the display, old displays with an 8 PIN connector are not compatible!
