Pioneer MVH-S120UB car radio without mechanics

Name: Pioneer MVH-S120UB car radio without mechanics
Brand: Pioneer
Price: 63.78 EUR
Availability: InStock
Rating: 5.0000 (17 reviews)

(17 assessment)

Add to FavoritesRemove from favourites

1DIN, without mechanics, USB input, red backlight of the buttons, 1 x RCA
More about the product

We will help you with your purchase

Use our consulting room
You can return the goods to us within 14 days
Try the product at our store

Pioneer MVH-S120UB car radio without mechanics

-11 %

Description and parameters
Comments0
Evaluation17
Category

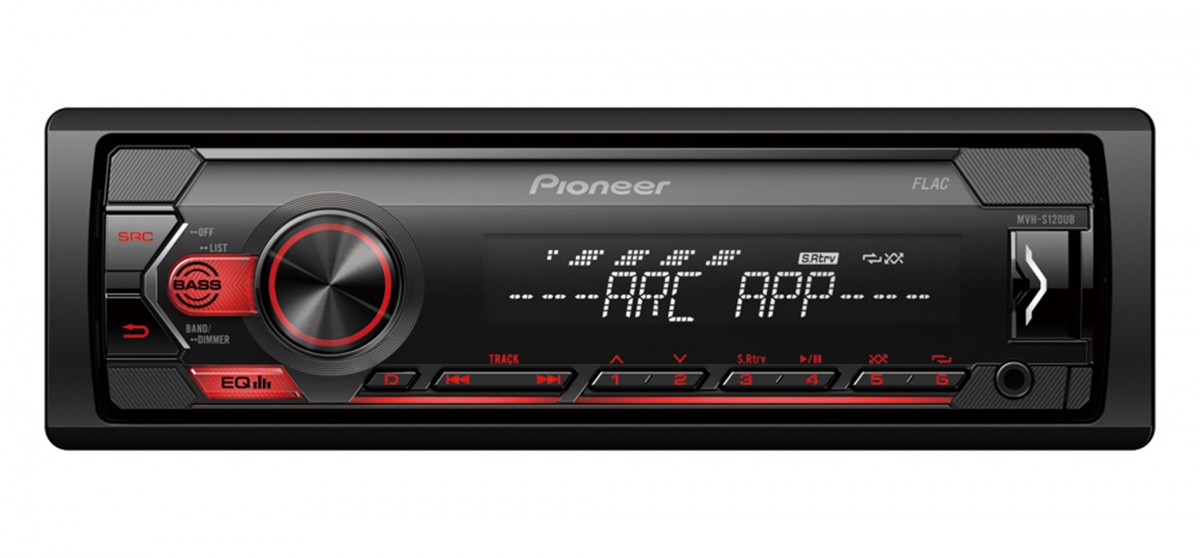

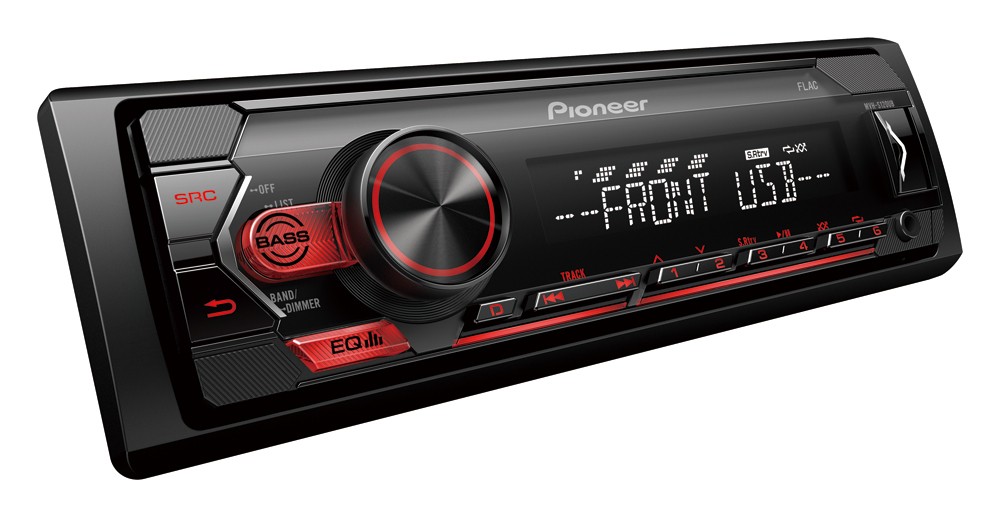

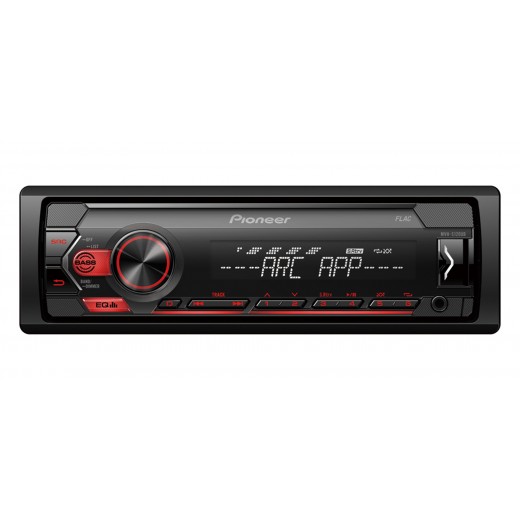

Car radio without mechanics with red backlight Pioneer MVH-S120UB

Mechanicless Pioneer MVH-S120UB car radio with red button illumination, which supports FLAC format at a very reasonable price and looks really luxurious. Specially developed car radio for digital music, for connection with Android smartphone and other devices using the front USB input. In this way, you can listen to your favorite songs while recharging your mobile phone battery (via USB). This radio offers 4 x 50W pure MOSFET power and quality sound reproduction. Thanks to the rear RCA output, you can install an active subwoofer or amplifier . In addition, you can control your Pioneer car radio with the Pioneer ARC app on your smartphone. Installation of the car radio is significantly easier thanks to the shortened chassis. The display of the clock on the car radio display is also a practical function.

Catalog number	MVH-S120UB
Brand	Pioneer
Links	Official web presentation
Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm.	1 DIN
Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel.	4x 50W
Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input.	MP3, WMA, WAV, FLAC
USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable).	Yes (front entry)
CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD.	No
SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios.	No
DVD driveDVD ("Digital Versatile Disc" or "Digital Video Disc") is a digital optical data carrier format that can contain movies or various other data. Car radios with a DVD drive can also play classic CD discs, and the car radio always has a slot for only one disc, the CD drive and the DVD drive are always in one.	No
HDMI / MHLHDMI stands for High-Definition Multi-media Interface, an uncompressed video and audio signal in digital format. HDMI supports video transmission in standard, enhanced or high-definition quality, and up to 8-channel digital audio. Mobile High-definition Link (MHL) is an industry norm and standard for a mobile multimedia (audio/video) interface that allows you to connect a smartphone, tablet and other portable electronic devices to car stereos with high definition image and sound. The MHL standard supports video up to full HD 1080p/60 and audio with 7.1 channels.	No no
Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function.	No
Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases.	1 pair
Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads.	Not listed
Made for Apple iPod & iPhoneWhen connecting an Apple device to the car radio, music applications can be controlled using the car radio itself, i.e. basic common functions.	No
Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri.	No
Works with Android OSAfter connecting a smartphone with the ANDROID operating system, the car radio can control music in the Android OS music player (Google Play, Spotify, etc.), so there is no need to pick up a mobile phone. You control the basic, common functions of the music application with the car radio itself.	Yes
Backlit buttonsColor options for the backlight of the car radio buttons.	Red
Display backlightOptions for backlighting the car radio display.	White
DisplayAdditional information about the display. Segment, LCD, multi-line, etc.	LCD
DimmerThe Dimmer function is used to automatically reduce the brightness after dark. The dimmer can usually be set manually in a few steps.	Yes
Loudness functionThe Loudness function pulls out certain frequencies and accentuates them with a higher volume. It is good to use Loudness at a low volume, we do not recommend turning on this function at a higher volume because the sound will not be balanced and in extreme cases you can even damage the speakers.	Not listed
Bass boost functionBass boost or bass enhancement. With this function, the bass itself can be emphasized, at a high level of bass boost, the speakers and the subwoofer can distort a lot and the sound will be worse than better. We therefore recommend using the "bass boost" function wisely. With maximum use of bass boost, there is a risk of damage to the speakers and thus to the subwoofer.	Not listed
Equalizer / DSP processorA basic or parametric equalizer allows you to adjust the sound at individual frequencies in finer steps. Using the DSP processor , you can set the time correction, connect the speakers actively (actively): without crossovers, set the location of the speakers and determine their size digitally.	Yes No
NFC connectionNFC is a new form of wireless communication between devices. Simply place a smartphone that is equipped with NFC to the car stereo with NFC, and the two devices will connect immediately, so you can immediately play music from the smartphone to the car stereo. So all you have to do is get close and the connection will happen.	No
Built-in DAB+ tunerIntegrated DAB+ (Digital Audio Broadcasting) digital FM tuner for reception of digital FM radio signal broadcasting. Before buying a car radio with a DAB+ tuner, we recommend checking whether the package includes a DAB+ antenna, without which you cannot receive digital broadcasts. This information is usually provided on the manufacturer's official website.	No
Direct subwoofer controlSubwoofer settings, where you can add or subtract the dB level, i.e. subtract or add bass according to the recording. Higher class car radios can also rotate the phase and other functions for perfect bass. Some car radios allow you to turn off the subwoofer completely, with a button in the car radio menu. This is a very useful feature if you have a subwoofer in your car.	Yes
Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you.	Yes
Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely.	No
Possibility to purchase a wireless remote controlCar radios equipped with a sensor for IR remote control. Usually, the remote control does not need to be paired or set up, it works automatically. If your remote control does not work, we recommend checking the battery in the remote control.	No
Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body.	No
Cable with ISO terminal included in the packageThere is usually a specific 12-18 pin connector on the back of the car radio itself, into which the reduction to standard ISO is connected. This cable is always included in the package of branded aftermarket car radios and has a length of 8 - 15 cm.	Yes
Cover for the front panel included in the packagePlastic or fabric cover for the front panel. A good helper against destroying or scratching the front panel of the car radio.	Yes
