Rockford Fosgate PRIME R2-500X4 amplifier

4-channel amplifier, 4 x 75 / 2 x 250 into 4 Ω / 4 x 125 W RMS into 2 Ω, class D
More about the product
We will help you with your purchase

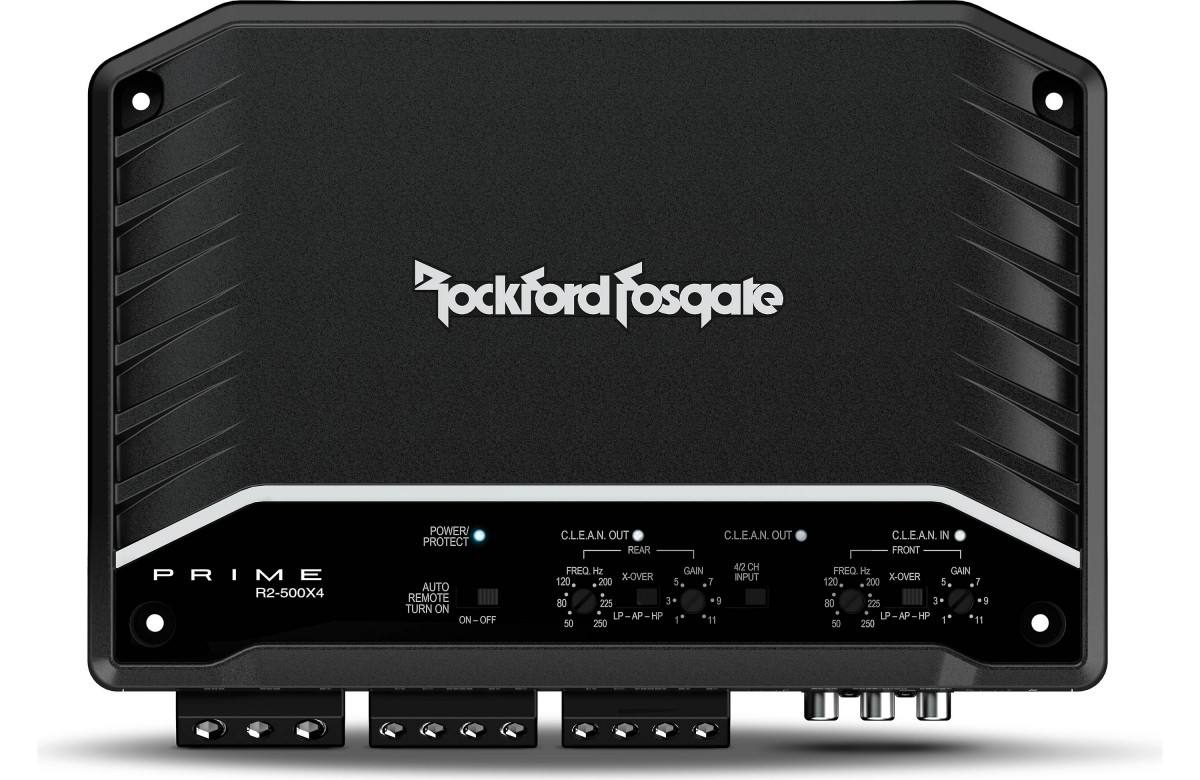

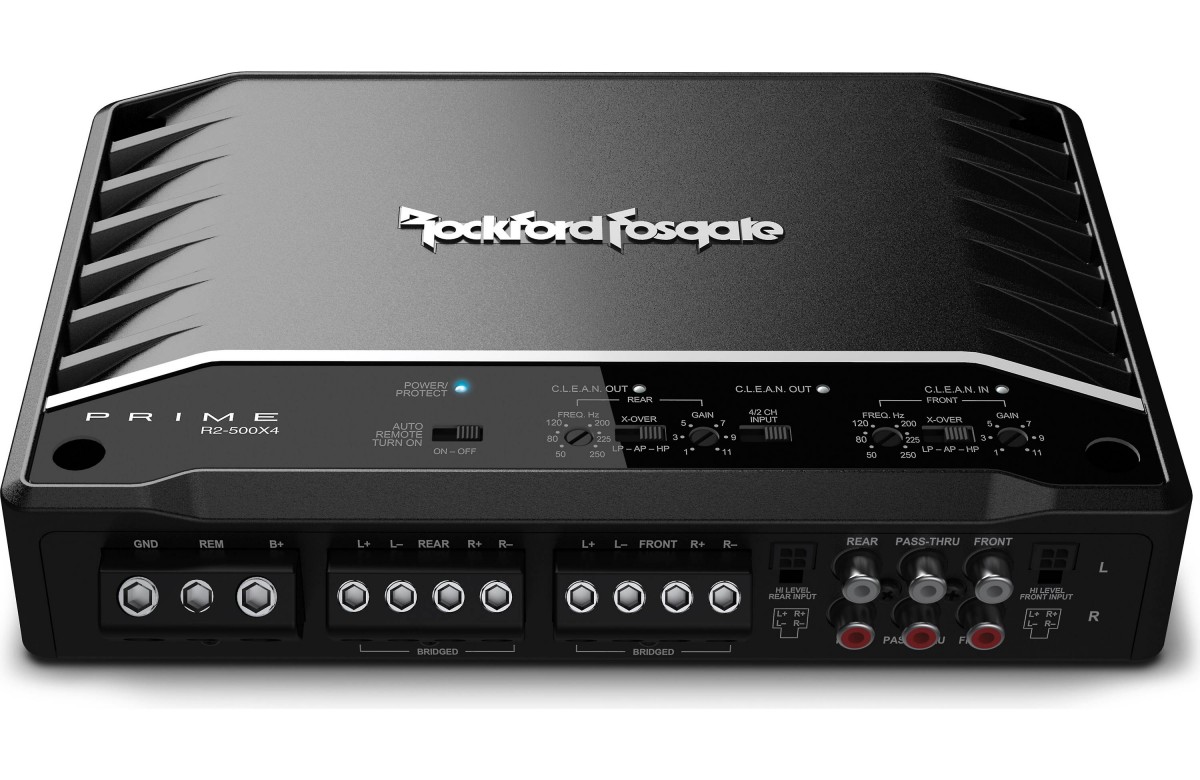

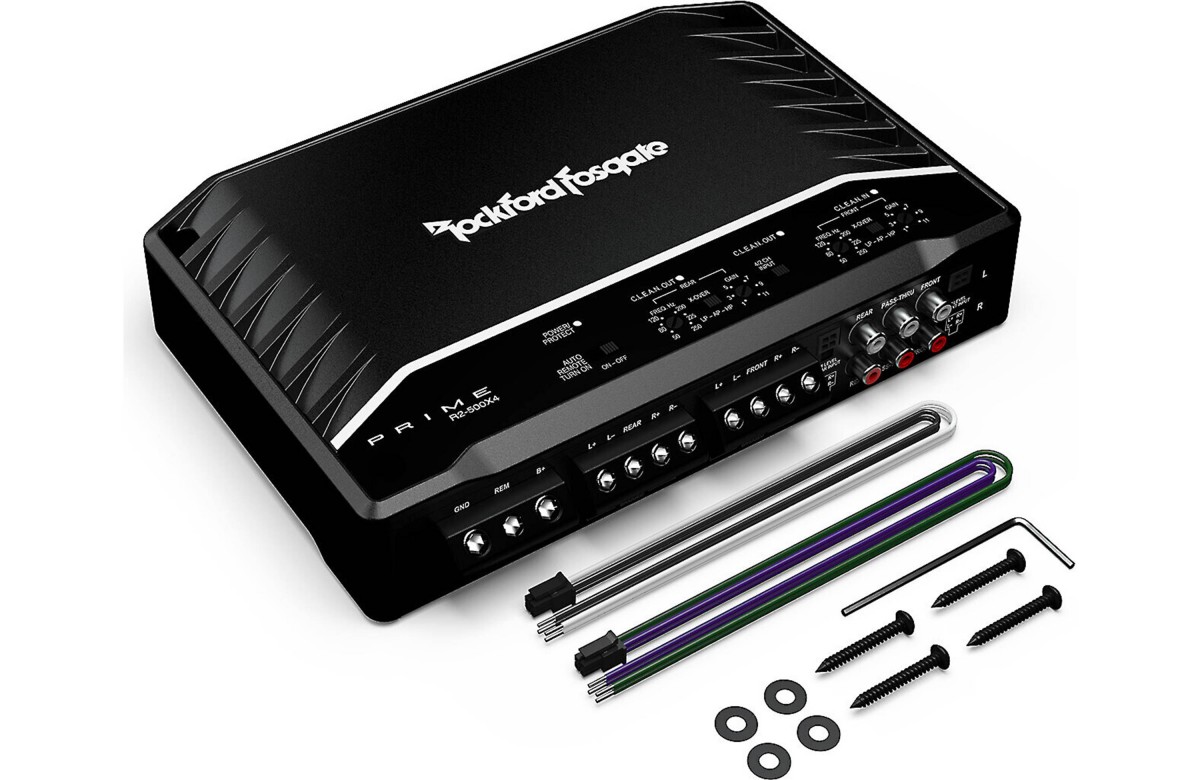

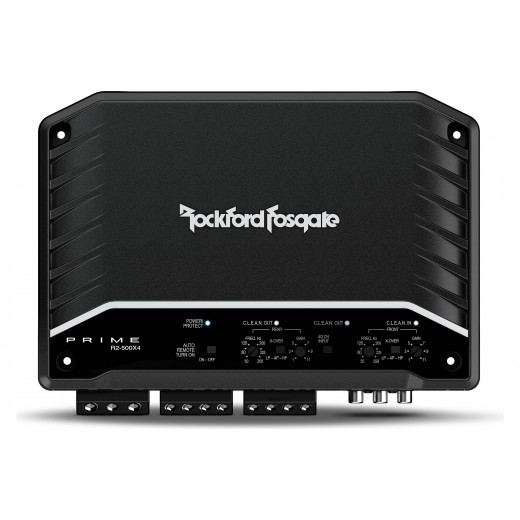

Rockford Fosgate PRIME R2-500X4 amplifier

Rockford Fosgate PRIME R2-500X4 amplifier

The R2-500X4 is a 500-watt full-range Class-D amplifier capable of operation at 4 Ω or 2 Ω stereo and 4 Ω bridged/mono. This amplifier is extremely efficient thanks to its Class D technology, which reduces the demands on the vehicle's electrical system. The amp also features CLEAN circuitry to help you adjust gain settings and a POWER power supply system that generates more power as the voltage increases. The Prime R2 amplifier models are developed for car audio fanatics who want a reliable amplifier at an affordable price. Rockford Fosgate amplifiers are world renowned for being 'underrated', easily exceeding all specifications and most importantly generating more power than their ratings. These generations of Prime Series amplifiers are also designed for ease of setup and configuration, making them ideal for use with factory audio systems.

Rockford Fosgate PRIME R2-500X4 amplifier key features

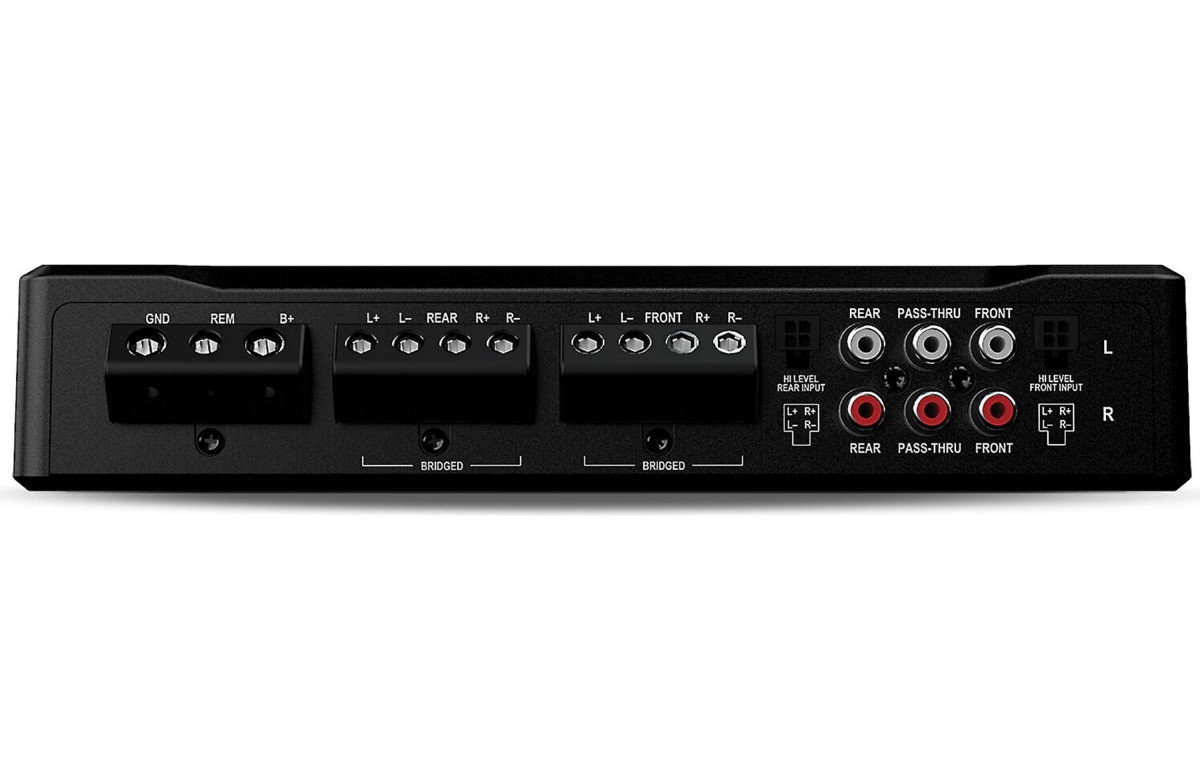

  • Balanced differential inputs with RCA Pass Through outputs.
  • High level entry opportunity.
  • Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power).
  • CLEAN function
  • 2/4 channel input selection switch.
  • Front and rear input gain gain adjustment level.
  • Top control panel.
  • Short circuit protection.
  • CEA-2006 compliant and CE compliant.
  • Cast aluminum heatsink.
  • Class-D.
  • Fully adjustable 12 dB / oct. High and Low pass crossovers.
Catalog numberR2-500X4
BrandRockford Fosgate
LinksOfficial web presentation
Number of amplifier channelsAmplifiers are divided into:
- Monoblocks
- 2-channel
- 3-channel
- 4-channel
- 5-channel
- 6-channel
- multi-channel

Each channel is used to power one speaker for the coaxial type, or one side if they are component speakers.

Monoblock type amplifiers are mainly used for subwoofers.

2-channel are suitable for both subwoofers and, for example, the front pair of speakers in a car.

3-channel is used for front or rear speakers + subwoofer.

4-channel are used for front + rear speakers or 1 pair of speakers + subwoofer.

6 or 5-channel are used for 2 pairs of speakers + subwoofer, most often.

Bridging means connecting the amplifier to a bridge, using the + pole from one channel and the - pole from the other channel. In most cases this is shown as "BRIDGED" on the amplifier.
4
Energy class of the amplifierAmplifiers are divided into two basic classes: analog and digital . Analog amplifiers (A/B) have higher consumption requirements, but usually have a more natural sound. Digital amplifiers (D) have significantly lower consumption and higher efficiency, but the sound may not be as faithful as with classic analog amplifiers. D
RMS power into 4 ΩRMS power when loading speakers or subwoofer at 4 Ω. RMS power is the constant power of the amplifier and is one of the most important parameters when choosing an amplifier. 4 x 75 / 2 x 250 W
RMS power into 2 ΩRMS power when loading speakers or subwoofer at 2 Ω. RMS power is the constant power of the amplifier and is one of the most important parameters when choosing an amplifier. 4 x 125W
Low-pass filter (LPF)LPF / LP or "low pass filter" offers the possibility to adjust the amplifier using a potentiometer so that the lower band plays only the frequencies in a certain band that you need. This filter is used to adjust the frequency range for the subwoofer, so that it does not overload or distort the sound.

Example:
Amplifiers most often have an LPF from 20 to 300 Hz. We recommend setting this potentiometer in the range of 45-80 Hz.
50 - 250 Hz
High pass filter (HPF)HPF / HP or The "hi pass filter" offers the option of setting the amplifier using a potentiometer so that medium, possibly mid-bass and treble frequencies play upwards from a certain frequency.

Example:
Amplifiers most often have an HPF from 40 to 300 Hz. If we set the potentiometer to a value of approx. 150 Hz, the sound will be clipped so that it plays frequencies from 150 Hz up to the maximum upper limit of the entire frequency range of the amplifier, perhaps up to 20,000 Hz. We recommend setting this potentiometer in the range of 80-160 Hz. Thanks to this setting option, the speakers can handle a higher performance, as you will not overload them with bass in the lower frequency range.
50 - 250 Hz
Input sensitivityIn order for the amplifier to perform its function correctly, it requires an input signal of a certain level, which is different for car radios. It is measured in "Volts" (e.g. 2 V, 4 V, etc.) The higher the value at the output of the pre-amplifier, or car radio, the less demands are placed on the power of the amplifier. However, the amplifier must allow this input sensitivity, and for that reason this value is also given for the amplifier. 150 mV to 4 V
On-board voltage rangeThe ability of the amplifier to operate at a specified voltage. As the voltage decreases, so does the power of the amplifier. The ideal voltage in a car is between 13.8 and 14.4 V. 9 - 16 V
High level inputsThe high-level input on the amplifier allows connection directly to the existing speakers in the car without additional purchase of an external high/low adapter. Important equipment in the case of installing an amplifier on an original car radio. Yes
Automatic on and offThis function allows you to automatically switch on the amplifier. Yes
Socket input terminalsFerrule terminals allow better wiring contact to the amplifier. It is also a more secure form of terminals. If you are tightening the sleeve terminals, we recommend retightening them after 1 day, as the connected cable gradually compresses. Yes
Remote control included in the packageSome models of amplifiers also come with wired remote controls in the package, which on one side plug into the amplifier and on the other side you have a potentiometer that you can place anywhere in the cabin. A common place to place the remote control is under the steering wheel. The advantage is the regulation of power, and therefore volume, depending on driving conditions and the mood of the crew in the car. No
Input for wired remote controlIf the amplifier has a remote control input. No
The value of the fuses on the amplifierFrom the value of the fuses on the amplifier, you can get a true picture of the real performance of the amplifier. 80 A
Dimensions of the amplifier4.9 x 17.3 x 25.5 cm
