Scangrip Line Light 1 lighting unit

Line Light lighting unit for universal use
More about the product
We will help you with your purchase

Scangrip Line Light 1 lighting unit

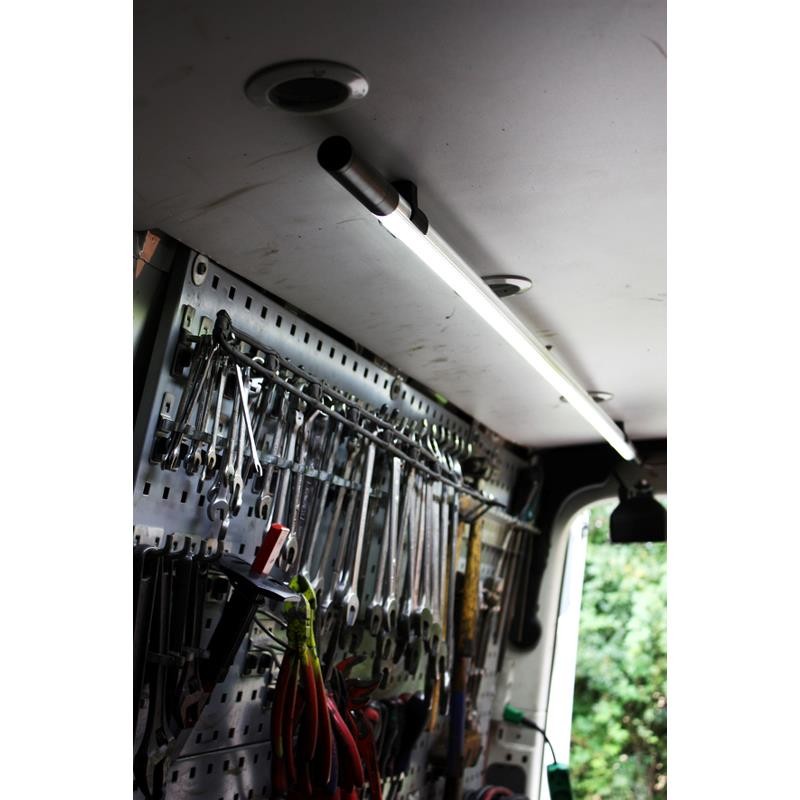

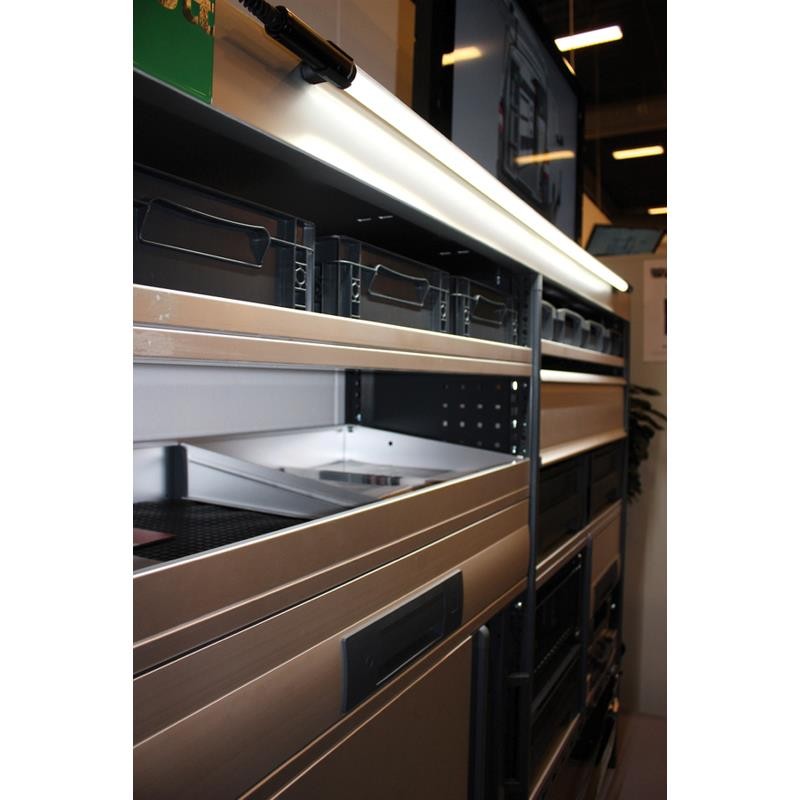

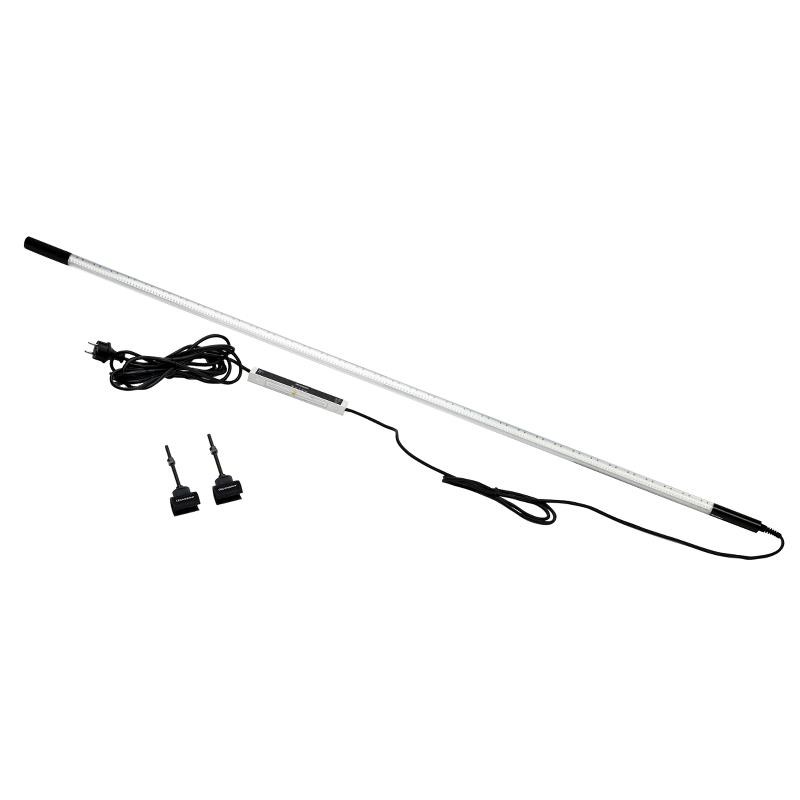

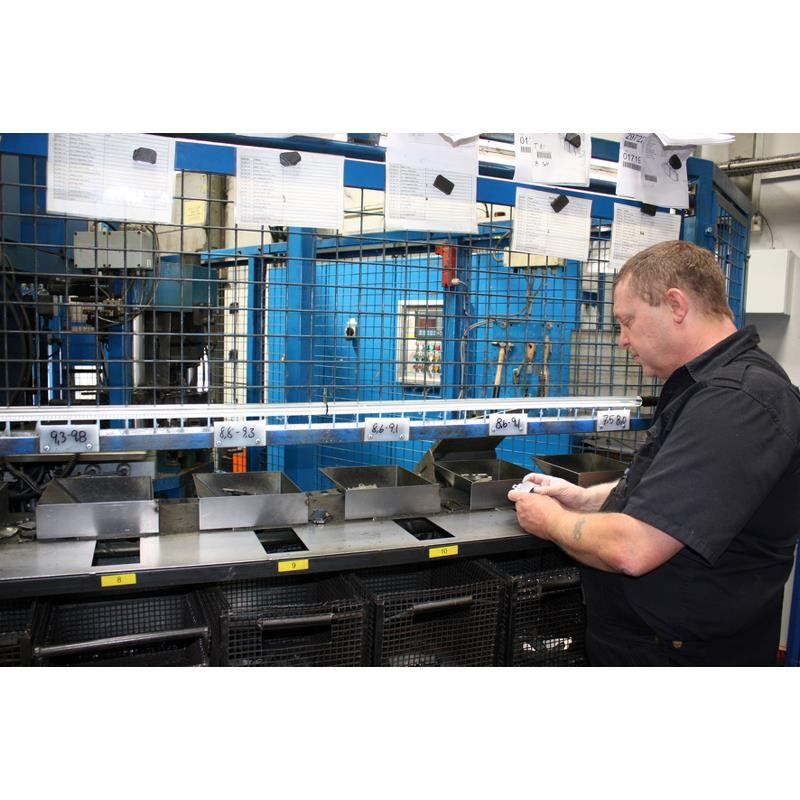

Scangrip Line Light 1 concentrates the light in a beam angle of 75° and provides extremely bright and powerful illumination of the entire work area. Almost double the lighting compared to traditional 36W fluorescent lamps. The design is thin and compact (only 25 mm in diameter). Since the Scangrip Line Light 1 is a low voltage (24V DC) system, you can easily install it yourself. All basic mounts are supplied with each kit along with a power supply and cable. Scangrip Line Light 1 is shock and water resistant (IP67). It can thus withstand damp and dirty environments, e.g. in the workshop. The technical lifespan of an LED is at least 100,000 hours. The Scangrip Line Light 1 consists of one 1630mm long LED tube, including a 20W power supply, cable and basic mount.

Technical parameters of the primary light Scangrip Line Light 1

  • Light source: 216 SMD LEDs.
  • Lighting intensity: 1600 lux, 0.5 m.
  • Luminous flux: 1400 lm.
  • Degree of protection: IP67.
  • Cable: 8 m / H03VV-F 2 x 0.5 mm².
  • Weight: 2,700 g.
  • Plug type: F type.
  • CRI: >80.
  • CCT: 6000K.
  • Working temperature: -10 °C to +40 °C.
  • Dimensions: 1630 x 25 x 25 mm.

Package contents

  • Scangrip Line Light 1.
  • Cable.
  • Power cable.
  • Brackets.
  • Instructions.
Catalog number03.5203
BrandScangrip
LinksOfficial web presentation
