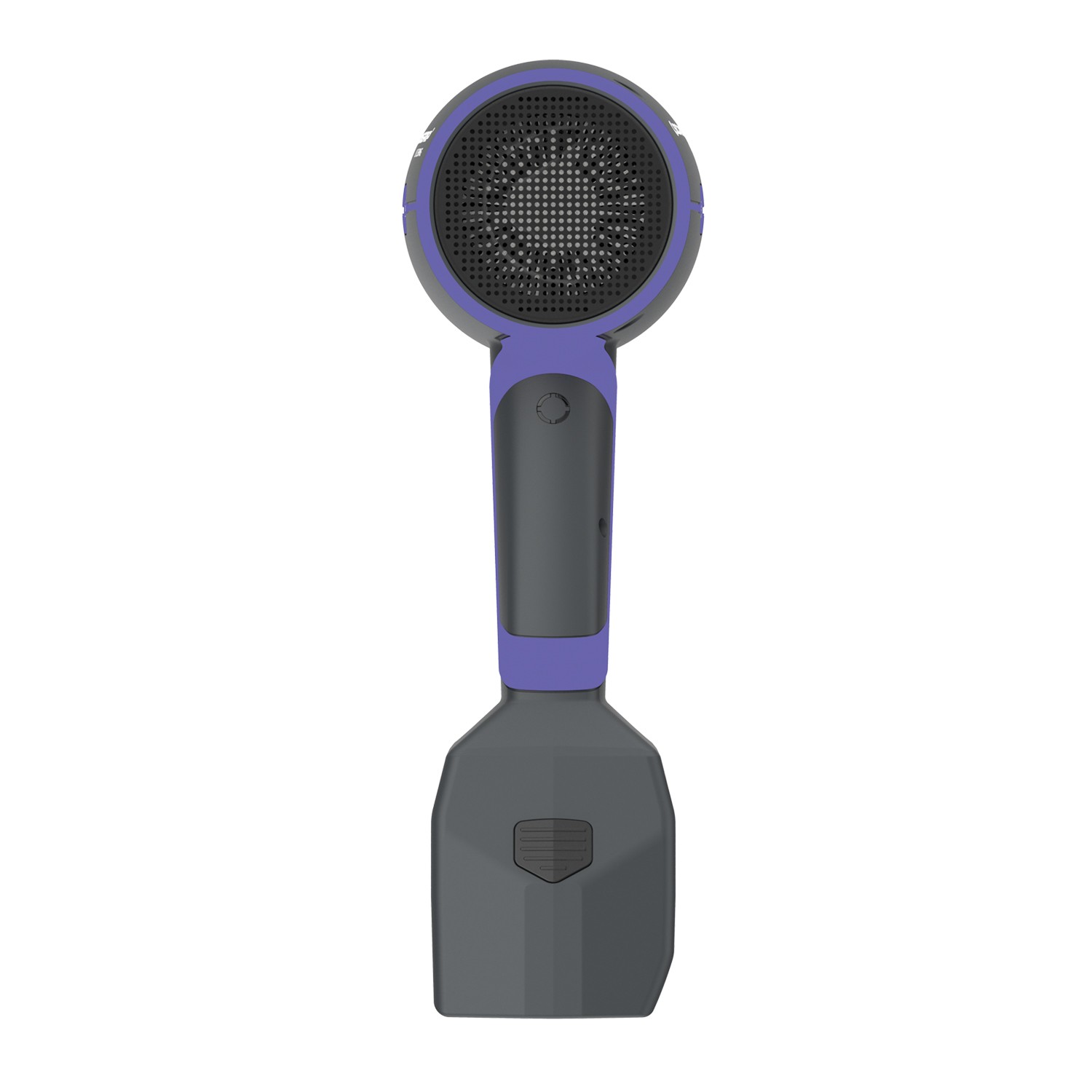

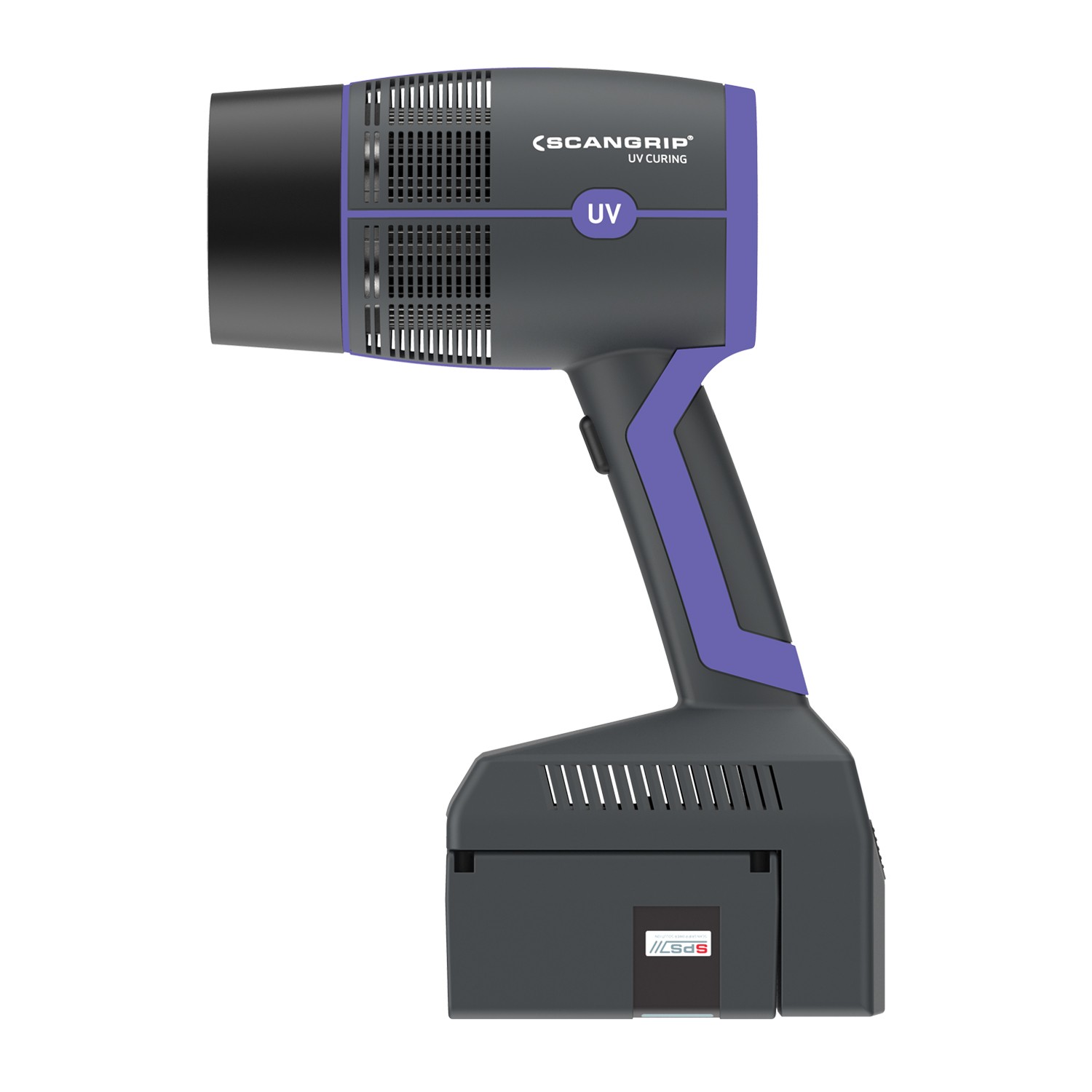

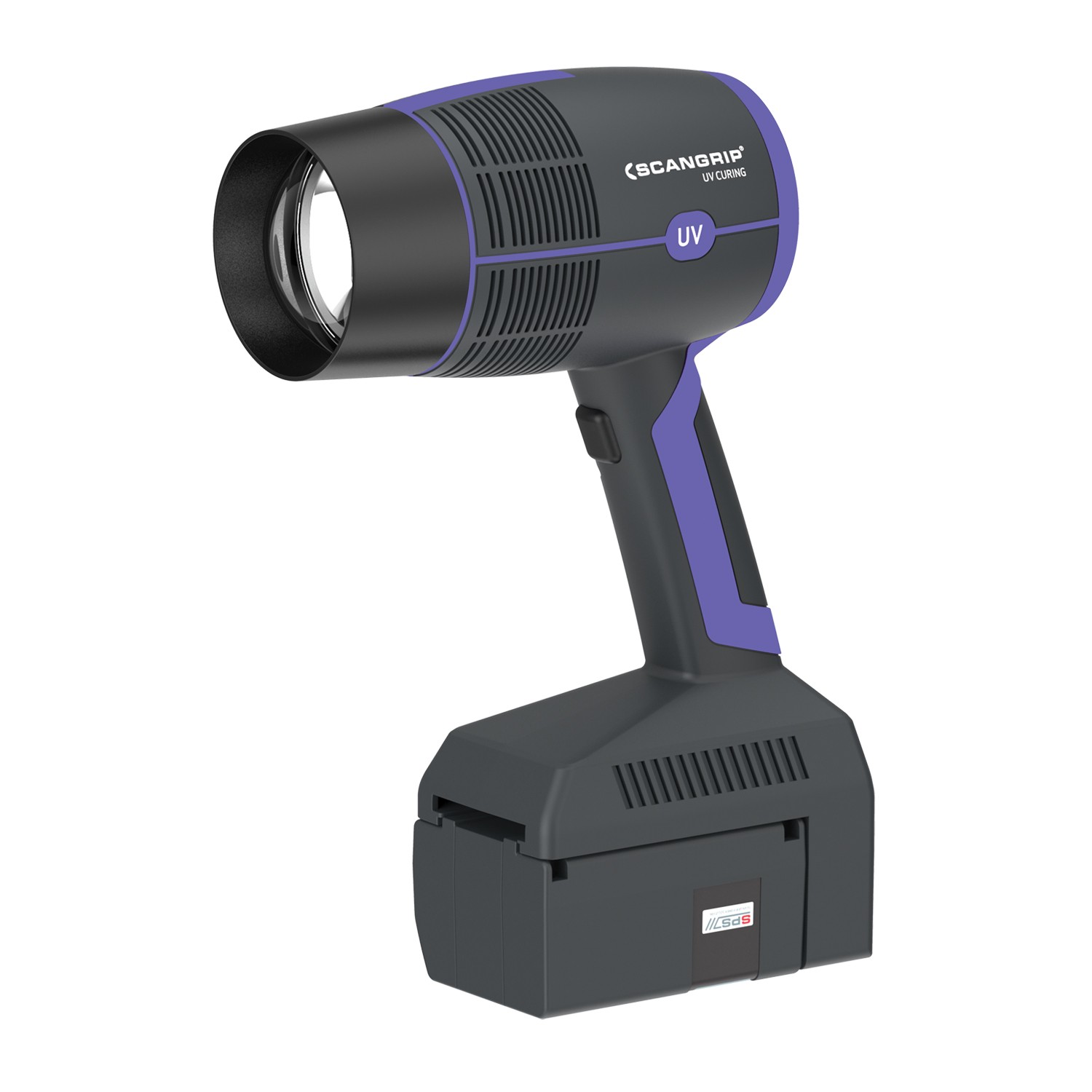

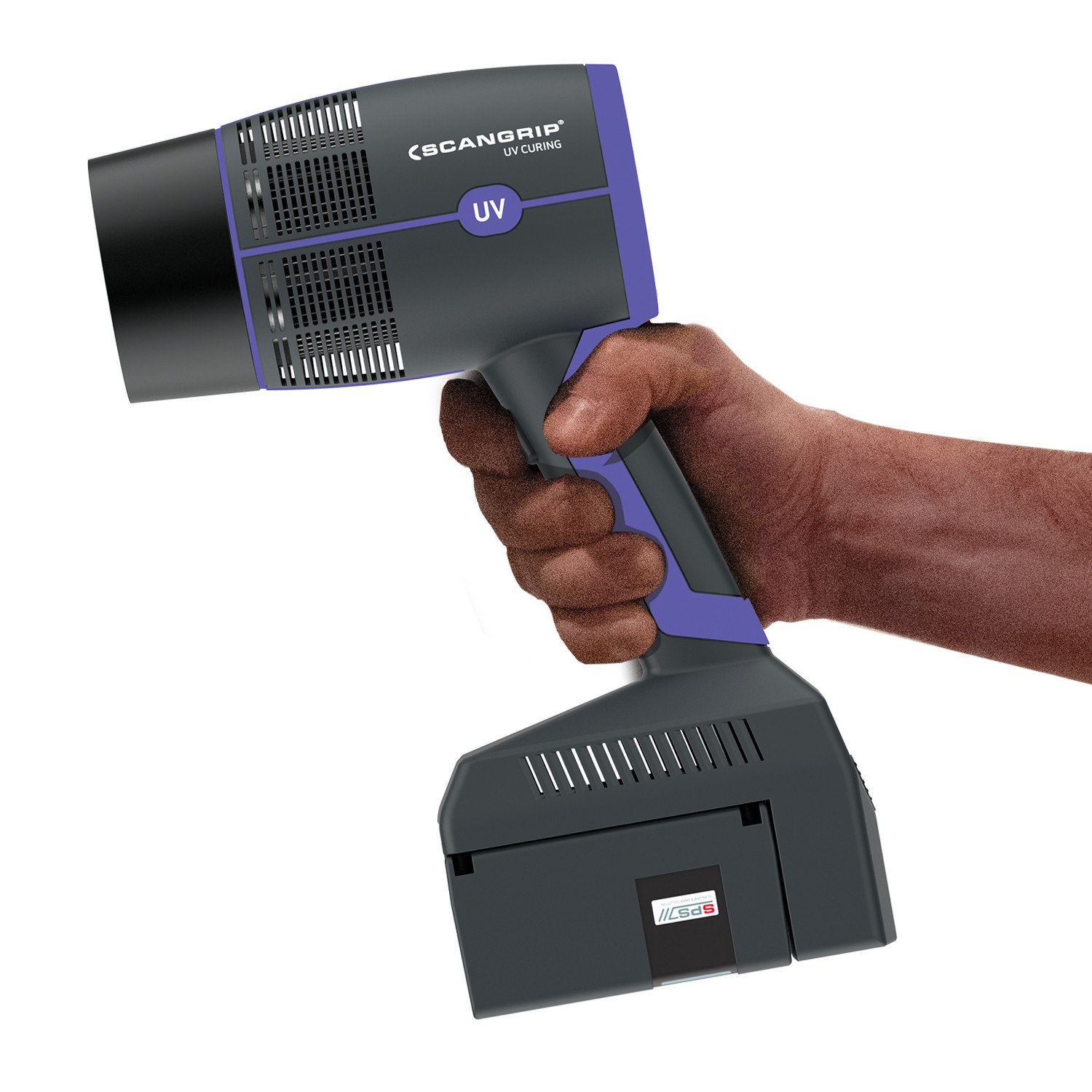

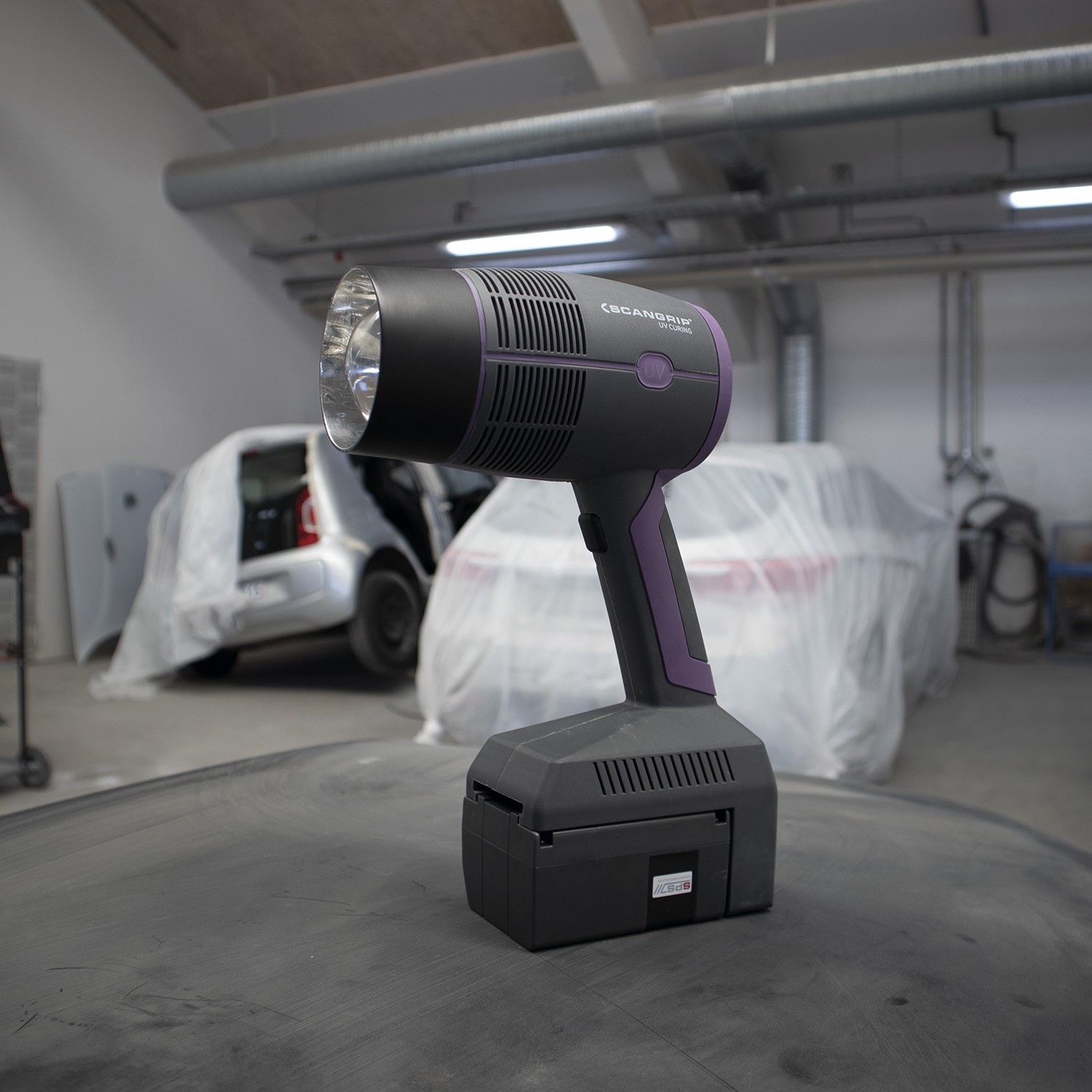

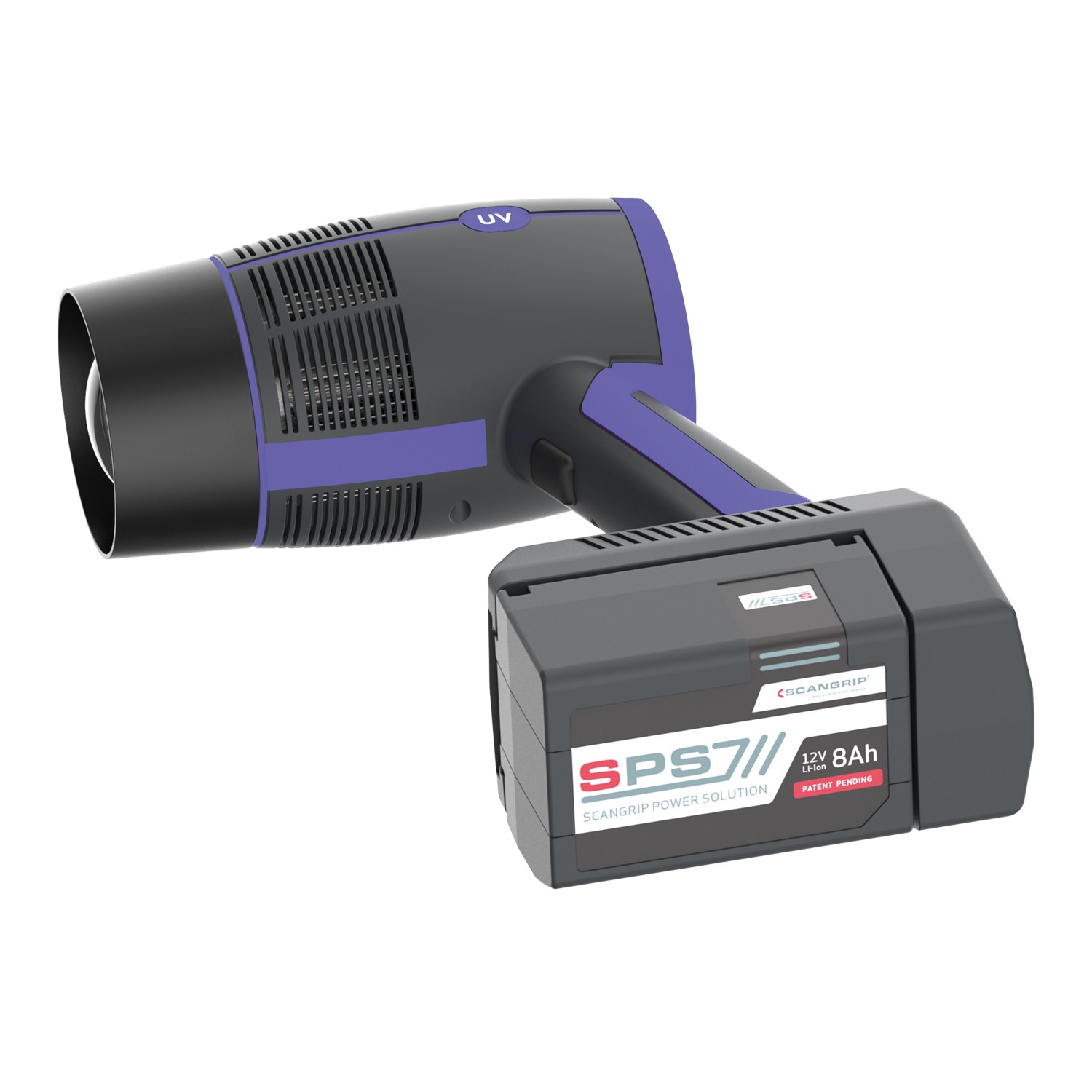

SCANGRIP UV-GUN

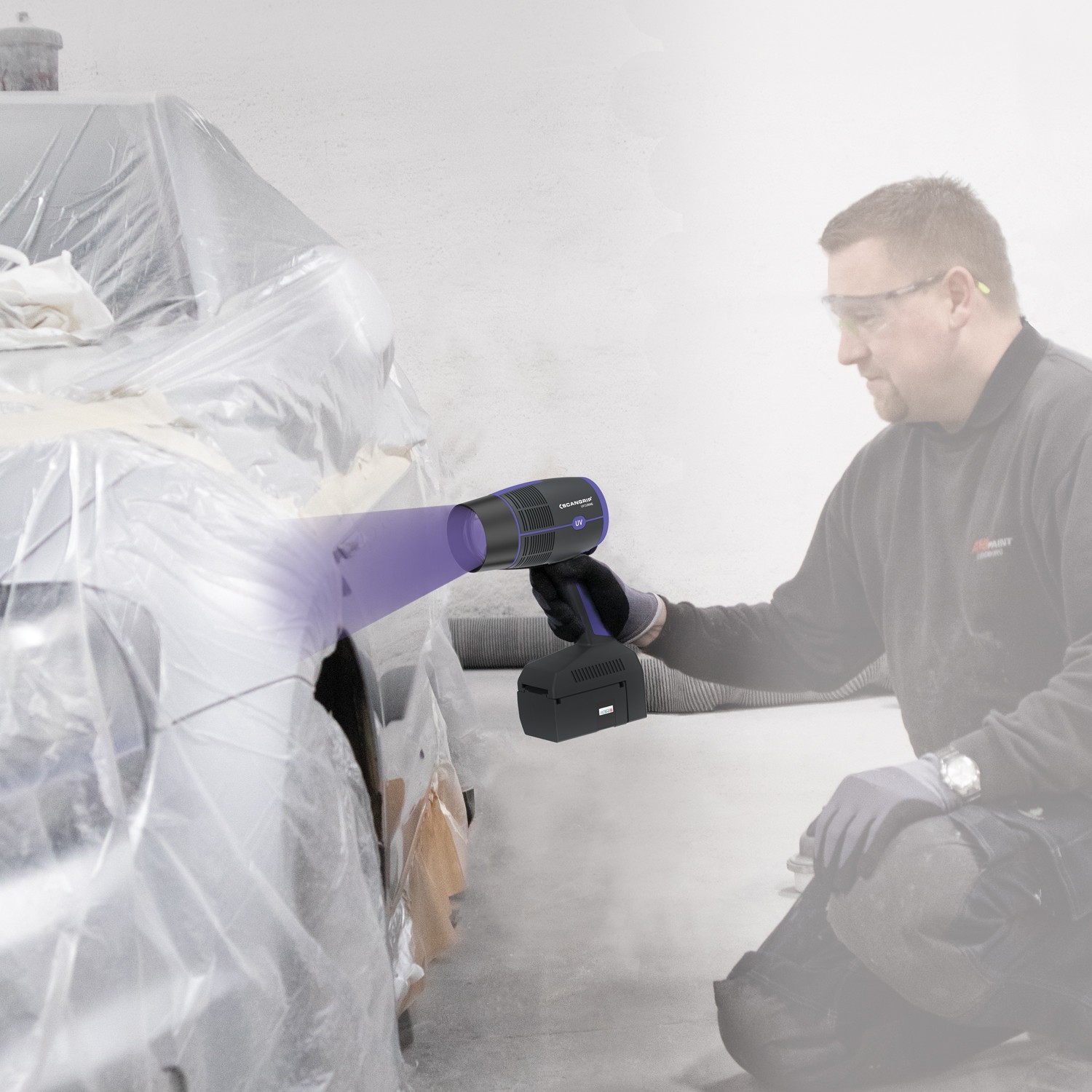

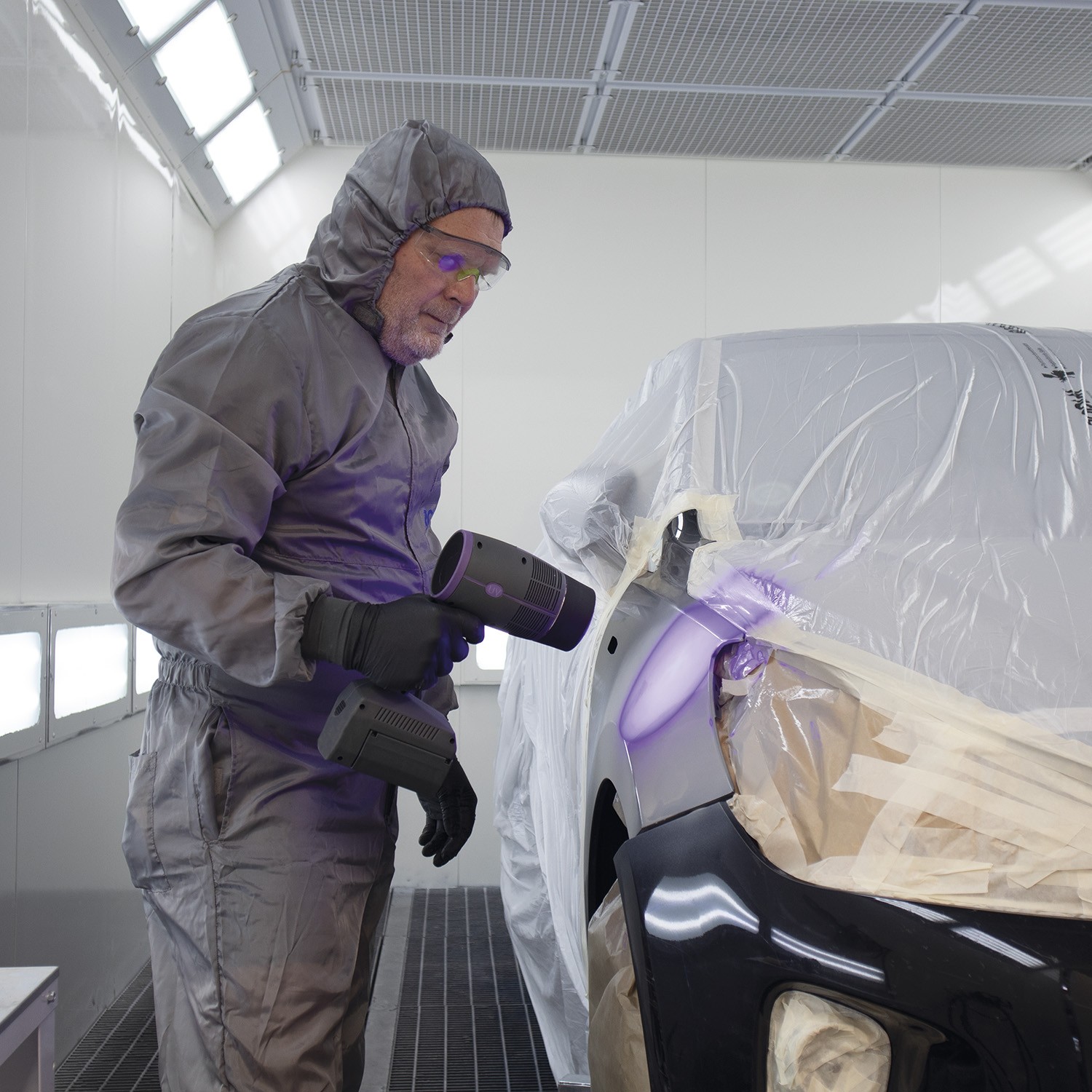

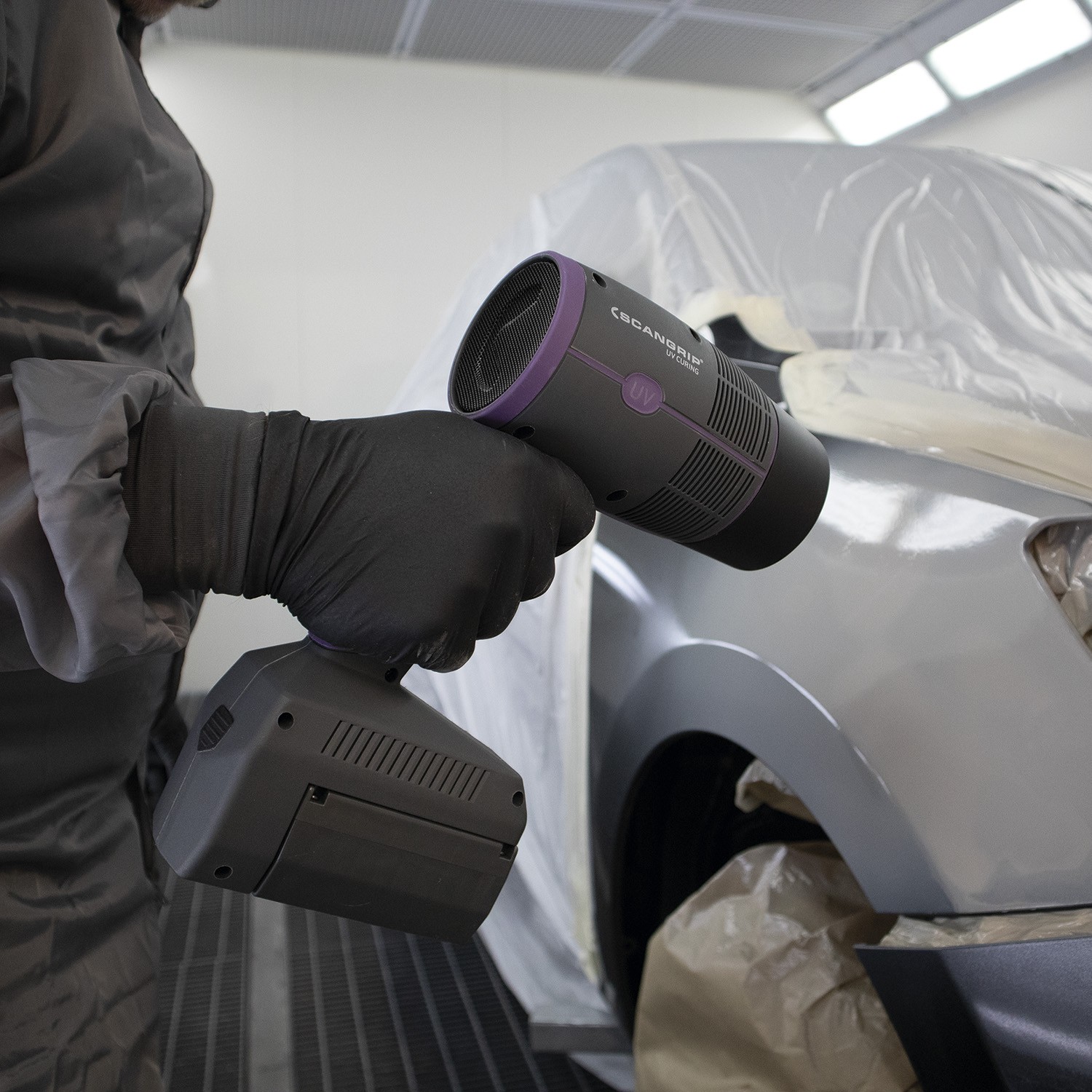

- Powerful work light for very fast and efficient UV curing of large areas.

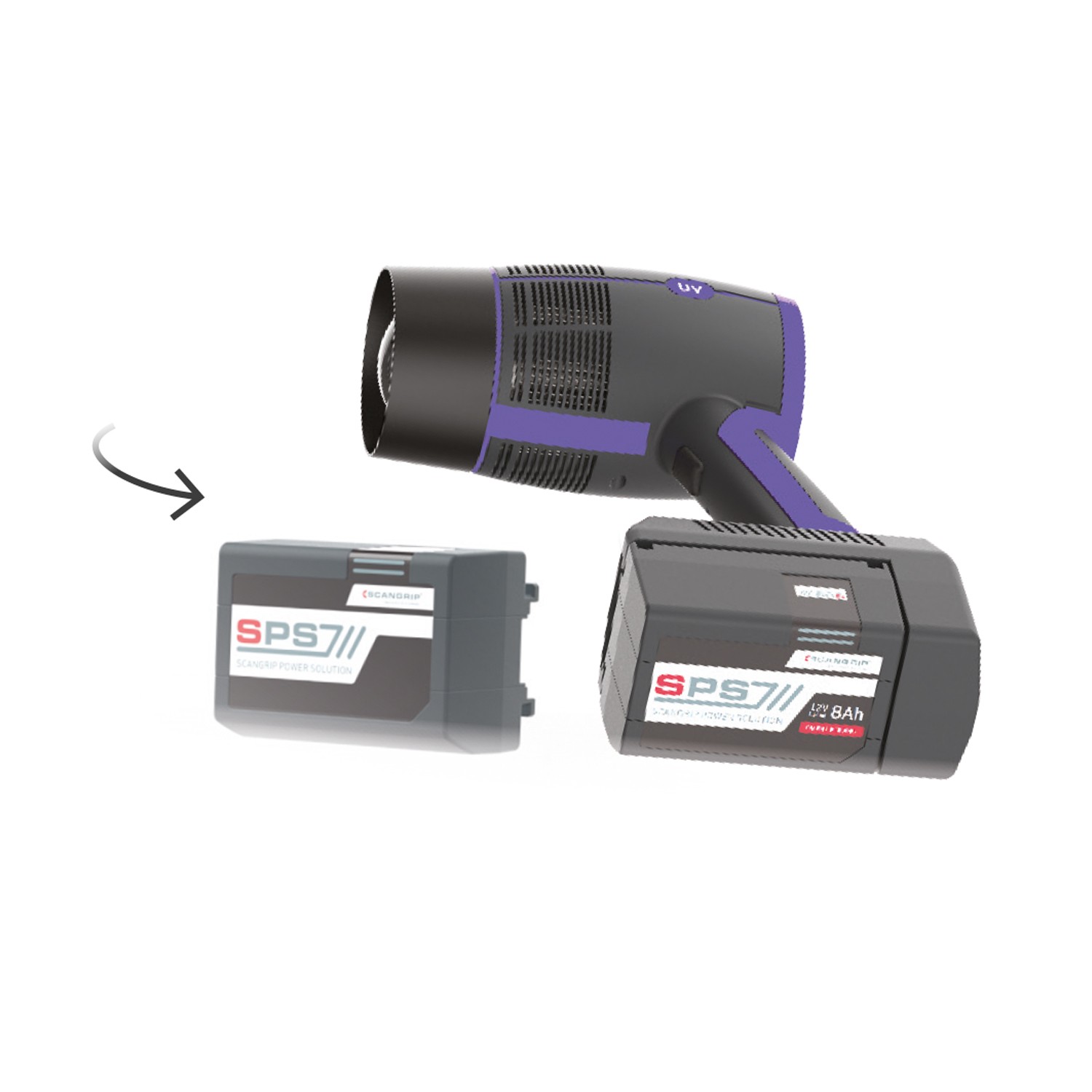

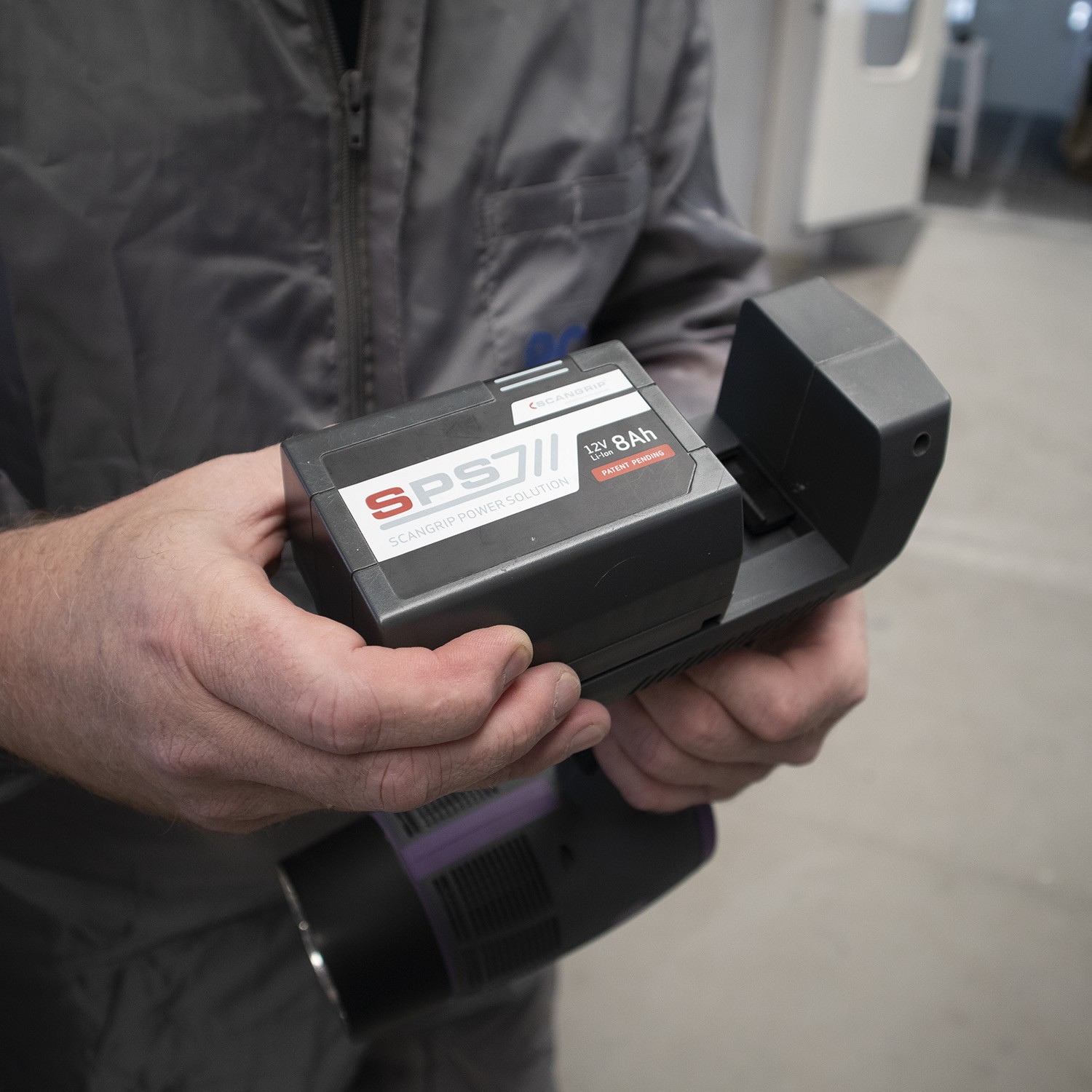

- Powered by a replaceable battery. You can easily insert a new and fully charged battery and continue working while the next battery is charging.

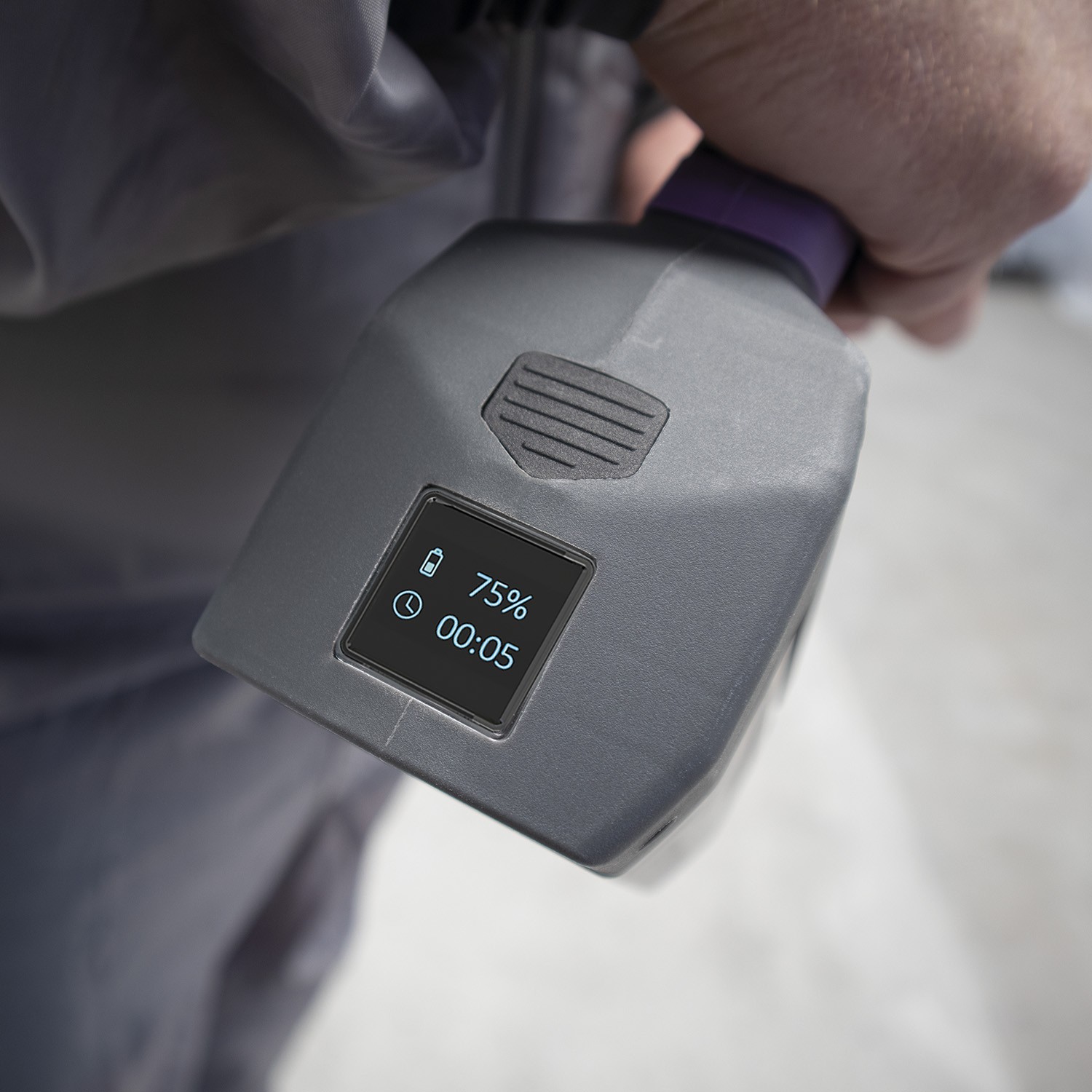

- The LCD display informs you about the battery status and curing time.
- Thanks to high-quality components and active cooling, the UV-GUN has a long life and maintains a high level of performance throughout the day.
- No heat is generated on the part or paint during curing, allowing for the curing of plastic parts or any heat-sensitive material.

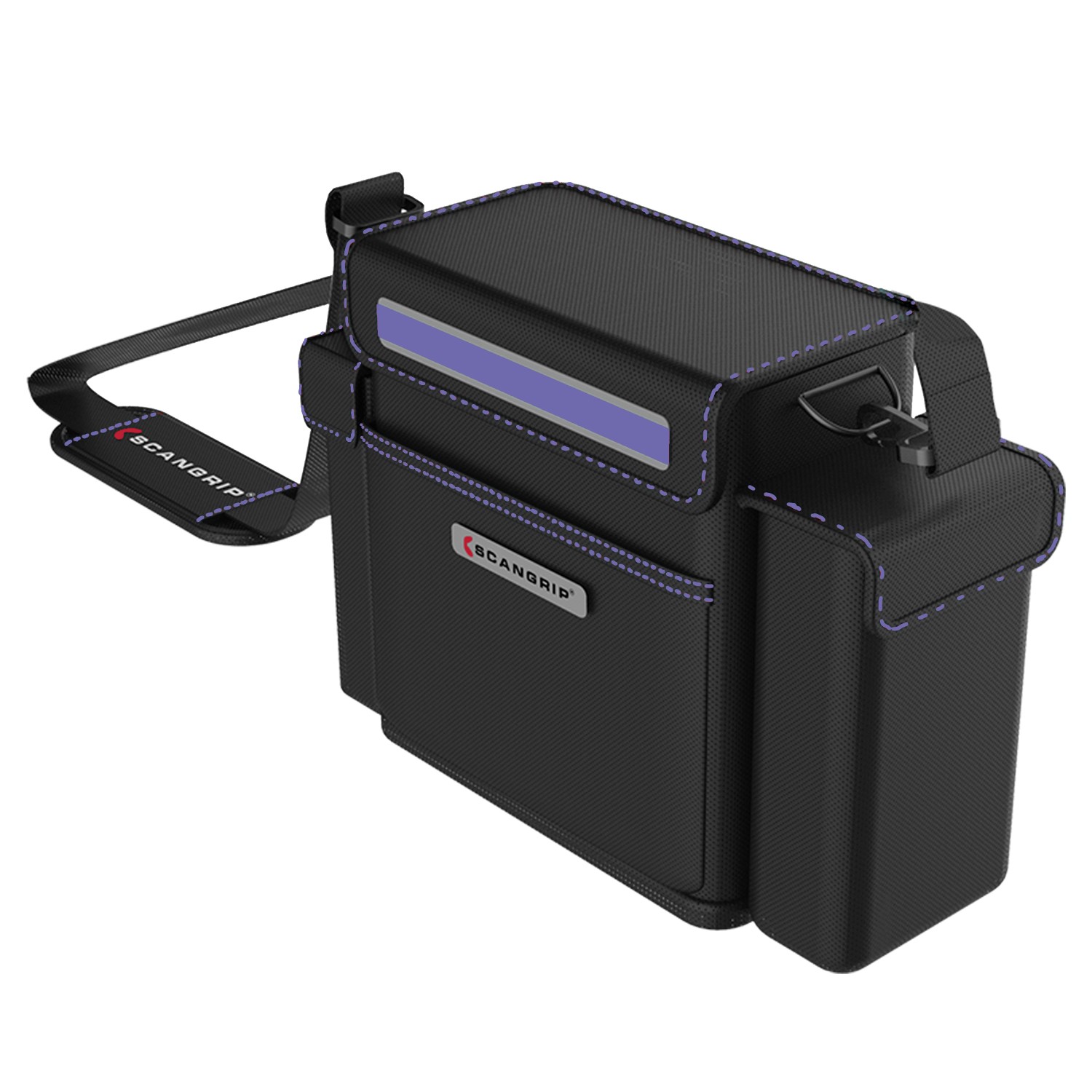

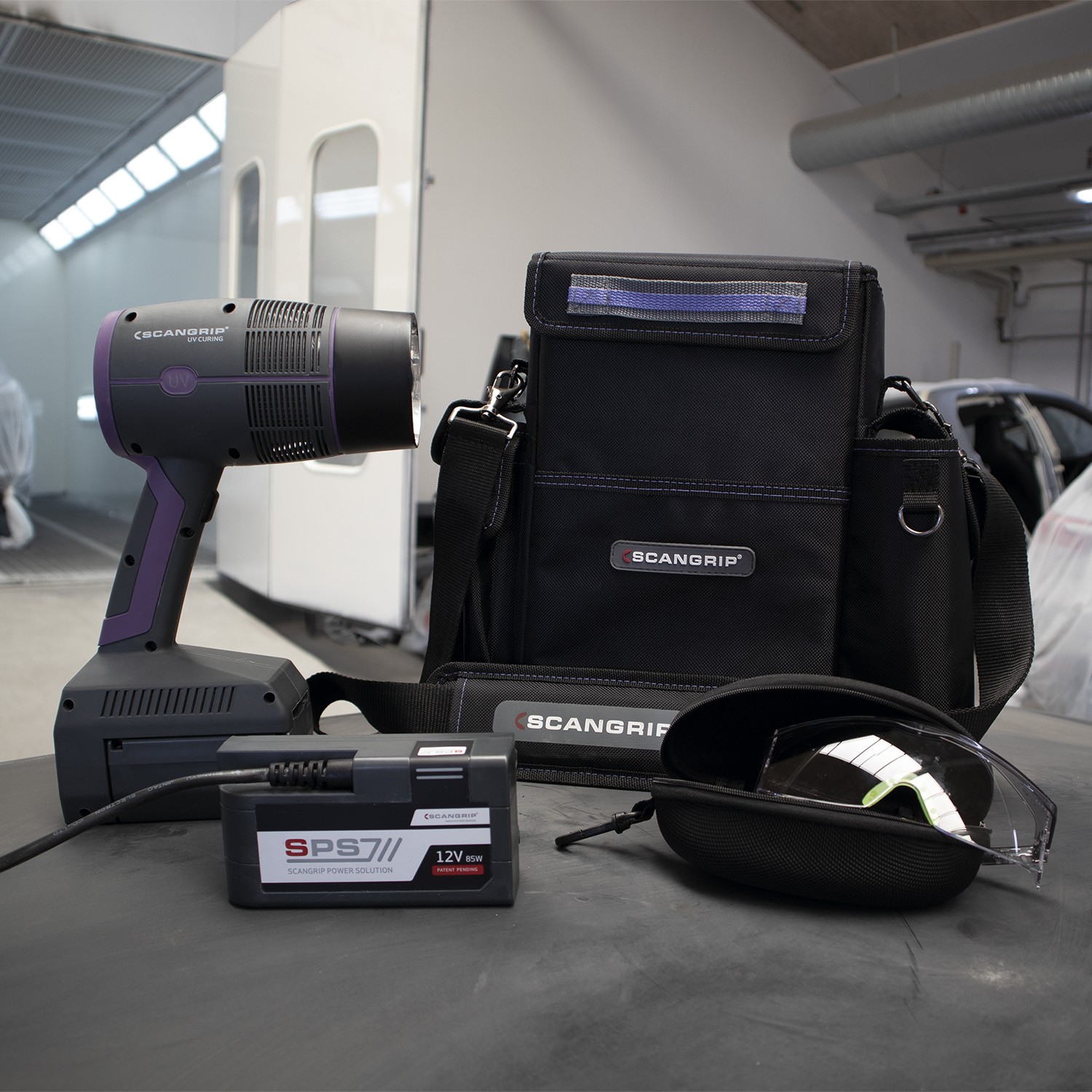

- Supplied in a handy bag including a replaceable SPS battery, SPS charger and UV protection glasses.
Technical parameters:
- Light source: UV-LED
- Curing diameter at 56 cm: 68 ø cm
- Curing diameter at 10 cm: 18 ø cm
- Irradiance 56 cm, center: 14 mW/cm²
- Irradiance 10 cm, center: 340 mW/cm²
- Irradiation 56 cm, min: 6 mW/cm²
- Irradiation 10 cm, min: 68 mW/cm²
- Cured area, 10 cm: 250 cm²
- Cured area, 56 cm: 3,600 cm²
- Risk group: 2
- Wavelength: 395 - 400 nm
- Light time: 0.4 h
- Battery: Scangrip Power Solution (SPS) - Li-ion
- Battery capacity: 8,000 mAh
- Battery voltage i e: 11.1 V
- Degree of protection: IP30
- Protection against intrusion: IK06
- Weight: 1,890 g
- Working temperature: -10 °C to +40 °C
- Impact resistance: 1 m
- Dimensions: 300 x 215 x 96 mm
Package contents:
- 1x SCANGRIP UV-GUN
- SPS battery 8 Ah
- SPS charger 50 W
- Bag
- Protection glasses
| Catalog number | 03.5803 |
| Brand | Scangrip |
| Links | Official web presentation |
