Sound insulation material SGM Barrier Mix Profi Prime
sound insulation material, 800 x 500 mm, thickness 9 mm, insulation 37 dB, weight 5.27 kg/m²
More about the product
More about the product
We will help you with your purchase
- Use our consulting room
- You can return the goods to us within 14 days
- Try the product at our store

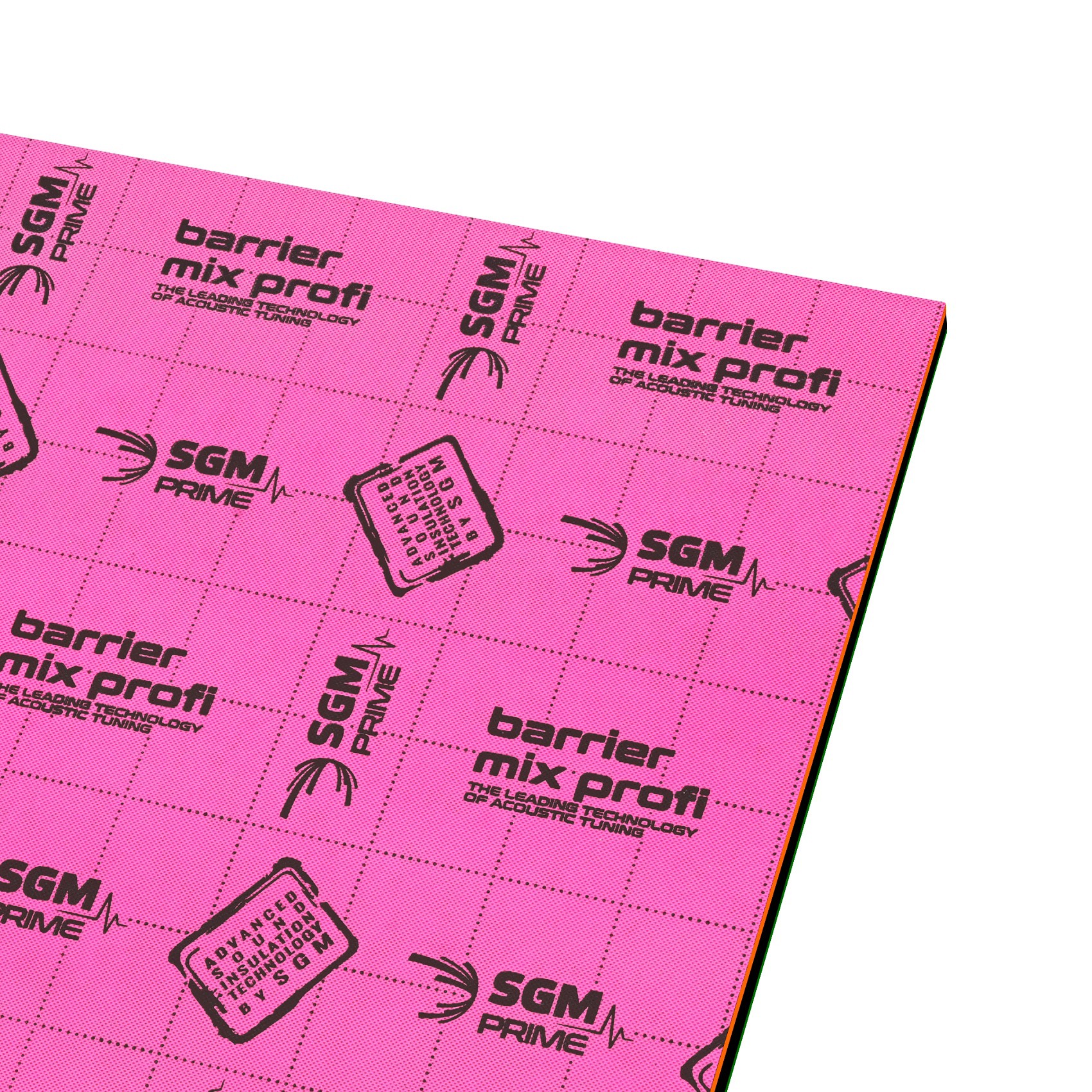

Sound insulation material SGM Barrier Mix Profi Prime
SGM Barrier Mix Profi is a membrane material of the latest generation from the highest model series SGM Prime from 2020. With a thickness of 9 mm, it enables sound insulation of up to 37 dB, which ranks Barrier Mix Profi among the most effective materials on the market today. The efficiency of SGM Barrier Mix Profi was achieved due to the use of a re-foamed polymer composition with the addition of latex, which made it possible to obtain an extra dense and elastic material with extreme efficiency. A specially selected material composition with precisely calculated characteristics of the base layers also plays an essential role. Barrier Mix Profi is composed of a 6 mm thick sound insulation layer and a 3 mm thick anti-noise membrane. Thanks to this, it fully replaces the second and third layers of soundproofing, thus saving installation time and, of course, its price. SGM membrane materials also perform a thermal insulation function thanks to their multi-layer structure with an acoustic membrane. Barrier Mix is of course 100% waterproof, does not absorb moisture and does not rot. The extremely adhesive self-adhesive layer guarantees efficiency from -40 °C to +100 °C and the material maintains constant efficiency throughout the life of the vehicle.
The main properties of the SGM Barrier Mix Profi material
- Premium sound and heat insulating material from the top line of SGM Prime.
- One of the most effective materials on the market with sound insulation capability of up to 36 dB.
- It fully replaces the second and third layers of soundproofing with maximum efficiency.
- Additional vibration damping capability with an acoustic loss factor of 0.12 units.
- Multi-layer composition with a unique anti-noise membrane.
- 100% resistance to water and moisture, the material does not absorb moisture and does not rot.
- Resistance to extreme temperatures with the same adhesive effect at temperatures from -40 °C to +100 °C.
- High flexibility of the material for quick and easy application even on highly embossed surfaces.
- The ability of thermal insulation and protection against heat loss.
Technical parameters of the SGM Barrier Mix Prime material
- Thickness: 9 mm
- Size: 800 x 500 mm
- Sound insulation: up to 37 dB
- Weight: 2.11 Kg (5.27 Kg / m²)
- Adhesion: minimum 6 N / cm
- Color: pink with black print
- Price for 1 piece
Where to apply the SGM Barrier Mix Profi material
Barrier Mix Profi is intended primarily for soundproofing the most noise-laden areas, which are especially the front and rear wheel arches, the floor, the central tunnel or the partition of the engine compartment. It is applied as a second layer to an anti-vibration material that prevents vibrations and noise at the lowest frequencies (e.g. SGM Dual Prime or SGM Onyx 3 ). Thanks to the multi-layer composition with a noise-reducing membrane and a thickness of 9 mm, it is no longer necessary to apply a third layer of noise reduction, which is completely replaced by Barrier Mix Profi, due to the material's record efficiency (up to -36 dB). Avoid application near highly heated areas such as the engine and exhaust system. The most common uses of SGM Barrier Mix Profi Prime sound insulation material:- Floor
- Engine compartment bulkhead
- Central tunnel
- Front wheel arches
- Rear wheel arches
- Torpedo
About SGM damping materials
The Russian company SGM Technology was founded in 2006, and since then it has been one of the leading Russian manufacturers of sound and heat insulation materials for the automotive, shipbuilding, aviation and construction industries. The combination of excellent physical properties of materials and technological methods is the result of the effective performance of the specialized workforce of SGM, which consists of specialists from the best technical universities of Russia. Currently, SGM offers over 200 types of materials that meet the strictest quality and stability standards with certification according to ISO 9001: 2008 and ISO / TS 16949. Long-term cooperation with such giants as Bosch or LG is proof of the highest quality of SGM products, which has long been one of the best on the market today. At the turn of 2019 and 2020, the SGM company presented hi-tech anti-noise materials from the top Prime series, which are among the most effective materials on the market in terms of their performance, together with products from another Russian manufacturer, Comfortmat. You can purchase the materials of both highly competitive manufacturers, who are constantly competing with innovations in the field of vehicle sound deadening, on our e-shop with a guarantee of the most technologically advanced and most effective products of today. Thanks to the official representation of our company for the Czech Republic and Slovakia, you can count on sufficient stock and professional service.
| Catalog number | SGM BARRIER MIX PR |
| Brand | SGM |
| Oversized shipment | Yes, |
| Links | Official web presentation |
| Material type | Sound and heat insulating |
| Thickness | 9 mm |
| Dimension | 500 x 800 mm |
| Sound isolation | 37 dB |
| Weight 1 piece | 2.11 Kg |
| Basis weight | 5.27 kg / m² |
| Acoustic Loss Factor (MLF)The acoustic loss factor (in English, mechanical loss factor) expresses the ability of the material to absorb propagating sound and change the energy of vibrations created by the sound into thermal energy. The theoretical maximum loss factor is 1, which means no vibration. For example, non-sound-proof steel with a thickness of 1 mm has a loss factor of approx. 0.001 at 200 Hz. Therefore, the higher the loss factor, the better. By combining damping materials, it is possible to significantly increase the loss factor to values approaching 1. | 0.12 |
| Adhesion | 6N/cm |
| Water resistance | Yes |
| Heat insulation | Yes |
| Color | Orange with black print |
| Price for | 1 piece |
| Layer order | 2nd layer |
