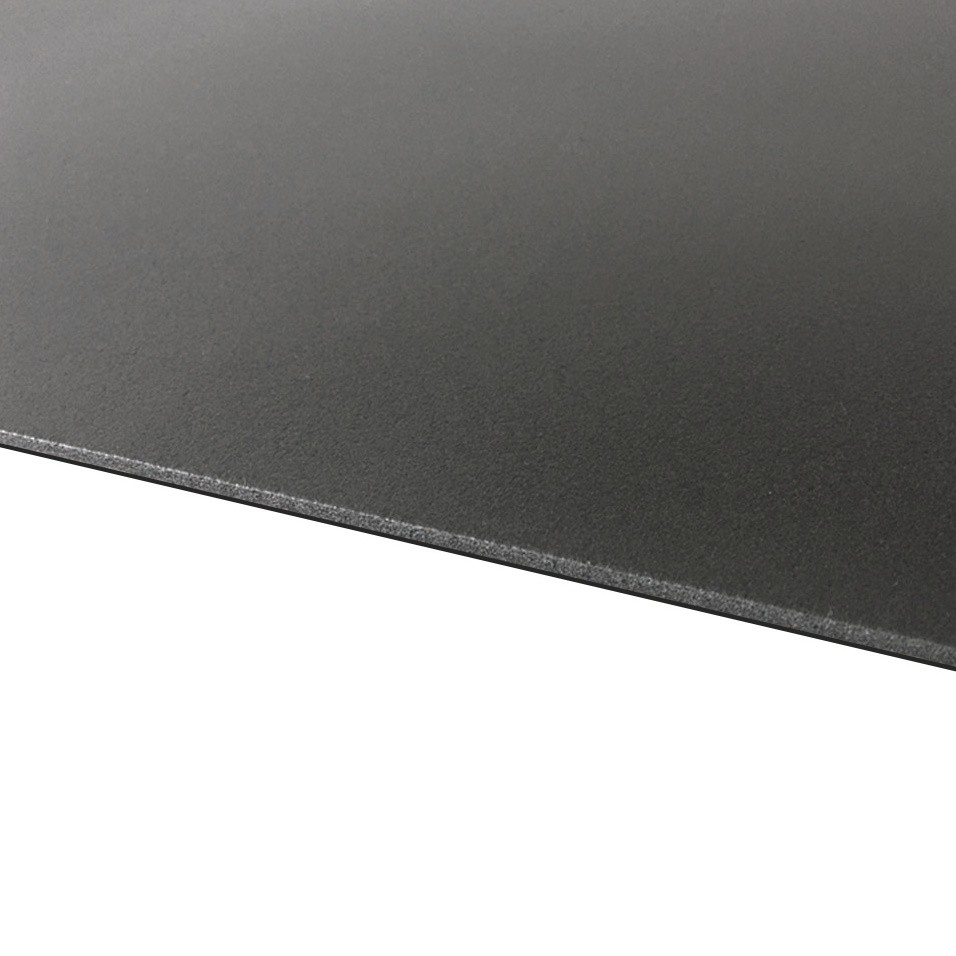

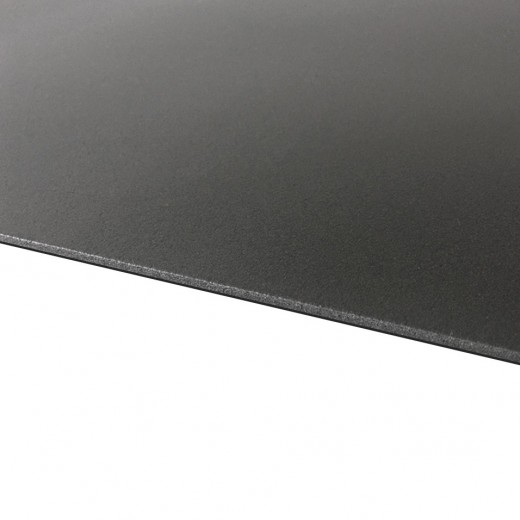

Sound insulation material SGM Isol I4
multi-layer sound insulation material, 500 x 1000 mm, thickness 6 mm, weight 2.88 kg / m²
More about the product
More about the product
We will help you with your purchase
- Use our consulting room
- You can return the goods to us within 14 days
- Try the product at our store
Sound insulation material SGM Isol I4
SGM Isol I4 is a multi-layer material that combines three functions - anti-vibration, sound insulation and heat insulation. The first layer of material consists of a 2 mm thick sealant, which dampens vibrations and prevents the development of corrosion processes due to preventing the penetration of moisture. The second layer consists of 6 mm thick polyethylene foam with high noise absorption and thermal insulation properties. The material is highly flexible and can be applied even to highly embossed surfaces. It is absolutely waterproof, does not absorb moisture and does not rot. The extremely adhesive self-adhesive layer guarantees effectiveness at -40 °C to +120 °C. Available in 6 and 10 mm thickness.
Main properties of SGM Isol I4 material
- Multi-layer material with anti-vibration and sound and heat insulating properties.
- 100% resistance to water and moisture, the material does not absorb moisture and does not rot.
- Resistance to extreme temperatures with the same adhesive effect at temperatures from -40 °C to +100 °C.
- High flexibility of the material for quick and easy application even on highly embossed surfaces.
- The ability of thermal insulation and protection against heat loss.
Technical parameters of SGM Isol I4 material
- Thickness: 6 mm
- Size: 500 x 1000 mm
- Weight: 1.44 Kg (2.88 Kg / m²)
- Acoustic loss factor (MLF): 0.12
- Adhesion: 10 N / cm
- Black colour
- Price for 1 piece
Where to apply the SGM Isol I4 material
SGM Isol I4 is designed for soundproofing practically all areas of the car, thanks to its flexibility and water resistance. It replaces the first and second layers of soundproofing, so installation is very easy and fast. The most common uses of SGM Isol I4 sound insulation material:- Front and back doors
- The suitcase lid
- Floor
- engine compartment bulkhead
- Central tunnel
- trunk
- Front wheel arches
- Rear wheel arches
- torpedo
- hood
About SGM damping materials
The Russian company SGM Technology was founded in 2006, and since then it has been one of the leading Russian manufacturers of sound and heat insulation materials for the automotive, shipbuilding, aviation and construction industries. The combination of excellent physical properties of materials and technological methods is the result of the highly efficient performance of the specialized workforce of SGM, which consists of specialists from the best technical universities of Russia. Currently, SGM offers over 200 types of materials that meet the strictest quality and stability standards with certification according to ISO 9001: 2008 and ISO / TS 16949. Long-term cooperation with such giants as Bosch or LG is proof of the highest quality of SGM products, which has long been one of the best on the market today. At the turn of 2019 and 2020, the SGM company presented hi-tech noise-reducing materials from the top Prime series, which in their performance slightly surpass even the premium materials of the market leader in noise reduction from Comfortmat. You can buy the products of both highly competitive manufacturers, who are constantly competing with innovations in the field of vehicle sound deadening, on our e-shop with a guarantee of the most technologically advanced and most effective products of today. Thanks to the official representation of our company for the Czech Republic and Slovakia, you can count on sufficient stock and professional service.Catalog number | SGM ISOL I4 |
Brand | SGM |
Oversized shipment | Yes, |
Links | Official web presentation |
Material type | Multi-layered (anti-vibration, sound and thermal insulation) |
Thickness | 6 mm |
Dimension | 500 x 1000 mm |
Anti-noise membrane | No |
Weight 1 piece | 1.44 Kg |
Basis weight | 2.88 kg / m² |
Acoustic Loss Factor (MLF)The acoustic loss factor (in English, mechanical loss factor) expresses the ability of the material to absorb propagating sound and change the energy of vibrations created by the sound into thermal energy. The theoretical maximum loss factor is 1, which means no vibration. For example, non-sound-proof steel with a thickness of 1 mm has a loss factor of approx. 0.001 at 200 Hz. Therefore, the higher the loss factor, the better. By combining damping materials, it is possible to significantly increase the loss factor to values approaching 1. | 0.12 |
Adhesion | 10N/cm |
Water resistance | Yes |
Heat insulation | Yes |
Color | Black |
Price for | 1 piece |
Layer order | 1st and 2nd layer |
