Speakers Eton VAG 28 T6.1

Speakers Eton VAG 28 T6.1

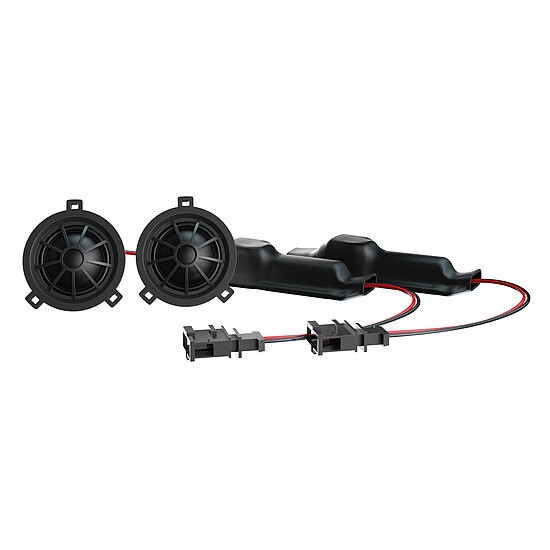

Attention VW T6.1 drivers! Finally, there is the right sound upgrade for all VW T6.1 Transporters. The newly developed UG VAG 28 T6.1 Plug & Play tweeter with cable crossover and precisely fitting connection connectors is part of the set. This tweeter was specially developed for the new VW T6.1 and with its special 3-point attachment it fits into the original installation locations. This 28mm fabric tweeter with a powerful neodymium magnet plays with extremely silky, fine resolution. The UG VAG 28 T6.1 matches perfectly with the UG VAG 14 mid-bass speaker – the perfect package for the new VW T6.1.

Key properties

  • 28 mm (1 1/8") height Plug & Play speaker with fabric diaphragm for Volkswagen T6.1.
  • 3-point attachment, vehicle-specific connection connectors.
  • Including a specially tuned cable crossover.
  • Strong neodymium magnet.
  • Recommended transmission range: 2.5 kHz - 22 kHz.
  • Development and production in Germany.
Catalog numberVAG 28 T6.1
BrandEton
LinksOfficial web presentation
Speaker typeCoaxial speakers:
Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam.

Component Speakers:
Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.
High rise
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! 120 W
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using.

Example:
A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.
8 Ω
Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter. 28 mm
Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for.

Component Speakers:
A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion.

Coaxial speakers:
In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter.
Yes
Cover grids included in the packageOriginal cover grilles in speaker packaging. No
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. Few
