Steering wheel button control adapter Fiat Stilo, Bravo, Ritmo Connects2 CTSFA005.2

Bravo (07->14), Stilo (01->08), Ritmo (07->14)
More about the product
We will help you with your purchase

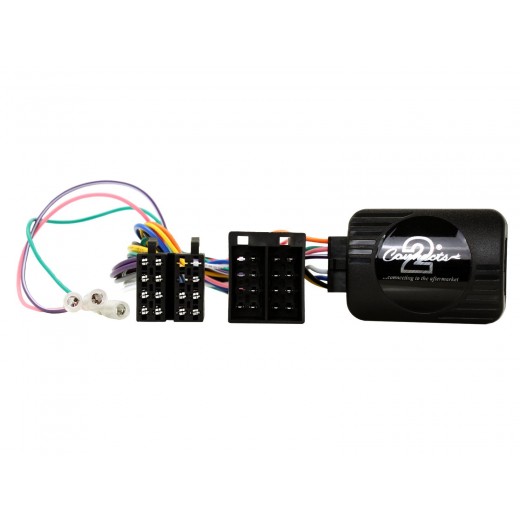

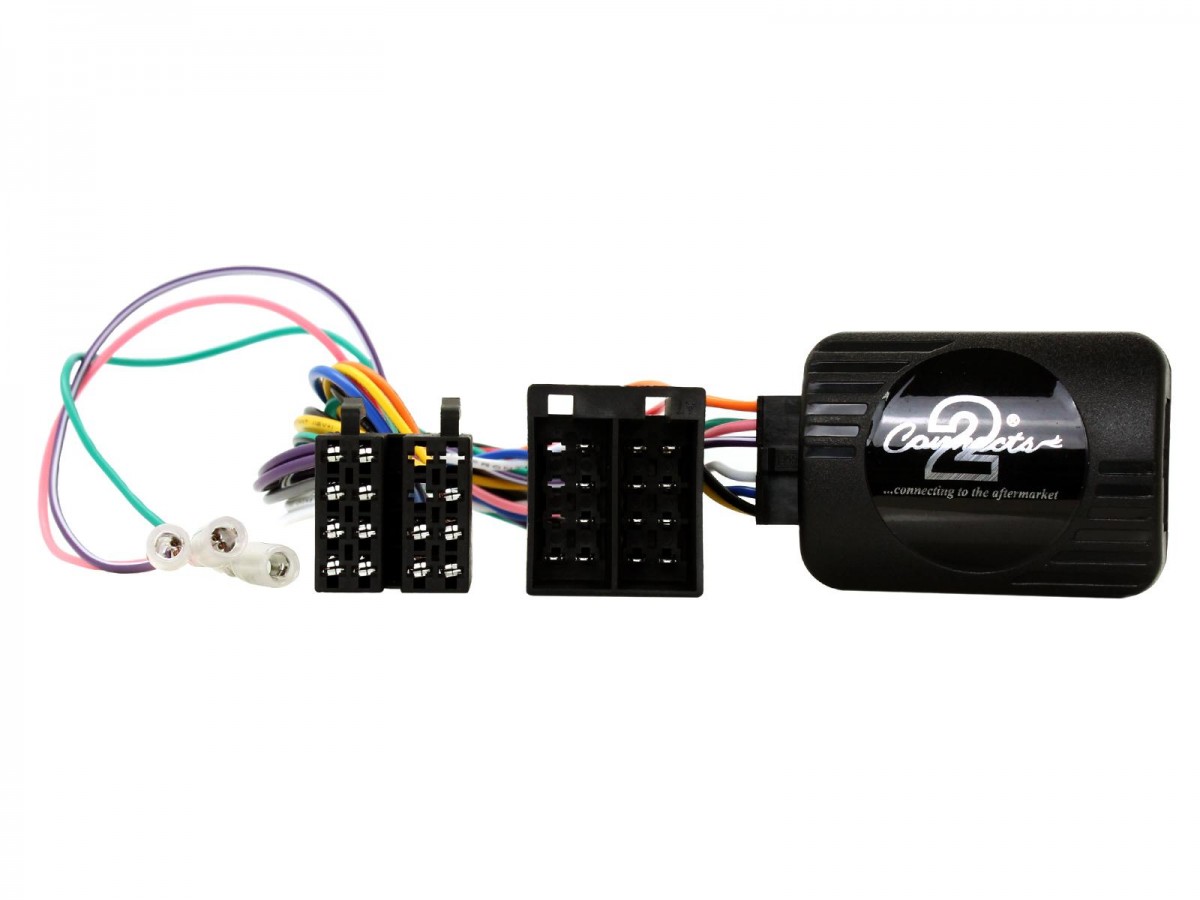

Steering wheel button control adapter Fiat Stilo, Bravo, Ritmo Connects2 CTSFA005.2

Fiat steering wheel adapter

Adapter for activating the control buttons on the steering wheel when buying an aftermarket car radio with an ISO connector (included in the adapter) for vehicles:

  • Fiat Bravo (Type 198) (2007 -> 2014) - original Blaupunkt car radio
  • Fiat Stilo (192) (2001 -> 2008) - original Blaupunkt car radio
  • Fiat Ritmo (2007 -> 2014) - original Blaupunkt car radio

Important additional information

  • For cars with steering wheel control and ISO connector.
  • Designed for aftermarket Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker car radios.
  • To fully activate the adapter, it is necessary to order a connecting cable for the given brand of car radio! (see below)

The adapter includes wires with analog signals

  • +12 V after turning on the key (vol. 15) - fitted in the ISO connector.
  • +12 V after switching on the vehicle lighting - fitted in the ISO connector.
  • +12 V after engaging reverse gear - free wire.
  • Speed pulses - free wire.
  • Ground (- pole) with the handbrake applied - free wire.
Catalog numberCTSFA005.2
BrandConnect2
LinksOfficial web presentation
