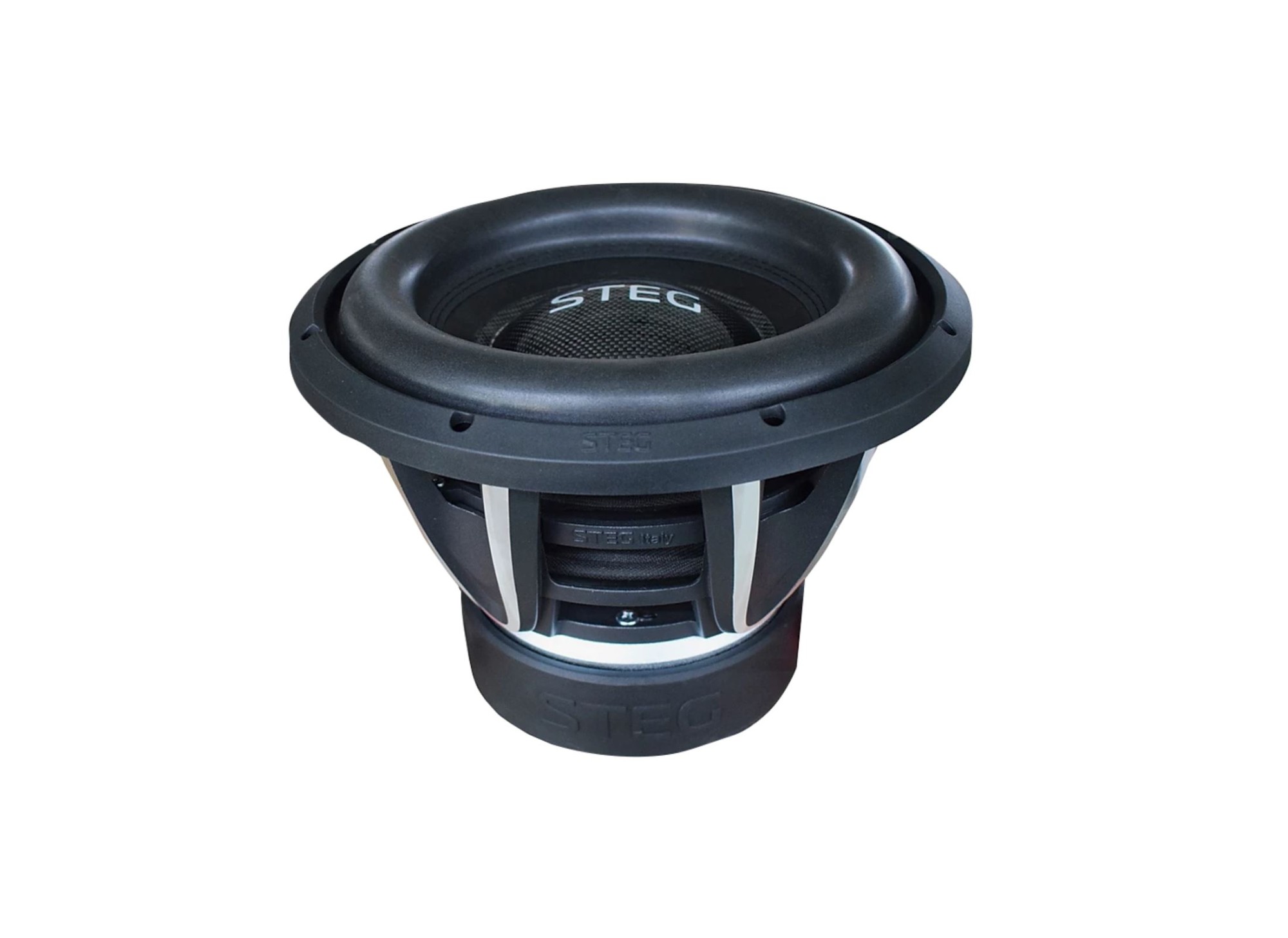

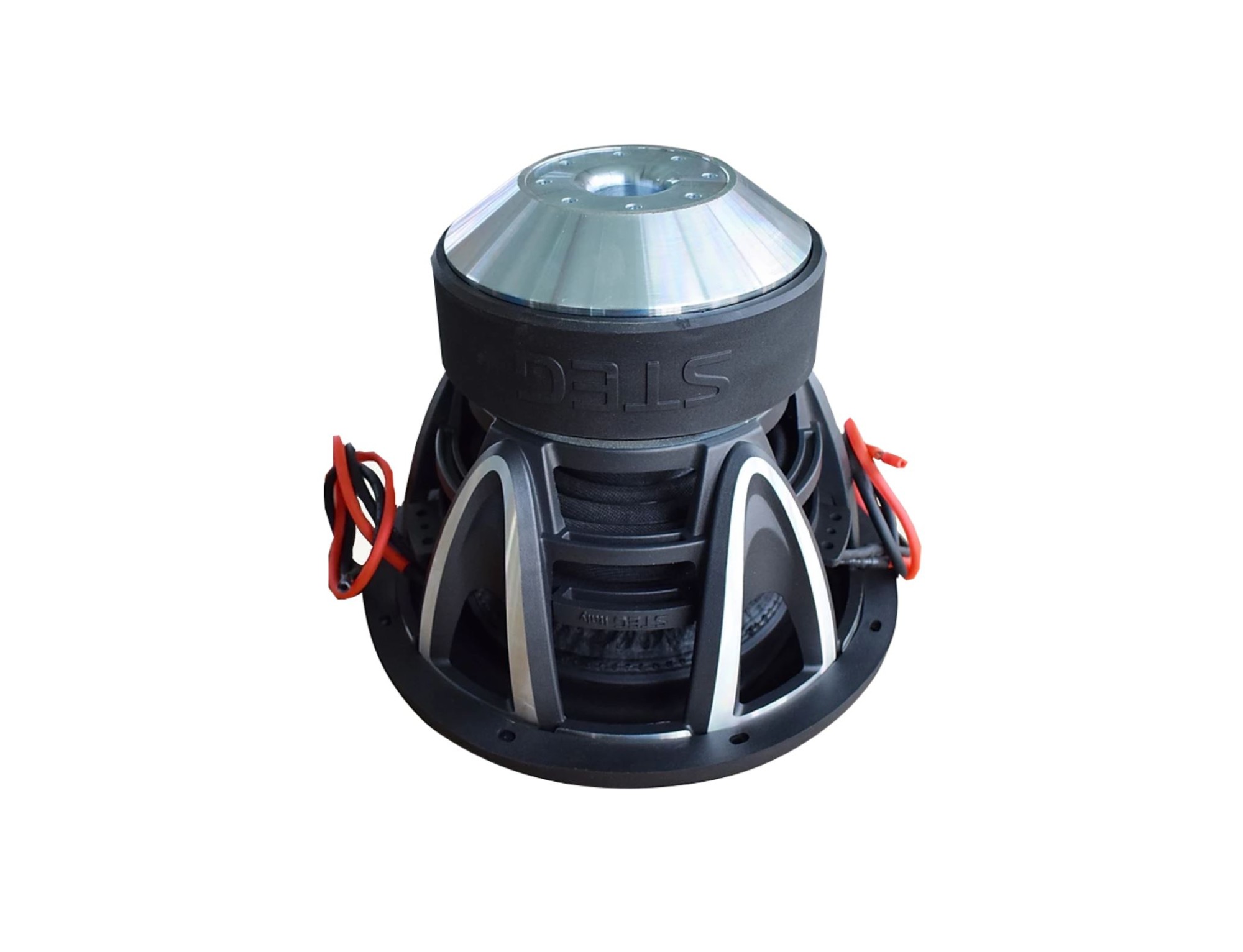

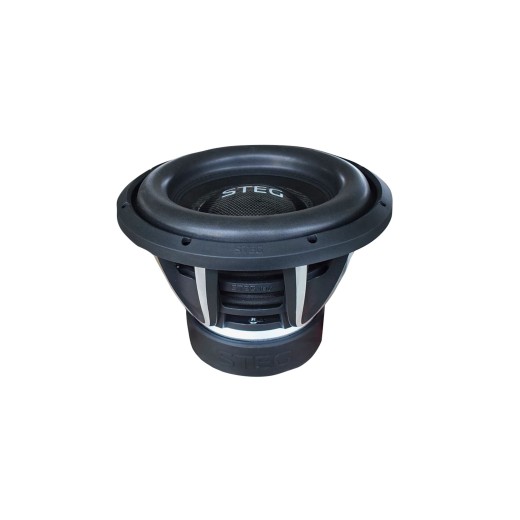

STEG ST15D2-3 subwoofer

The new ST12 and ST15 subwoofers are designed exclusively for SPL competitions. In order to achieve the best performance in every competition, they use the best materials and all the experience in Steg to achieve maximum efficiency and power handling and get the maximum SPL in every competition. In order to ensure a constant and even flow of energy, it is equipped with plates with high magnetic permeability. The oversized magnet provides perfect control even at very high outputs. The basket and spider are connected and cushioned with a special epoxy glue.

Catalog number	ST15D2-3
Brand	Steg
RMS powerThe RMS power of the subwoofer is the constant power of continuous use of the subwoofer. If the power is exceeded for a longer period of time, irreversible damage may occur, or to burn out the voice coil of the subwoofer.	4000W
ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance matches the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center! Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used on an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm.	2 + 2 Ω
Subwoofer diameterThe diameter of the subwoofer is indicated on the screw holes. The overall outer diameter of the subwoofer is usually 1-2 cm wider, depending on the size category of the subwoofer. For a 30 cm subwoofer, the outer diameter incl. protective rubber 31.8 cm and in the 25 cm subwoofer it is 26.5 cm incl. protective rubbers.	15" (380mm)
Subwoofer voice coil diameterThe larger the diameter of the voice coil, the more load capacity the subwoofer has, in layman's terms.	76 mm
Subwoofer diaphragm materialThe specific material from which the subwoofer membrane is made.	Carbon
