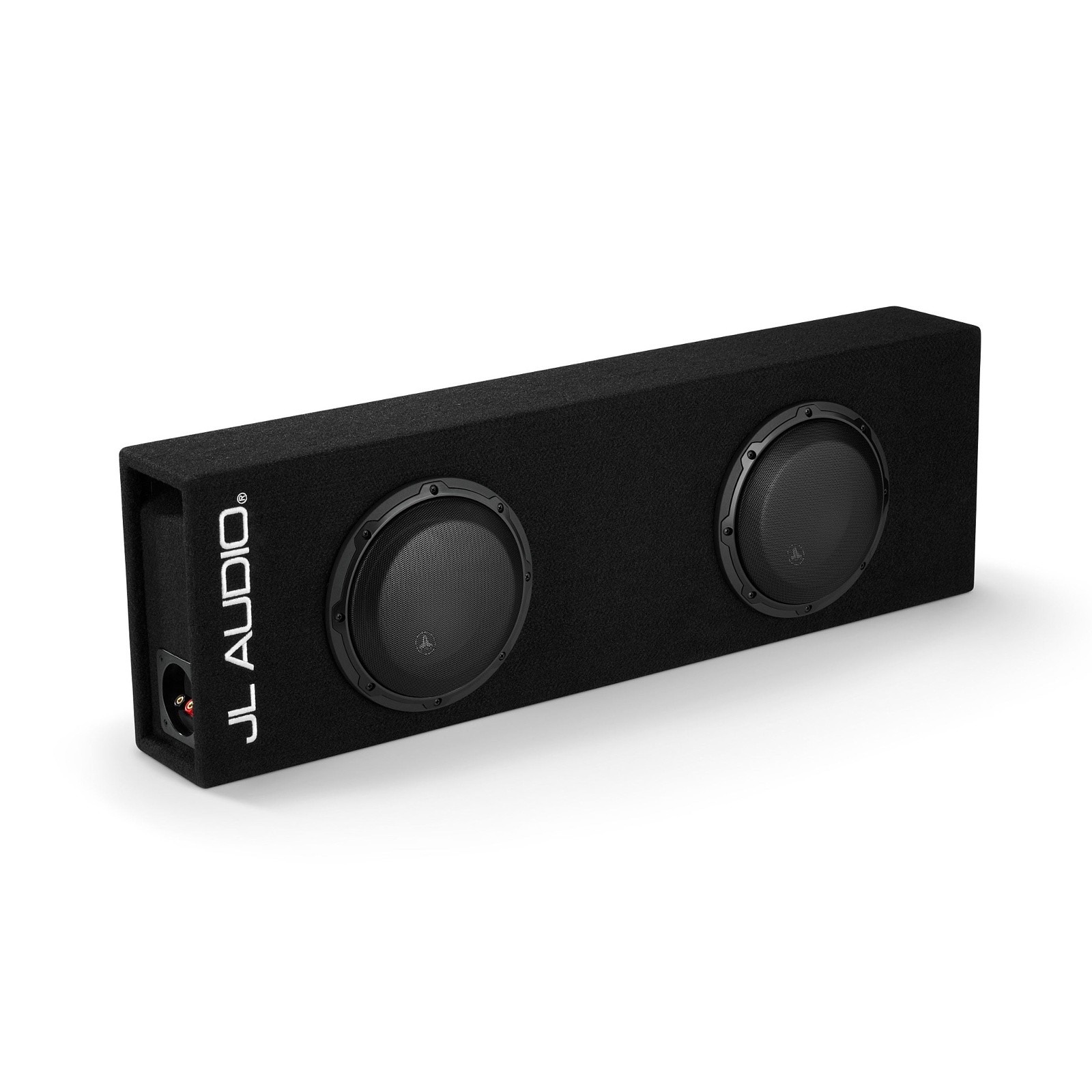

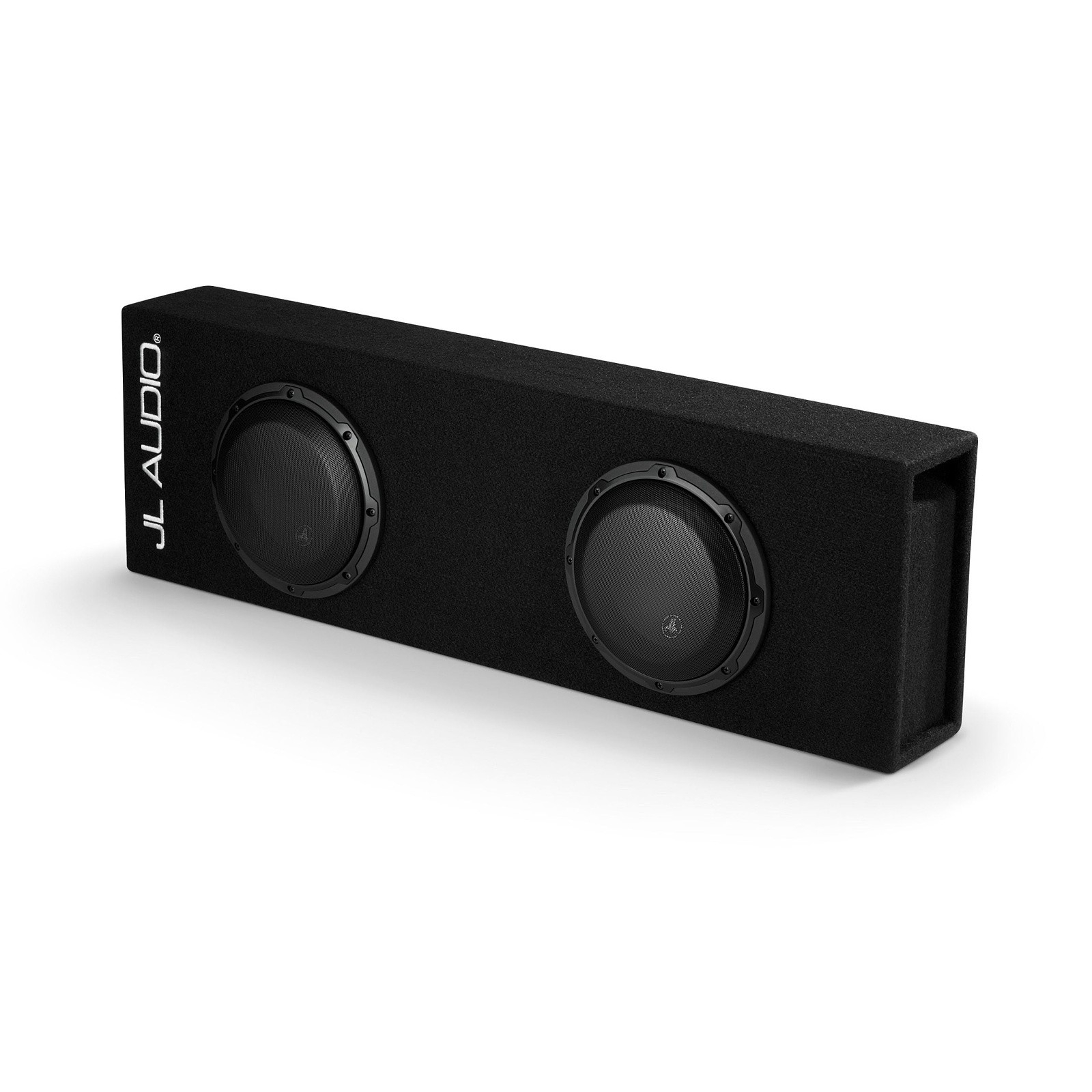

Subwoofer JL Audio CP208LG-W3v3

2 x 8", 500 W RMS, 2 Ω, bass reflex cabinet
More about the product
We will help you with your purchase
Subwoofer JL Audio CP208LG-W3v3
Tip

Subwoofer JL Audio CP208LG-W3v3

JL Audio's CP208LG-W3v3 MicroSub™ Subwoofer System delivers impressive bass without needing a lot of power or taking up a lot of space. This MicroSub™ features 500 watts RMS power and features two JL Audio W3v3 Series 8" subwoofers to deliver impressive low frequencies. The enclosure is designed from the ground up to extract optimal performance from its drivers. Extensive internal bracing allows for thinner wall material that maximizes the internal volume of the enclosure relative to the external volume.A port for each driver wraps around the two walls of the enclosure, creating an essential low tuning frequency that provides excellent response extension and smoothness.Two extended ports at each end of the enclosure improve sound quality by minimizing flow-induced noise of air. JL Audio uses state-of-the-art automated woodworking equipment to produce a high-quality MDF cabinet with durable automotive carpet, steel mesh grille, 5-way connecting posts, and rigid internal wiring. The cabinet is hand-built and inspected in the Florida manufacturing facility to ensure that you get the bass you expect from JL Audio. As with all JL Audio subwoofers, you can count on the CP208LG-W3v3 for high sound quality and processing.

The main features of the JL Audio CP208LG-W3v3 subwoofer

  • 2 x 8" subwoofer with 500 W RMS power in a compact bass reflex cabinet.
  • Covered with high quality automotive carpet in black.
  • Silver JL Audio embroidery on the front of the subwoofer.
  • The package includes a steel grid that protects the subwoofer.
  • Loudspeaker with V-Groove technology made of high-quality CNC-cut MDF.
  • Extended port design to reduce turbulence and audible airflow.
  • FCAM™ technology for better deflection control and dynamic voice coil alignment.
  • Subwoofer motor optimized according to the patented DMA system.
  • Patented Elevated Frame Cooling design for improved performance handling.
  • The VRC® system improves the stiffness and stability of the diaphragm, spider and voice coil connection.
  • Manufactured using state-of-the-art technology at the JL Audio factory in Florida, USA.

About the JL Audio brand

JL Audio is an American manufacturer of consumer audio equipment that specializes in home, vehicle and boat sound systems. It is one of the main pioneers of vehicle sound systems and is undoubtedly best known for its high-end subwoofers. The company was founded in 1975 and is therefore one of the oldest manufacturers in this field. The original focus was on home sound systems, but already at the turn of the seventies and eighties, they also started to deal with the car audio segment, the popularity of which grew rapidly at the time. During their rich history, JL Audio produced a lot of completely unique and patented subwoofers that had almost no competition at the time. And it is similar even now. Subwoofers from this manufacturer amaze with their performance and at the same time absolutely top sound quality, unique patents and excellent workmanship. In particular, the top W6 and W7 series have long been among the most interesting products on the market today. However, the revolutionary flat subwoofers of the TW1 and TW3 series, as well as the perfectly tuned subwoofer enclosures, will also impress. You can expect the same quality from the amplifiers, and it's also worth noting the high-end products designed for integration into factory audio systems. In short, you can't go wrong with JL Audio products and you can always rely on their high quality and uniqueness.
Catalog numberCP208LG-W3v3
BrandJL Audio
LinksOfficial web presentation
RMS powerThe RMS power of the subwoofer is constant power. This is also the performance of continuous use of the subwoofer. If you exceed the power for a longer period of time, irreversible damage or subwoofer voice coil burning! You can tell if the subwoofer is overloaded by the vibration of the subwoofer membrane. 500 W
The diameter of the subwoofer in the box2 x 200mm (8")
ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance is compatible with the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center!

Example:
A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used with an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm. Example:
A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm subwoofer can easily be used with an amplifier that is stable up to 2 Ohms. The most common impedance of subwoofers is 1 x 4 Ohm.
2 Ω
Loudspeaker typeThe closed enclosure is characterized by a simple construction. Closed enclosures are usually smaller than bass-reflex enclosures, and a special damping fleece is used for their damping.

A closed baffle has the advantage of preventing an acoustic short between the front and back radiation of the subwoofer diaphragm. The disadvantage is that the closed enclosure raises the natural resonance frequency of the used subwoofer and thereby also increases the lower limit frequency. This is because the back side of the diaphragm is forced to compress and dilute the air inside the enclosure when the subwoofer is radiating in a closed enclosure. This adds to the inherent stiffness of the subwoofer's oscillation system the stiffness of the air in the closed enclosure. This causes an increase in the stiffness of the oscillating system and thus an increase in the resonant frequency of the entire system: subwoofer -> loudspeaker.

The increase in resonant frequency for a given subwoofer is greater, the smaller the volume of air in the closed enclosure. The relatively small volume of air in the closed enclosure acts on the subwoofer as an acoustic spring when radiating the back side of the membrane into the enclosed enclosure.

USE: Mainly for quality bass listening in the entire band with an emphasis on detail and accurate reproduction in the lower band.

Pros and cons:
+ pure reproduction
+ small closets
+ easier tuning
- low level of efficiency in deep bass
- loudness only at the cost of enormous deflection of the diaphragm
- a significant acoustic pressure cannot be expected

The bass reflex enclosure is designed in the same way as a closed enclosure, but it also has a so-called bass reflex mouthpiece, or "bass reflex". Needle foam is used to dampen bass reflex enclosures.

USE:
The ideal use is in cases where the listener wants to achieve a high volume and a good sound pressure level. It is the best compromise between sound quality and performance and is also the most commonly used

Pros and cons:
+ good efficiency in deep bass
+ a small deflection of the membrane is enough for a large volume
- reproduction less accurate than with closed enclosures
Bass reflex
What is the baffle made of?Subwoofer enclosures are usually made of 18-22 mm MDF board or pressed chipboard. Due to its higher strength, MDF board is a better material than ordinary chipboard. MDF
Dimensions of the boxEnclosure dimensions are given as height, width and depth, which is often longer at the bottom edge than at the top, due to the bevel of the rear wall. 902 x 279 x 130 mm
Box weight incl. subwoofer14.61 Kg
Beveling of the back wallThe bevel of the back wall is a crucial parameter if you intend to place the subwoofer in the luggage compartment, instead of the back wall of the rear seat. This will save you a few centimeters of space in the trunk of your car. No
