Suzuki Swift OEM parking camera (BC SUZ-11)
Last pieces

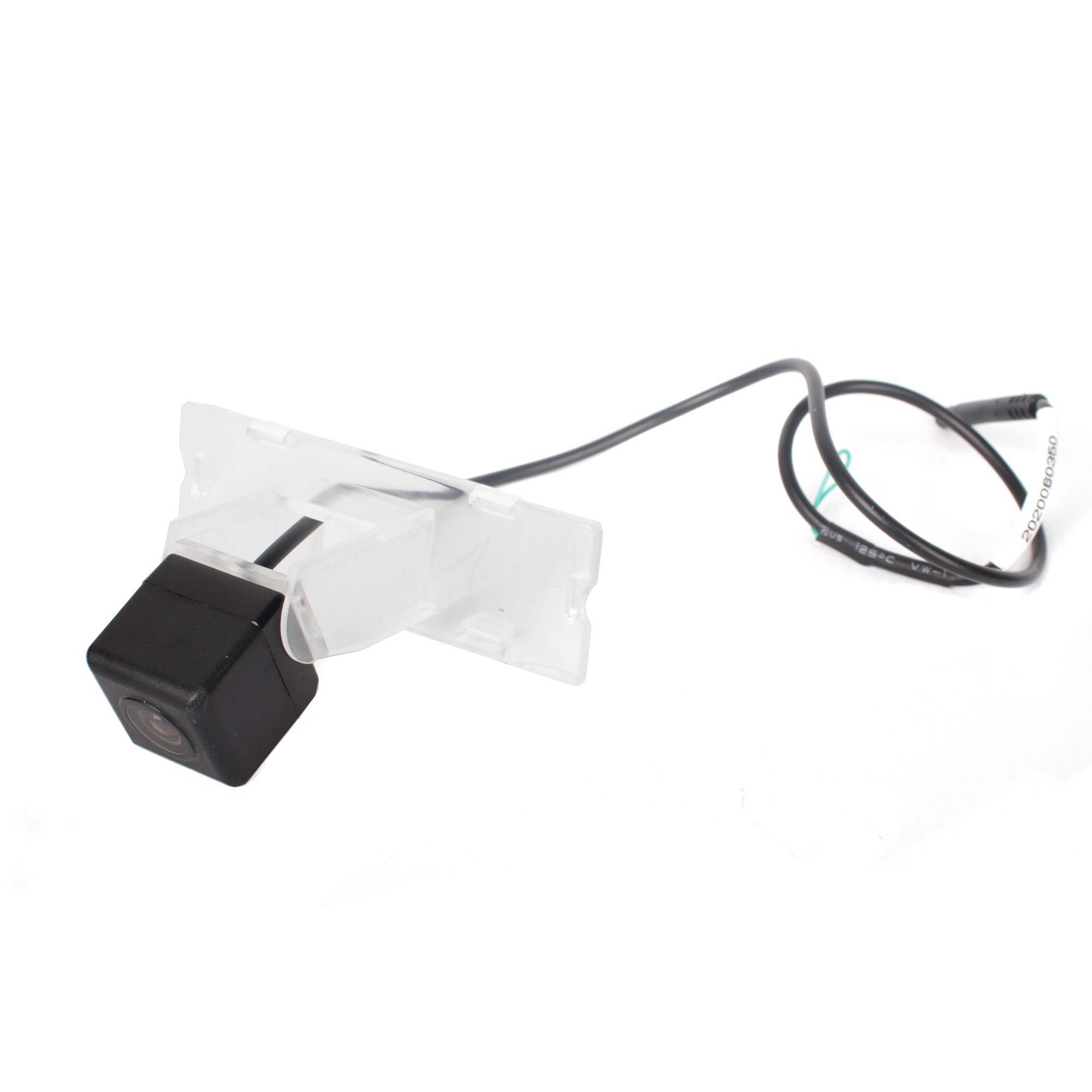

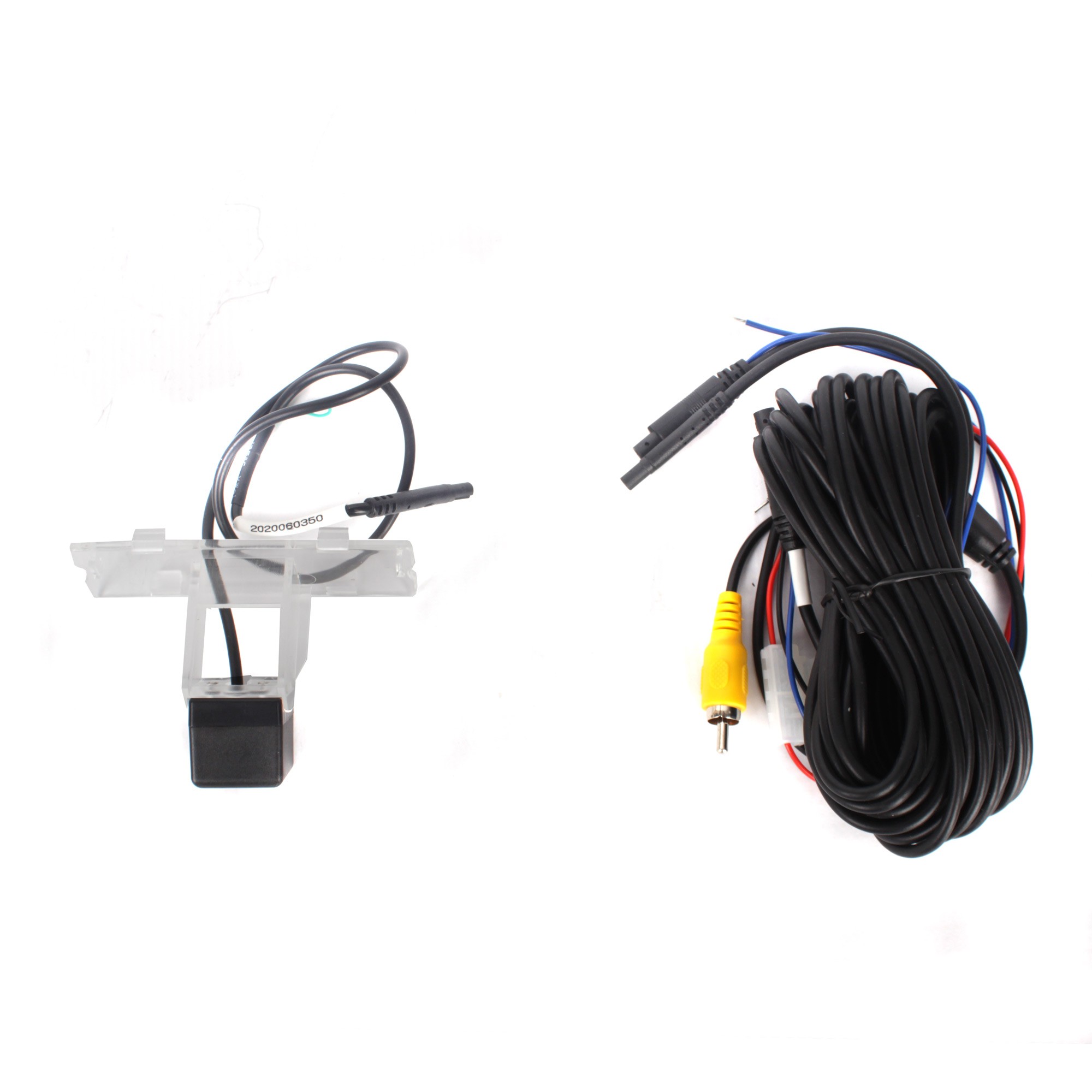

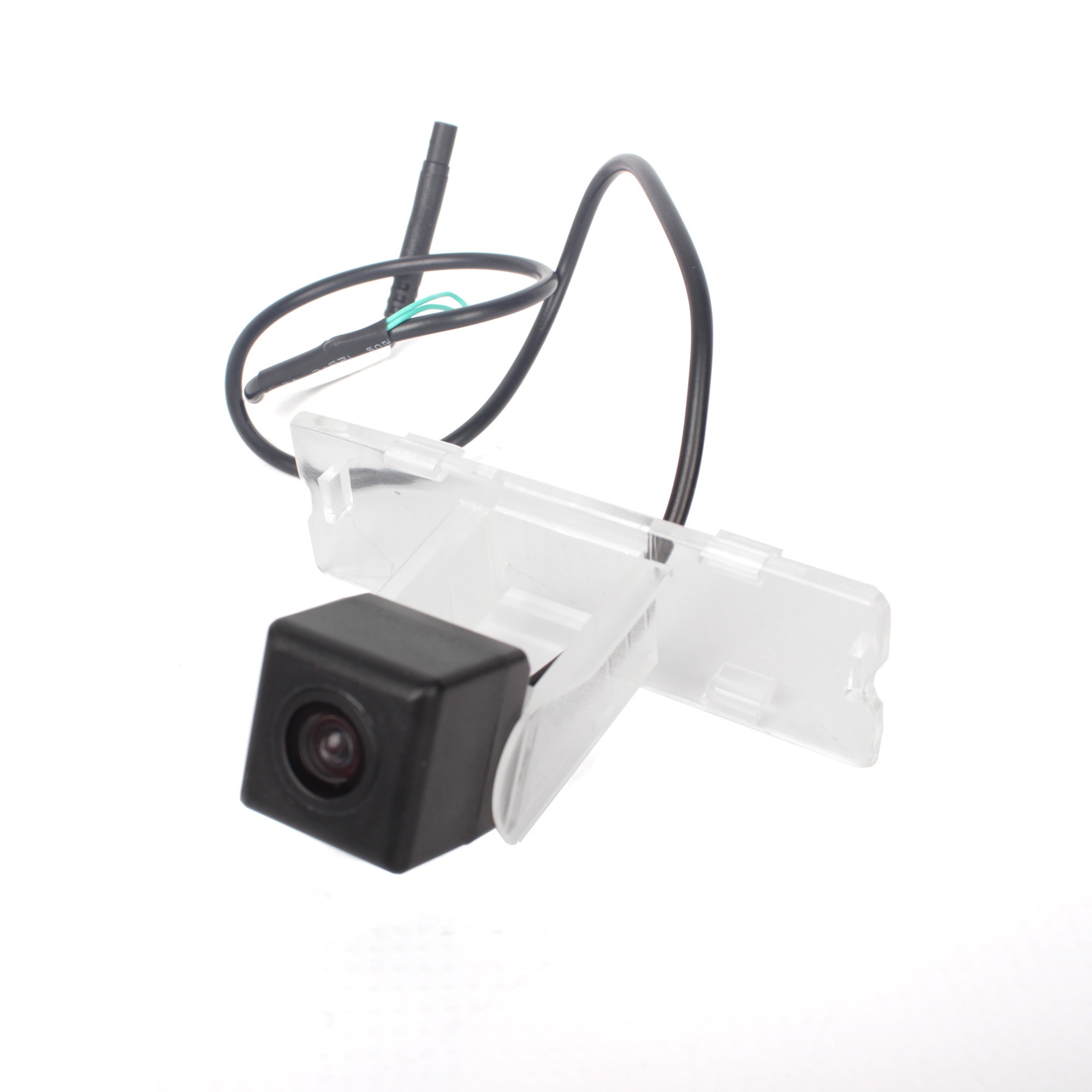

OEM parking camera for Suzuki Swift

OEM color parking camera for installation in the rear license plate lamp. The camera includes a spot for the original license plate light. For Suzuki Swift vehicles.

Camera suitable for the following vehicles:

  • Suzuki Swift III. facelift (2013->)

Technical parameters of OEM camera for Suzuki Swift:

  • imaging sensor: CMOS 1/3"
  • the option to turn on / off the display of auxiliary trajectories (guide lines)
  • electronic aperture: 1/60 1/10000 sec.
  • minimum illumination: 0.05 lux
  • signal / noise ratio: > 48 dB
  • TV system: NTSC
  • number of TV lines: 700 TVL
  • weather protection: IP67
  • horizontal scanning angle: 120°
  • image display: mirror image
  • white balance: automatic
  • operating temperature from -30 °C to +70 °C
  • AGC, BLC, white balance: automatic
  • signal cable: length 8 m (CINCH / RCA connector)
  • double shielding of the signal cable
  • power cable: 30 cm
  • video output: 1.0V / 75 ohm
  • power supply: 12 V DC
  • consumption: <1W

Camera dimensions:

  • base: 29 x 88 mm

Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!

Catalog numberBC SUZ-11
BrandTSS Group
