Toyota Connects2 steering wheel button control adapter CTSTY011.2

Proace (16->21), Proace Verso (16->21)
More about the product
We will help you with your purchase

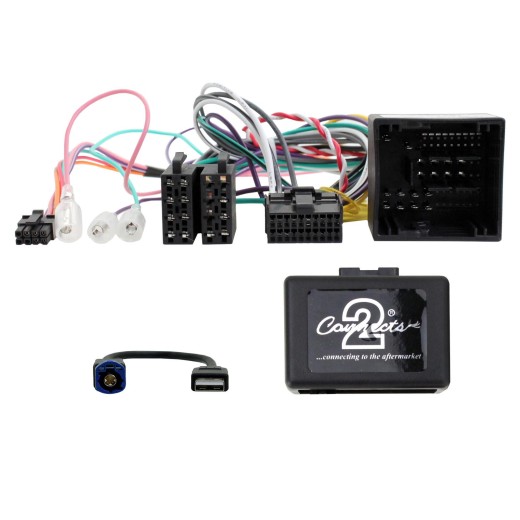

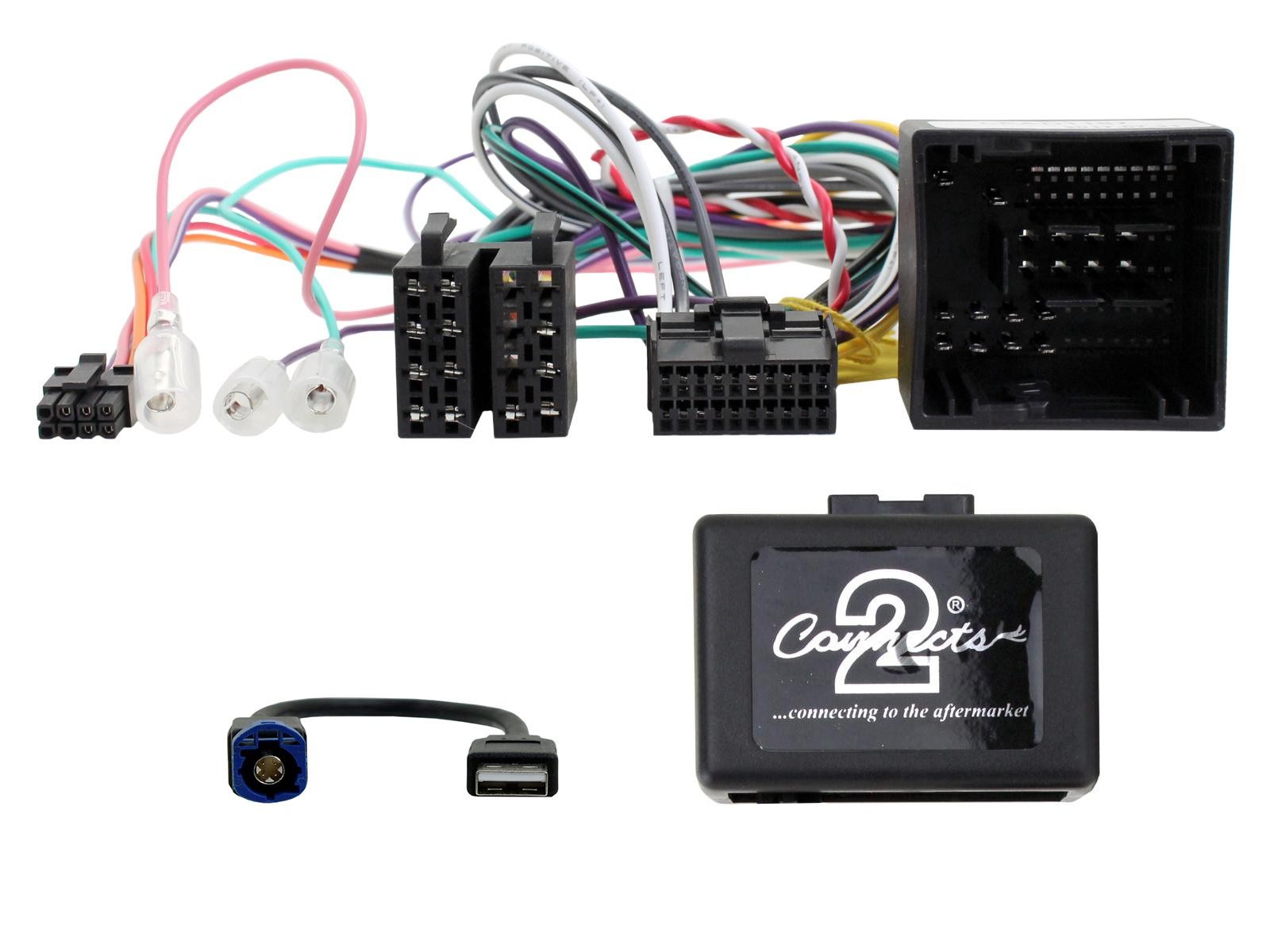

Toyota Connects2 steering wheel button control adapter CTSTY011.2

Toyota steering wheel adapter

Adapter for activating the control buttons on the steering wheel when buying an aftermarket car radio with an ISO connector (included in the adapter) for vehicles:

  • Toyota Proace (2016 -> 2021)
  • Toyota Proace Verso (2016 -> 2021)

Important additional information

  • Parking sensor interface only for vehicles with original touch screen and rear parking sensors.
  • Designed for aftermarket Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker car radios.
  • Installation instructions in English can be found under this link .
  • To fully activate the adapter, it is necessary to order a connecting cable for the given brand of car radio! (see below)

The adapter includes wires with analog signals

  • +12 V after turning on the key (vol. 15) - connected in the ISO connector.
  • +12 V after switching on the vehicle lighting - connected in the ISO connector.
  • +12 V after engaging the reverse gear - free violet-gray wire.
  • Speed pulses - free pink-green wire.
  • Handbrake - free green wire.
Catalog numberCTSTY011.2
BrandConnect2
LinksOfficial web presentation
