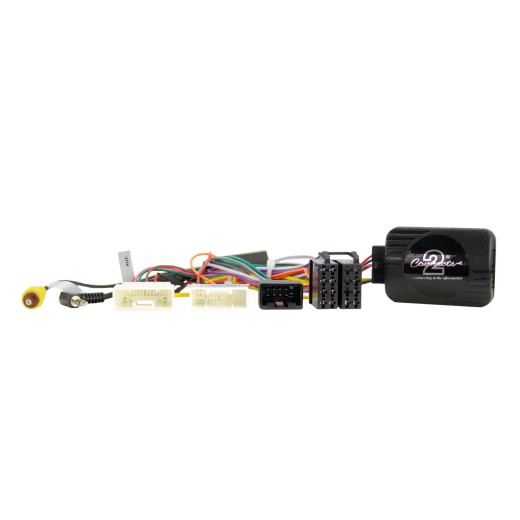

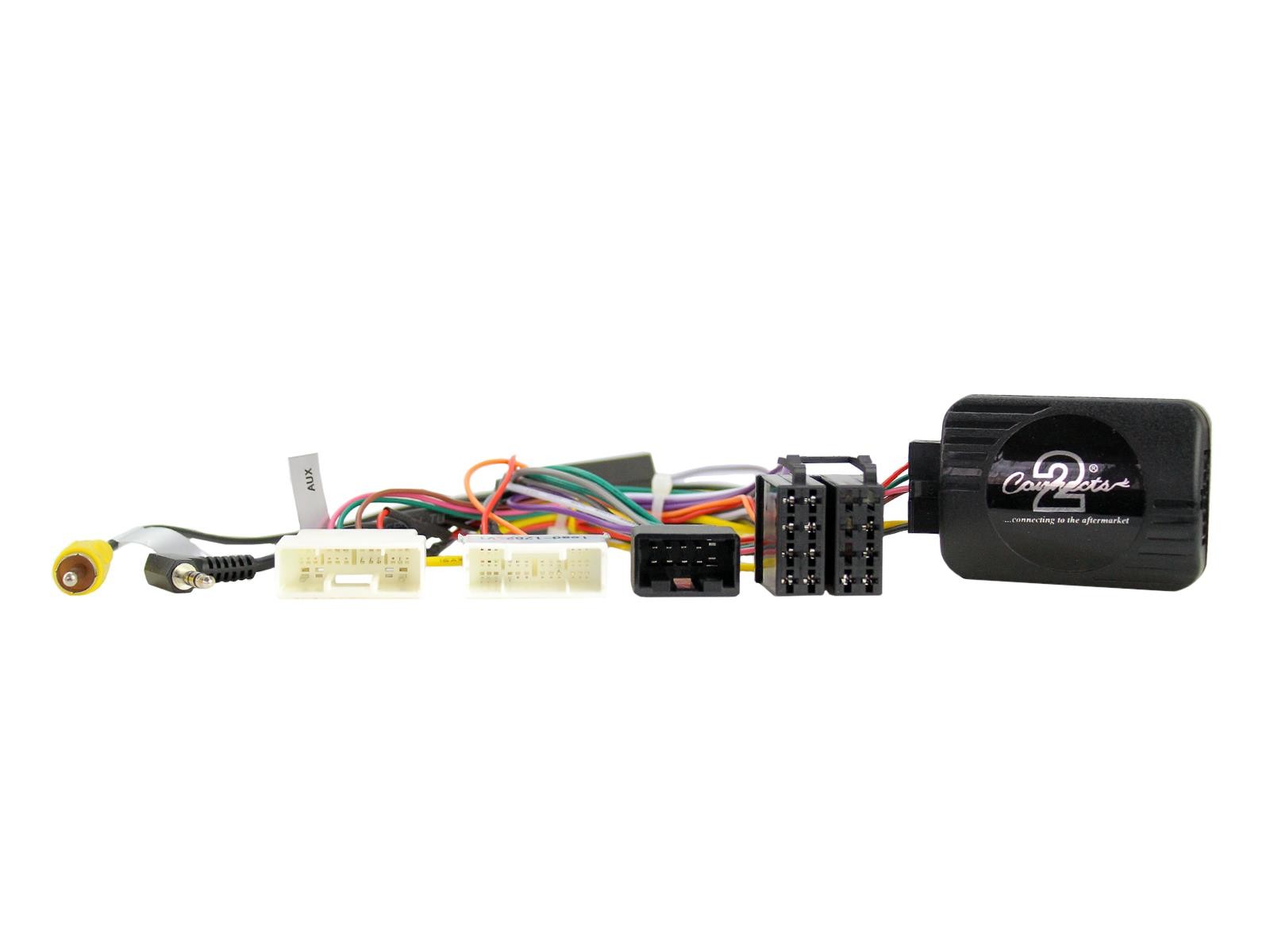

Toyota Connects2 steering wheel button control adapter CTSTY014.2

Toyota steering wheel adapter

Adapter for activating the control buttons on the steering wheel when buying an aftermarket car radio with an ISO connector (included in the adapter) for vehicles:

• Toyota Camry (2017 -> 2021)
• Toyota Hilux (2020 ->)

Important additional information

• This interface and wiring harness combination not only retains the selected factory steering wheel controls, but also retains the factory AUX input and OEM camera (if equipped).
• Designed for aftermarket Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker car radios.
• Installation instructions in English can be found under this link .
• To fully activate the adapter, it is necessary to order a connecting cable for the given brand of car radio! (see below)

The adapter includes wires with analog signals

• +12 V after turning on the key (vol. 15) - connected in the ISO connector.
• +12 V after switching on the vehicle lighting - connected in the ISO connector.
• +12 V after engaging the reverse gear - free violet-gray wire.
• Speed pulses - free pink-green wire.
• Handbrake - free green wire.
