Universal parking camera (BC PLATE)

universal parking camera integrated in the mat under the registration number
More about the product
We will help you with your purchase

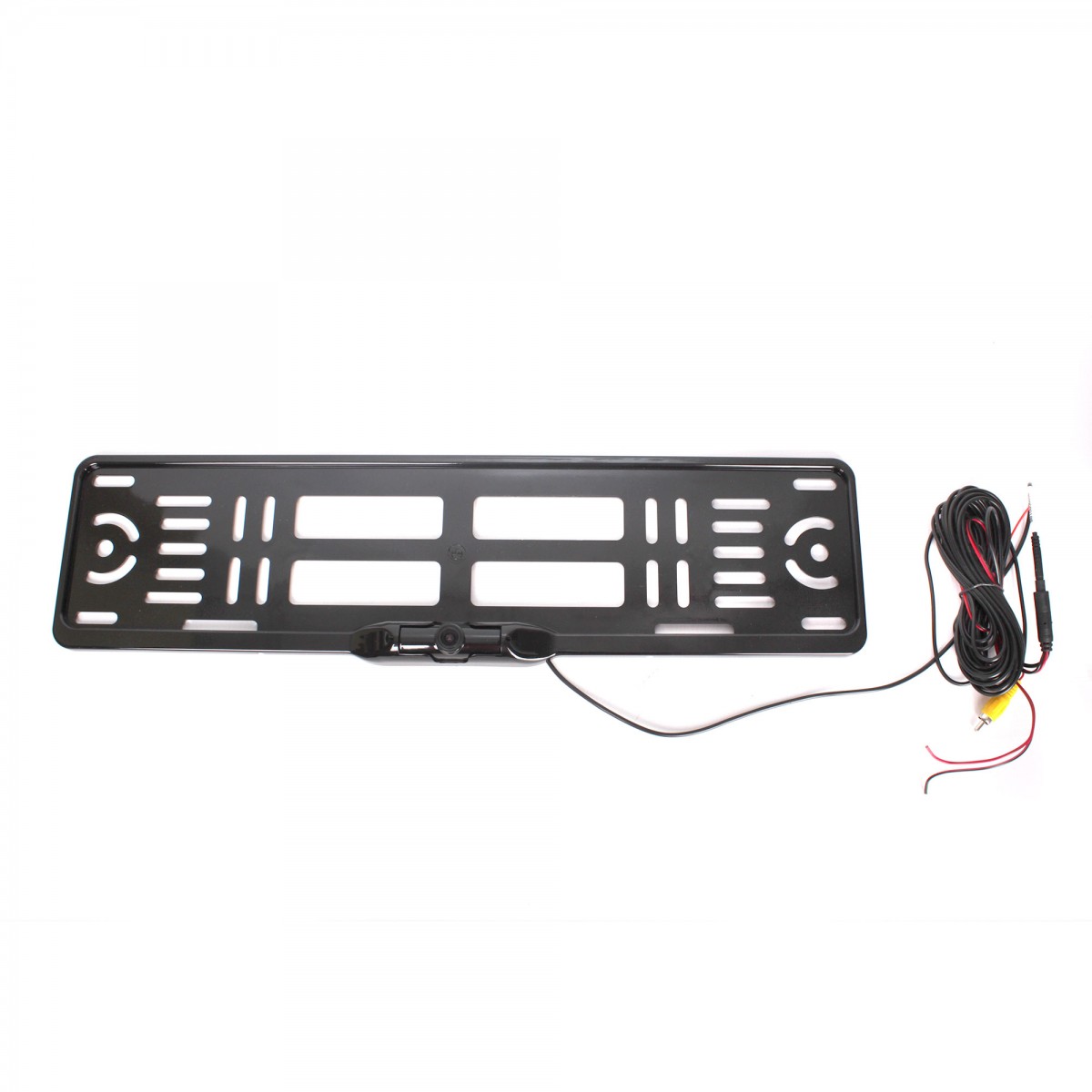

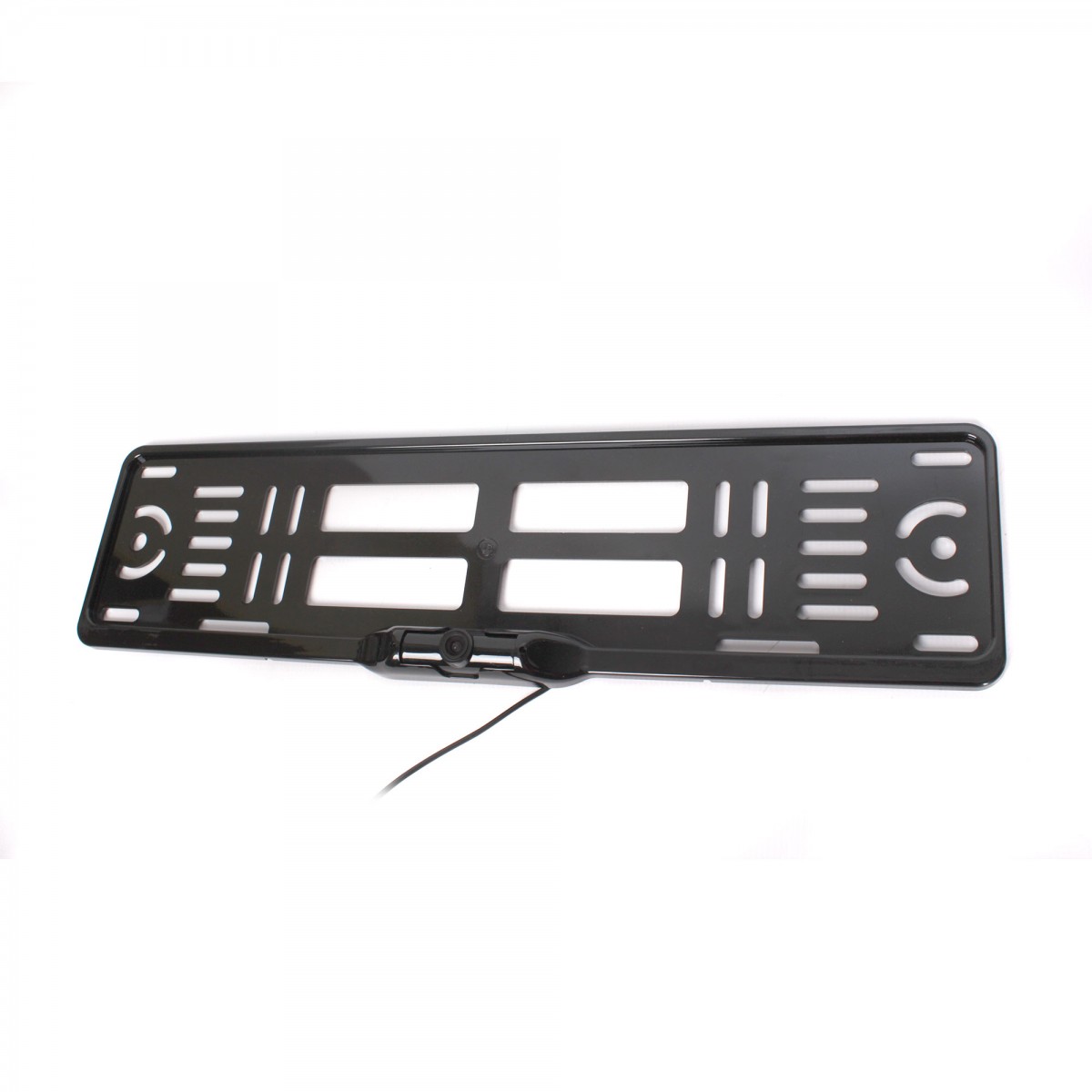

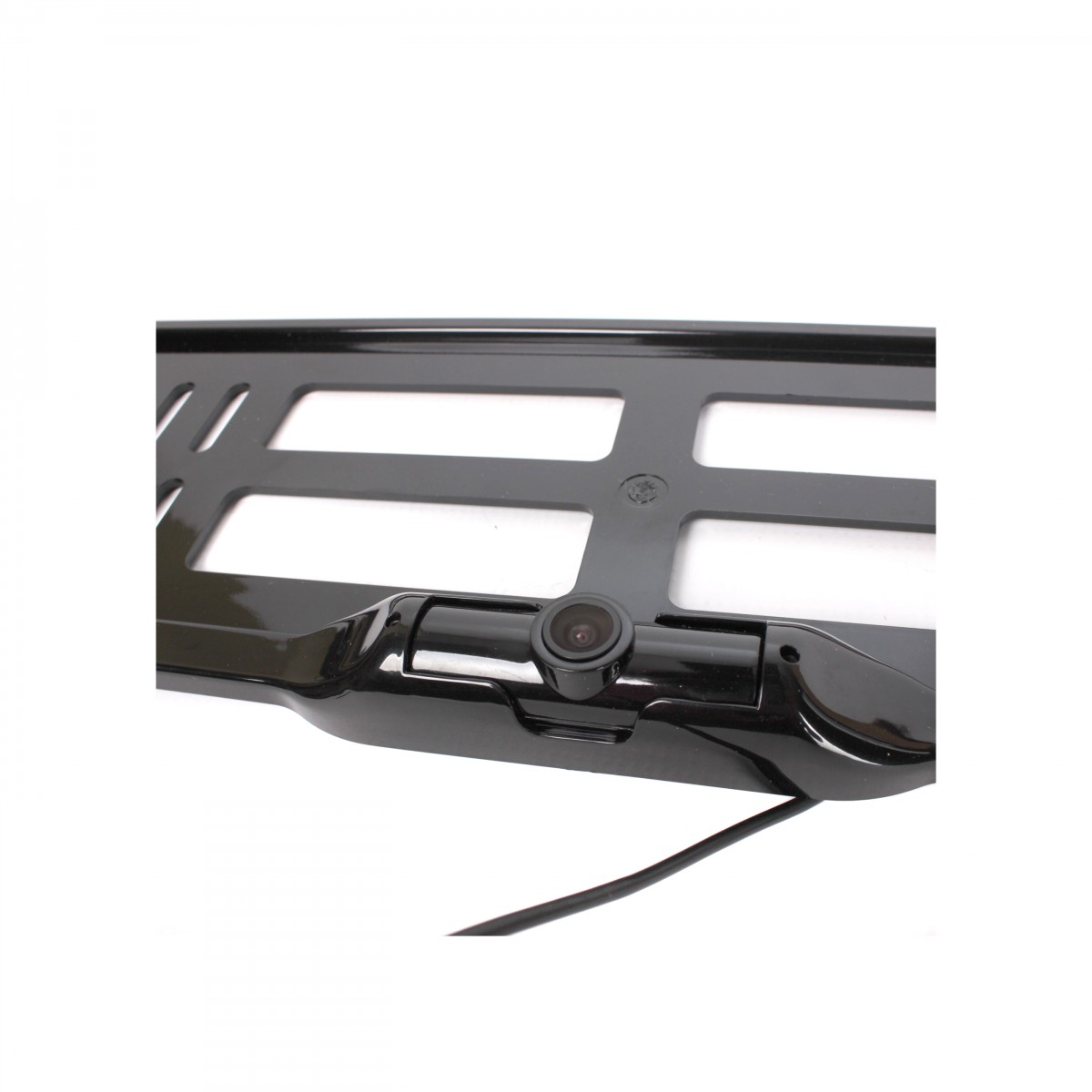

Universal parking camera (BC PLATE)

Universal parking camera

Universal parking camera, integrated in the plate under the registration number, the possibility of adjusting the angle of the camera, angle of view 170°.

Technical parameters of the camera

  • PC1089 - 1/3" sensing chip.
  • Electronic aperture: 1/50 1/12000 sec.
  • Minimum illumination: 0.01 lux.
  • Signal-to-noise ratio: > 48 dB.
  • TV system: NTSC (every display is compatible).
  • Effective pixels: 720 x 488.
  • Number of TV lines: 600.
  • Weather protection: IP68.
  • Scanning angle: 170°.
  • Video output: 1.0V / 75 ohm.
  • White balance: automatic.
  • Operating temperature: from -30°C to +75°C.
  • Signal cable length: 7 m terminated with CINCH / RCA connectors (male).
  • Power cable length: 1 m.
  • Powered by: 12 V.
  • Mirror image.
  • Overall dimensions: 535 x 30 x 138 mm (W x D x H).
Note:
The plate with the registration number is inserted into the groove of the pad at the top, you also need to use double-sided adhesive tape (not included) to secure the plate in the vertical direction. The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
Catalog numberBC PLATE
BrandTSS Group
