Universal parking camera (BC UNI-06)

universal parking camera with automatic IR illumination
More about the product
We will help you with your purchase
Universal parking camera (BC UNI-06)

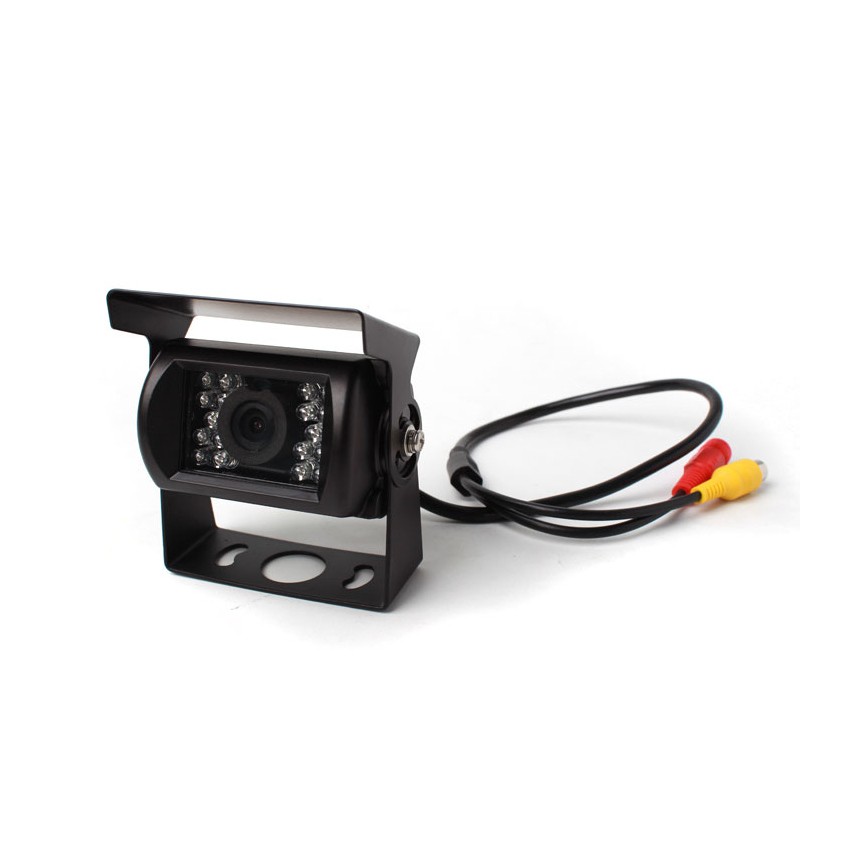

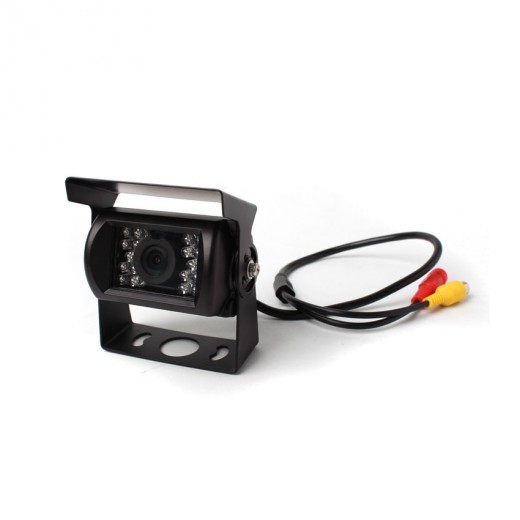

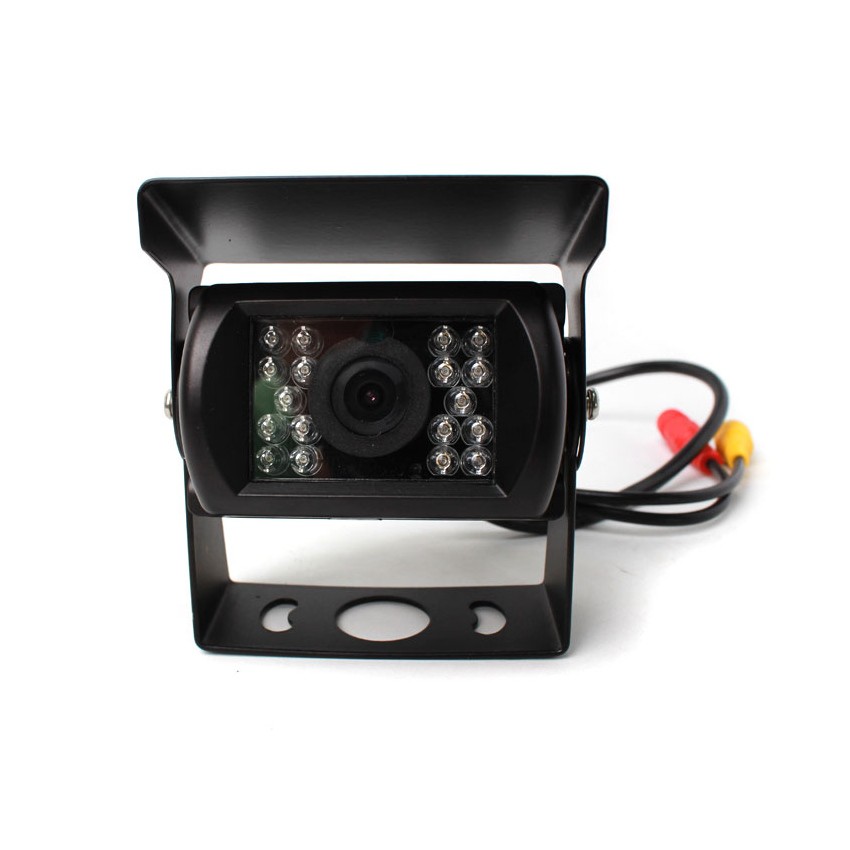

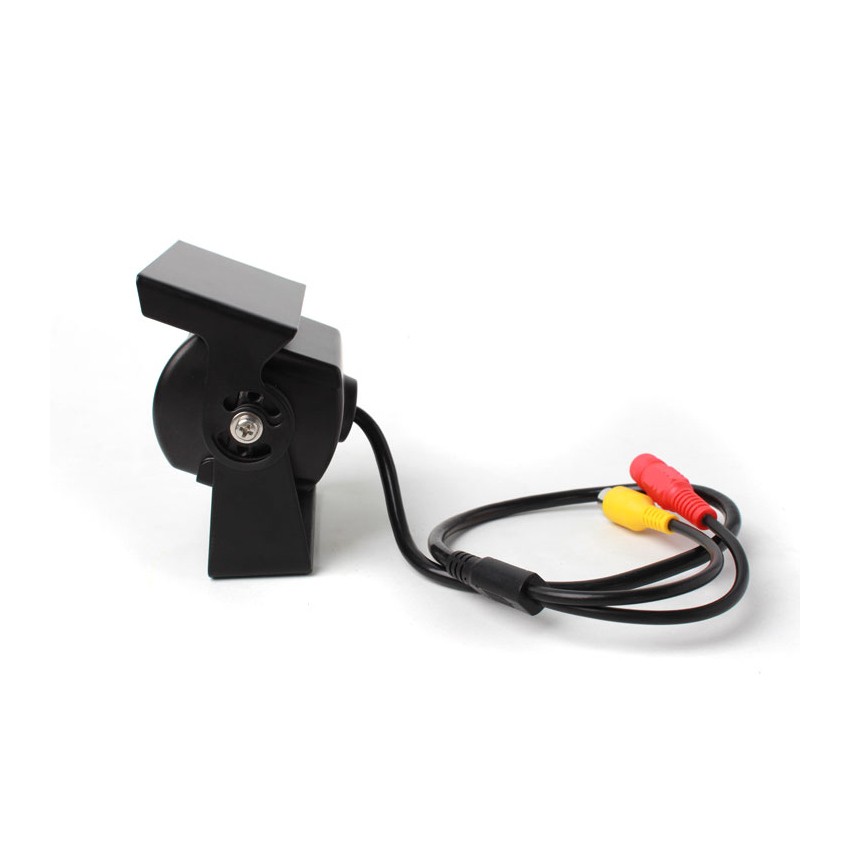

Universal parking camera

Universal parking camera, 12V / 24V, without guide lines, angle of view 110°, with automatic IR illuminator, metal camera body.

Technical parameters of the camera

  • large 1/3" sensing chip
  • illumination with IR LEDs (18 pcs.)
  • electronic aperture: 1/50 1/10000 sec.
  • minimum illumination: 0.05 lux
  • signal / noise ratio: > 48 dB
  • TV system: NTSC
  • effectively pixels: 512 x 582
  • number of TV lines: 480
  • weather protection: IP66
  • scanning angle: 110°
  • video output: 1.0V / 75 ohm
  • white balance: automatic
  • operating temperature: from -30 °C to +70 °C
  • CINCH connectors
  • power cable length: 1 m
  • power supply 12V / 24V
  • current consumption: 290 m (+/- 5%)
  • mirror image
  • camera body dimensions: 75 x 43 x 57 mm
Catalog numberBC UNI-06
BrandTSS Group
