Universal parking camera BC UNI-10 Mini camera, RCA, 800TVL, 155°

universal parking camera with a viewing angle of 155° for horizontal or vertical installation
More about the product
We will help you with your purchase

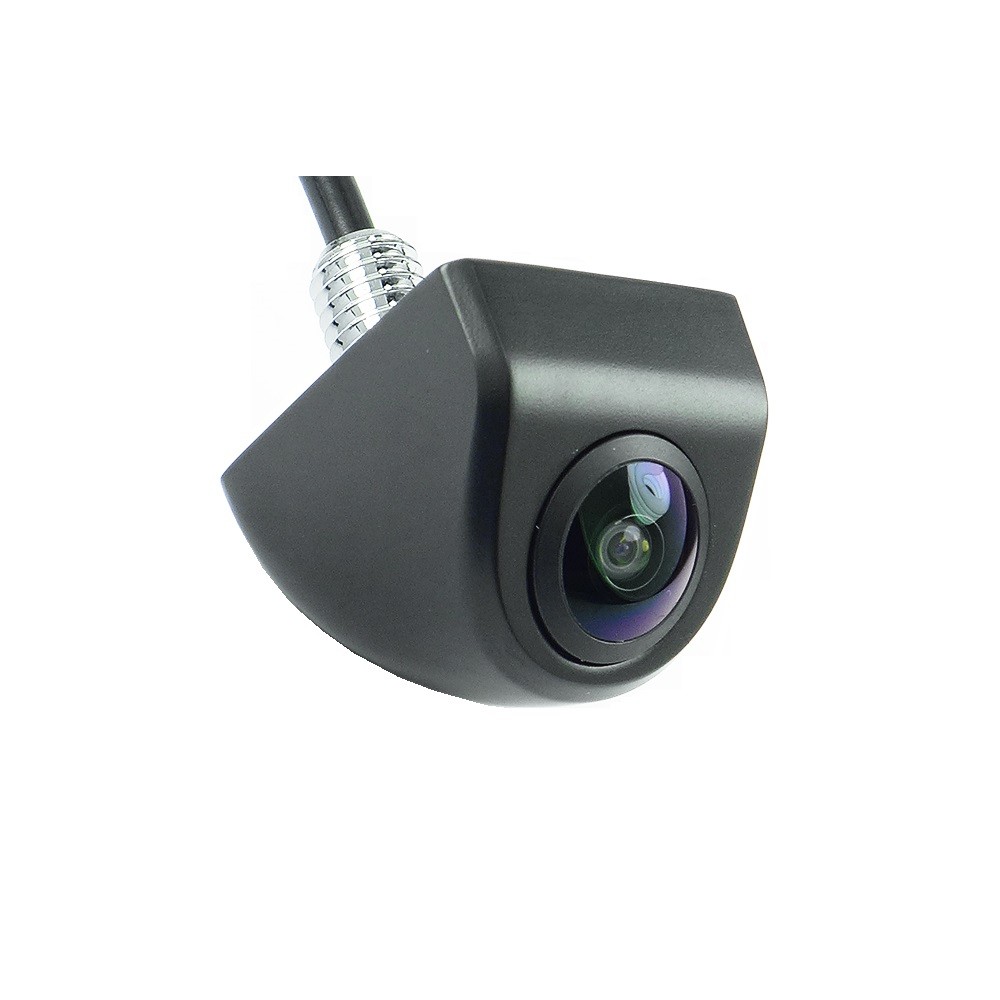

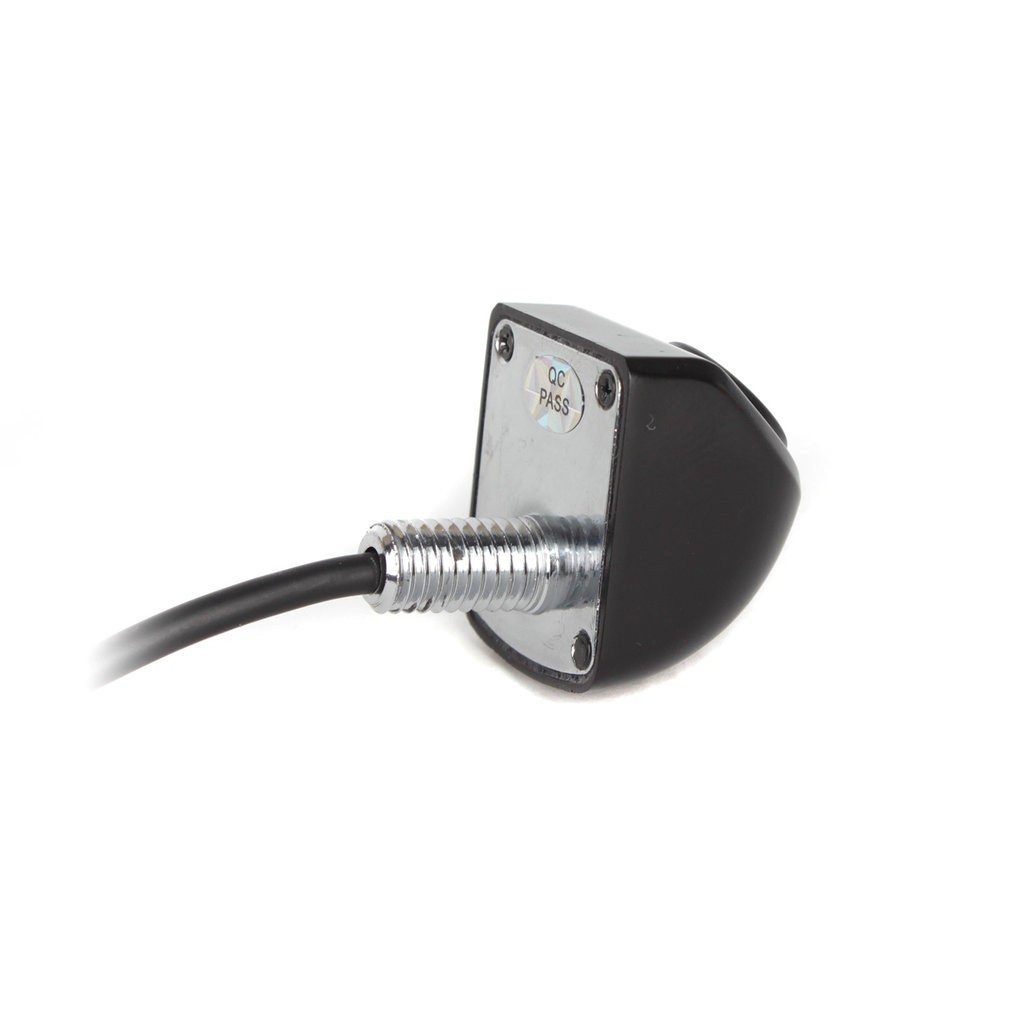

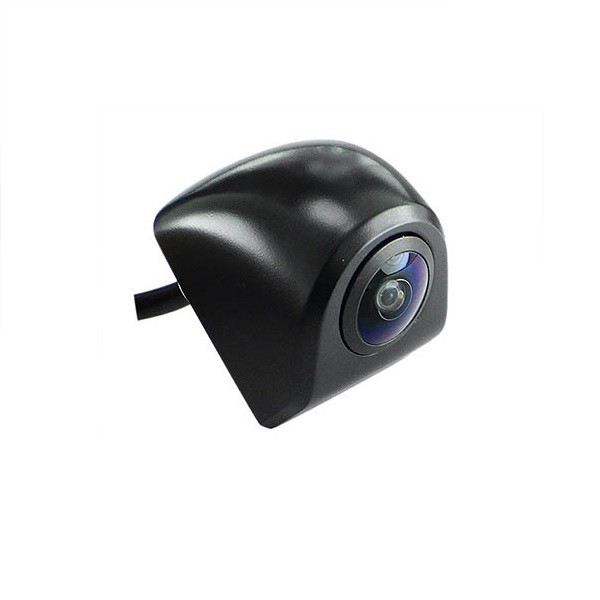

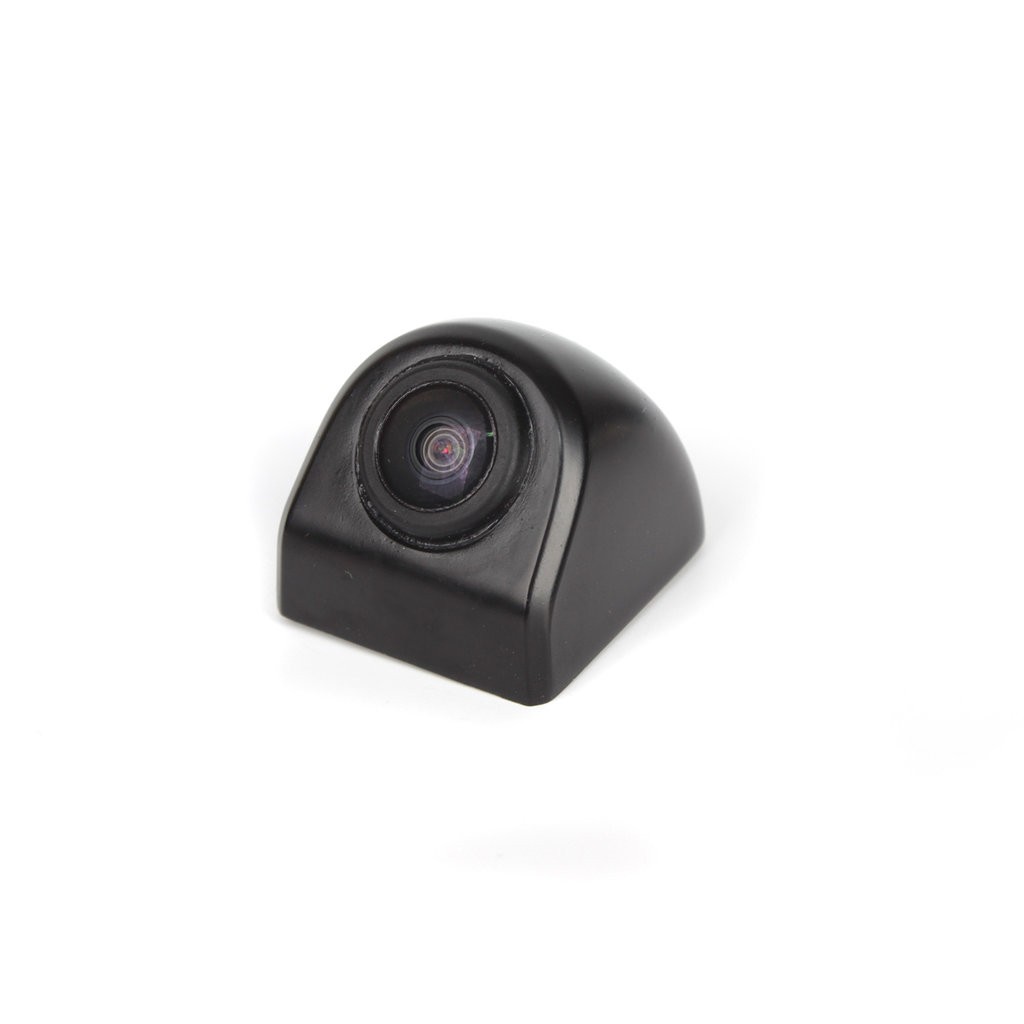

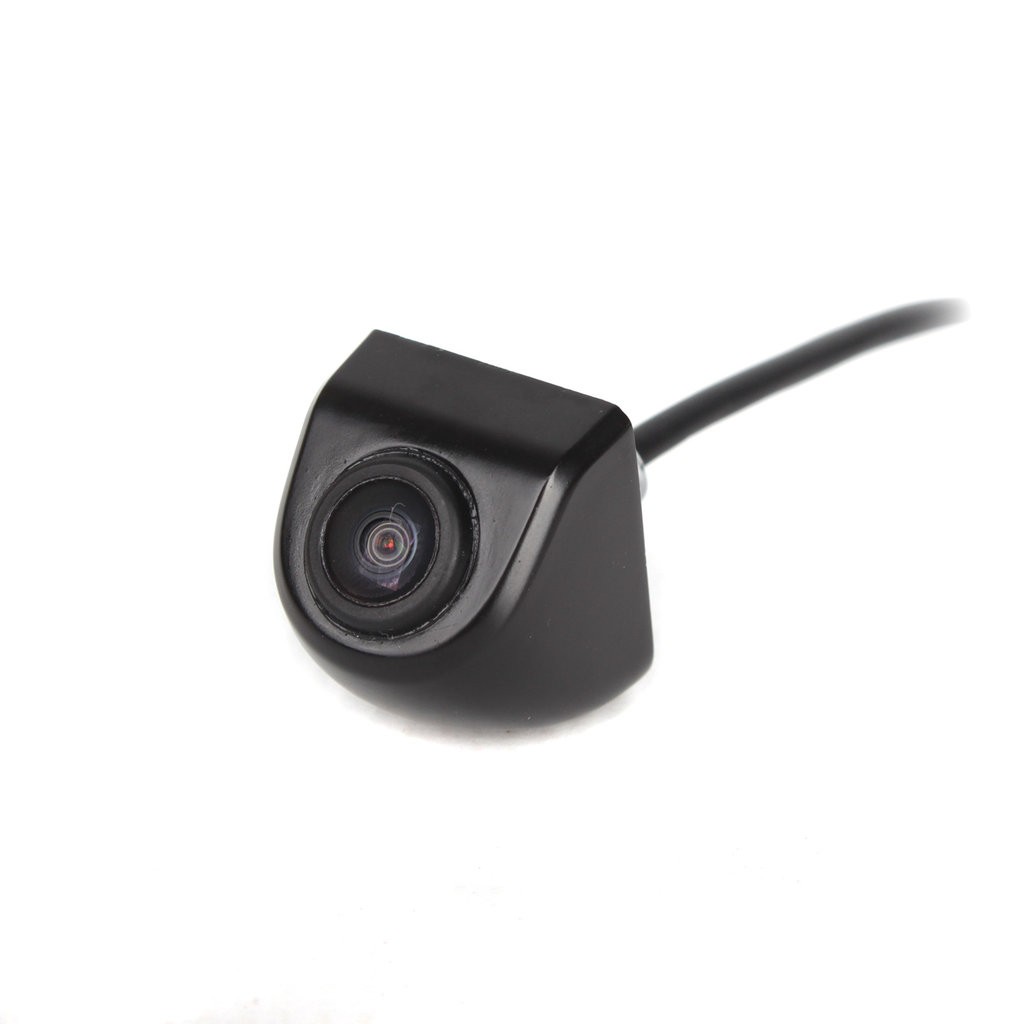

Universal parking camera (BC UNI-10)

Universal parking camera with a viewing angle of 155° for horizontal or vertical installation. The camera has the ability to turn on/off guide lines, mirror image, fit into an 8 mm hole.

Technical parameters of the camera

  • 1/4" CMOS sensor
  • horizontal scanning angle: 155°
  • resolution: 800 TV lines
  • minimum illumination: 0.01Lux
  • TV system: NTSC
  • current consumption: 25-55 mA
  • effective pixels: 960x480
  • power supply 9V-12V
  • weather protection: IP69K
  • video output: 1.0V / 75 Ohm
  • working temperature from -40 °C to +75 °C
  • camera dimensions: 29x25x22 mm
  • signal cable length 8m terminated with CINCH connectors

Setting the image orientation (change by cutting the color loop)

  • GREEN loop - Guide lines
  • BLUE loop - Right / Left flip (mirror image)
  • WHITE loop - Horizontal / Vertical flip

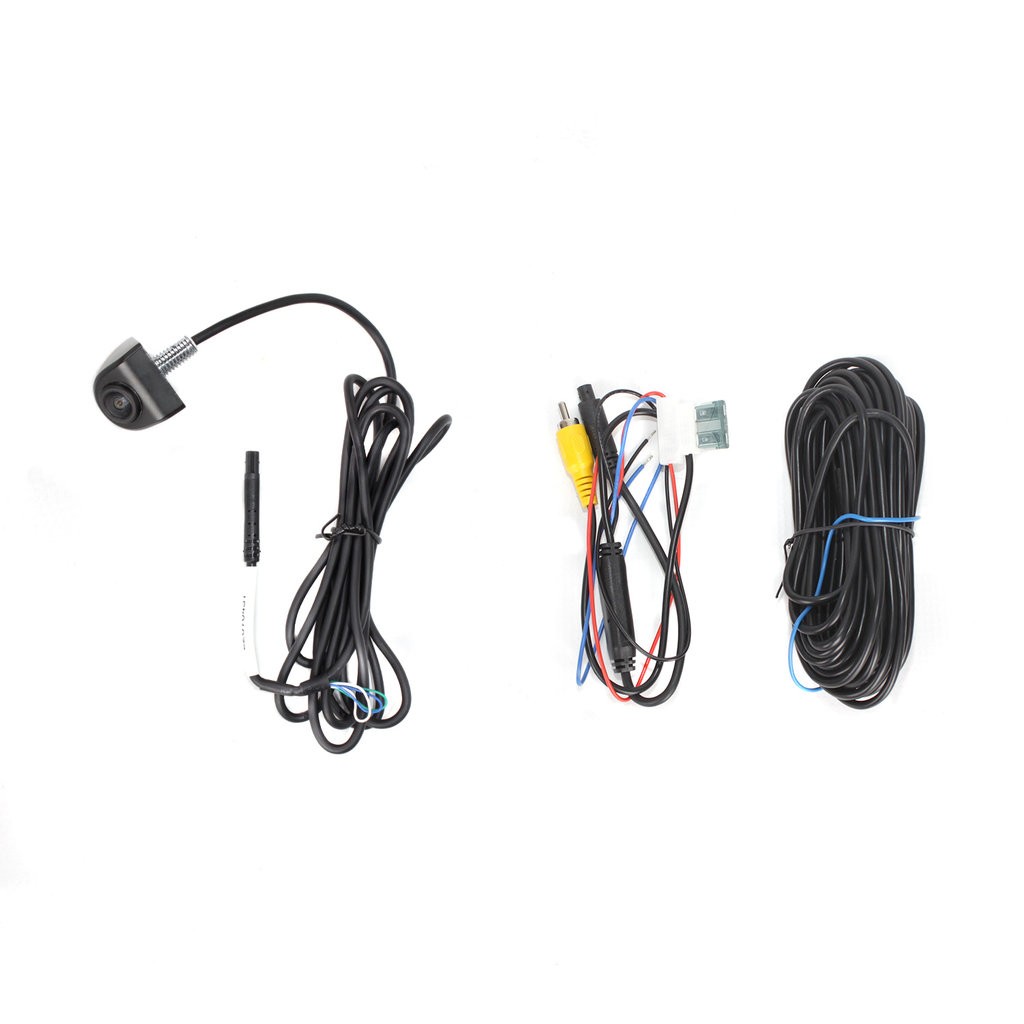

In the package:

  • camera
  • cable 8 m + reduction 30 cm
Catalog numberBC UNI-10
BrandTSS Group
