Universal parking camera (BC UNI-11)
Universal parking camera with a viewing angle of 128° for horizontal or vertical installation. The camera has the ability to turn on/off guide lines, mirror image, fit into an 8 mm hole.
Technical parameters of the camera
- 1/4" CMOS sensor
- horizontal scanning angle: 128°
- resolution: 800 TV lines
- minimum illumination: 0.01Lux
- TV system: NTSC
- current consumption: 25-55 mA
- effective pixels: 960x480
- power supply 9V-12V
- weather protection: IP69K
- video output: 1.0V / 75 Ohm
- working temperature from -40 °C to +75 °C
- camera dimensions: 26.5x25x19 mm
- signal cable length 8m terminated with CINCH connectors
Setting the image orientation (change by cutting the color loop)
- GREEN loop - Guide lines
- BLUE loop - Right / Left flip (mirror image)
- WHITE loop - Horizontal / Vertical flip

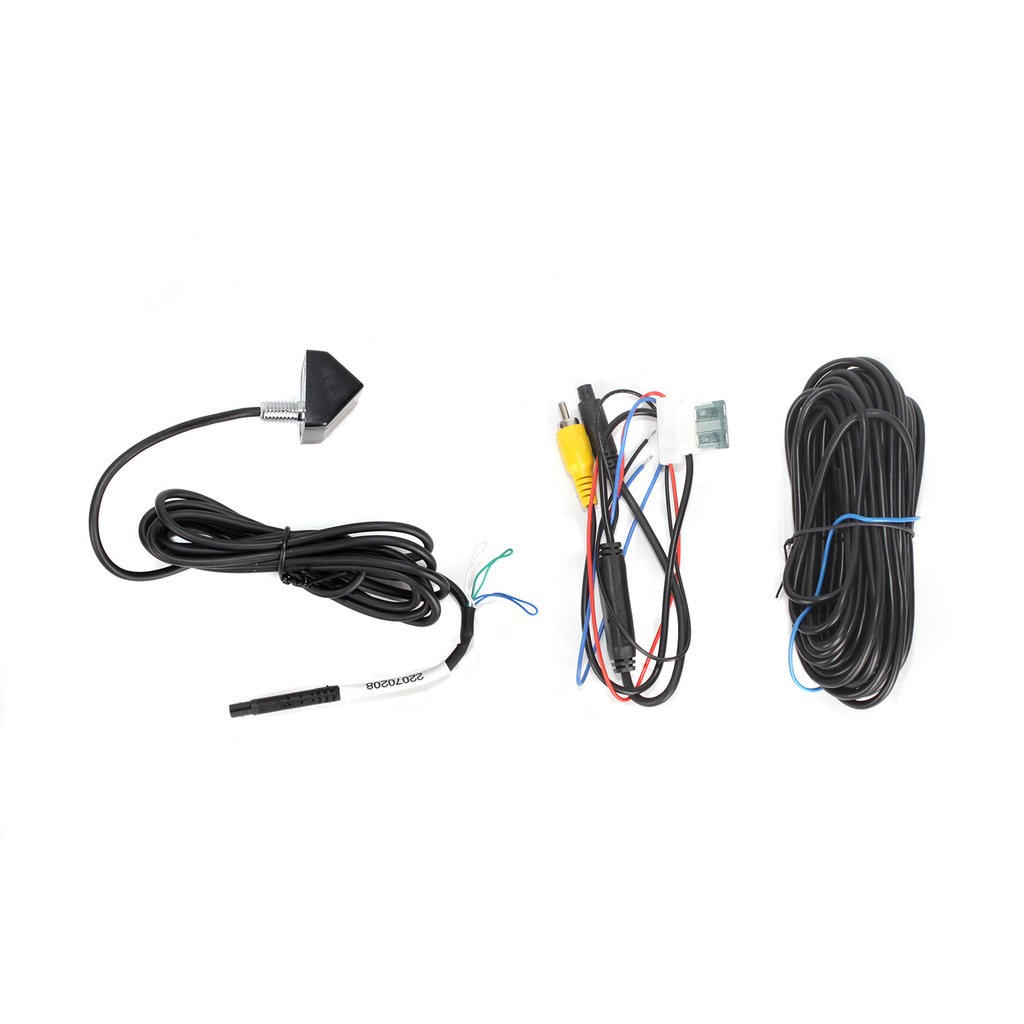

In the package:
- camera
- cable 8 m + reduction 30 cm
Catalog number | BC UNI-11 |
Brand | TSS Group |
