Universal parking camera BC UNI-12 Micro camera, RCA, 800TVL, 12mm, 125°

Universal parking camera (BC UNI-12)

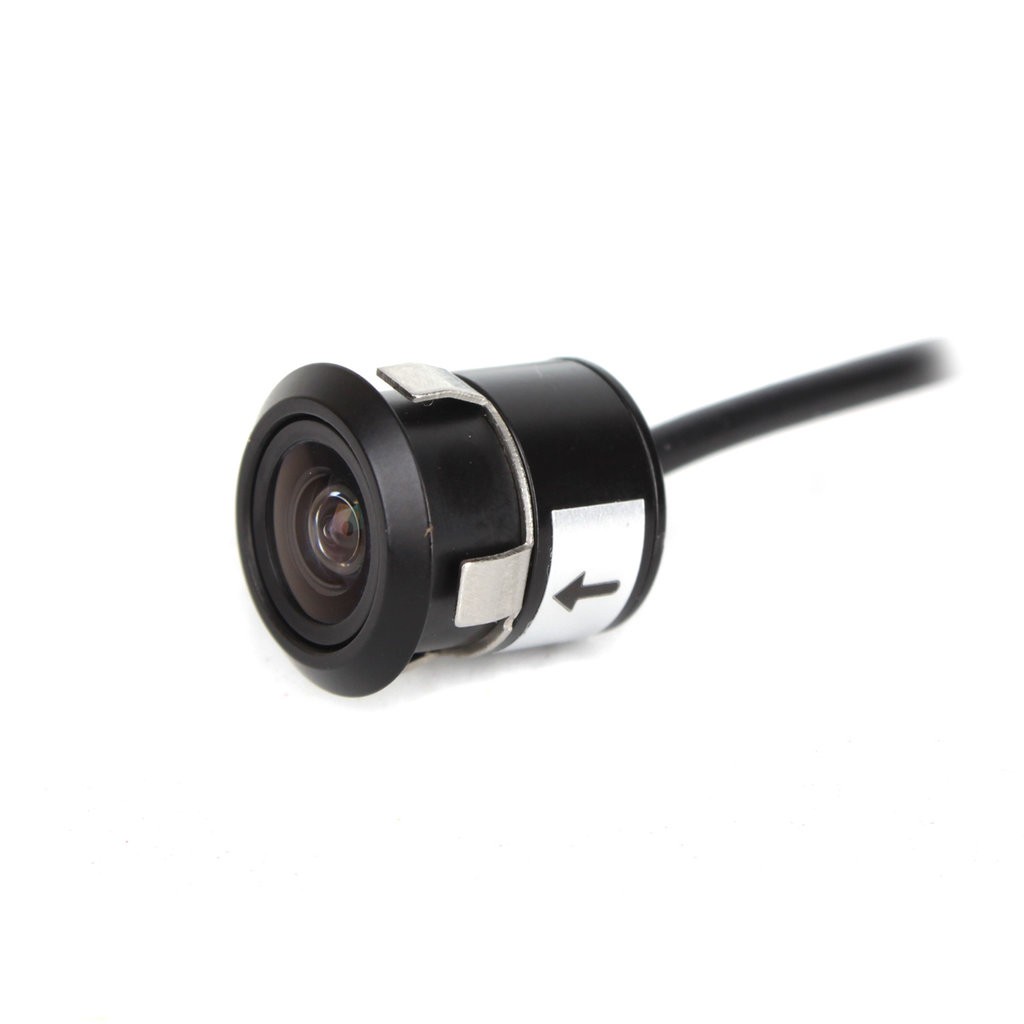

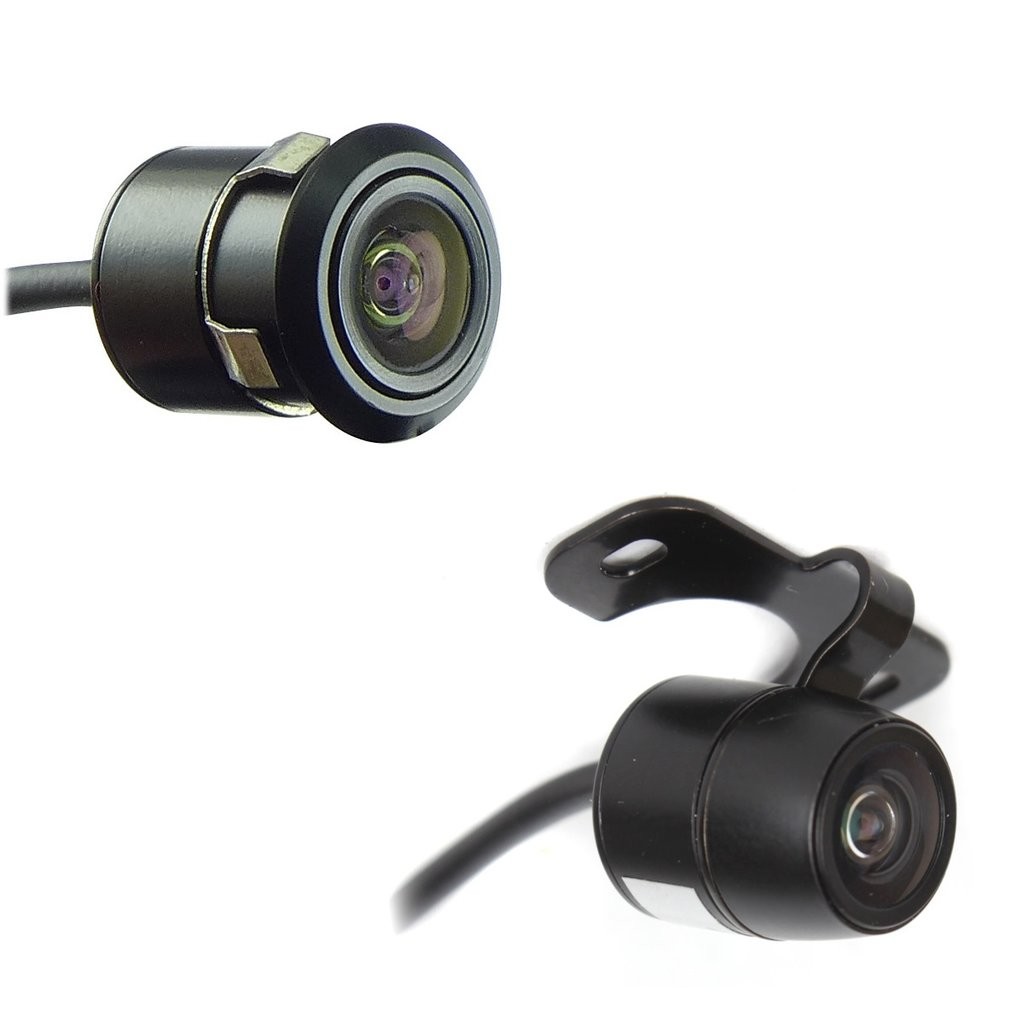

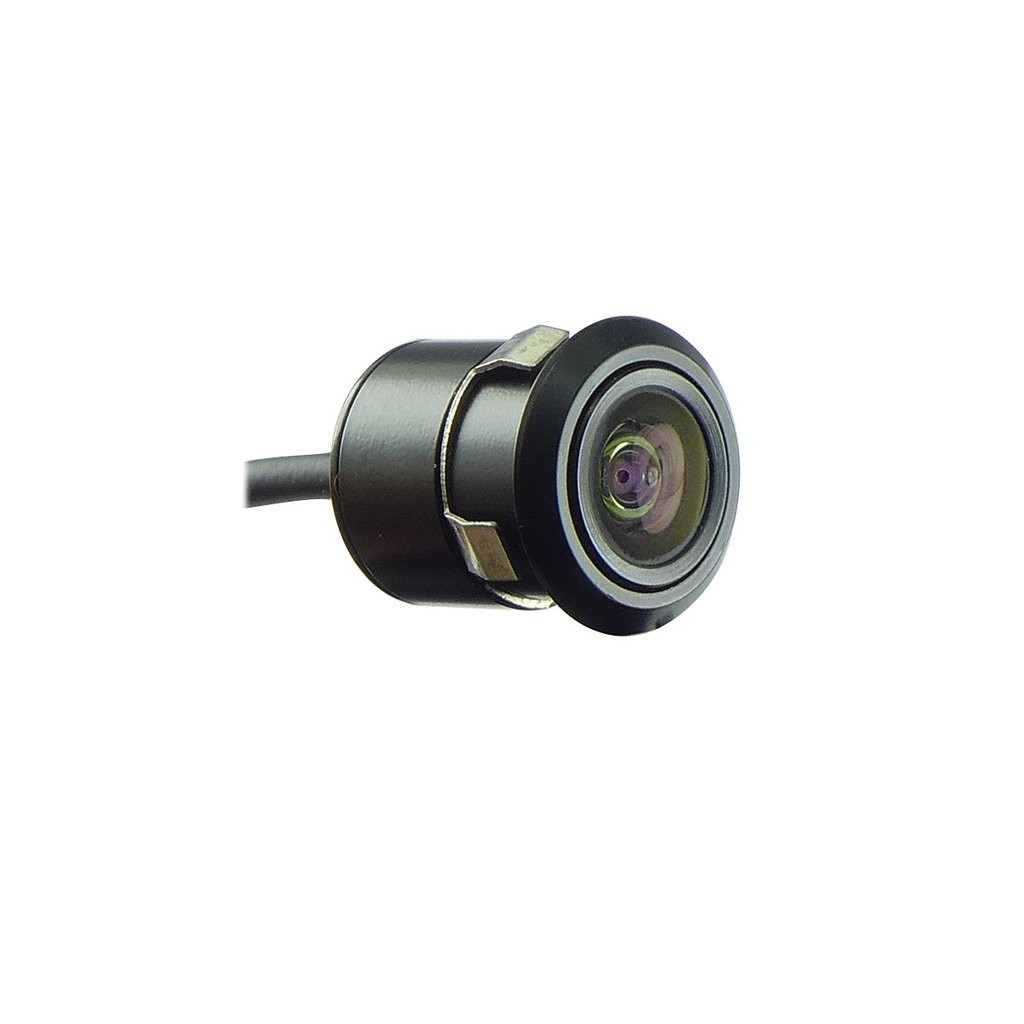

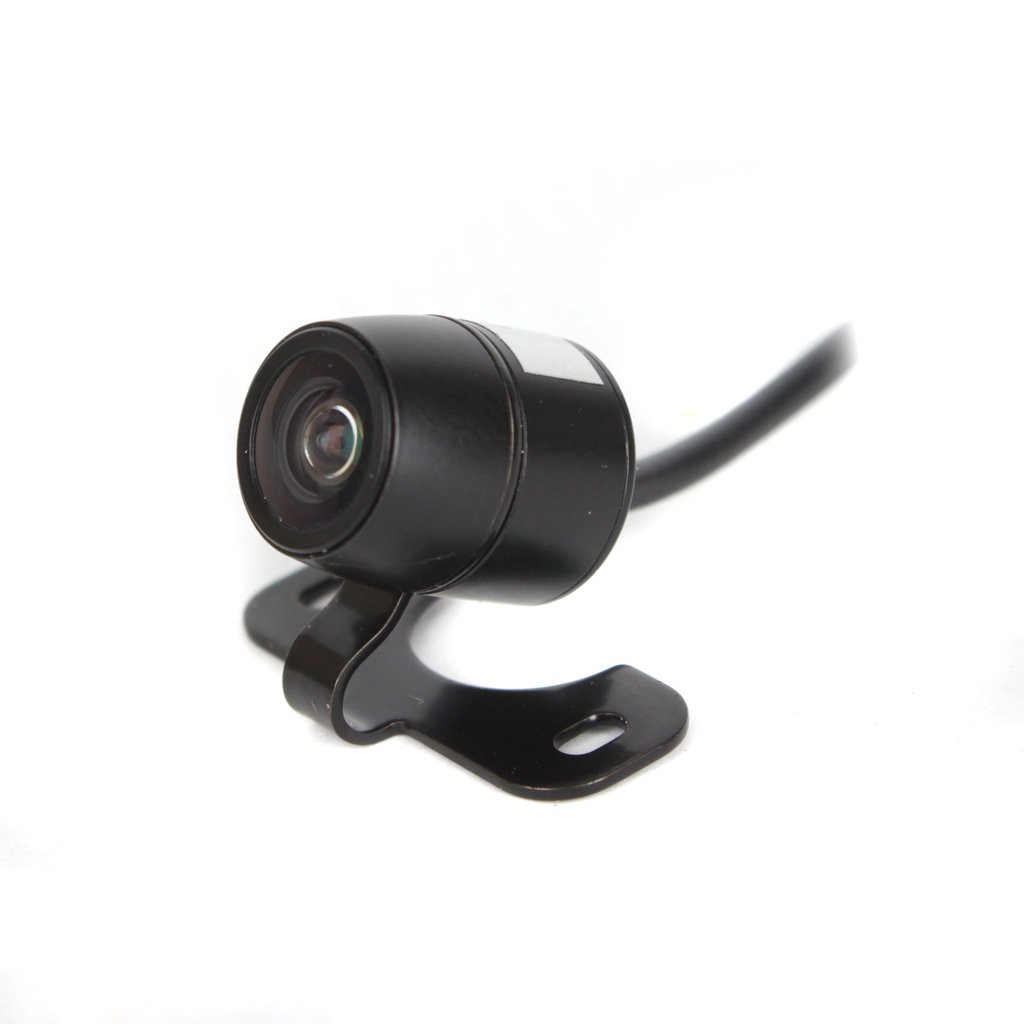

Universal micro parking camera with a viewing angle of 125° for horizontal installation. The camera has the ability to turn on/off the guide lines and the mirror image, embedded in a 13mm hole. The camera can also be mounted in a holder - surface mounting.

Technical parameters of the camera

• 1/4" CMOS sensor
• horizontal scanning angle: 125°
• resolution: 800 TV lines
• minimum illumination: 0.01Lux
• TV system: NTSC
• current consumption: 25-55 mA
• effective pixels: 960x480
• power supply 9V-12V
• weather protection: IP69K
• video output: 1.0V / 75 Ohm
• working temperature from -40 °C to +75 °C
• camera dimensions: ∅12.5 x 15 mm
• signal cable length 8m terminated with CINCH connectors

Setting the image orientation (change by cutting the color loop)

• GREEN loop - Guide lines
• BLUE loop - Right / Left flip (mirror image)
• WHITE loop - Horizontal / Vertical flip

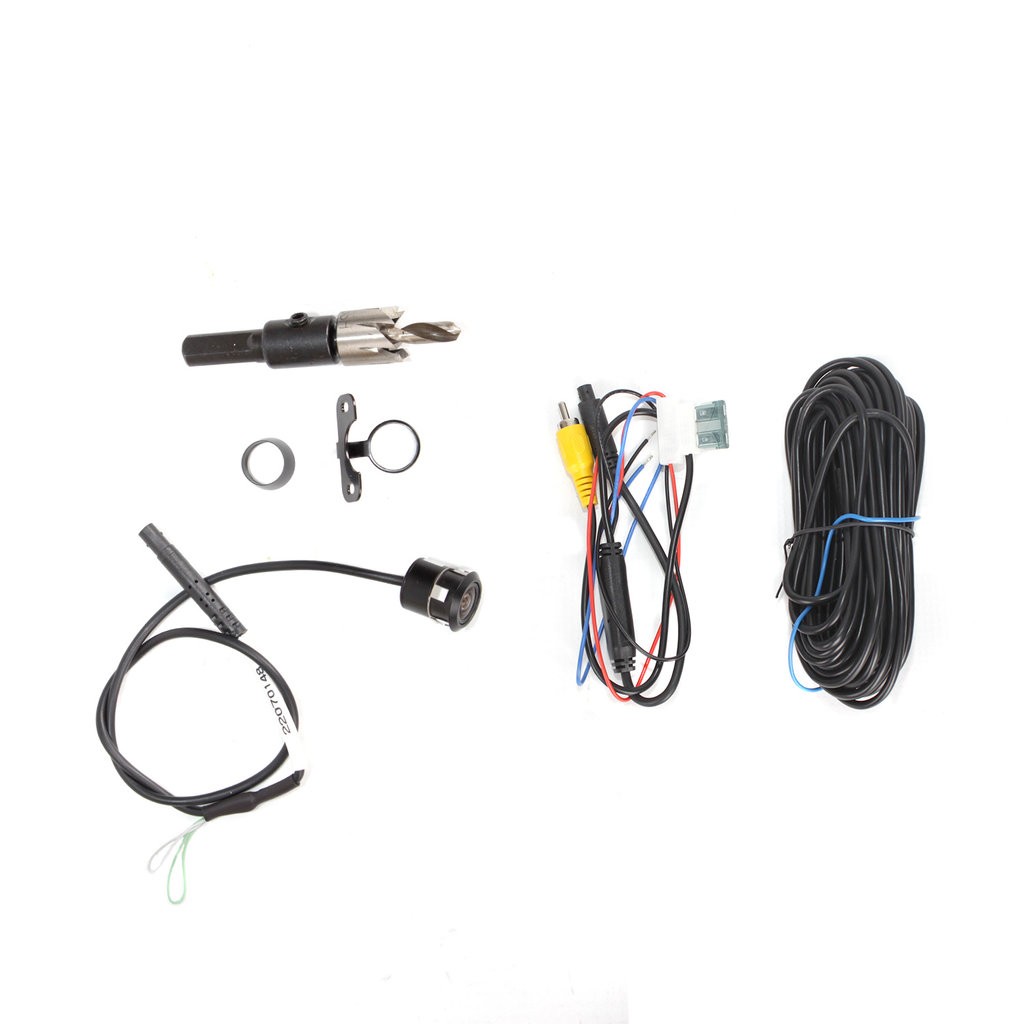

In the package:

• camera + holder
• cable 8 m + reduction 30 cm
• drill bit 13mm
