Universal parking camera BC UNI-13 Mini camera, RCA, 800TVL, 155°

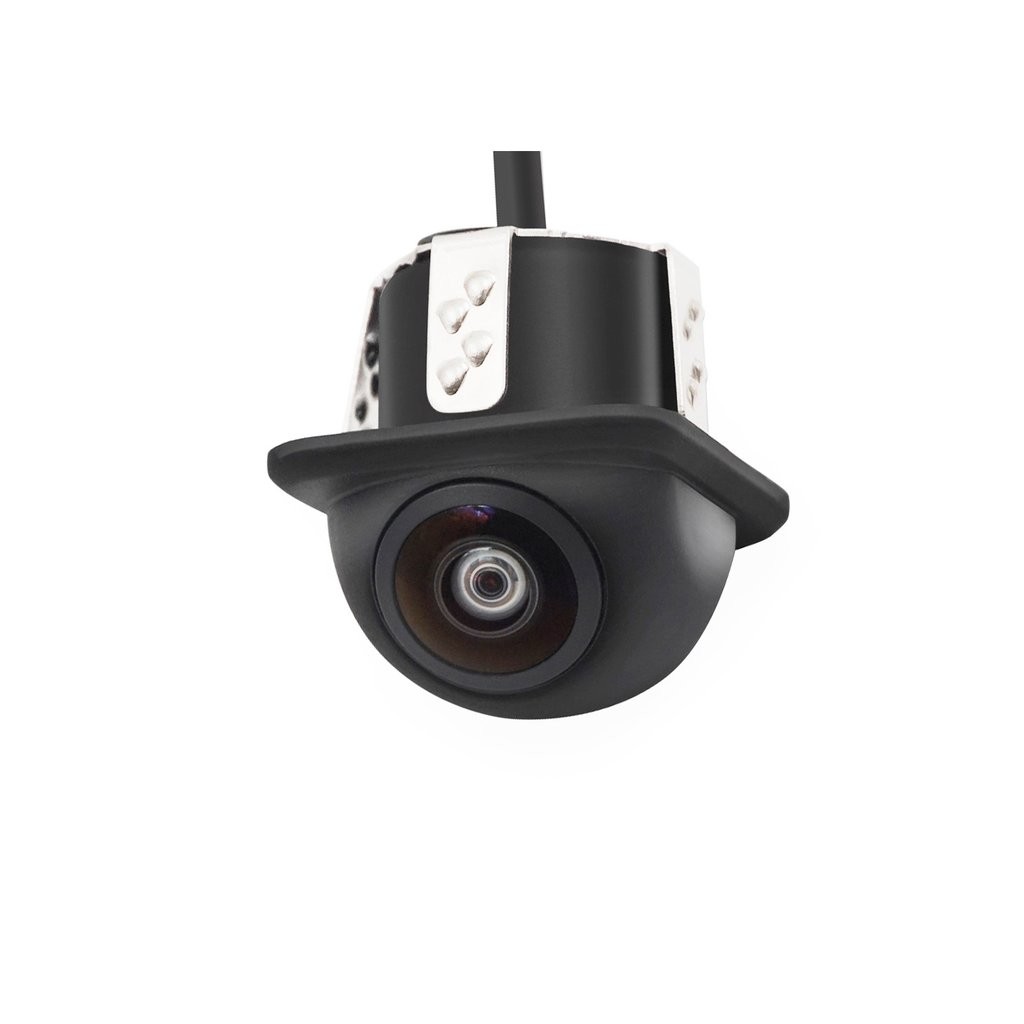

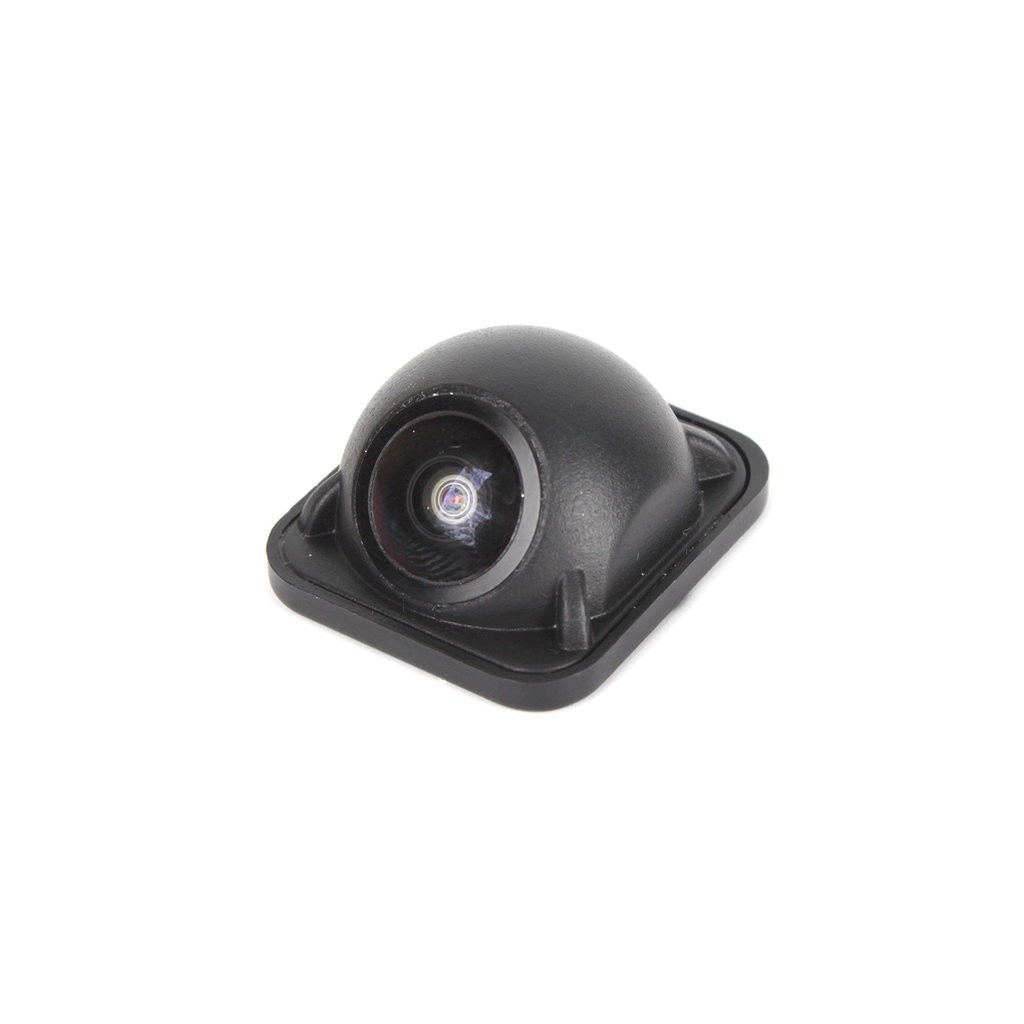

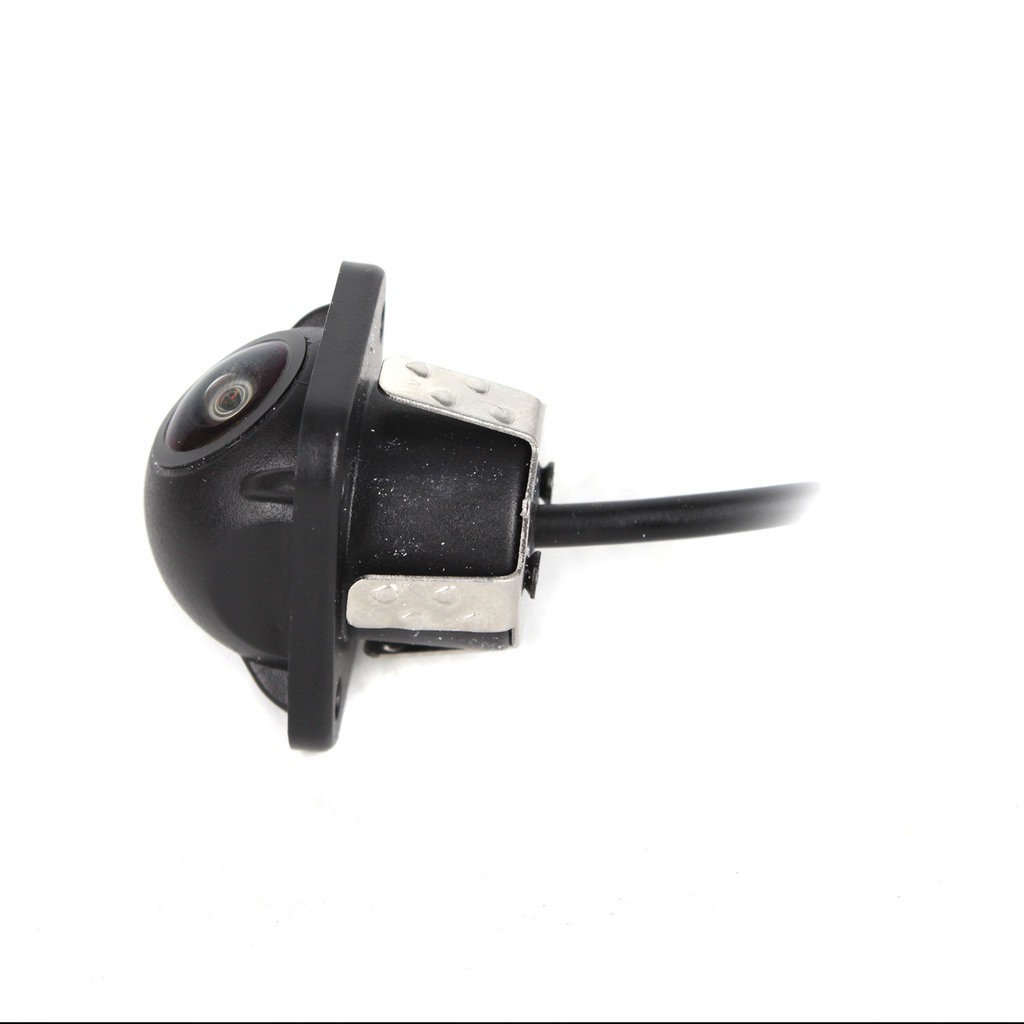

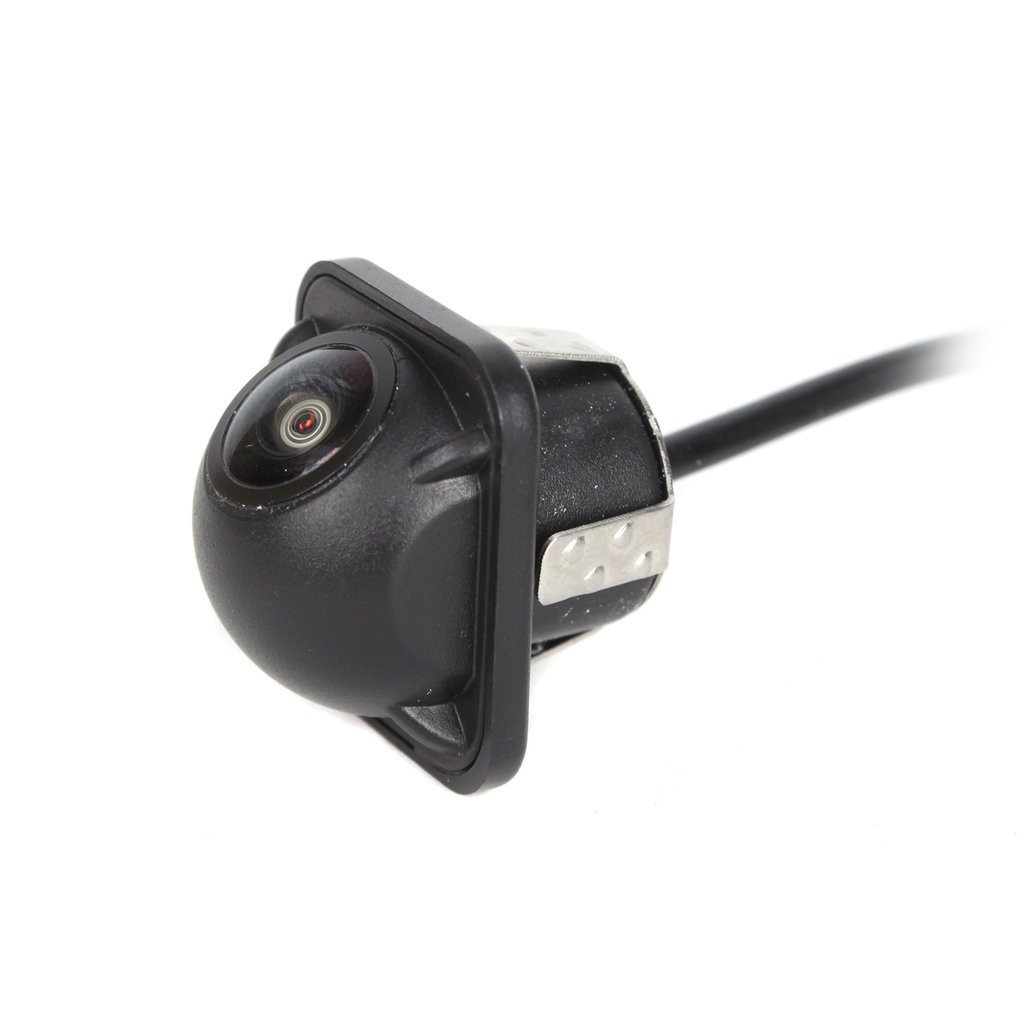

Universal parking camera (BC UNI-13)

Universal parking camera with a viewing angle of 155° for horizontal or vertical installation. The camera has the ability to turn on/off guide lines, mirror image, fit into a 22.5 mm hole.

Technical parameters of the camera

• 1/4" CMOS sensor
• horizontal scanning angle: 155°
• resolution: 800 TV lines
• minimum illumination: 0.01Lux
• TV system: NTSC
• current consumption: 25-55 mA
• effective pixels: 960x480
• power supply 9V-12V
• weather protection: IP69K
• video output: 1.0V / 75 Ohm
• working temperature from -40 °C to +75 °C
• camera dimensions: 30x26x26 mm
• signal cable length 8m terminated with CINCH connectors

Setting the image orientation (change by cutting the color loop)

• GREEN loop - Guide lines
• BLUE loop - Right / Left flip (mirror image)
• WHITE loop - Horizontal / Vertical flip

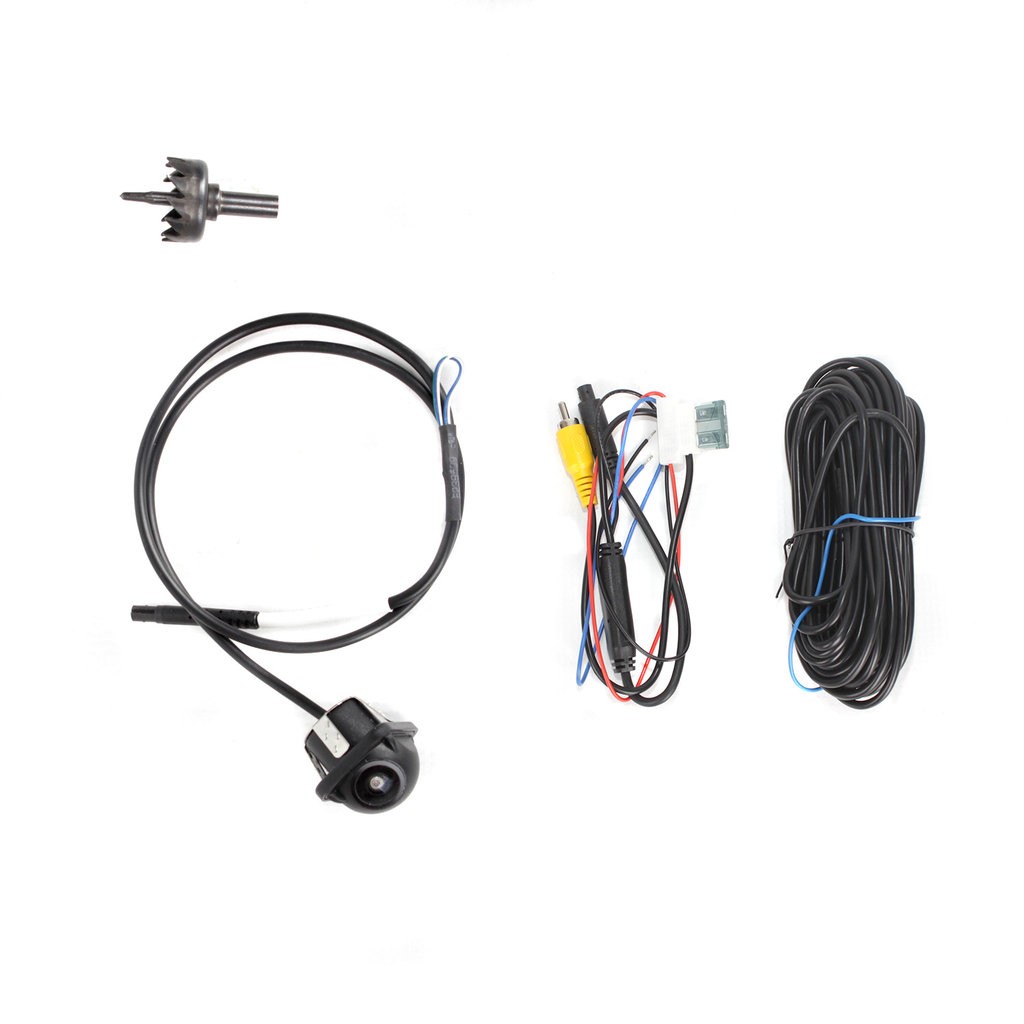

In the package:

• camera
• cable 8 m + reduction 30 cm
• drill bit 22.5mm
