Universal parking camera BC UNI-14 Camera with U bracket, RCA, 800TVL, 105°, white

universal white camera with 105° (horizontal) angle of view for vans and commercial vehicles 12/24V
More about the product
We will help you with your purchase
Universal parking camera BC UNI-14 Camera with U bracket, RCA, 800TVL, 105°, white

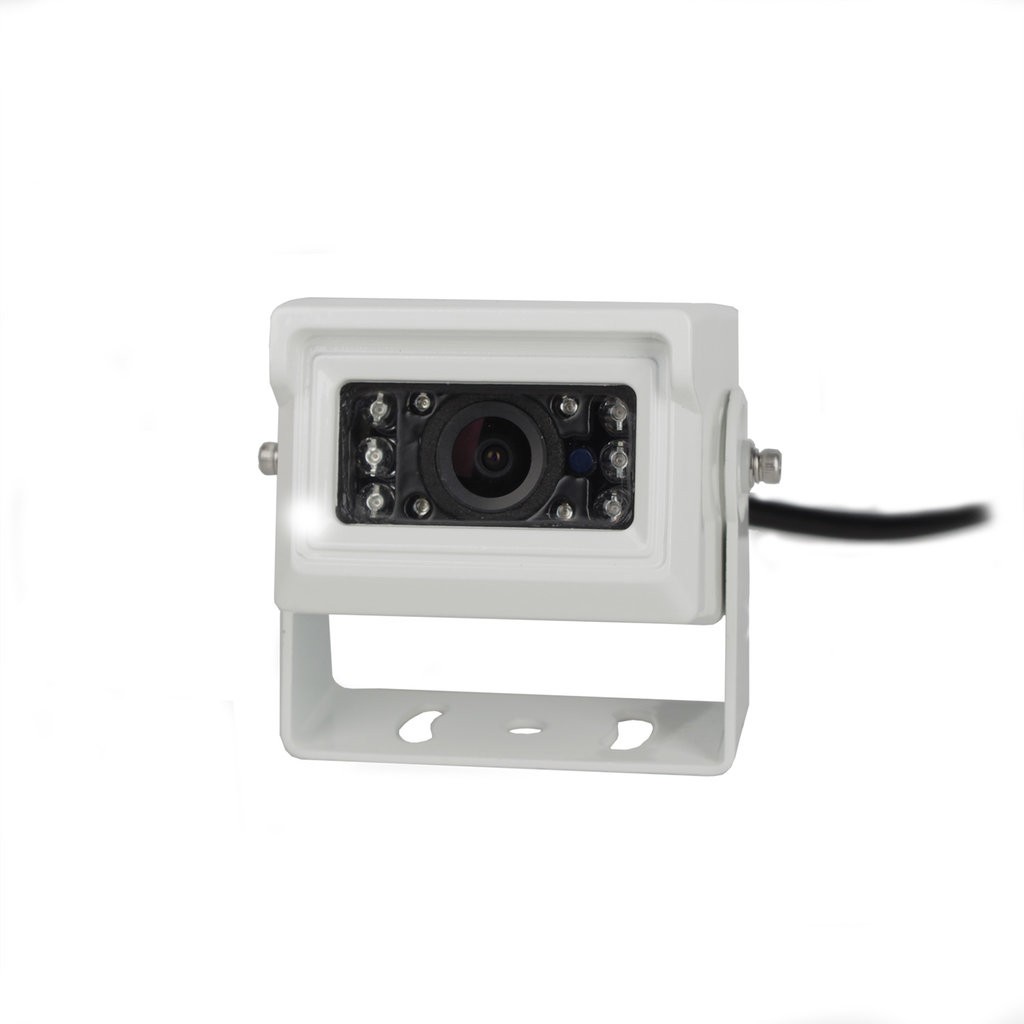

Universal parking camera (BC UNI-14)

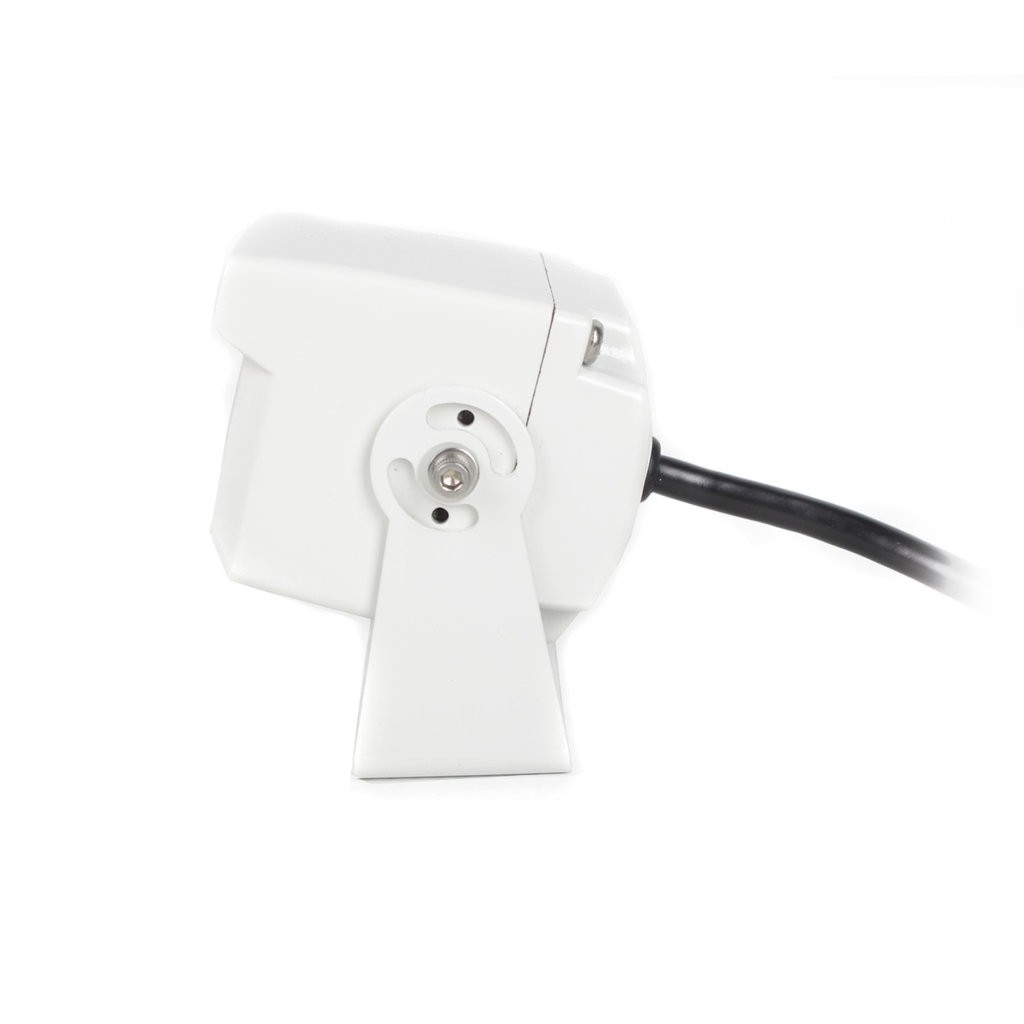

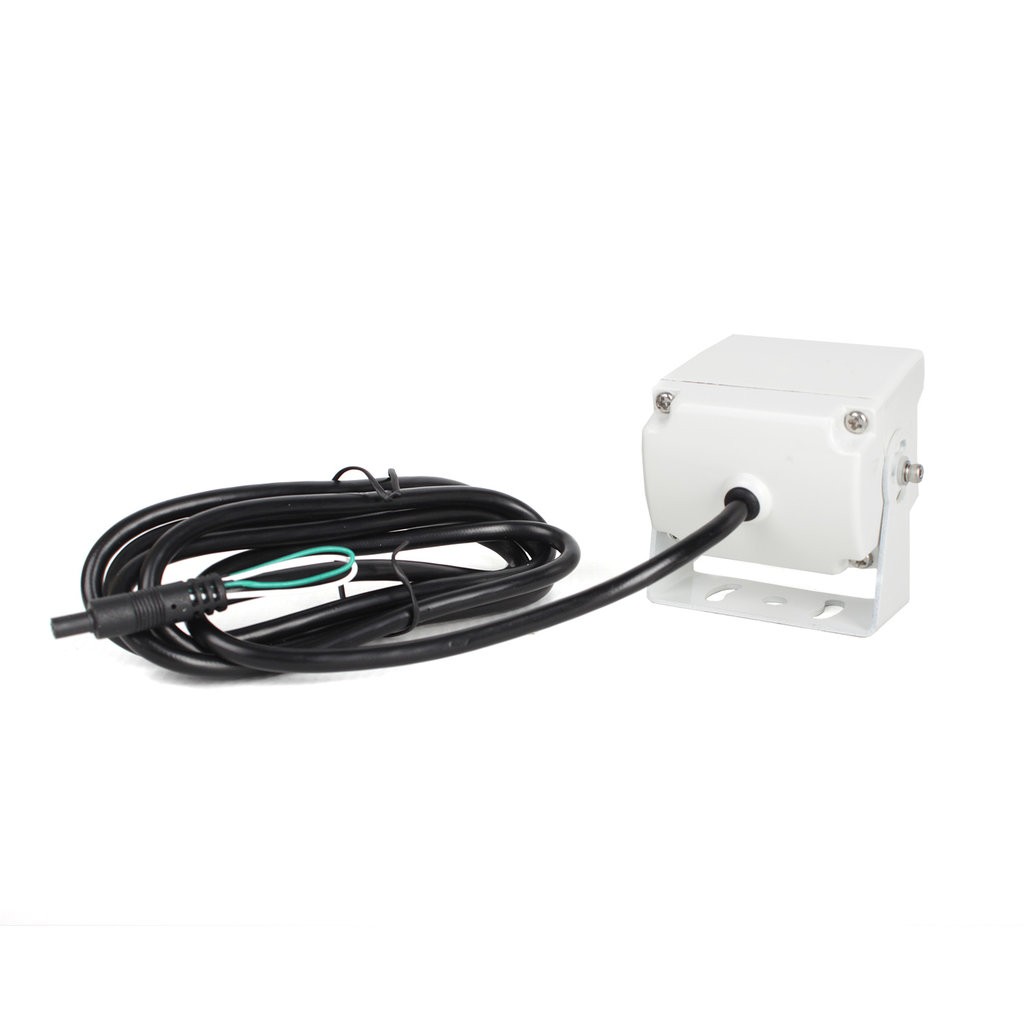

Universal white camera with a 105° (horizontal) viewing angle for vans and commercial vehicles 12/24V. The camera has the ability to turn on/off the guide lines and the mirror image, installation using a U-bracket - surface mounting.

Technical parameters of the camera

  • 1/4" CMOS sensor
  • horizontal scanning angle: 105°
  • resolution: 800 TV lines
  • Auto IR - 10x LEDs
  • minimum illumination: 0.01Lux
  • TV system: NTSC
  • current consumption: 25-55 mA
  • effective dots: 960x480
  • power supply 9V-26V
  • weather protection: IP69K
  • video output: 1.0V / 75 Ohm
  • working temperature from -40 °C to +75 °C
  • camera dimensions: 55 x 55 x 42 mm (without holder)

Setting the image orientation (change by cutting the color loop)

  • GREEN loop - Guide lines
  • WHITE loop - Right / Left flip (mirror image)

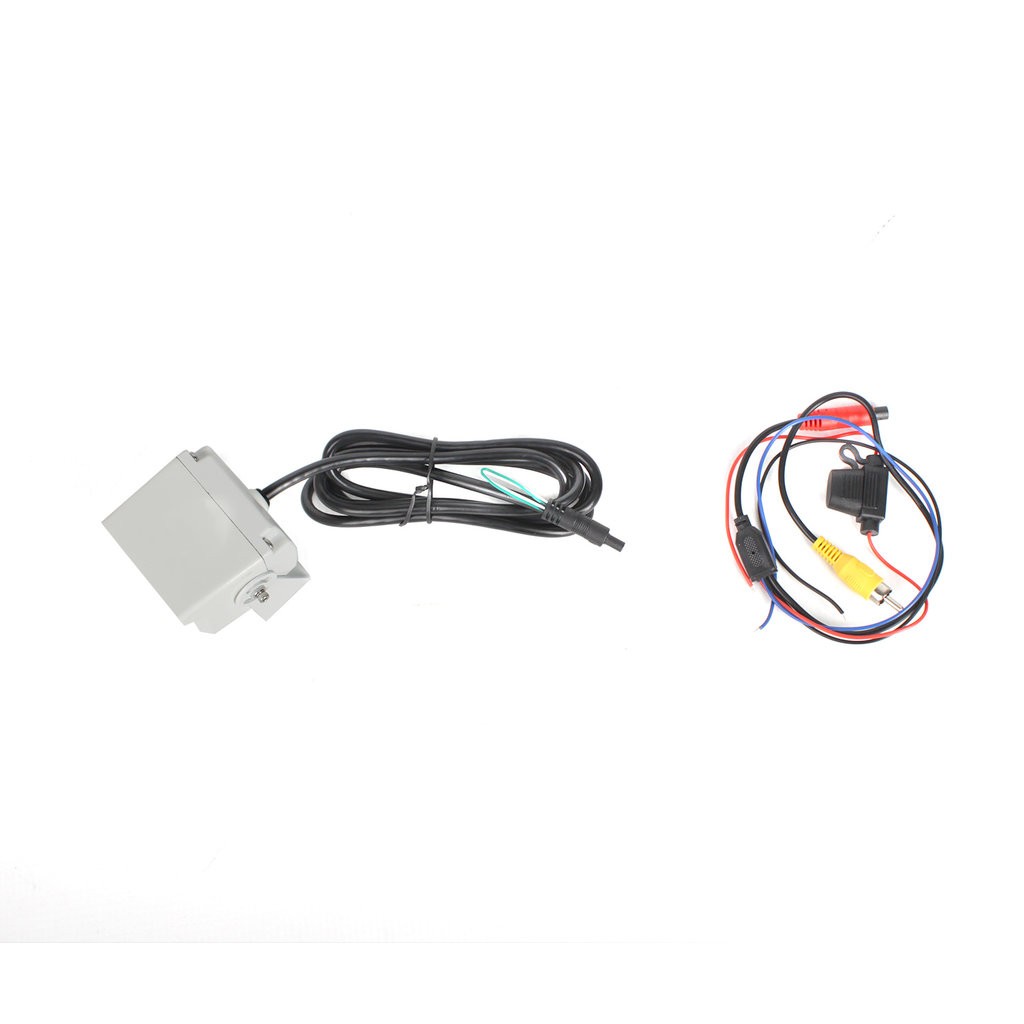

In the package:

  • camera + U holder
  • cable 8 m
  • reduction 30cm
Catalog numberBC UNI-14
BrandTSS Group
