Universal parking camera BC UNI-BRAKE Camera in brake light universal 700TVL, 140°

universal parking camera integrated in the brake light, intended for vans, caravans and caravans
More about the product
We will help you with your purchase

Universal parking camera (BC UNI-BRAKE)

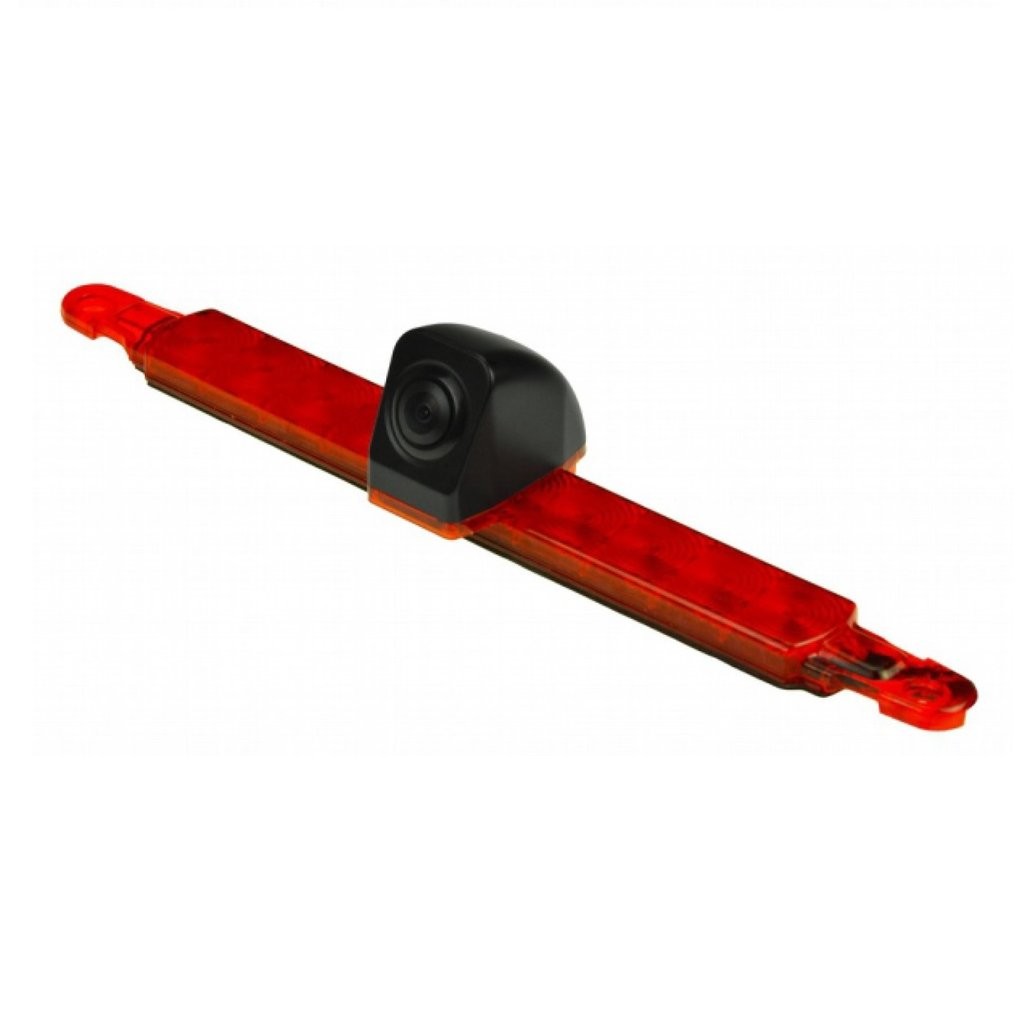

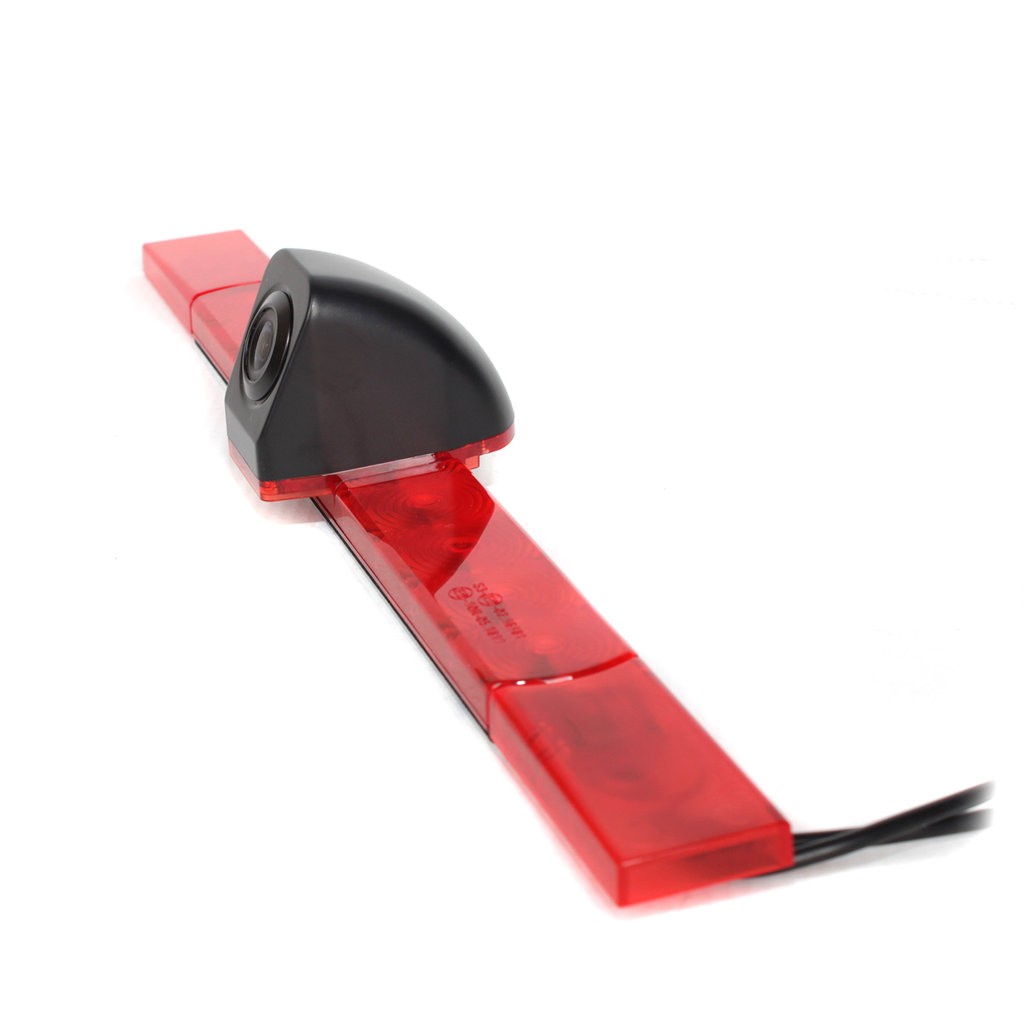

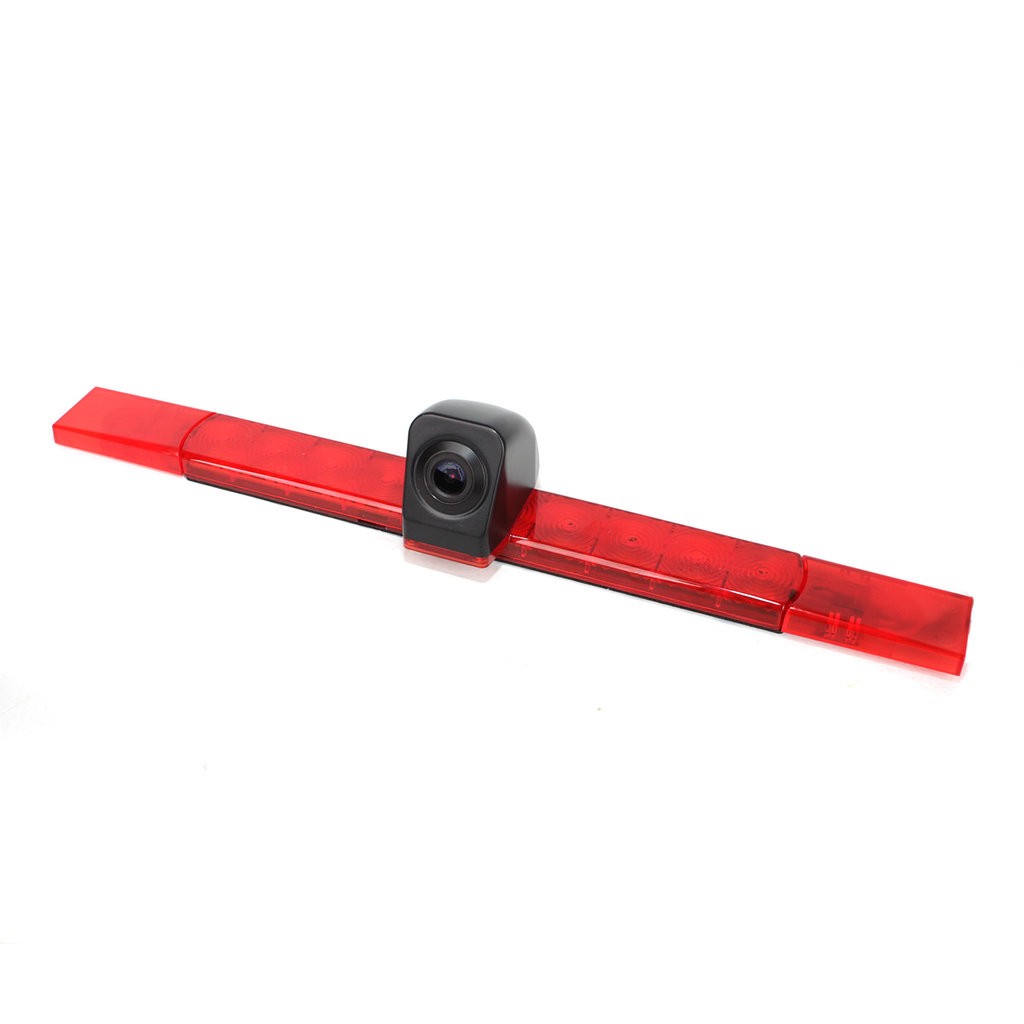

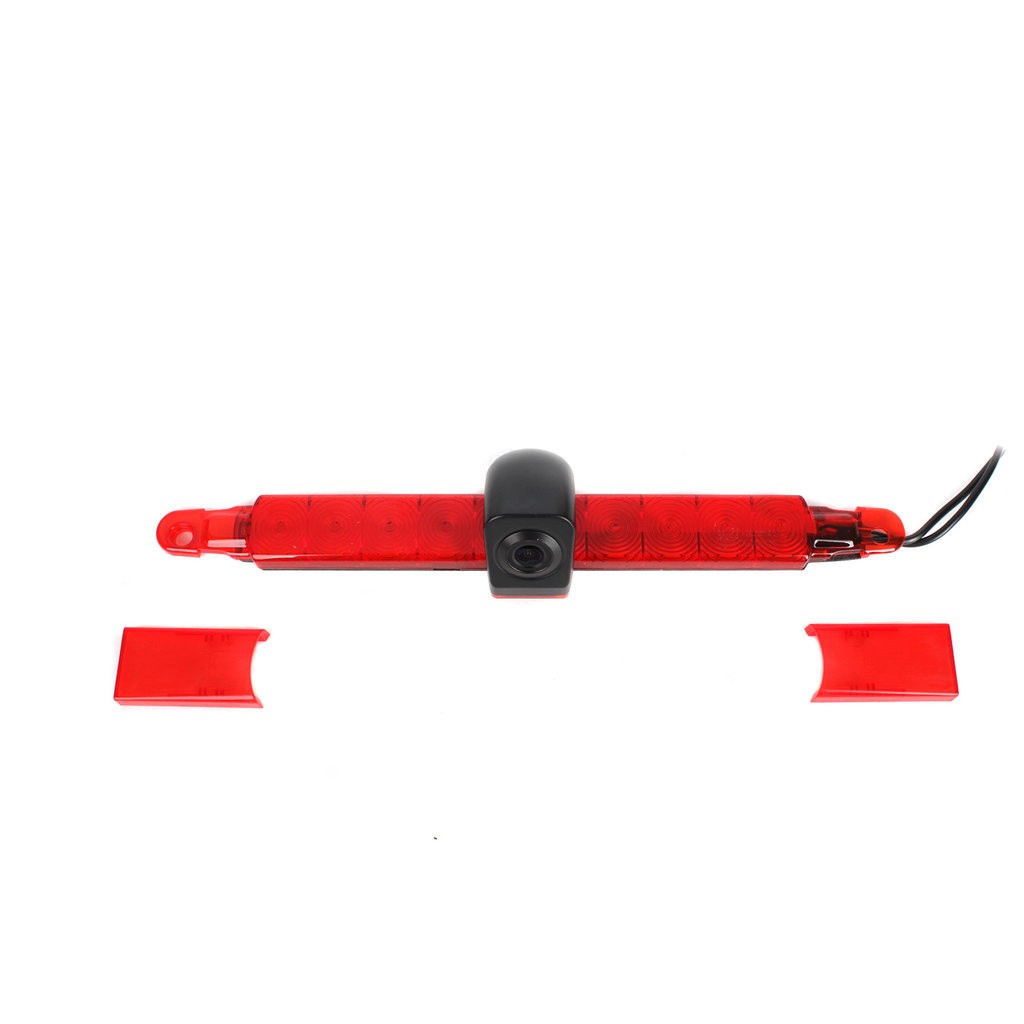

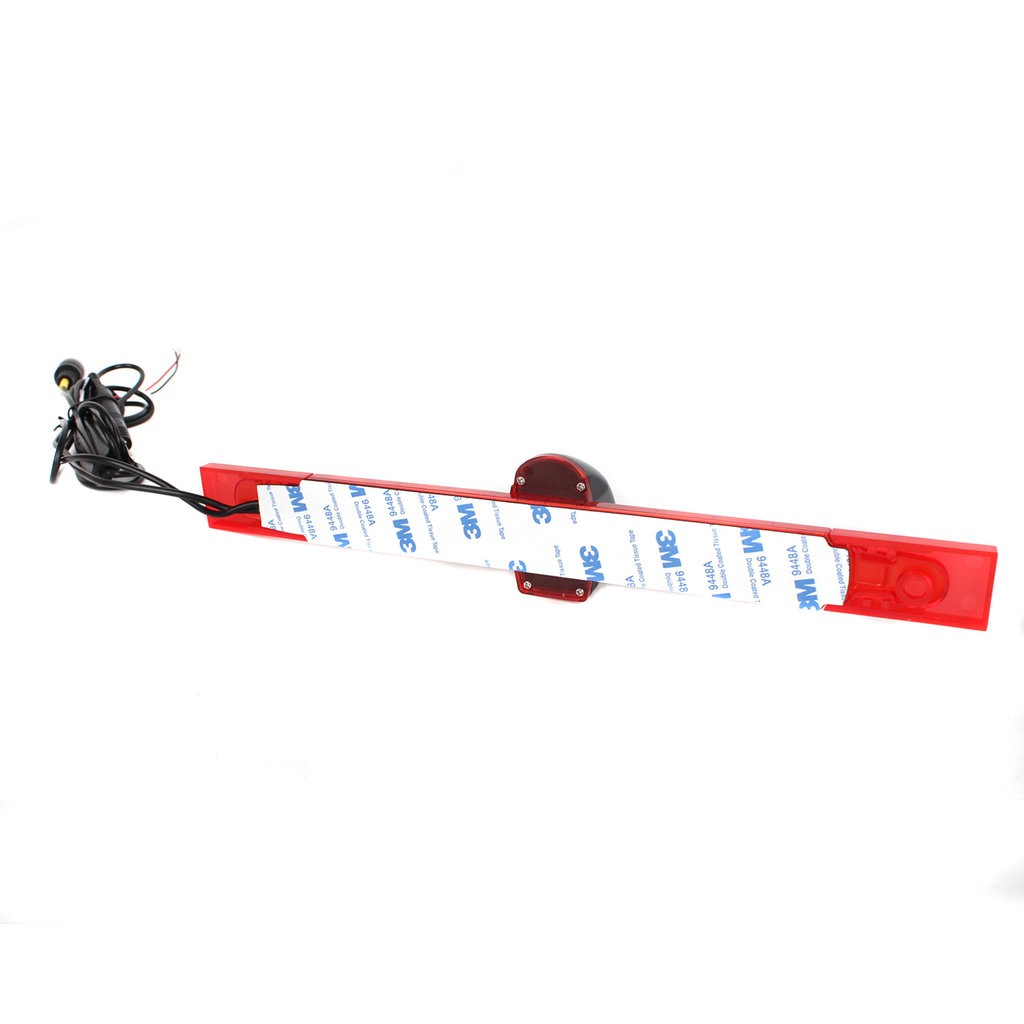

Universal parking camera integrated in the central brake light, intended for vans, caravans and caravans.

Technical parameters of the camera

  • 1/3" CMOS sensor
  • horizontal scanning angle: 140° (diagonal 170°)
  • resolution: 700 TV lines
  • minimum illumination: 0.1Lux
  • TV system: NTSC
  • effective body: 510x492
  • 12V vehicle power supply
  • weather protection: IP69K
  • video output: 1.0 V / 75 Ohm
  • working temperature from -30 °C to +70 °C
  • Light dimensions: 26 x 10 mm
  • E9 homologation

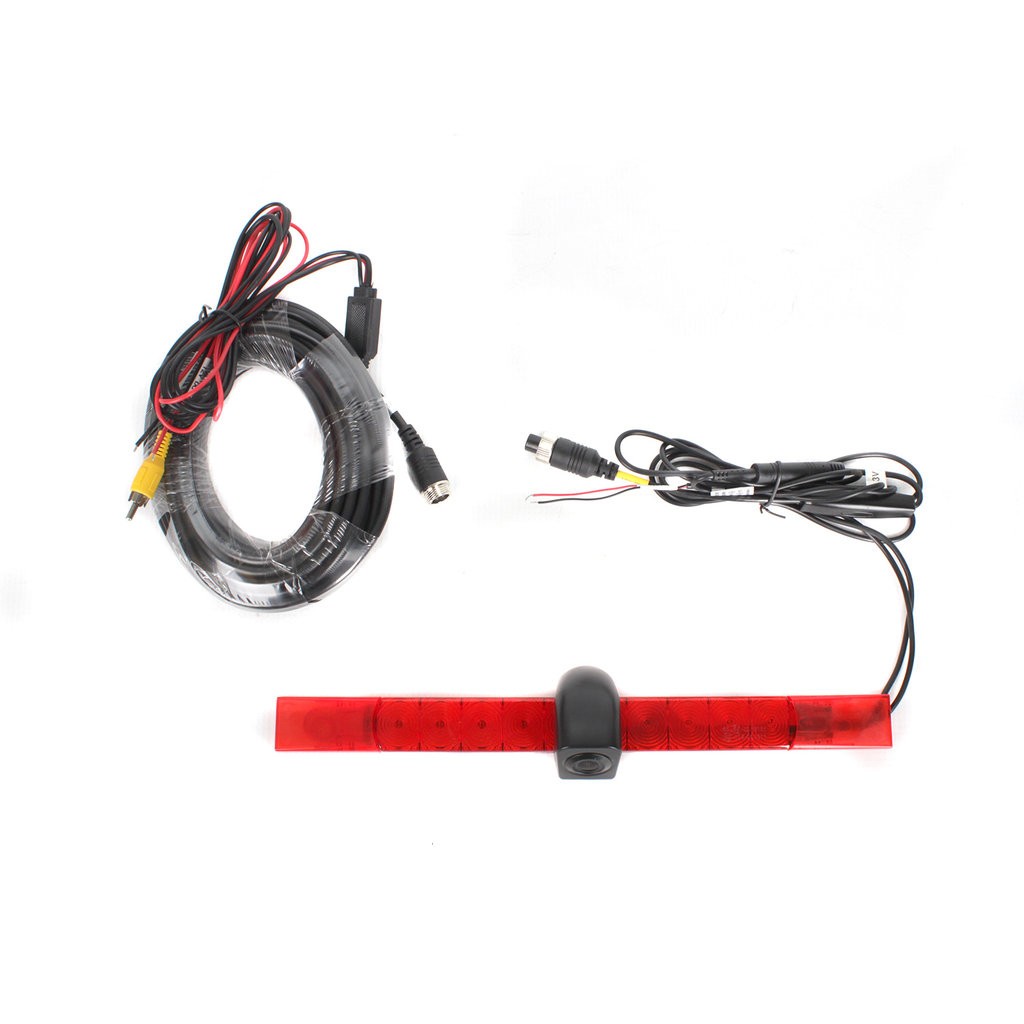

In the package:

  • brake light camera
  • cabling 10 m + reduction
Catalog numberBC UNI-BRAKE
BrandTSS Group
