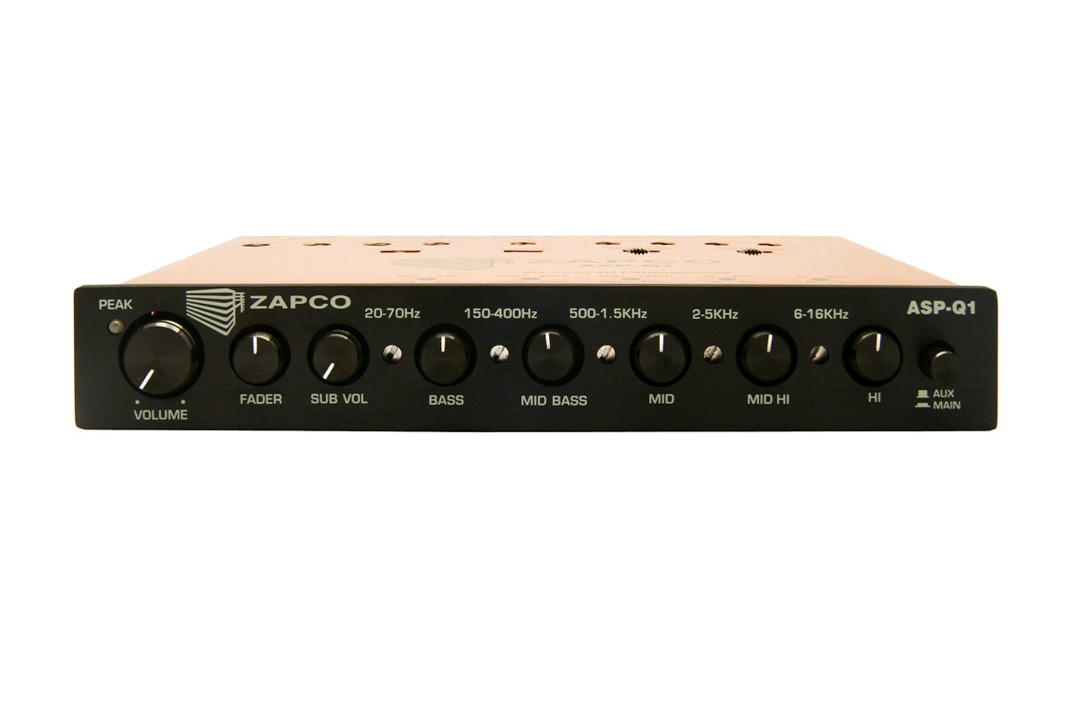

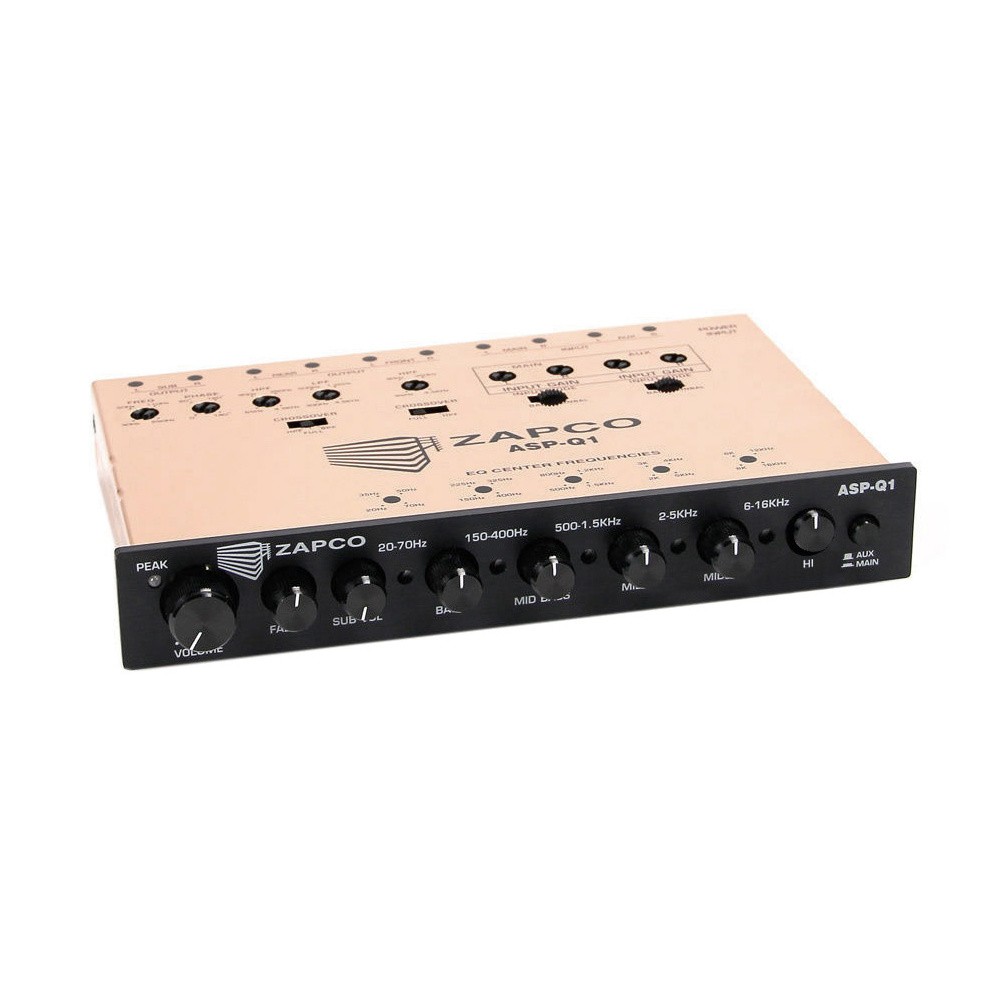

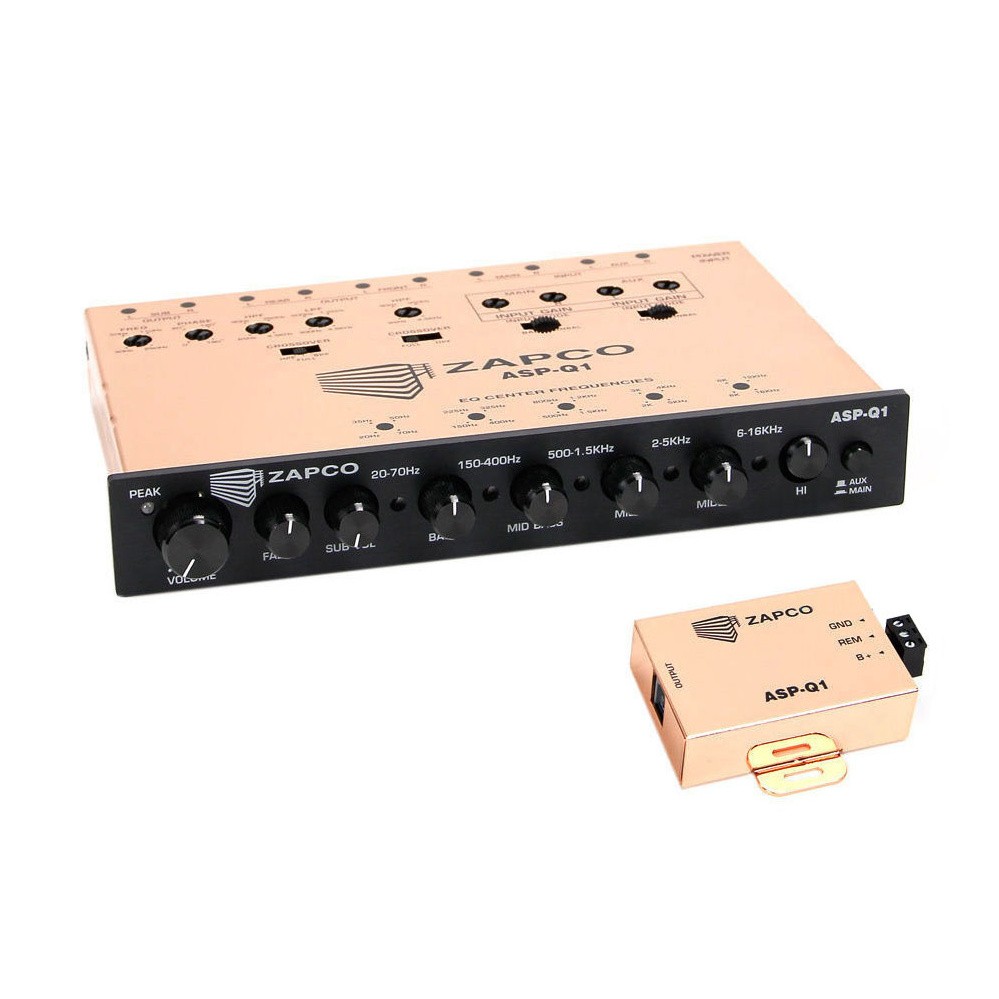

Zapco ASP-Q1 three-band crossover equalizer
An equalizer (preamp) that lives up to the Zapco name. Designed for everyone who is serious about sound quality. The ASP-Q1 was not designed to be an "accessory" toy or dashboard jewel. The ASP-Q1 was designed to be an effective tool in tuning and controlling the sound of the car audio system. As a dashboard mount equalizer, it's second to none. With 5 bands of parametric equalization, you can set ±18dB correction at any point in the frequency spectrum without being limited by fixed center points. With internal audiophile-grade components in the signal path and precise controls for all settings, the sound will be clean and transparent, with solid bass and crystal-clear highs. The ASP-Q1 also excels as a crossover. You can configure it as a 2-band crossover with bass and dual treble or as a 3-band crossover with bandpass. An aux input with its own input gain control allows you to connect a portable source and adjust the level of the main input. An oversized power supply gives you a 9.5V line driver with 14V available for peaks. This gives the ASP-Q1 plenty of headroom so that even with the biggest signal peaks you get a clean signal without distortion. The ASP-Q1 is more than just an equalizer. It's a true control preamplifier for your sound system.
The main features of the Zapco ASP-Q1 equalizer
- Five-band parametric equalization: Because no two cars are alike, there's no way to know exactly where the center points should be on a particular car. The ASP-Q1 allows you to change the center of each of your 5 EQ bands to place the correction exactly where you need it to tailor the system to your car.
- Variable electronic crossover 18 dB / octave: There are 4 crossover filters on the ASP-Q1. You can choose only 3 filters to configure a 2-way system with subwoofer and front and rear speakers with high pass or full range and front to back EQ. You can also use all 4 filters to configure an active 3-band system with a woofer, a bandpass for the midrange and a high pass for the tweeter.
- Separate bass control: The bass output is controlled separately. The bass lever allows you to balance the bass to the treble. In addition to the bass crossover filter, there's also a bass phase control that adjusts the phase of the bass signal from 0 to 180 degrees to help align the bass wave with the rest of the system.
- Auxiliary input: The ASP-Q1 has an auxiliary input, so you can play from another source in the car from a portable player.
- Input gain control: Each main and auxiliary input channel has its own input signal setting.

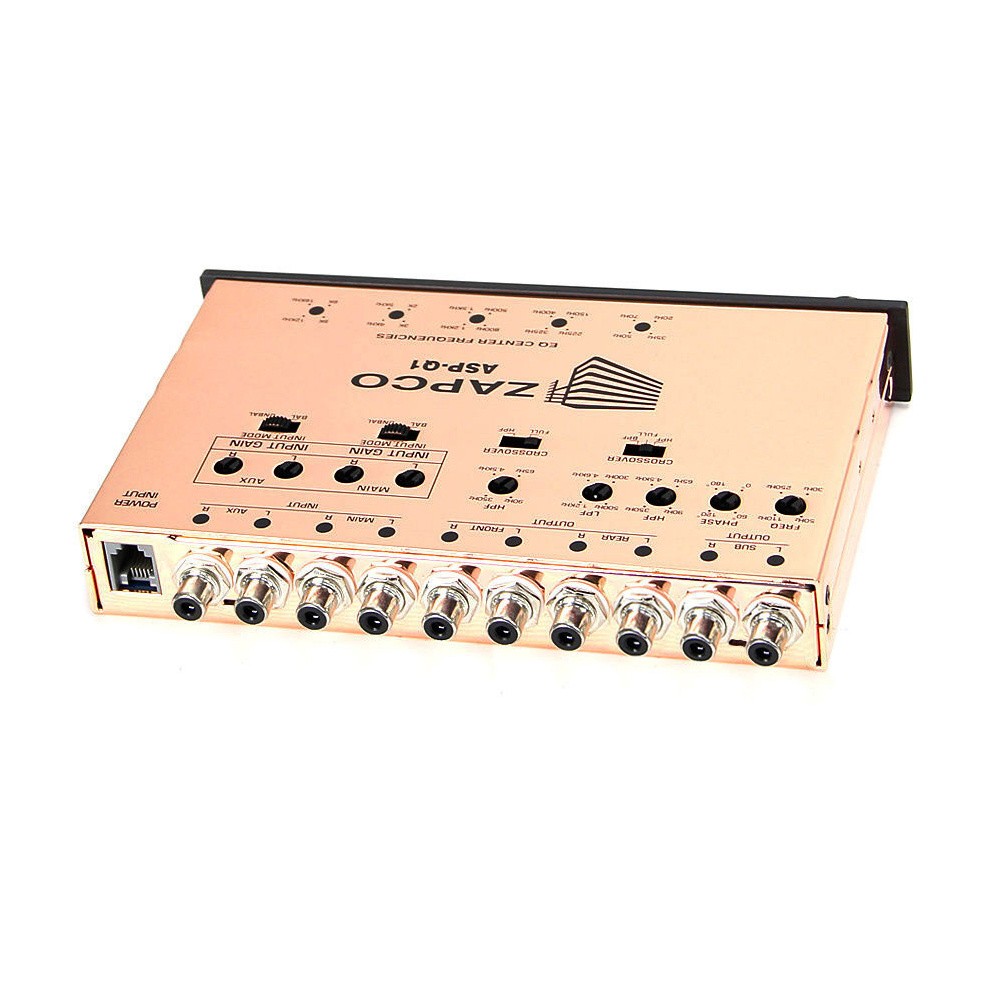

- Balanced/Unbalanced Inputs: The ASP-Q1 can accept either balanced inputs, with a Bal/UnBal switch for Main-in and Aux-in.

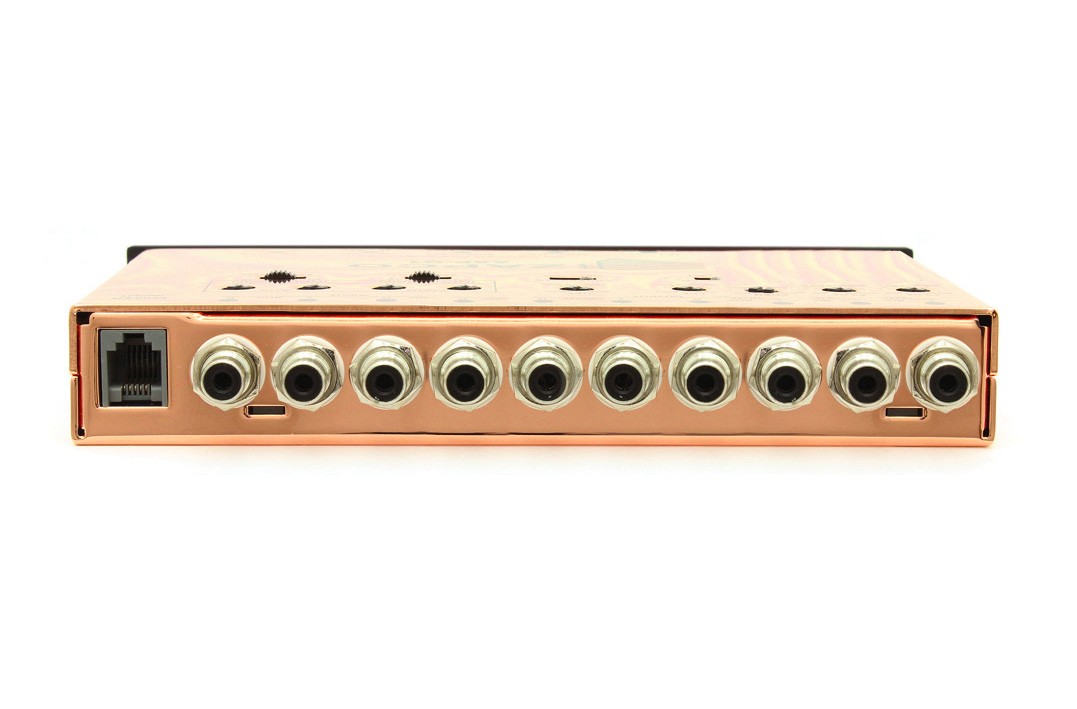

- Tiffany Style Panel Mount RCA Connectors: Provides a hassle-free RCA signal connection.

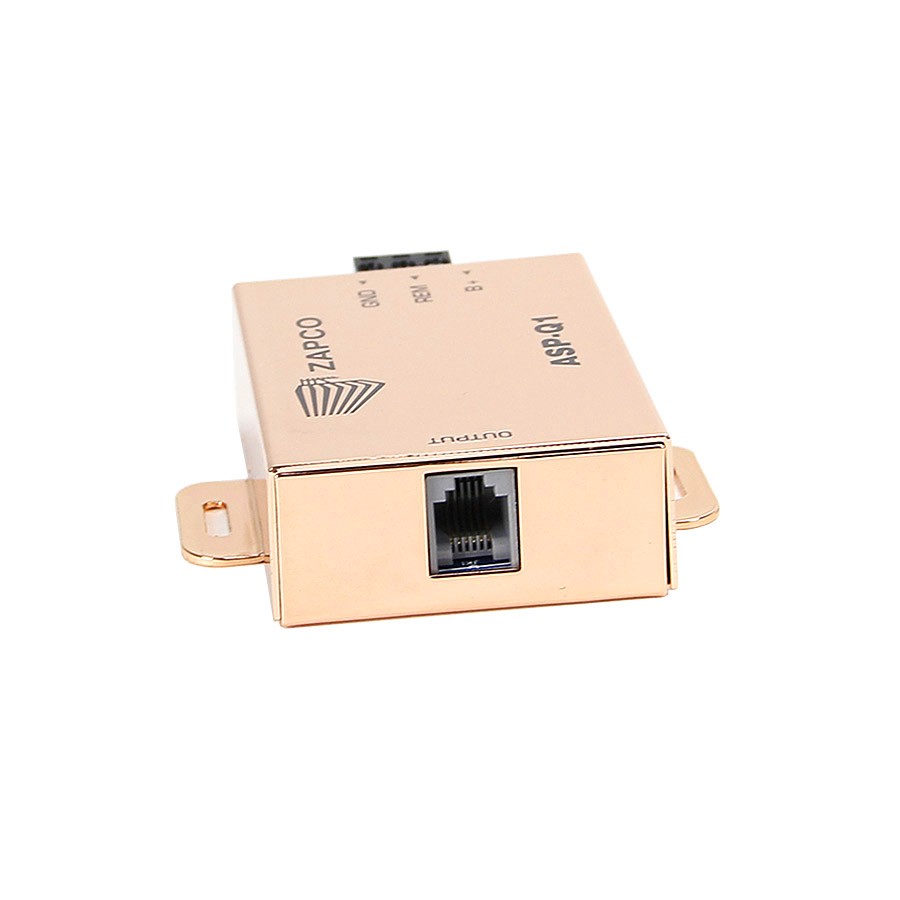

- High Voltage Supply: The ASP-Q1 has a remote high voltage supply for a true 9.5V RMS preamplifier output.
About the Zapco brand
Zapco is the oldest high-end car audio brand in the world, specializing in high-end car amplifiers and DSP processors. The company was founded in the USA back in 1974 and has been collecting one award after another since then. And this both from prestigious organizations that evaluate the quality of products and innovations, as well as at global competitions focused mainly on sound quality. Zapco amplifiers represent audiophile quality without compromise, defining the standard of quality and setting the criteria by which other products in the industry are judged. At Zapco, for over 45 years, they have been constantly looking for innovative ways to bring better sound to the automotive environment, and this relentless pursuit of absolute sound quality has always resulted in new technologies and high-end products. Are you asking why? Because nothing else can capture the soul and bring tears to the eyes like music. Music can make you dance for joy..... of all the arts, music has the most powerful and immediate effect on your body and mind. Reproducing music in all its beauty and delicacy deserves nothing less than the best efforts of all Zapco employees. And also because music matters!
| Catalog number | ASP-Q1 |
| Brand | Zapco |
| Links | Official web presentation (English) |
