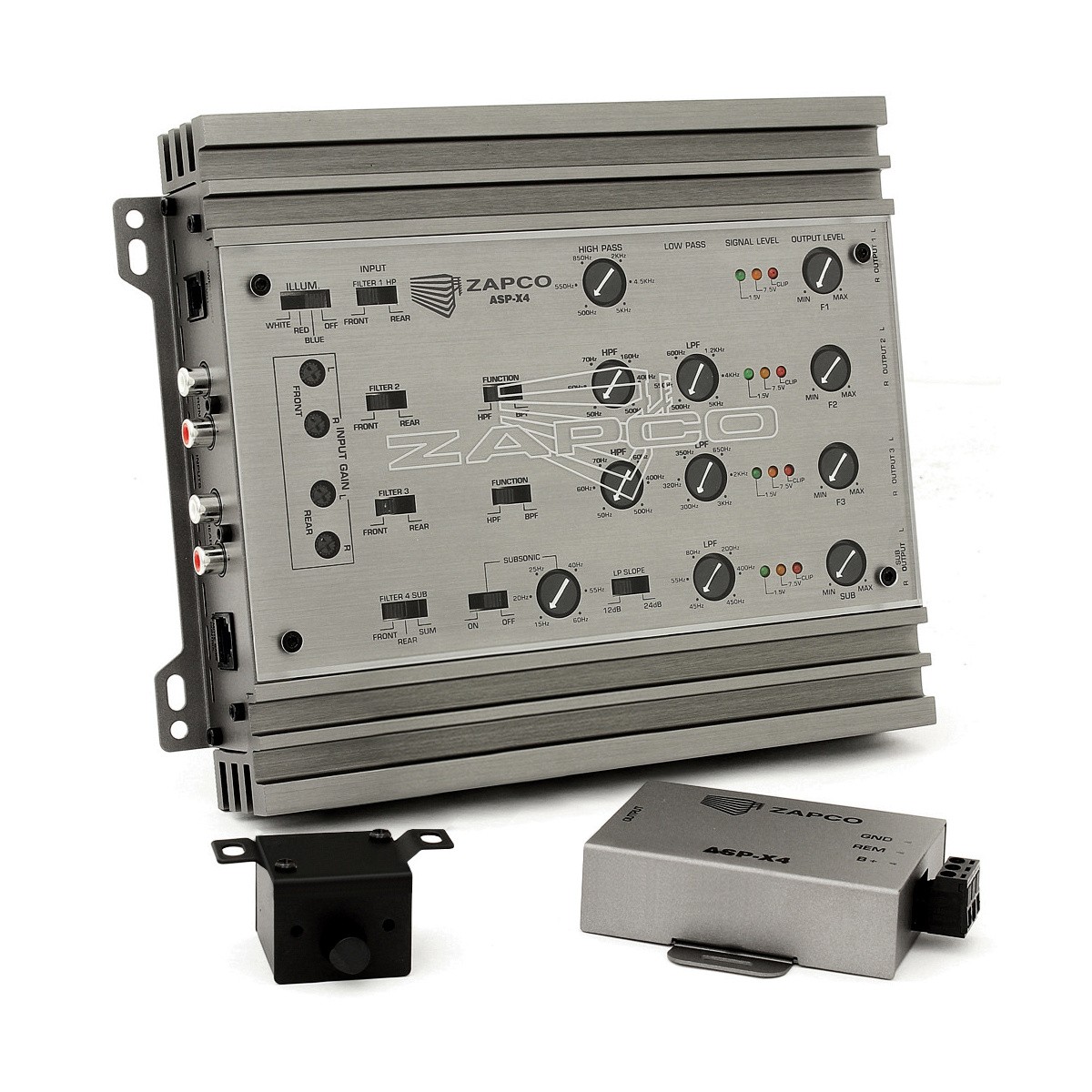

Zapco ASP-X4 four-way electronic crossover
The vast majority of today's amplifiers have built-in crossovers. However, these are designed mainly for comfort, not for sound. An audiophile crossover would be too big and too expensive to build into an amp. With a built-in crossover, you change the sound to comfort, so Zapco electronic crossovers are here for all those who don't want to accept this fact. Zapco crossovers are designed to provide the best possible sound quality and versatility needed for the most advanced sound systems.
The Zapco ASP-X4 is the absolute pinnacle of analog electronic crossovers. This unit was originally designed to complement the new LX models of Zapco Z-Series amplifiers. The LXs are uncompromising and have no preamplifier features other than input sensitivity. To meet the standards of an amplifier like the LX series, a special crossover is required and the ASP-X4 has exactly what it needs. And something more. The same high-end Elna Silmic ll capacitors and OP275 op amps used in the LX amps are also used in the ASP-X4 (as in other Zapco processors). Another important element affecting the sound is the quality of the drivers. It must be clean, accurate and must not add distortion. Zapco became the manufacturer of the best controllers because no other supplier could meet Zapco's demands.
Finally, all the versatility of Zapco has been built in. With high pass, low pass and dual pass filter systems you can run a 3 pass or 4 pass system. You can even have an active 3-way system and a full-range rear. And with a dual input system, you can switch between a main 3-way system and a full-range rear. The X4 crossover is designed to meet the demands of the top line of Z amplifiers. Since it can be assumed that this crossover is likely to be purchased with amplifiers, we illuminated the clear plastic protective cover for an extra installation feel.
- Harmonic Distortion: THD < 0.01%
- Signal-to-noise ratio: > 110 dB
- Channel separation: 90 dB
- Outputs: 9.5V RMS / 14V Peak
- Dimensions: 119 x 39 x 214 mm
- Optional grounding to eliminate noise
- Remote control included in the package
About the Zapco brand
Zapco is the oldest high-end car audio brand in the world, specializing in high-end car amplifiers and DSP processors. The company was founded in the USA back in 1974 and has been collecting one award after another since then. And this both from prestigious organizations that evaluate the quality of products and innovations, as well as at global competitions focused mainly on sound quality. Zapco amplifiers represent audiophile quality without compromise, defining the standard of quality and setting the criteria by which other products in the industry are judged. At Zapco, for over 45 years, they have been constantly looking for innovative ways to bring better sound to the automotive environment, and this relentless pursuit of absolute sound quality has always resulted in new technologies and high-end products. Are you asking why? Because nothing else can capture the soul and bring tears to the eyes like music. Music can make you dance for joy..... of all the arts, music has the most powerful and immediate effect on your body and mind. Reproducing music in all its beauty and subtlety deserves nothing less than the best efforts of all Zapco employees. And also because music matters!
| Catalog number | ASP-X4 |
| Brand | Zapco |
| Links | Official web presentation (English) |
