Amplifier with DSP processor Awave DSP-12AD

Amplifier with DSP processor Awave DSP-12AD

The Awave DSP-12AD is a 12-channel amplifier with an integrated DSP processor that combines quality sound, sophisticated DSP processor software and easy integration into factory systems. The amplifier offers a high output of 8 x 50 + 4 x 100 W RMS and rich connectivity. This includes 6 high-level inputs for convenient connection to original car radios, 6 RCA inputs or optical and coaxial input. The DSP processor has a high-quality ADAU chip, top-quality AKM signal converters and a high sampling frequency of 192 kHz. Gain, time corrections, bandpasses, filters or a 31-band parametric equalizer can be intuitively set in the DSP processor program. It is also possible to purchase a remote control for the amplifier to adjust the overall volume, subwoofer volume and preset selection. The amplifier is compatible with Hi-res files thanks to the extended frequency response. The modern digital platform ensures a high efficiency of 84%, sufficient performance for intermediate speakers and very compact dimensions.

Main features of the Awave DSP-12AD amplifier

• 12-channel amplifier with integrated DSP processor.
• Class D amplifier with 8 x 50 + 4 x 100 W RMS (4 Ω) and 84% efficiency.
• DSP Processor with advanced chip ADAU1462.
• AKM AK5538 and AK4458VN A/D and D/A signal converters.
• High sampling frequency of 192 kHz, core operating speed of 32 bits.
• Brushed aluminum chassis with compact dimensions.

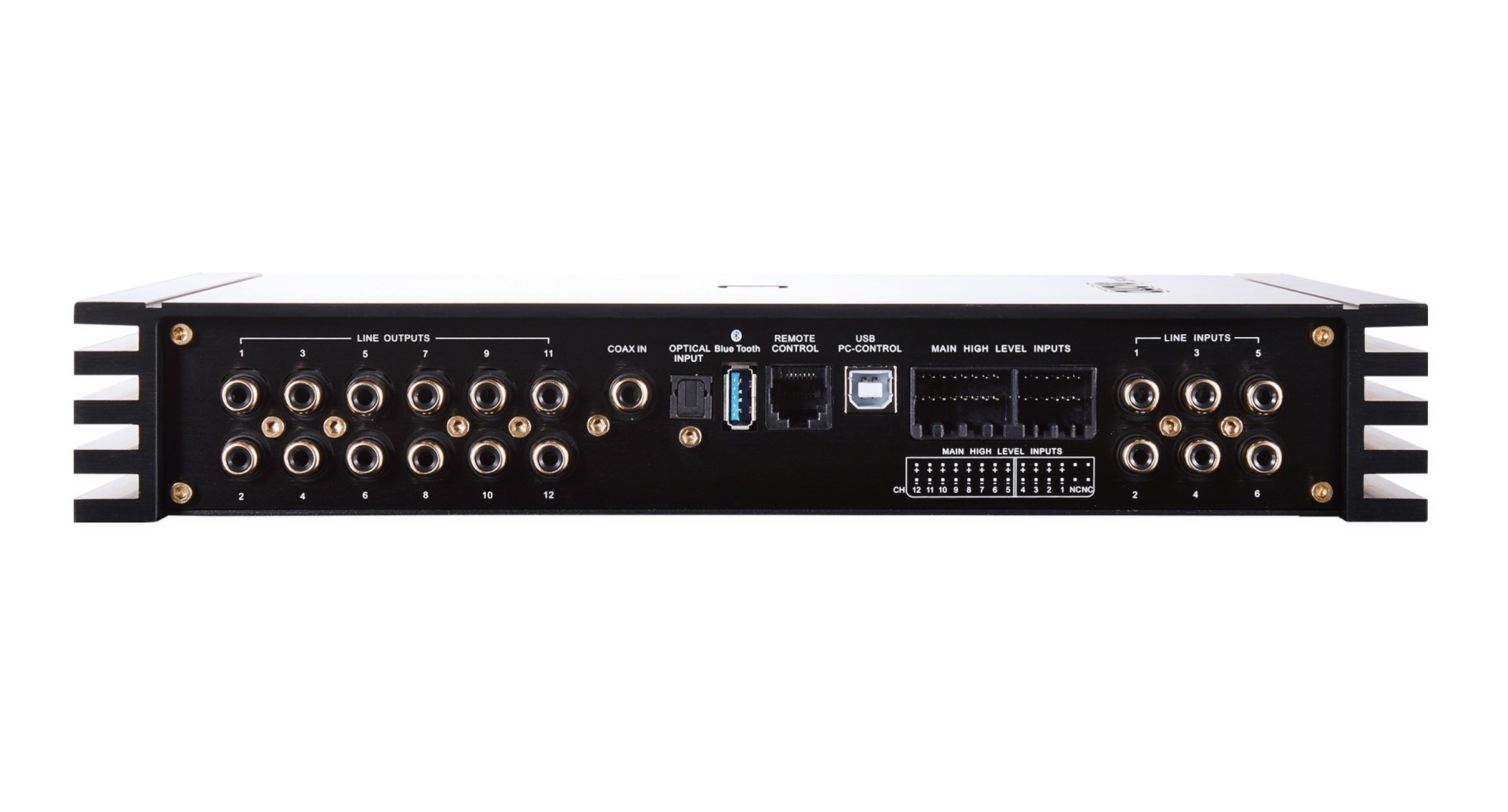

• Inputs: 6 x low level (RCA), 6 x high level, optical and coaxial input.
• Outputs: 12 x low level (RCA), 12 x speaker.
• 31-band parametric equalizer.
• Setting gain, filters, bandpasses, time corrections or detailed equalizer.
• Optional Bluetooth module for wireless music streaming.
• Option to connect an optional remote control.
