Amplifier with DSP processor Awave DSP A6

4-channel amplifier with DSP processor, 4 x 35 W RMS (4 Ω), class D
More about the product
We will help you with your purchase

Amplifier with DSP processor Awave DSP-A6

The Awave DSP-A6 is a four-channel amplifier with an integrated DSP processor that combines quality sound, sophisticated DSP processor software and easy integration into factory systems. The amplifier offers 4 x 35 W RMS power and rich connectivity. This includes four high-level inputs for convenient connection to original car radios, four RCA inputs, integrated Bluetooth for wireless music streaming or an optical input. Thanks to the six RCA connectors at the output with six processable channels of the DSP processor, another amplifier can be connected and controlled. The DSP processor has a high-quality ADAU chip, AKM signal converters and a sampling frequency of 192 kHz. Gain, time correction, bandpasses, filters, 31-band parametric equalizer and other important functions can be intuitively set in the DSP processor program. The amplifier can also be purchased with a remote control for setting the overall volume, subwoofer volume and preset selection. The amplifier is compatible with Hi-res files thanks to the extended frequency response. The modern digital platform ensures a high efficiency of 84%, sufficient performance for intermediate speakers and very compact dimensions.

Main features of the Awave DSP-A6 amplifier

  • 4-channel amplifier with integrated DSP processor.
  • Class D amplifier with 4 x 35 W RMS power and 84% efficiency.
  • DSP processor with advanced chip ADAU1462.
  • AKM AK5538 and AK4458VN A/D and D/A signal converters.
  • High sampling rate of 192 kHz, core operating speed of 32 bits.
  • Brushed aluminum chassis with compact dimensions.

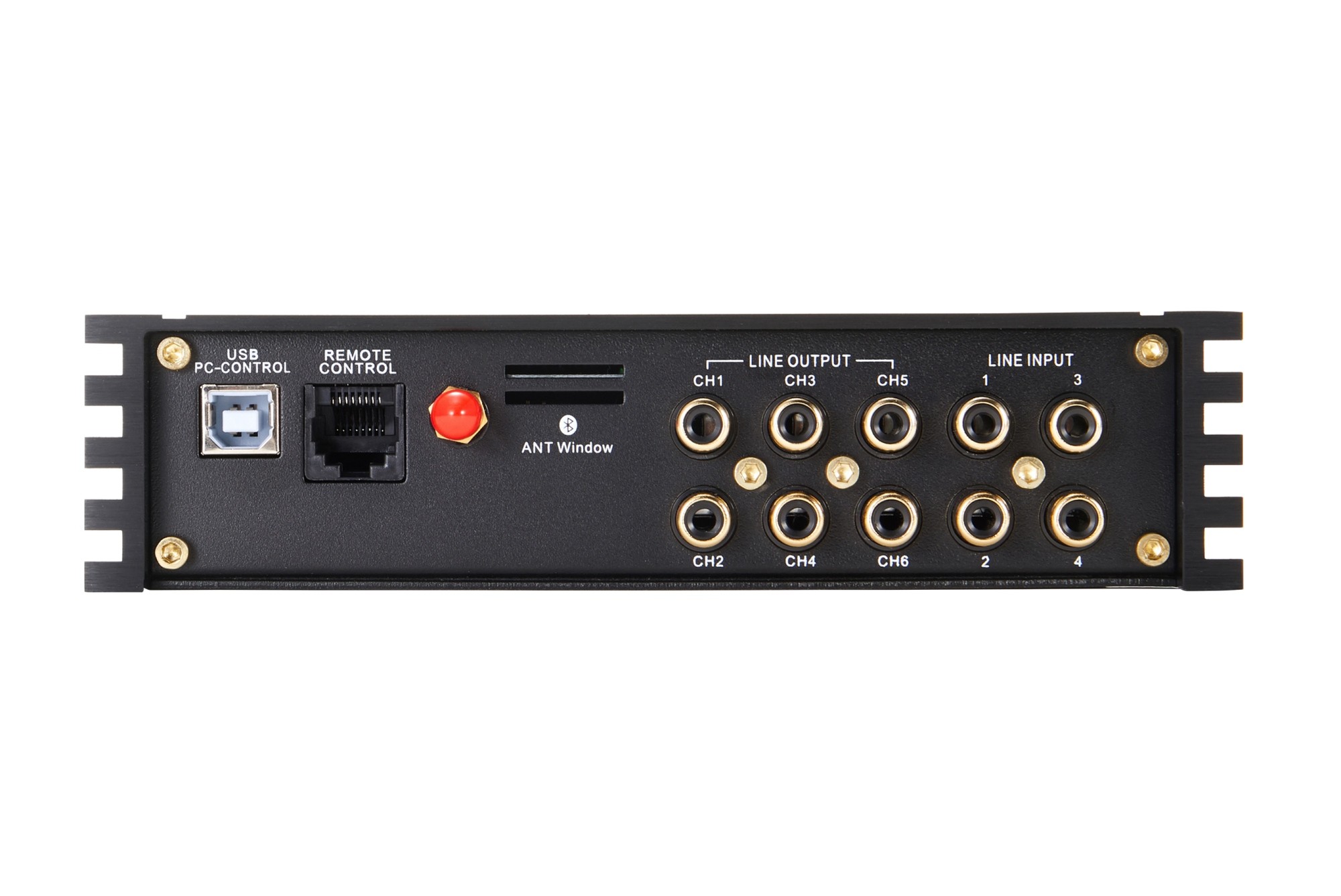

  • Inputs: 4 x low level (RCA), 4 x high level, optical input.
  • Outputs: 6 x low level (RCA), 4 x speaker.
  • 31-band parametric equalizer.
  • Setting gain, filters, bandpasses, time corrections or detailed equalizer.
  • Integrated Bluetooth for wireless music streaming.
  • Option to connect an optional remote control.
Catalog numberDSP-A6
BrandAwave
LinksOfficial web presentation
