DSP processor Hertz S8 DSP

8-channel DSP processor, inputs: 6 x RCA, 6 x Hi-Level, 1 x Coax, outputs: 8 x Hi-Level, small dimensions
More about the product
We will help you with your purchase
DSP processor Hertz S8 DSP

DSP processor Hertz S8 DSP

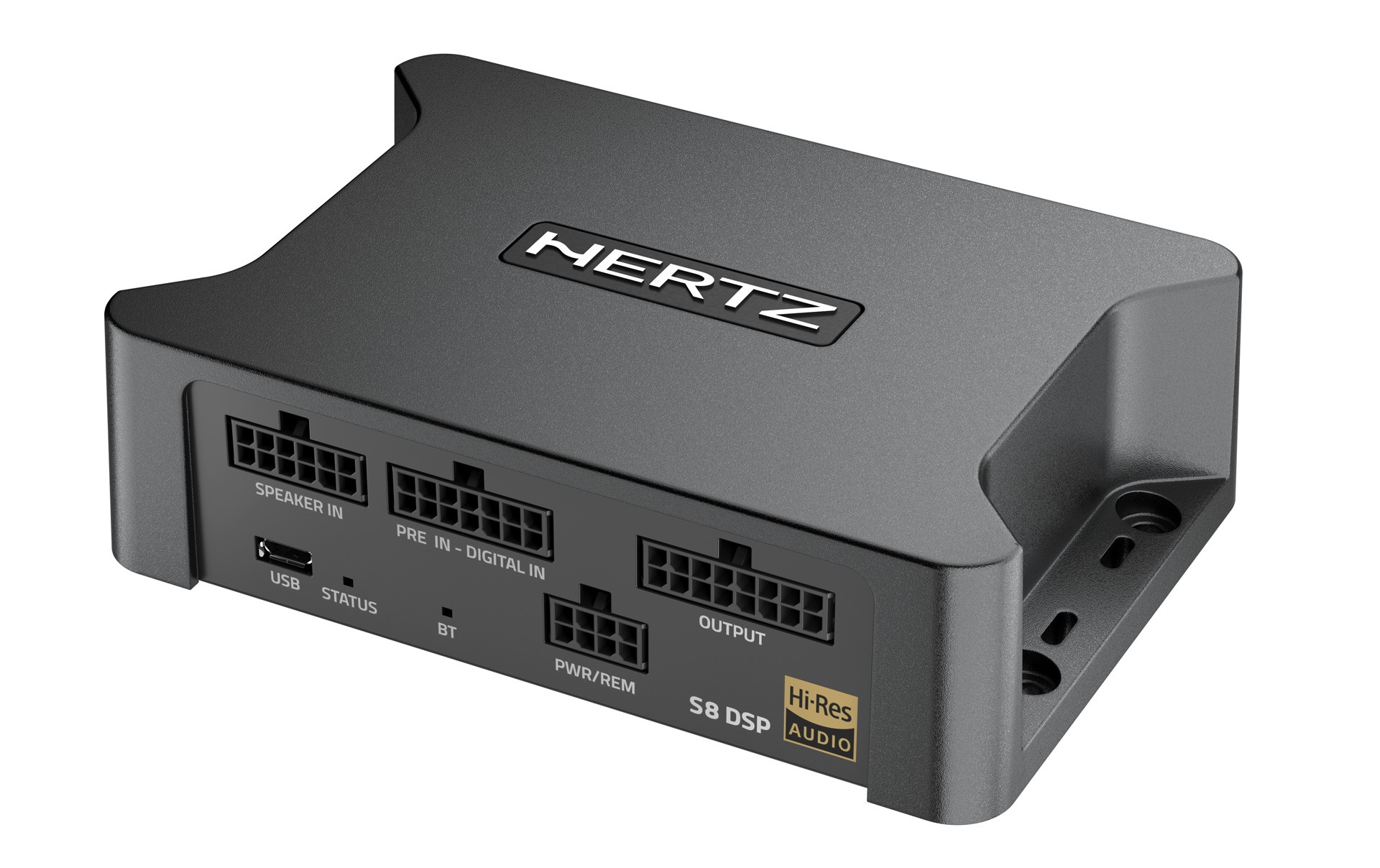

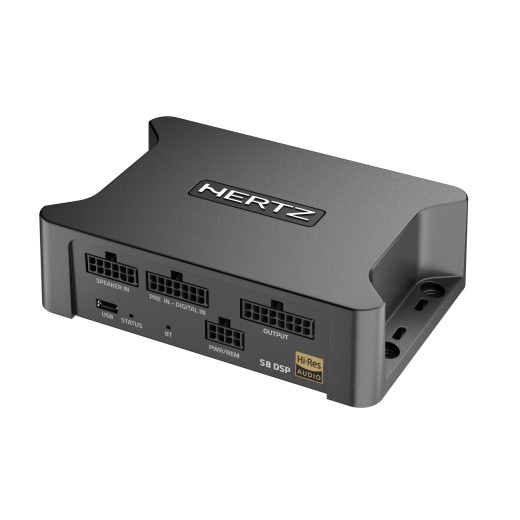

The ultra-compact Hertz S8 DSP processor is the perfect solution for integrating any OEM source into your car, motorcycle and boat audio upgrade project! The S8 DSP represents cutting-edge technology in the service of the highest sound quality in a stainless case of cast metal and composite materials. The S8 DSP processes an audio signal with a resolution of 96 kHz / 24 bits and has received Hi-Res certification from JAS (Japan Audio Society), a recognition that confirms the extreme level of audio performance achieved. A powerful 32-bit DSP manages 6 high/low analog input channels, one digital coaxial input and 8 output channels, offering specialists maximum configuration freedom. The coaxial SPDIF input is ideal for a digital connection with a Hi-Res player, a solution that allows for maximum listening quality. A level control, 15-band parametric EQ, time correction and crossover filter are available for each of the eight output channels. A 7-band parametric EQ on the input signal allows you to get a flat response from OEM sources, which often have an exaggerated emphasis on the low frequency.

The main features of the Hertz S8 DSP DSP processor

  • Small and weatherproof - perfect for motorcycles.

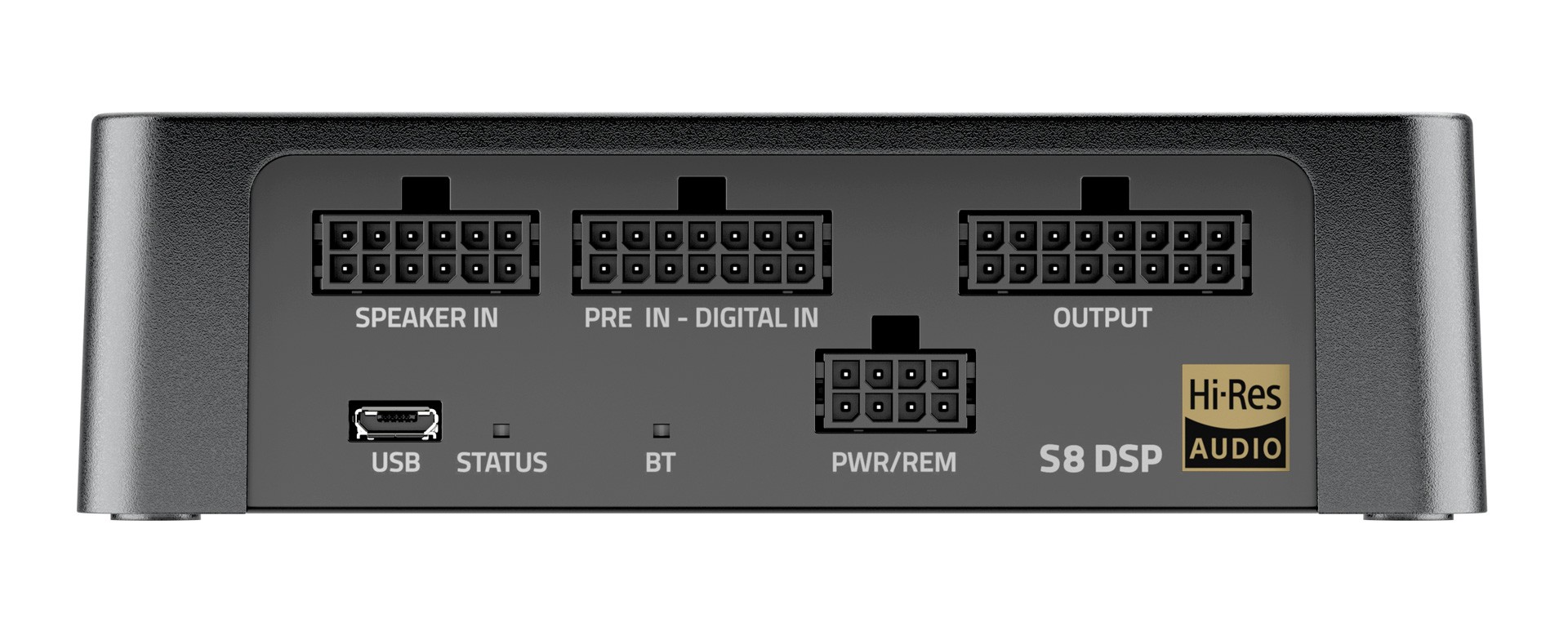

  • Compact size with all connections on one side for installation anywhere.
  • Anti-corrosion treated circuit board to ensure years of outdoor listening pleasure.
  • Three different application settings: Car, Motorcycle, Free location (ship, van, pickup).
  • Party & Ride presets to optimize audio performance in all conditions.

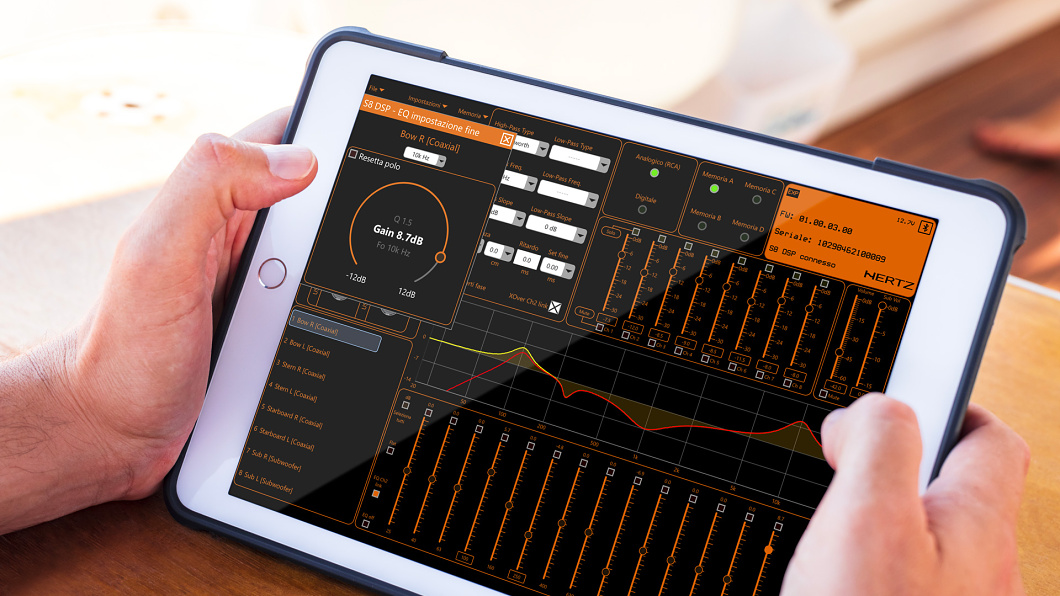

  • Configurable using PC, Mac, Android or iOS devices.
  • Control app for iOS/Android (Bluetooth 5.0).
  • DRC control over the app from iOS/Android device.
  • Powerful DSP with the excellent sound quality you expect from Hertz.
  • Hi-Res sound (96 kHz/24-bit native resolution) for unrivaled sound quality.
  • 6-channel SPEAKER IN (2.5 - 21 Vrms) on a dedicated socket with built-in USS.
  • SPDIF coaxial input (up to 24bit/96KHz).

Catalog numberS8 DSP
BrandHertz
LinksOfficial web presentation
Number of DSP processor channels8
Inputs6 x RCA, 6 x Hi-Level, 1 x Coax SPDIF
Outputs8 x Hi-level
Input sensitivity0.8V – 6V RMS (RCA) /
Frequency range10 - 40000 Hz
Signal-to-noise ratio (digital input)112 dB
Signal-to-noise ratio (analog input)105 dB
Harmonic Distortion (THD) (analog input)< 0.005%
High level inputsYes
Low Level Inputs (RCA)Yes
Coaxial inputYes
Automatic switchingYes
Optional Bluetooth moduleYes (Audison B-CON)
Hi-Res music streaming optionYes
Number of equalizer bands15
Dimensions130 x 33.8 x 88.3 mm
