Eton RTA 3.5 measuring microphone

Eton RTA 3.5 measuring microphone

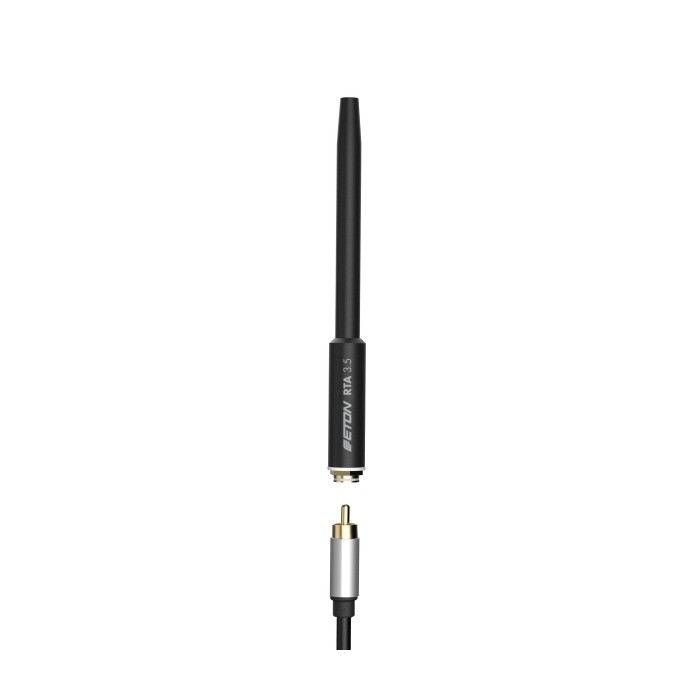

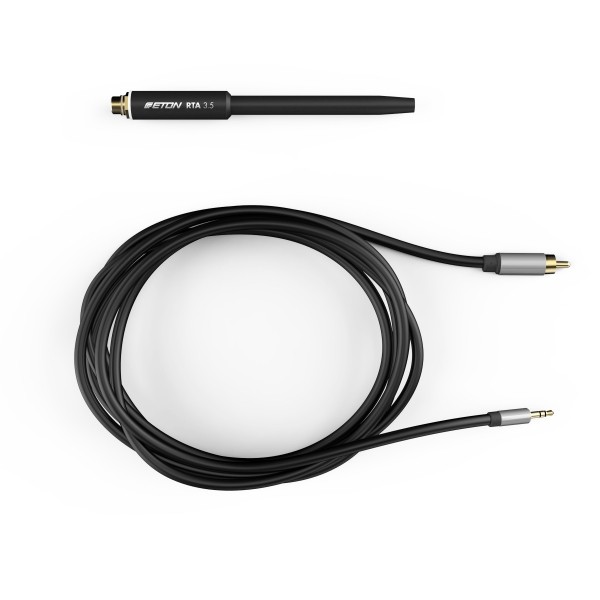

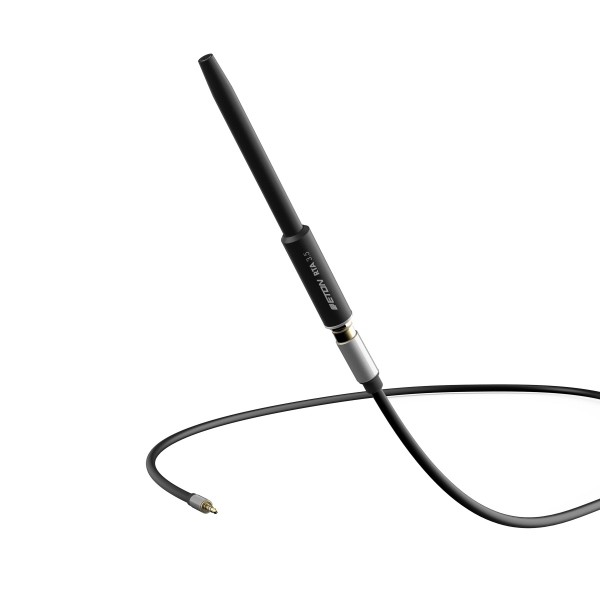

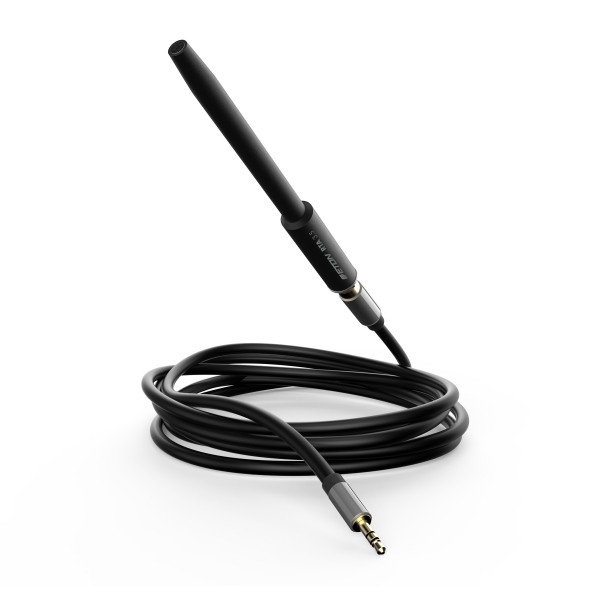

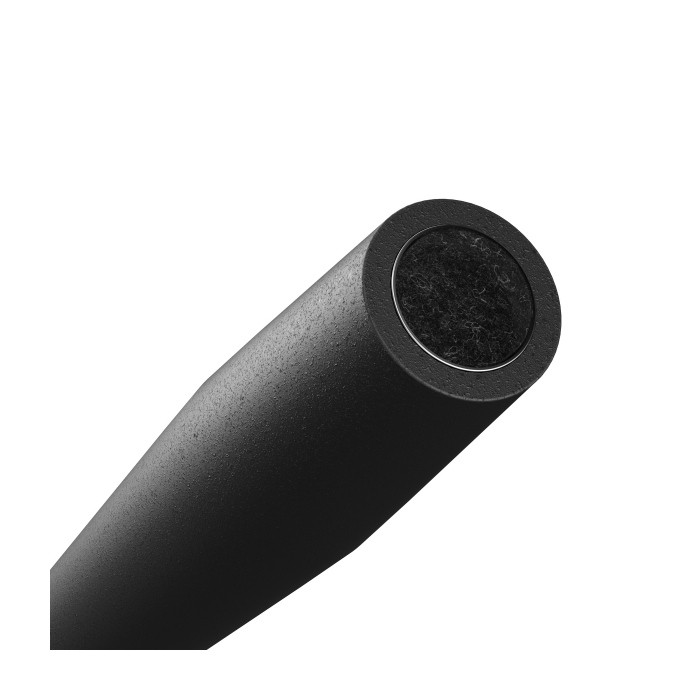

Eton's RTA 3.5 is used to measure the interior acoustics of vehicles and is required for the RTA (real-time analysis) function that is integrated in Eton DSP amplifiers. The microphone accurately measures the frequency response and thus allows users to perfectly adapt the speakers and subwoofers to the acoustic environment of the vehicle. It can be combined with the Eton DSP control center to find and eliminate the vehicle's acoustic weaknesses. The RTA 3.5 is a 160 mm aluminum measurement microphone with a 5 m detachable and multi-shielded cinch cable, specially designed for Eton amplifiers. The microphone is designed to always guarantee an optimal measurement. Functions such as time correction, checking the accuracy of values and setting active filters are thus easy to use. Thanks to real-time analysis and the RTA 3.5 microphone, you have full control over the sound - Engineered in Germany!

The main features of the Eton RTA 3.5 measurement microphone

• Microphone length: 160 mm.
• Amplifier connection: 3.5 mm Jack.
• Microphone connection: RCA female.
• Cable length: 5 m.
• Sensitivity: -35 ±4 dB (0 dB = 1V/pa, @ 1kHz).
• Impedance: < 2.2 KΩ.
• Frequency: 20 Hz - 20 kHz.
• Maximum operating voltage: 10 V.
• Normal operating voltage: 2V.
• Consumption: max. 0.5 mA.
• Undervoltage operation: approx -3dB @ 1.5V.
• Signal-to-noise ratio: > 62 dB.
