Hi-Res player FiiO M17

portable Hi-Res player, 2x ES9038PRO DAC, 5.5" LCD, MQA, BT with aptX HD, aptX Adaptive, LDAC, SBC, AAC support
More about the product

We will help you with your purchase

Use our consulting room
You can return the goods to us within 14 days
Try the product at our store

Description and parameters
Comments0
Evaluation0
Category

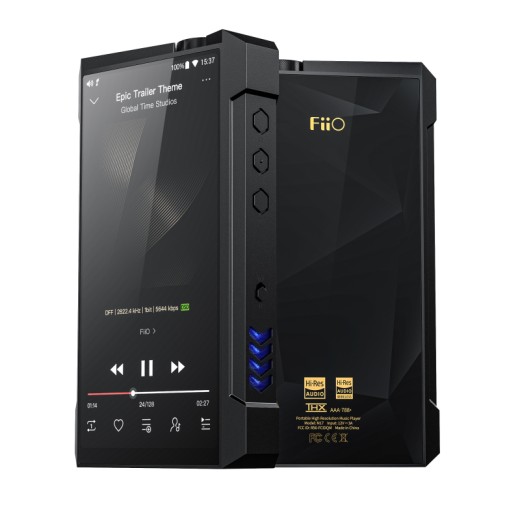

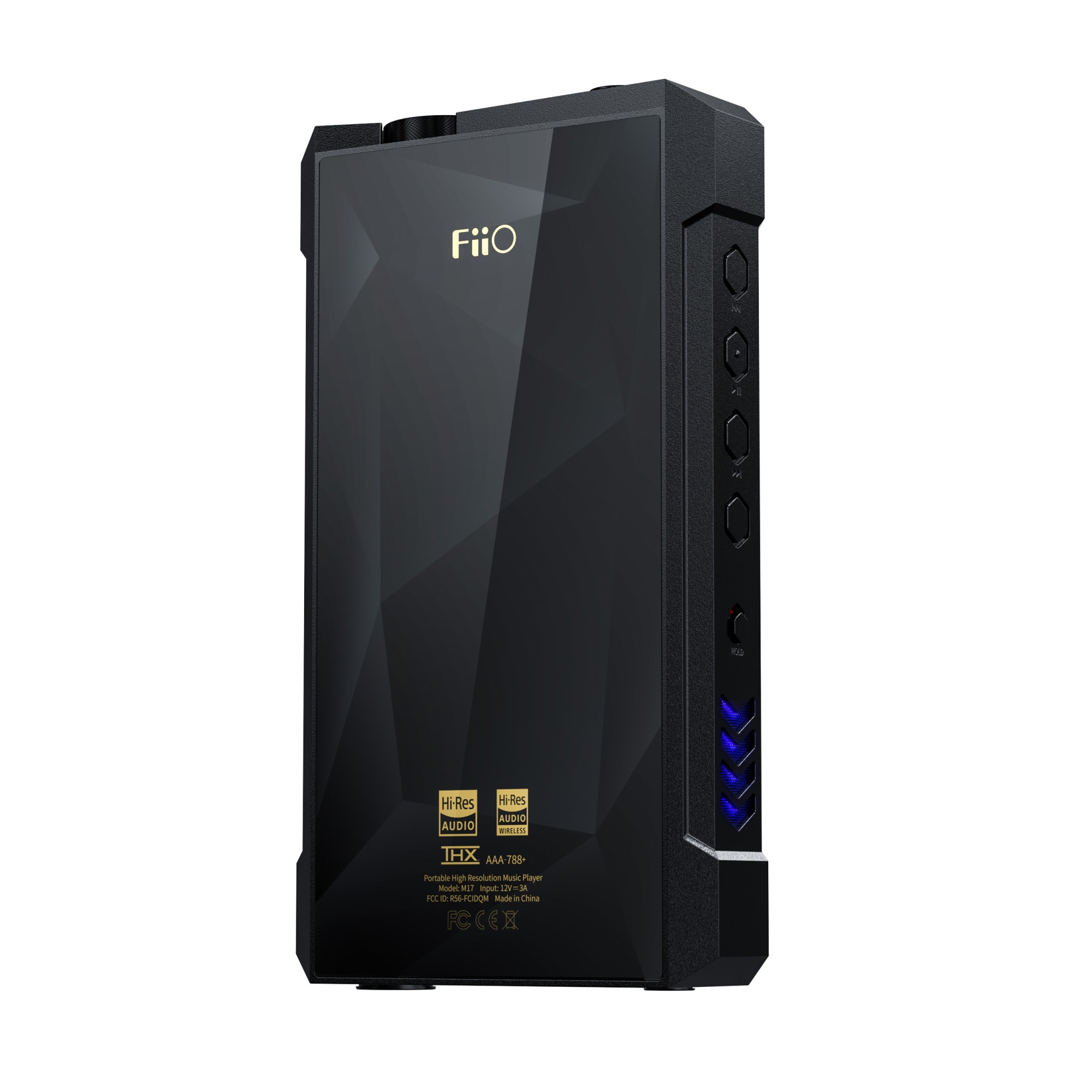

M17 portable desktop player

The M17 smart desktop player is a completely new chapter of FiiO digital audio players. Its desktop D/A converter, amplification, power supply, etc. give it output power and sound quality to rival and perhaps even surpass highly regarded desktop systems - but in a portable package. Let the M17 redefine what's possible with portable audio players.

Features

Dual ES9038PRO.
Dual THX AAA-788+.
Qualcomm QCC5124.
XMOS XUF208.
Dual power supplies.
2 volume control modes.
Supercapacitor.
5.99 inch incell display.
5 audio output interfaces.
Two USB Type C connectors.
9200mAh battery.
Supports MQA.

DAC ES9038PRO

Each left and right audio channel features an 8-channel flagship desktop-class ES9038PRO DAC. This means that each audio channel has 8 parallel outputs added together for excellent resolution and minimal distortion for extremely clean sound reproduction.

Output power increased by 225%.
Output power up to 3000 mW.

Power supply

When powered by battery, there are 4 power levels: low, medium, high and headphone mode. In DC mode, enhanced mode gain is unlocked over headphones with truly desktop gain levels. In balanced output, the gain can reach up to 16dB – allowing the M17 to easily control most headphones. The M17 includes two power supplies – a battery supply and an external DC power supply. Battery power allows the M17 to be used in situations where there is no access to an electrical outlet. With DC power, the voltage in the analog circuit is increased by 35% up to 11.5 V compared to battery power; and the battery remains healthy because it is not used in this mode.

Connectivity

Thanks to its larger size, the M17 offers a variety of connection options that allow for many different convenient use cases.

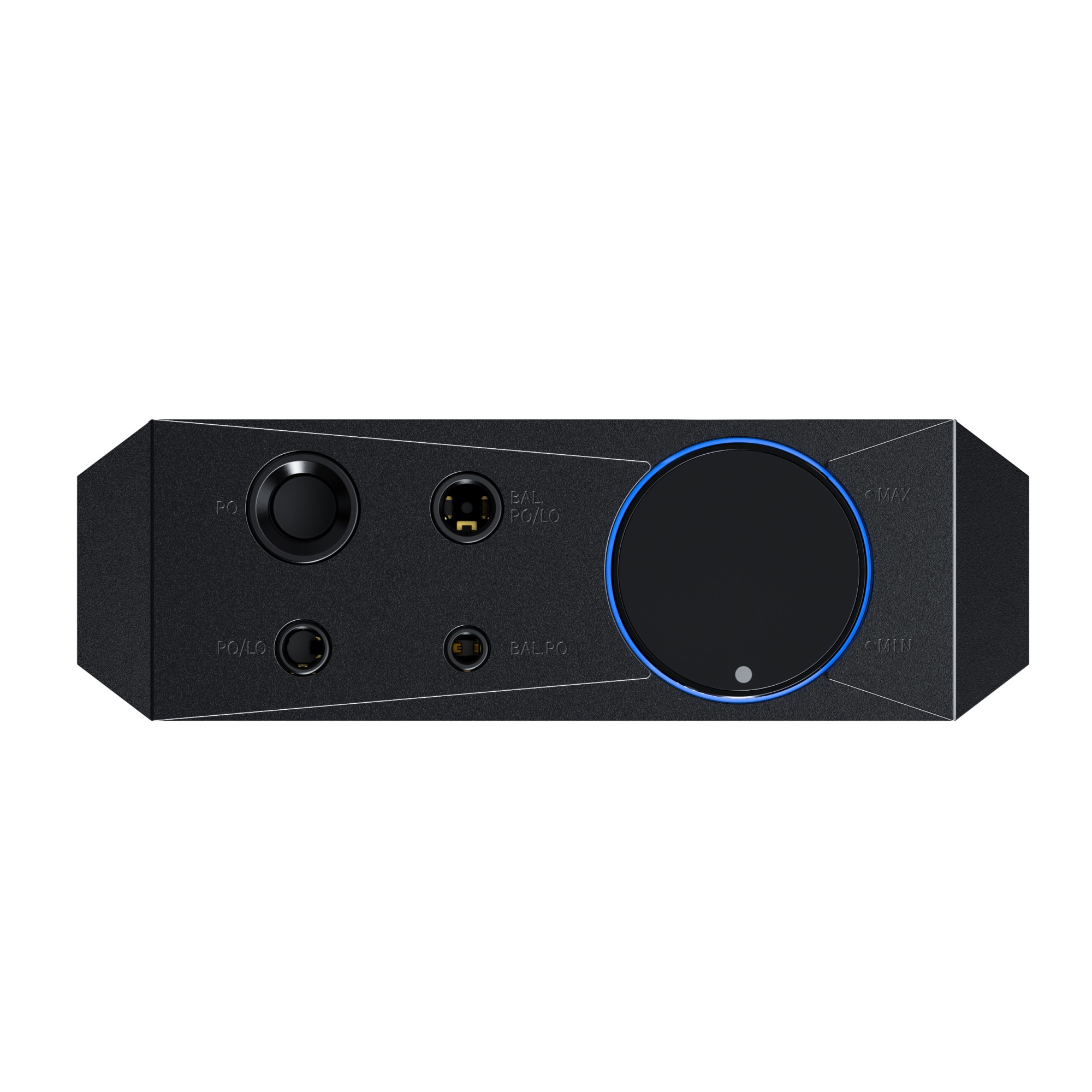

6.35 mm headphone output.
4.4 mm balanced headphone output / balanced line output.
2.5mm balanced headphone output.
3.5mm headphone output/line output.

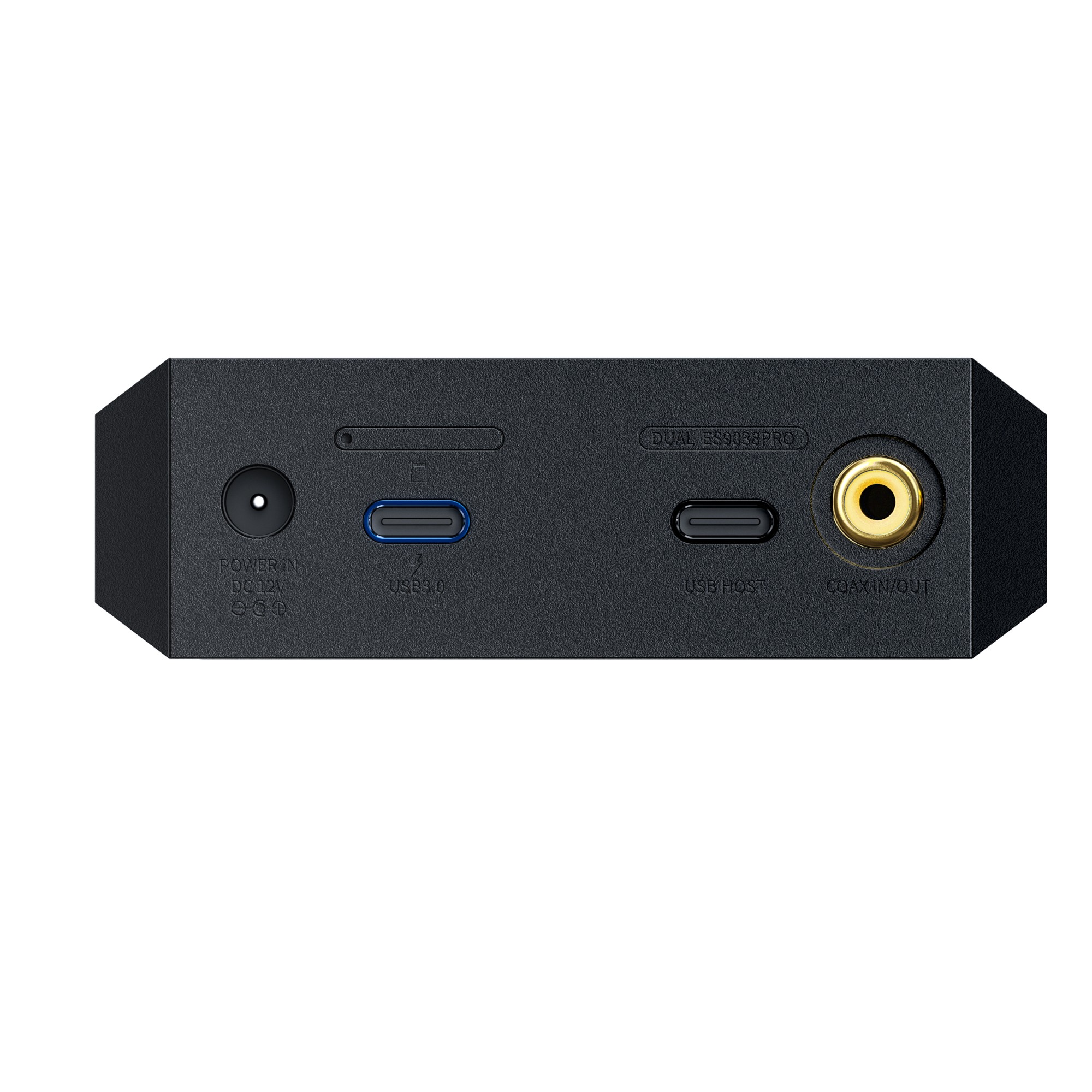

RCA coaxial port: coaxial input and output.
USB 3.0 Port - Supports USB Host and Device modes, can be used for high-speed data transfers and fast charging.
USB 2.0 port – Supports USB Host mode, allowing external DACs or hard disk storage to be connected.

Heat dissipation

Exceptional sound quality comes with high power consumption, so great emphasis was placed on efficient heat dissipation when designing the M17. Not only have "H" heat dissipation and VC liquid cooling technologies been adopted, but the 15lg M17 aluminum alloy unibody frame also effectively transfers heat out of the device. Finally, the cooling fan rack further ensures quick heat dissipation.

"H" type heat dissipation technology.
VC liquid cooling technology.
Cooling fan stand.

Internal calibration

TI OPA2211 high-end operational amplifier. Voltage noise of 1.1nV@1kHz and THD+N -136dB results in extremely clean amplification.
470mF DMF supercapacitor. The equivalent of 10,000 47uF tantalum capacitors with a very low ESR of 45mΩ (only 15% of the tantalum capacitor value), providing a solid foundation for large power supplies.
Ultra-low noise LT3045 LDO. Ultra-low noise, ultra-high PSRR low-dropout linear voltage regulator with LDO Linear Technology architecture with extremely low RMS noise of 0.8μVRMS in the frequency band of 10Hz-100kHz for stable and clean power supply of DAC chip.
NDK femtosecond crystal oscillator. It provides a high-precision, low-jitter unified clock source for the entire audio circuit.

A real smartphone-like experience

Qualcomm Snapdragon 660.
Android 10 OS open to install third-party apps.
Flagship QCC5124 chip.
Bluetooth 5.0 with aptX Adaptive support.
Bluetooth reception: SBC, AAC, aptX, aptX LL, aptX HD, aptX Adaptive, LDAC.
Bluetooth transmission: SBC, AAC, aptX, aptX HD, LDAC.
XMOS receiver chip.
Ultra low latency, supports up to DSD512 and 32bit/768kHz.
Gravity sensor.
The screen can be rotated automatically like a smartphone thanks to the gyroscope.
Extremely fast transfers.
Thanks to USB 3.0, the write speed can reach up to 100 M/s, which allows the file transfer to be completed in minutes or even seconds.
MQA support.
Supports MQA development for master-level audio.

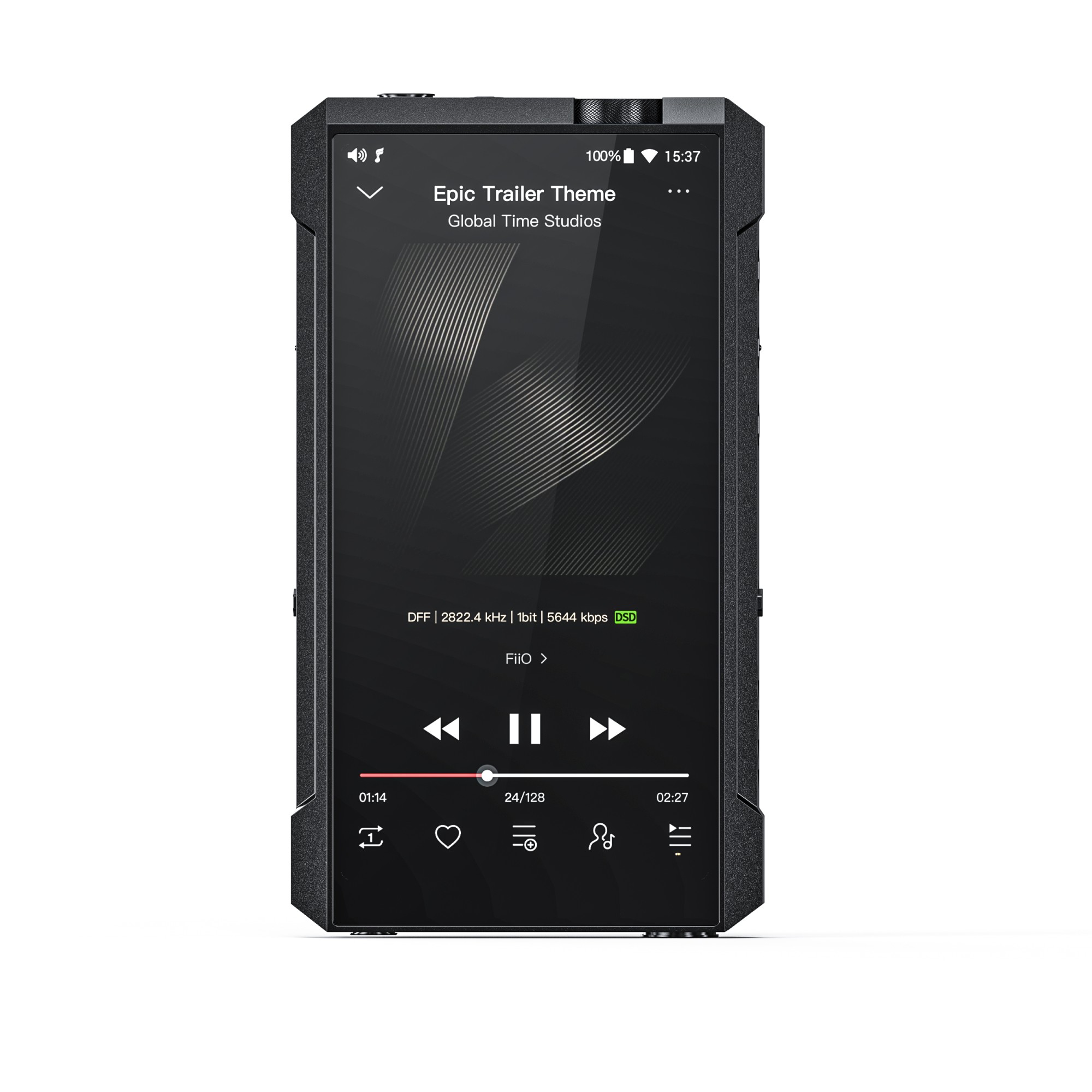

Bigger screen

A larger screen makes it easier for you to enjoy stunning visuals. Treat your eyes to the upgraded 5.99 inch, 1080*2160 FHD+ 18:9 high resolution incell display.

Large battery 9200MAH

A massive 9200mAh battery allows for up to 10 hours of battery life on the M17. It can be charged either via USB or via DC in from an external DC adapter.
