Mid-bass speakers Morel Supremo MW6 Woofers

mid-bass speakers, Ø 165 mm, 140 W RMS, 4 Ω, 89 dB (2.83V/1m), installation depth 61 mm
More about the product
We will help you with your purchase
Mid-bass speakers Morel Supremo MW6 Woofers

Mid-bass speakers Morel Supremo MW6 Woofers

The Morel Supremo MW6 mid-bass speakers feature advanced technologies such as a three-inch external Hexatech™ voice coil (EVC™) powered by a powerful neodymium double magnet or a high-end carbon fiber diaphragm that enables natural and uncolored sound reproduction. The optimized version of the mid-bass speaker creates precision, linearity, dynamics and a wide frequency range.

EVC™ system

Morel speakers with EVC™ technology use voice coils that are up to three times larger than conventional speakers. The EVC™ design moves the magnetic drive system inside the voice coil and eliminates stray magnetic flux by effectively directing all magnetic energy into the voice coil. The result is an ultra efficient and powerful system that is highly compact with efficient heat dissipation and reduced membrane breakdown for less distortion.

Morel Lotus luxury grid

Morel's new Lotus-branded grille has a specific pattern of holes in different shapes and diameters designed to minimize the "horn" effect (a high-frequency peak caused by the resonant frequency of multiple holes of the same size). Innovative metal processing has allowed the construction of a very thin, almost transparent grille that hardly affects the sound when reproducing all frequencies, while maintaining structural integrity to protect the speaker membrane.

CAR filter - acoustic cooling

CAR is controlled acoustic resistance. In most automotive applications, speakers are installed in a virtual space such as a door to ensure minimal acoustic load. The CAR Filter™ improves the acoustic load by controlling the airflow inside the speaker, resulting in improved power control by up to 30%. This provides more control over the movement of the diaphragm for better bass dynamics.

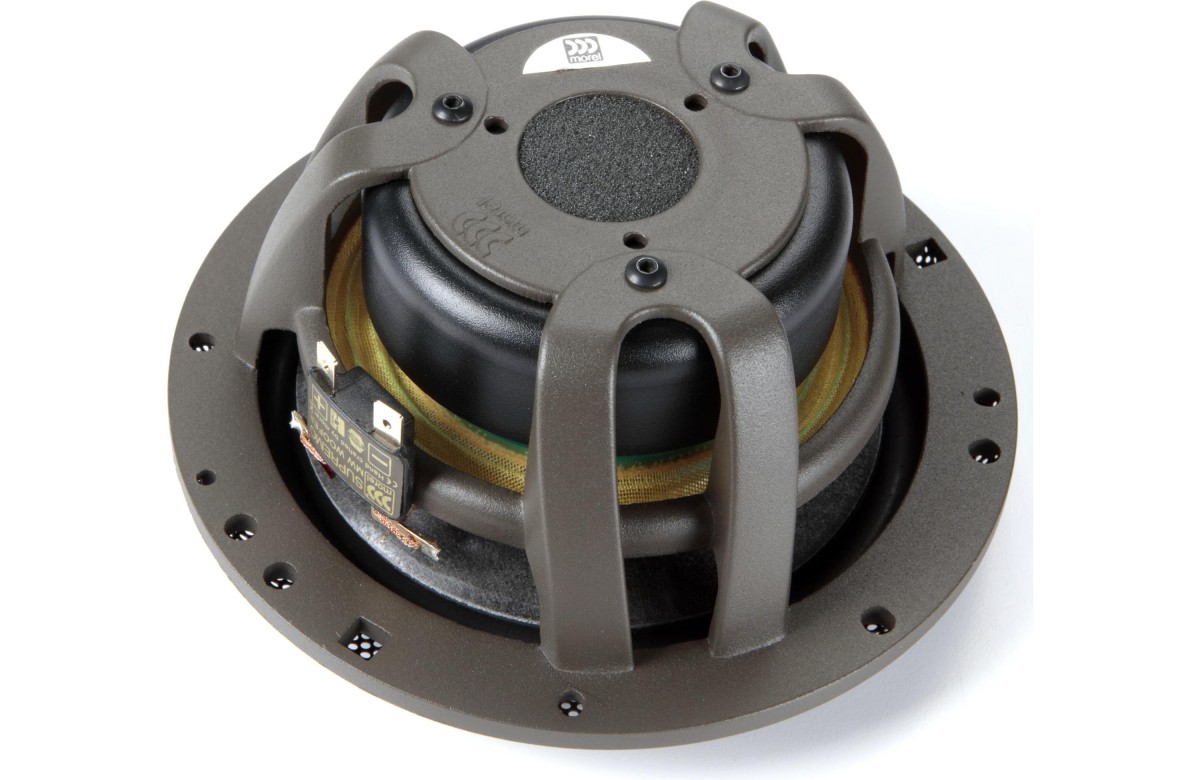

DMM motor - 2 magnet system

Morel's dual drive system generates more magnetic energy than a single magnet of similar size, increasing efficiency and dynamic range. The position of the secondary magnet mounted above the top plate in the motor is key to controlling the diffuse magnetic flux, creating a more focused magnetic field while contributing to the speakers' "shielded" characteristic.

Carbon fiber mid-bass diaphragm

The membrane consists of two carbon fiber outer shells that wrap around a layer of Rohacell, which is a high-strength, low-weight foam. The combination is a membrane that is light, strong and properly damped for natural sound reproduction.

Catalog numberSUPREMO MW6 WOOFERS
BrandMorel
LinksOfficial web presentation
Speaker typeCoaxial speakers:
Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam.

Component Speakers:
Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.
Mid-bass
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! 140 W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! 600 W
Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker.

Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter.

A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.
89 dB
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using.

Example:
A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.
4 Ω
The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm. 165 mm
Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces. 61 mm
Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for.

Component Speakers:
A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion.

Coaxial speakers:
In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter.
No
Cover grids included in the packageOriginal cover grilles in speaker packaging. Yes
OtherDouble neodymium magnet
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. Few
