Morel Elate Carbon MM3 center speakers

Name: Morel Elate Carbon MM3 center speakers
Brand: Morel
Price: 819.00 EUR
Availability: InStock

Be the first to rate the product

Add to FavoritesRemove from favourites

center speakers, Ø 88 mm, 120 W RMS, 4 Ω, 87 dB (2.83V/1m), installation depth 38 mm
More about the product

We will help you with your purchase

Use our consulting room
You can return the goods to us within 14 days
Try the product at our store

Tip

Description and parameters
Comments0
Evaluation0
Category
Assembly

Morel Elate Carbon MM3 center speakers

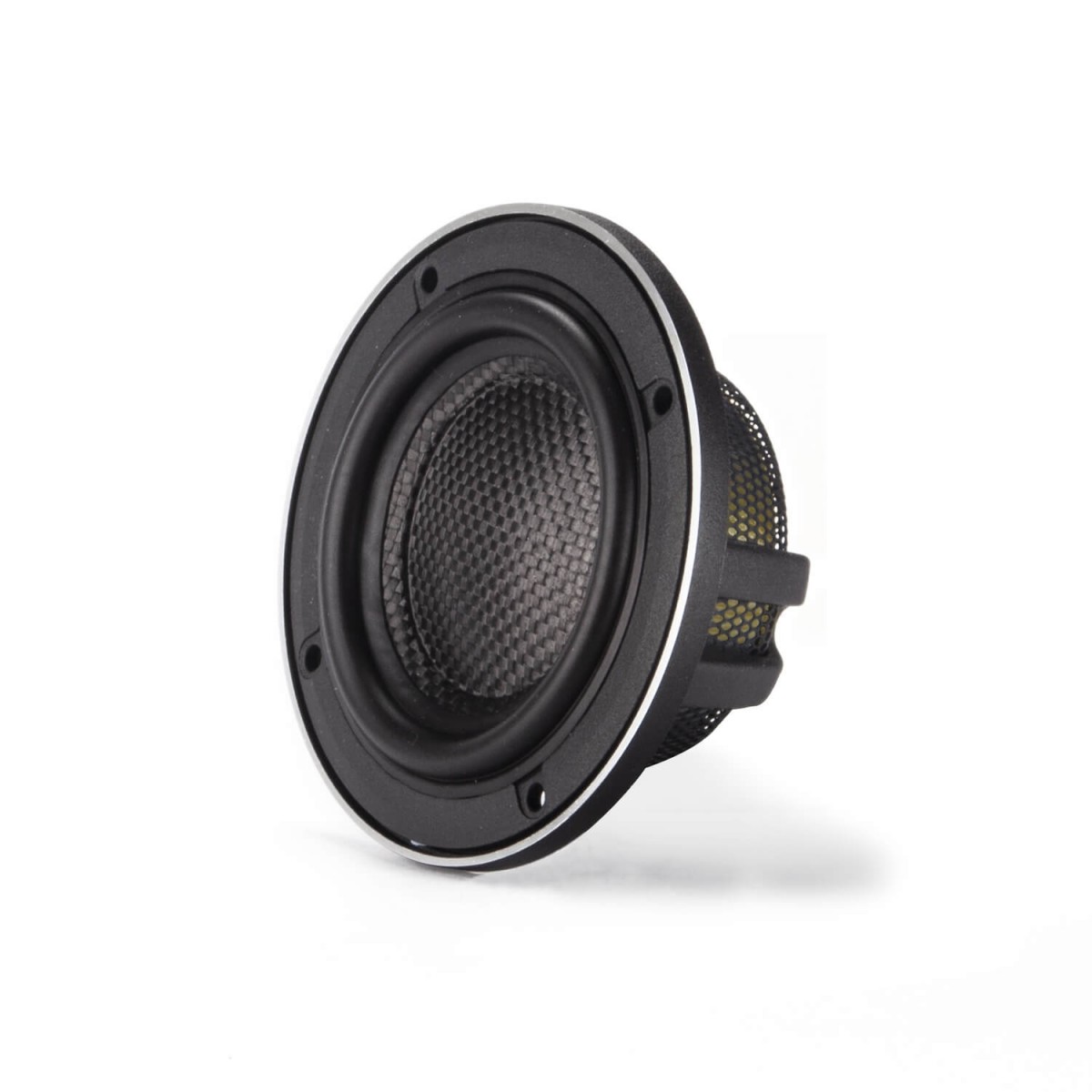

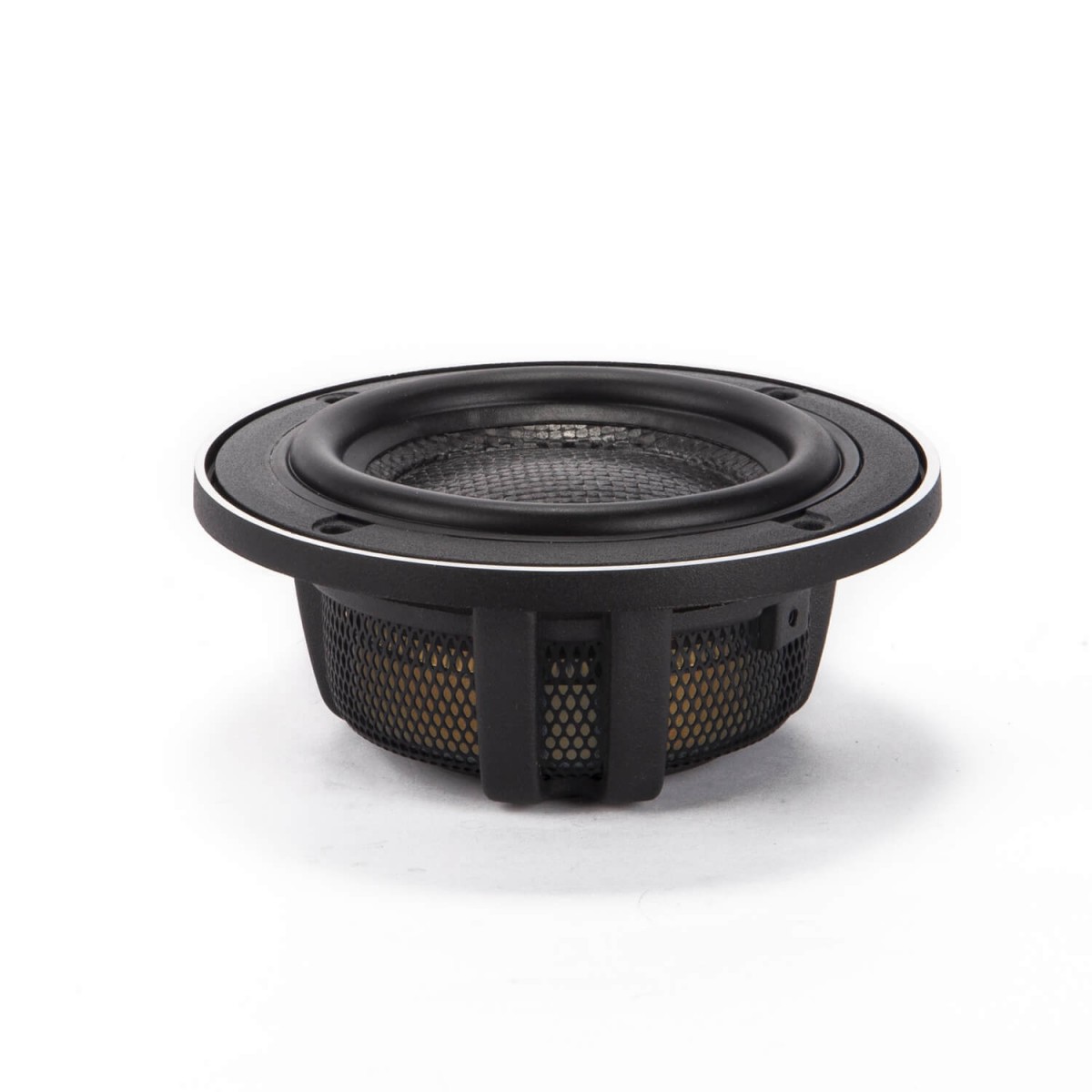

The Elate Carbon MM3 is a true masterpiece. The dedicated 3.5" center drivers combine a large 2.1" voice coil and Morel's EVC motor design, which encapsulates a high-efficiency neodymium magnet system and a newly developed three-layer carbon fiber / Rohacell diaphragm. With exceptional power handling and low fs, they are Able to play at a lower frequency than other midranges of their size, the MM3 achieves the right balance of acoustic and mechanical attributes to offer a very flat frequency response, beautifully smooth midrange and tonal balance.

Neodymium magnet

The strongest magnet available, neodymium, allows Morel to create physically compact speakers such as tweeters and midrange speakers that fit into a very limited space without compromising sound quality. MM3 has just this neodymium magnet.

Carbon fiber membrane

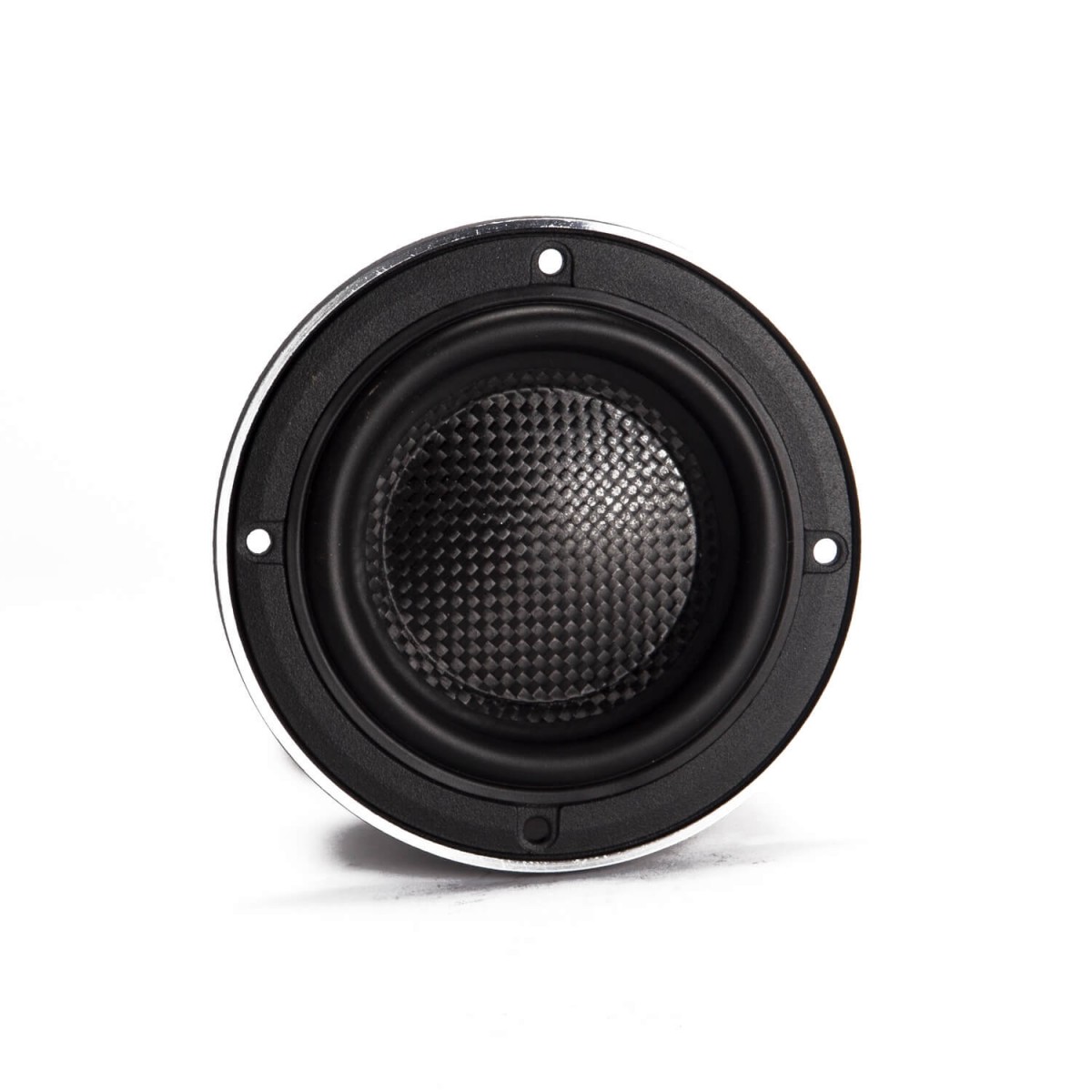

The membrane consists of two carbon fiber outer shells that wrap around a layer of Rohacell, which is a high-strength, low-weight foam. The combination is a membrane that is light, strong and properly damped for natural sound reproduction.

Morel Lotus luxury grid

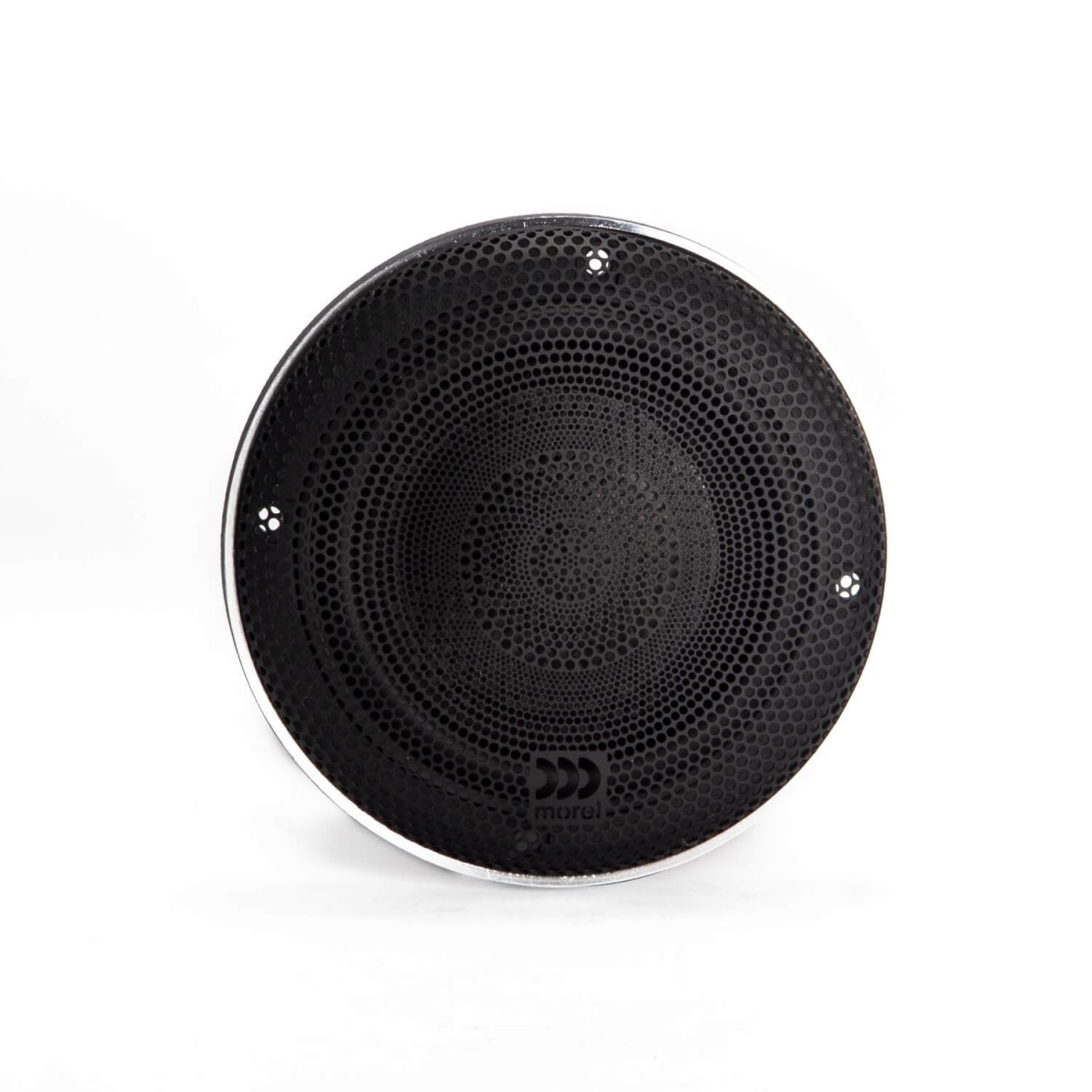

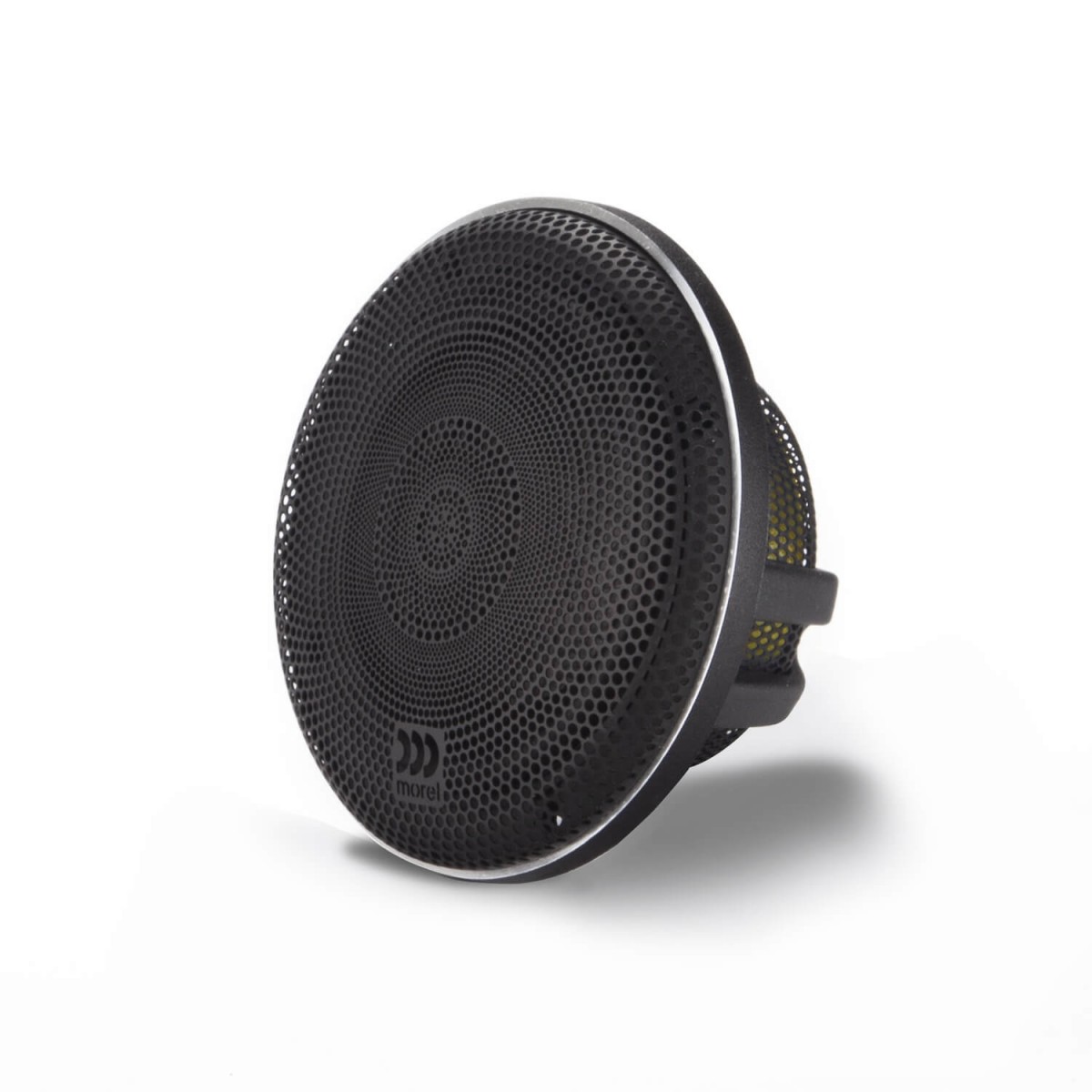

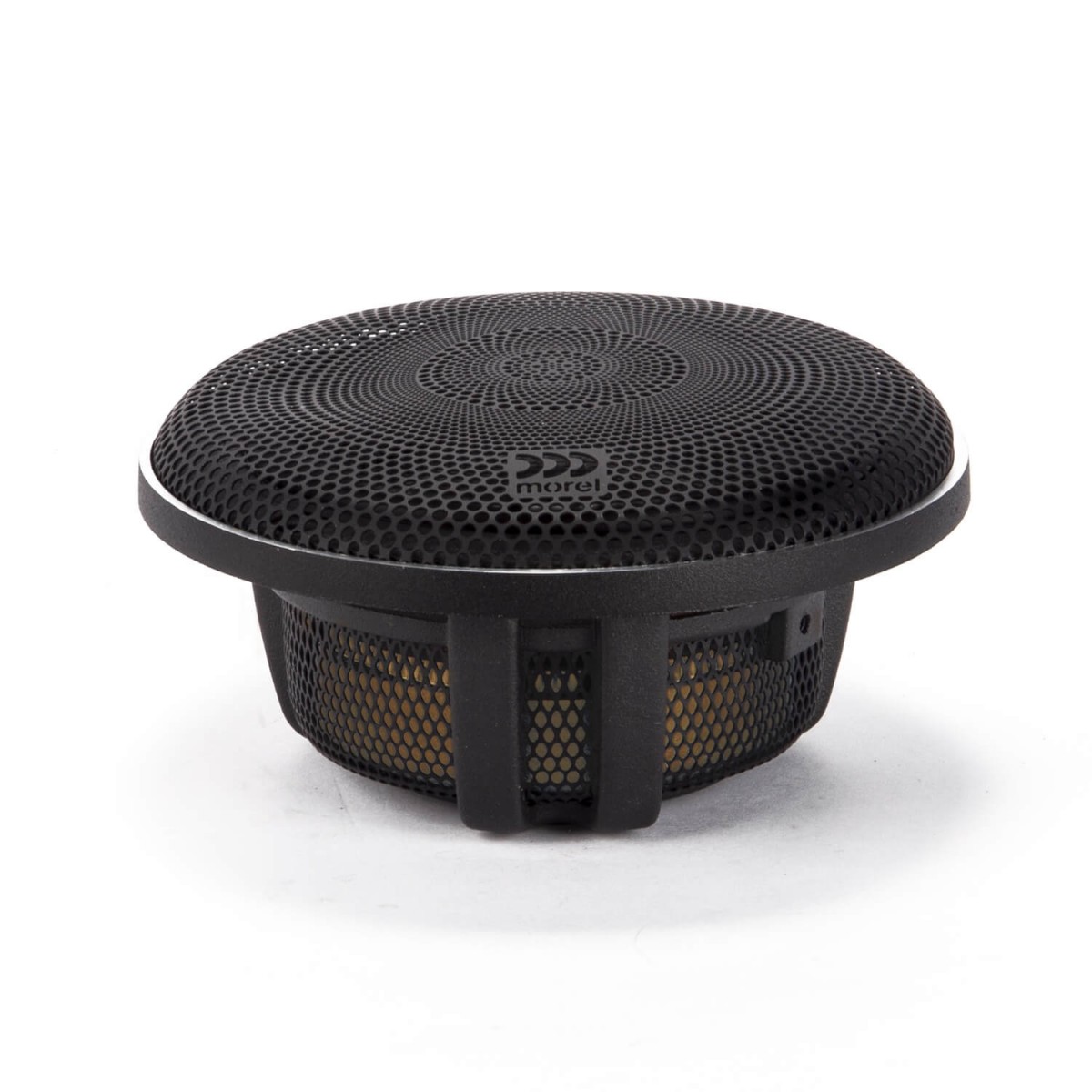

Morel's new Lotus-branded grille has a specific pattern of holes in different shapes and diameters designed to minimize the "horn" effect (a high-frequency peak caused by the resonant frequency of multiple holes of the same size). Innovative metal processing has allowed the construction of a very thin and almost transparent grille that hardly affects the sound when reproducing all frequencies, while maintaining structural integrity to protect the speaker membrane.

Catalog number	ELATE CARBON MM3
Brand	Morel
Links	Official web presentation
Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.	Central
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged!	120 W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged!	400 W
Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.	87 dB
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.	4 Ω
Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.	90 - 6000 Hz
Center speaker diameterThe diameter of the center speaker is given as the diameter of a round speaker, not including the mount, where the mounts protrude even more on smaller speakers.	88 mm
Mounting depth of the center speakerThe mounting depth of the center speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket.	38 mm
Center speaker diaphragm materialDiaphragm material that was used in the manufacture of the center speakers.	Carbon
Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for. Component Speakers: A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion. Coaxial speakers: In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter.	No
Cover grids included in the packageOriginal cover grilles in speaker packaging.	Yes
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover.	Few
