Parking assistant Keetec BS 420 IB

Parking sensors Keetec BS 420 IB

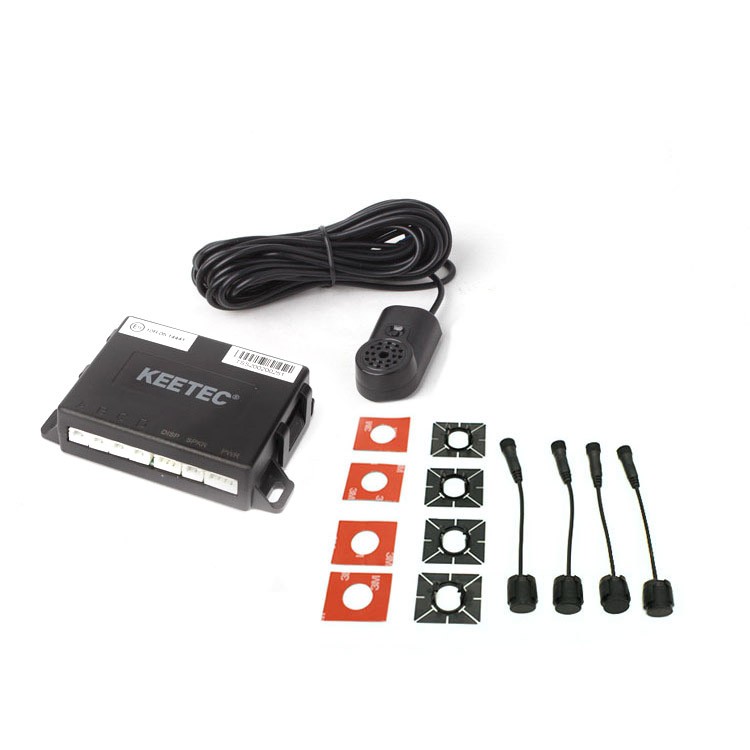

Parking assistant with 4 recessed 16 mm sensors and acoustic signaling intended for installation in the rear or front bumper of the vehicle. The system is supplemented with an Antihook function and automatic identification of a faulty sensor, sensitivity settings, a learning function, a buzzer with adjustable volume. Supply voltage 12 V / 24 V. The length of the wires to the sensors is 2.3 m. If the parking assistant is installed in the front bumper, the EXT CABLE KIT extension cables must be used.

System description:

• sensors with fixed mounting in the bumper
• fast obstacle detection
• sound signaling (changing beep frequency) will announce the position of the obstacle
• volume adjustment directly on the buzzer body (3 levels)
• excellent coverage of the entire space behind or in front of the car, horizontal scanning angle 110° ± 15°
• if the obstacle is within 30 cm of the vehicle, a continuous tone will sound
• autodetection (automatic identification of a faulty sensor)

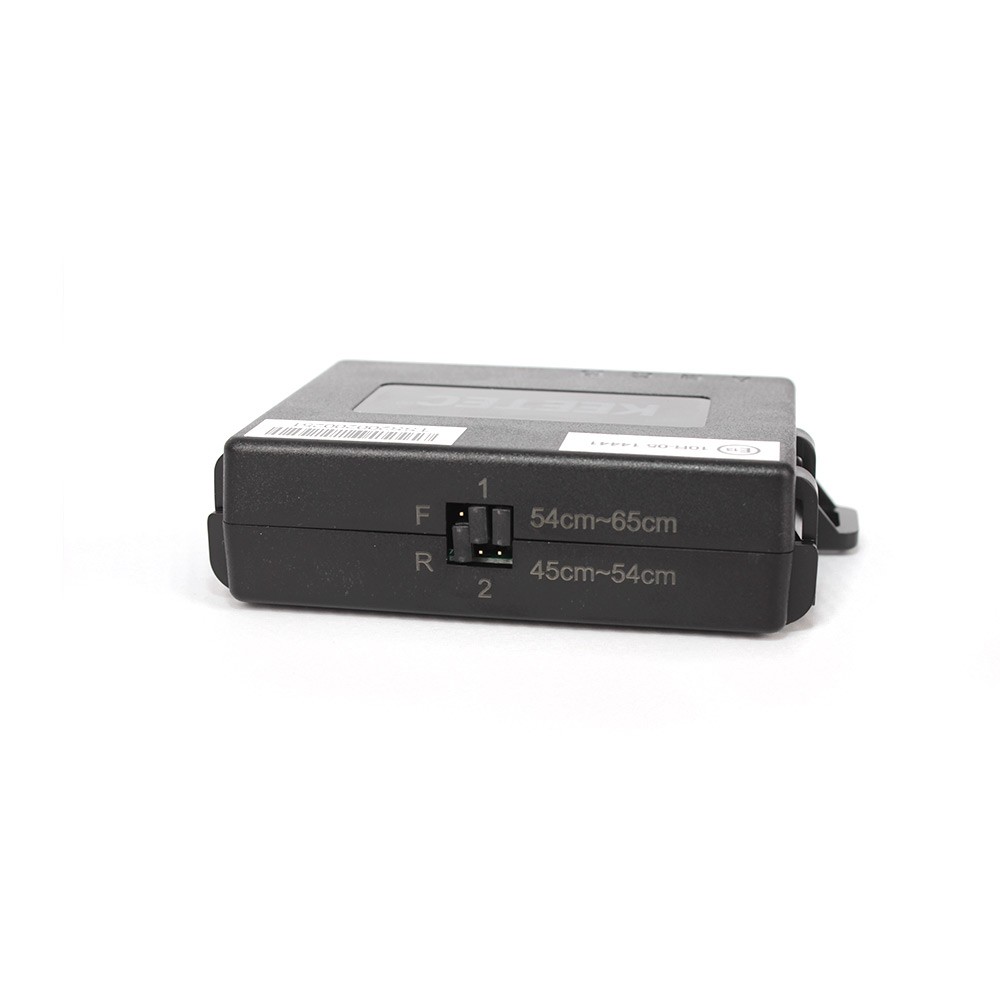

• adjustable sensitivity of the sensors on the control unit (2 levels)
• unique learning function (ignoring permanent obstacles - reserve, towing, frame, ...)
• additional wire to ignition (pink) for stable power supply (optional connection)
• sensor core diameter 14 mm
• required mounting hole 16 mm

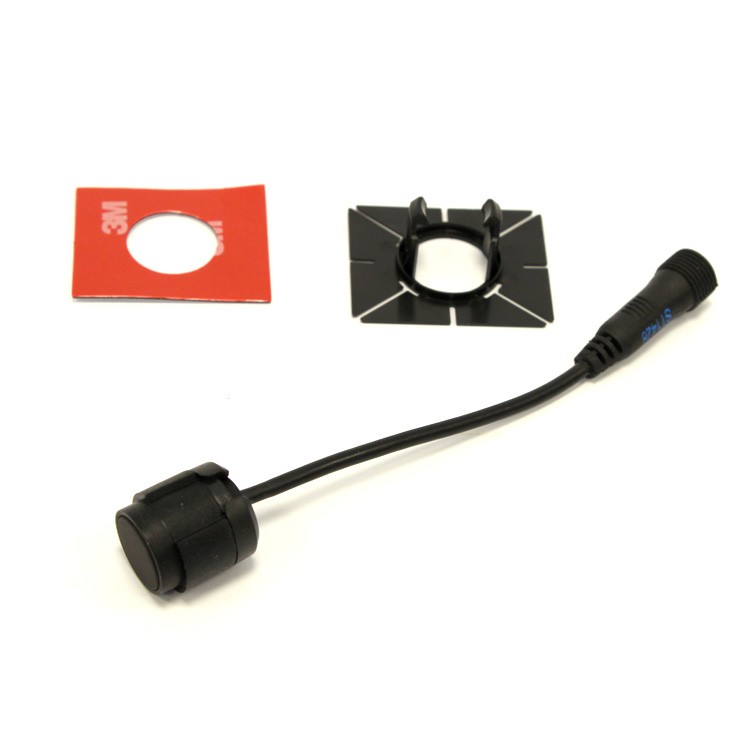

• the sensors are on a 10 cm cable with a waterproof connector, which ensures easy replacement
• sensors if needed
• length of wires to sensors 2.3 m
• the control unit is not waterproof and must be installed in a dry place

Technical parameters:

• Operating Voltage: 9~27V DC
• Operating current: < 250 mA
• Loudspeaker: 80 ± 10 dB
• Rear detection range: 0.3~2.59m
• Front detection range: 0.3~0.99m

Operating temperature:

• ECU: -40°C ~ +80°C
• Display: -20 °C ~ +70 °C
• Sensor: -40 °C ~ +80 °C
