Parking assistant Steelmate PTS810V10 BTI

Parking assistant Steelmate PTS810V10 BTI

The Steelmate parking assistant with 8 flush-mounted 16 mm sensors, with one control unit, is intended for installation in the front and rear bumper of the vehicle, complete with a V10 LCD display with a numerical indicator for comfortable visual signaling of the distance from the obstacle. The control unit enables the setting of an intelligent learning function, sensitivity in two levels and Antihook (sensing shift by 20 cm).

System description

• acoustic, voice and visual signaling
• sensors are mounted in the rear and front bumpers
• automatic detection of sensor damage
• if the obstacle is within 30 cm of the vehicle, a continuous tone will sound
• Antihook function - measurement shift + 20cm (reserve, towing, frame, ...)
• sensor sensitivity setting in 2 levels
• excellent coverage of the entire space behind the car, horizontal scanning angle 110° ± 15°
• angular reduction directly in the package 0°, 4°, 10°
• sensor core diameter 14 mm
• required mounting hole 16 mm

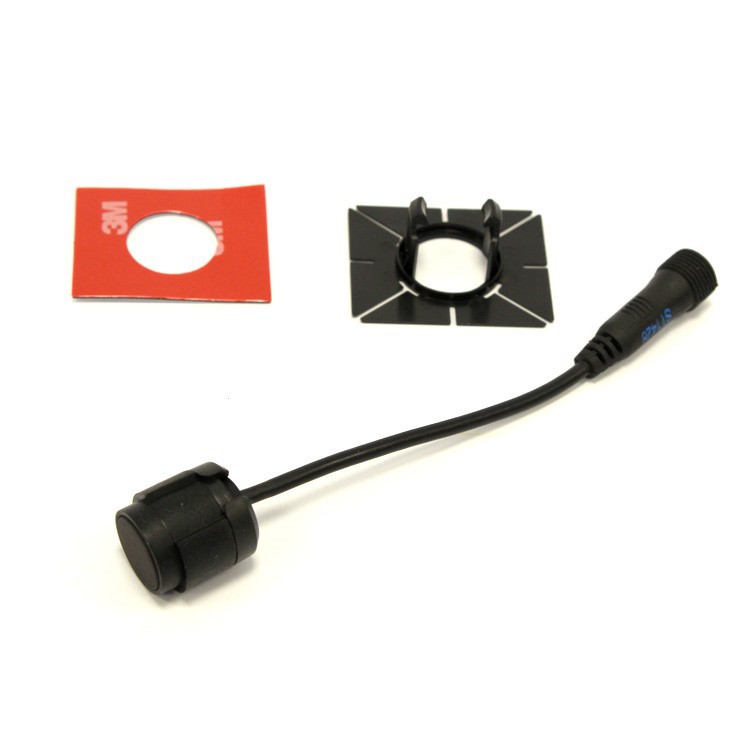

• the sensors are on a 10 cm cable with a waterproof connector, which ensures easy sensor replacement if necessary
• supply voltage: 12 V DC
• working power: <2.5W
• detection range (front / rear): 0.3 - 1 m / 0.3 - 1.5 m

Package contents

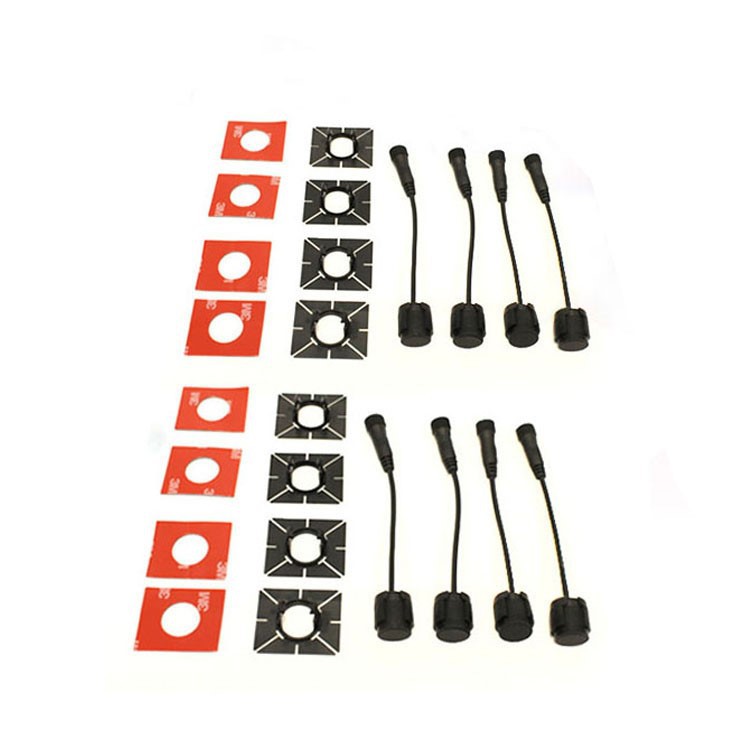

• parking sensors 8 pcs

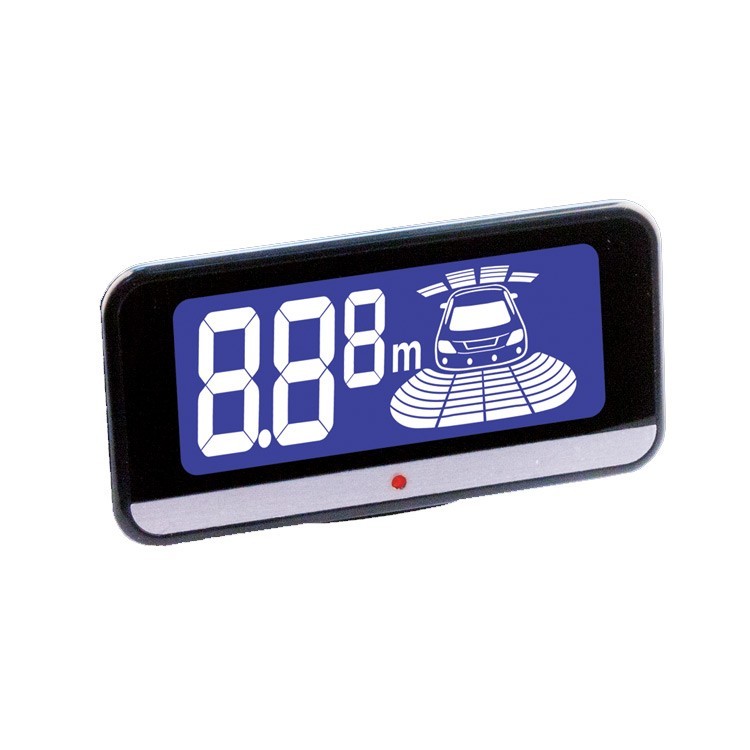

• display 1x

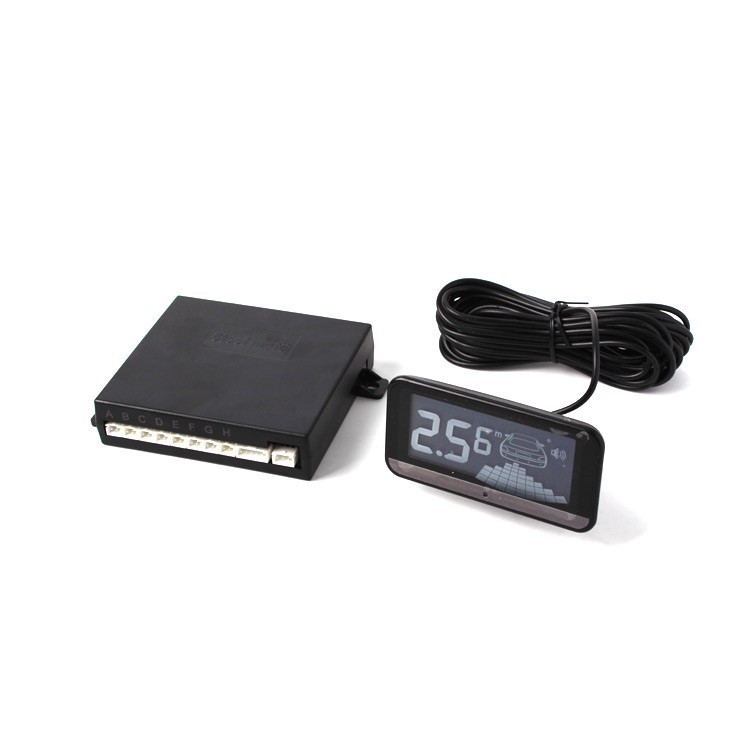

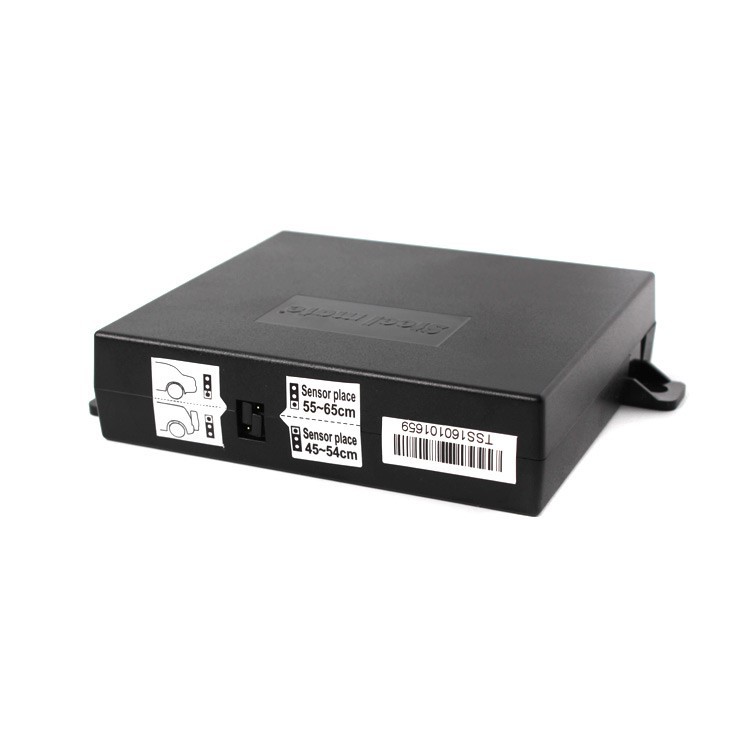

• control unit 1x

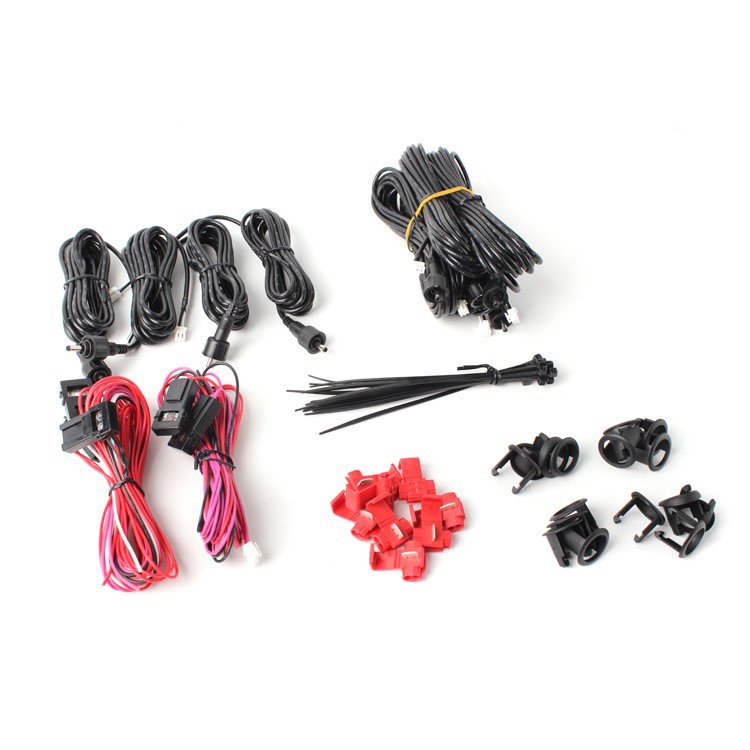

• cabling
• drill bit
• instructions
• warranty card

Notice

The control unit contains a 3 PIN connector for connecting the display, old displays with an 8 PIN connector are not compatible!
