Rockford Fosgate PUNCH P300-12 active subwoofer
12" active subwoofer in a box, 300 W RMS
More about the product
More about the product
We will help you with your purchase
- Use our consulting room
- You can return the goods to us within 14 days
- Try the product at our store
Rockford Fosgate PUNCH P300-12 active subwoofer

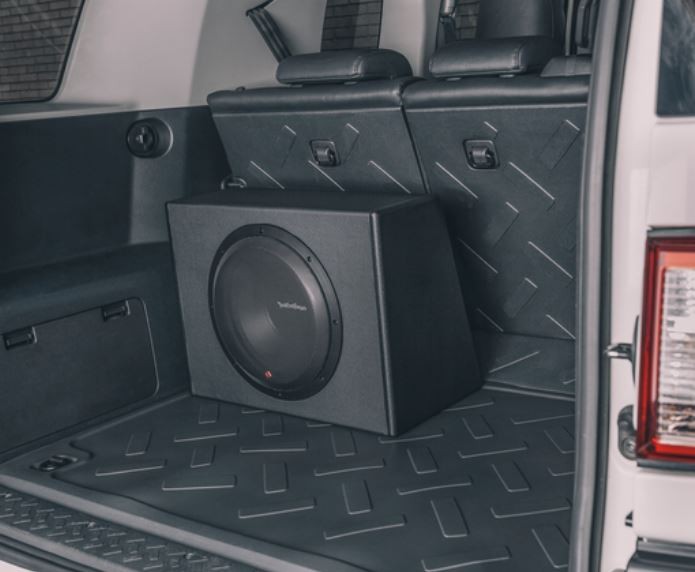

If you need to add some bass juice to your audio system, or are tired of the hassle of a separate subwoofer and amplifier, the Rockford Fosgate P300-12 is exactly what you're looking for. It is a 12" subwoofer in a closed box, which is powered by a powerful 300-watt amplifier. This piece could be called "All-inclusive", because you only need to connect a power source, ground and you are ready to go. It also has a very durable exterior that will withstand scratches or bumps, if you want to keep the subwoofer in the trunk, for example.
Key features of the Rockford Fosgate PUNCH P300-12 active subwoofer
- The closed loop design ensures optimal performance between all components – woofer, amplifier and box.
- Built-in phase shift 0° / 180°.
- Separate low-level and speaker inputs.
- Built-in adjustable bass emphasis equalization.
- Adjustable low-pass crossover 12 dB / octave.
- Detachable power / ground connector.
- Intelligent automatic switching on / off.
- Thermal and voltage protection.
- Highly efficient design with low current flow.

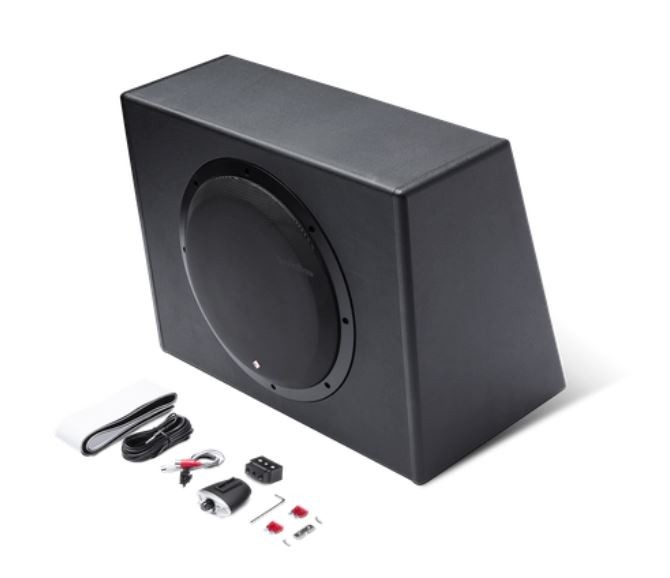

- The package includes a remote control of the bass level.
- Separate high-level output for woofer.
- The box is made of 5/8" chipboard.
- Large AWG input terminals.
- Vinyl surface.
| Catalog number | P300-12 |
| Brand | Rockford Fosgate |
| Links | Official web presentation |
| RMS power of the subwooferThe RMS power of an active subwoofer is the constant power that the active subwoofer can play over a long period of time. We recommend following this value. The RMS power of active subwoofers is taken as the RMS power of the integrated amplifier, which in most cases is slightly undersized, which guarantees protection against subwoofer burning. | 300 W |
| Maximum subwoofer performancePeak performance or Max. power that an active subwoofer can play for a moment (approx. 0.5 s), for example when percussion instruments are struck in a recording. But it is not as important a parameter as the RMS power. | 600 W |
| The diameter of the subwoofer usedThe diameter of the subwoofer that is installed in the active box. | 300mm (12") |
| Frequency rangeThe ability of the device to reproduce a signal from the lowest frequency to the highest, or the ability of an active subwoofer to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels for reasons of prestige. Data impoverished in this way is worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness, i.e. the undulation of the frequency course in good speaker systems for quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 35 - 150 Hz |
| High level inputThe high-level input on the active subwoofer enables connection directly to the speakers in the car without purchasing an external high/low converter. Use in the case of mounting an active subwoofer on the original car radio. | Yes |
| Automatic on and offThis function will facilitate your installation and solve the problem of finding a remote signal, which is sometimes a problem with original car radios. The active subwoofer with the Auto sense function can recognize that the equipment in the car is active and turn itself on. A useful and practical feature. | Yes |
| Phase rotation optionPhase shift is a linear electronic oscillator that produces a sinusoidal output. It consists of an inverting part of the amplifier such as a transistor. The feedback network "shifts" the phase at the output of the amplifier by 180 degrees to the oscillation frequency and gives positive feedback. The Phase shift filter produces a phase shift that increases with increasing frequency. This is usually used when the subwoofer sub-assembly is out with the magnet, or when two amplifiers are connected externally. Phase Shift is also used with active speaker wiring, where the time shift of the speakers is set. The point is that the subwoofer does not play the bass late, and for this reason better amplifiers offer this phase reversal option. | Yes |
| Cabling included in the packageSome active subwoofers have complete wiring included in the package. In the event that the package really includes complete wiring for connection, we mark the parameter as "yes". If the wiring is not included, it must be purchased. | No |
| Remote control included in the packageSome models of active subwoofers also have wired remote controls in the package, which on the one hand connect to the active box, and on the other hand you have a potentiometer that you can place anywhere in the cabin. A common place to place the remote control is under the steering wheel. The advantage is the regulation of power, and therefore volume, depending on driving conditions and the mood of the crew in the car. | Yes |
| Protective gridProtective grids or bars, as protection against mechanical damage to the subwoofer. | Yes |
| Active subwoofer dimensions | 50 x 38 x 28/18 cm |
| Mass | 13.42 kg |
