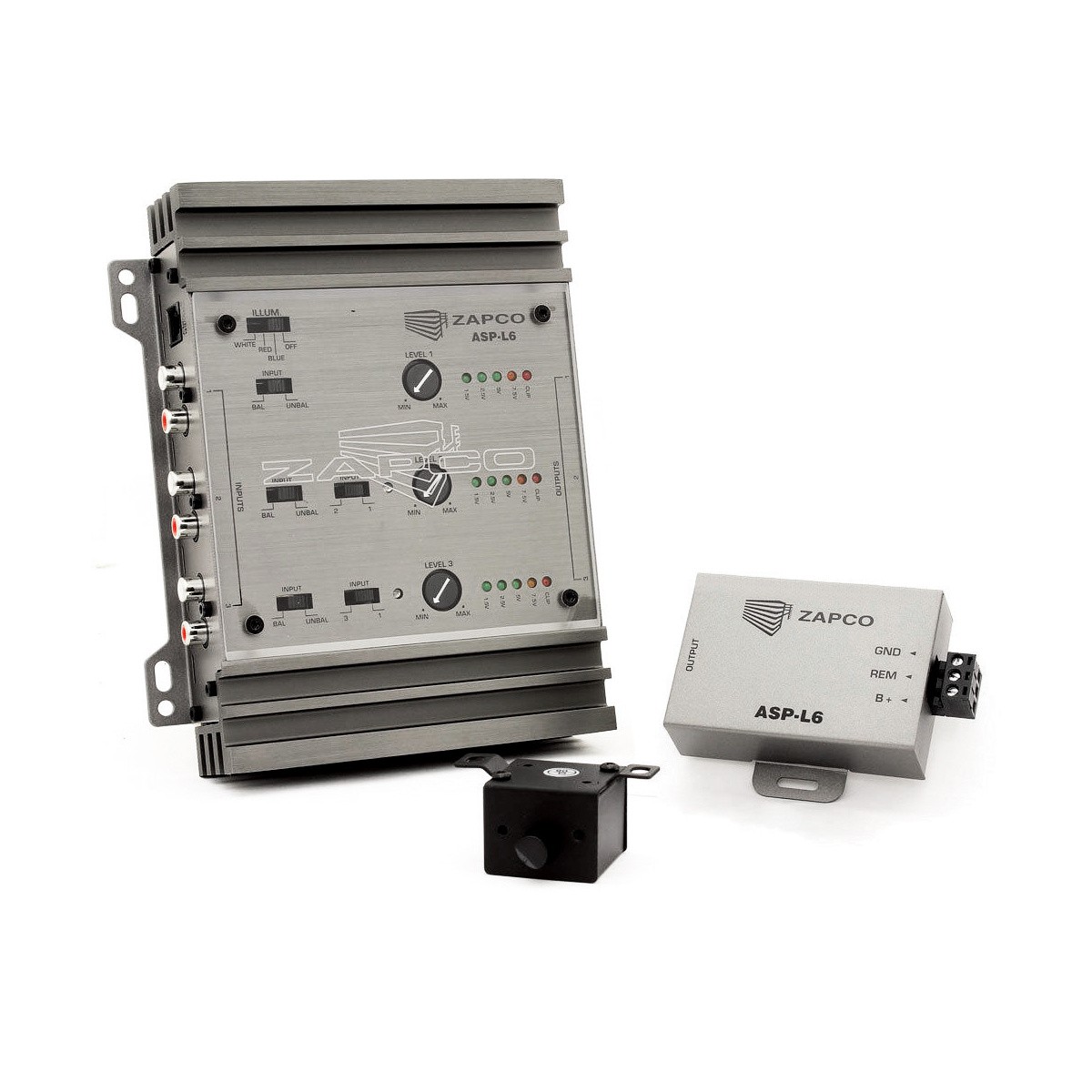

Zapco ASP-L6
If you want the best sound and all the dynamic range your system is capable of, you'll need a signal line driver. In the 90s, every decent deck had a 4 volt preamp output. Some had 8V and some even 12V. But now even the best units are only 4V RMS and most are barely 2V, and that's only 2 volts at 1KHz. What does it mean? First, with less signal passing through the RCA cables, you have to turn up the amp to get volume. Then your system has more background noise and probably more distortion. An even greater tragedy is that you are compressing the dynamic range of the music. You lose the difference between quiet and loud and the music sounds "canned". There is no life in music. What is the answer? Zapco Signal Line Driver Preamplifier. The Zapco ASP-L6 is a six-channel line driver providing a true 9.5V RMS preamplifier output and 14V peak output. With this line control, you can leave the gain of the amplifier at the very minimum and still get maximum power and maximum dynamic range from the amplifier. Since the job of the line drivers is to amplify the preamplifier signal, it is absolutely essential that the line driver does not introduce any inherent noise or distortion into the system. This is why Zapco uses only premium Elna Silmic ll capacitors and audiophile OP275 op amps in the signal path of BT drivers L6 and L2. You also have the option of balanced or unbalanced inputs and selectable signal ground resistance. All for a completely silent signal without distortion. As a distribution preamp, the ASP-L6 allows you to send 6 inputs to 6 outputs, but you can also send one set of RCAs to all outputs. So you can feed three amps from one set of RCA inputs, or you can send one pair of inputs to 2 amps for the mids and treble to send a separate bass signal to the sub amp.
Main features of Zapco ASP-L6
- 6-channel input / 6-channel output line driver at 9.5 V RMS, 14 V.
- Distribution preamplifier configurable for 2, 4 or 6 channel input.

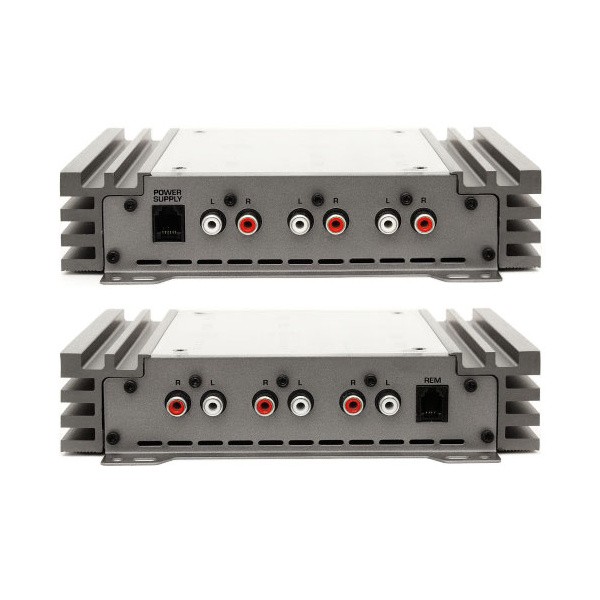

- Balanced / unbalanced inputs.
- Remote control for channels 5 / 6
- Illuminated logo and cover plate
- Harmonic distortion THD: < 0.01%THD
- Signal-to-noise ratio: > 110dB
- Stereo channel separation: 90dB
- Dimensions: 190 x 39 x 135 mm
About the Zapco brand
Zapco is the oldest high-end car audio brand in the world, specializing in high-end car amplifiers and DSP processors. The company was founded in the USA back in 1974 and has been collecting one award after another since then. And this both from prestigious organizations that evaluate the quality of products and innovations, as well as at global competitions focused mainly on sound quality. Zapco amplifiers represent audiophile quality without compromise, defining the standard of quality and setting the criteria by which other products in the industry are judged. At Zapco, for over 45 years, they have been constantly looking for innovative ways to bring better sound to the automotive environment, and this relentless pursuit of absolute sound quality has always resulted in new technologies and high-end products. Are you asking why? Because nothing else can capture the soul and bring tears to the eyes like music. Music can make you dance for joy..... of all the arts, music has the most powerful and immediate effect on your body and mind. Reproducing music in all its beauty and delicacy deserves nothing less than the best efforts of all Zapco employees. And also because music matters!
| Catalog number | ASP-L6 |
| Brand | Zapco |
| Links | Official web presentation (English) |
