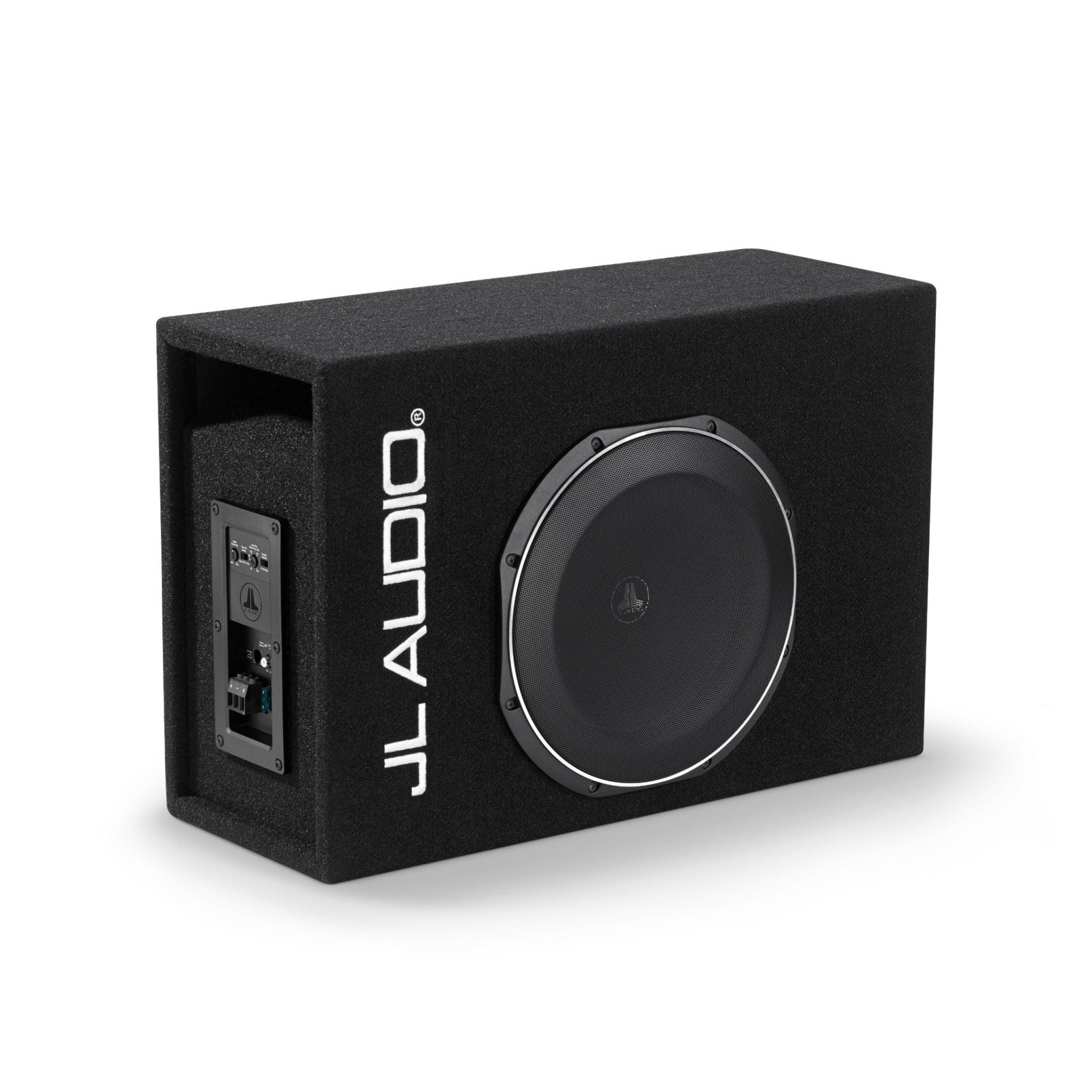

Active subwoofer JL Audio ACP110LG-TW1

active subwoofer, 10", 300 W RMS, bass reflex enclosure
More about the product
We will help you with your purchase
Active subwoofer JL Audio ACP110LG-TW1
Tip

Active subwoofer JL Audio ACP110LG-TW1

Active system with one 10TW1-0.25 subwoofer and built-in 400W RMS class D amplifier in a bass reflex enclosure. In JL Audio MicroSub+™ systems, the power supply is built right into the subwoofer system. Class D self-amplified subwoofer system uses exclusive DCD™ amplifier technology to extract maximum performance from the specially designed ultra-low impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, allowing them to generate remarkable power with unprecedented efficiency. The exceptional features of the enclosure are ensured by its efficient slot design and precise tuning of the 10TW1 subwoofer. Extensive internal bracing allows the use of thinner wall material that maximizes the enclosure's internal volume relative to its external volume. The port wraps around two walls of the cabinet to create the necessary low tuning frequency that provides excellent extension and smoothness of response. Expanded port input and output further enhances sound quality by minimizing port airflow noise. Integration with OEM and aftermarket head units is a breeze thanks to a variety of input options and auto-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low pass (50-200 Hz) along with a switch to control the output polarity. Adding the optional RBC-1 Remote Level Control (sold separately) lets you control subwoofer levels right from the driver's seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need more space.

  • Covered with high quality automotive carpet in black.
  • Silver JL Audio embroidery on the front.
  • The package includes a steel grid that protects the subwoofer.
  • Loudspeaker made of CNC cut high quality MDF.
  • Built-in DCD™ Class D amplifier (400 W RMS @ 0.25 Ω).
  • Nominal impedance: 0.25 Ω.
  • Speaker and subwoofer built in the USA with global components.
Catalog numberACP110LG-TW1
BrandJL Audio
LinksOfficial web presentation (English)
RMS power of the subwooferThe RMS power of an active subwoofer is the constant power that the active subwoofer can play over a long period of time. We recommend following this value. The RMS power of active subwoofers is taken as the RMS power of the integrated amplifier, which in most cases is slightly undersized, which guarantees protection against subwoofer burning. 300 W
RMS power of the amplifier400 W
Energy class of the amplifierAmplifiers are divided into two basic classes: analog and digital . Analog amplifiers (A/B) have higher consumption requirements, but usually have a more natural sound. Digital amplifiers (D) have significantly lower consumption and higher efficiency, but the sound may not be as faithful as with classic analog amplifiers. D
The diameter of the subwoofer usedThe diameter of the subwoofer that is installed in the active box. 250 mm
Low-pass filter (LPF)50 - 200 Hz
High level inputThe high-level input on the active subwoofer enables connection directly to the speakers in the car without purchasing an external high/low converter. Use in the case of mounting an active subwoofer on the original car radio. Yes
Automatic on and offThis function will facilitate your installation and solve the problem of finding a remote signal, which is sometimes a problem with original car radios. The active subwoofer with the Auto sense function can recognize that the equipment in the car is active and turn itself on. A useful and practical feature. Yes
Remote control included in the packageSome models of active subwoofers also have wired remote controls in the package, which on the one hand connect to the active box, and on the other hand you have a potentiometer that you can place anywhere in the cabin. A common place to place the remote control is under the steering wheel. The advantage is the regulation of power, and therefore volume, depending on driving conditions and the mood of the crew in the car. No
Option to purchase a remote controlIf the active subwoofer has a remote control input. Yes
Protective gridProtective grids or bars, as protection against mechanical damage to the subwoofer. Yes
Loudspeaker typeBass reflex
What is the baffle made of?Active subwoofers can be made of MDF board, hardened plastic, sheet metal, aluminum or a combination of different materials. MDF
Active subwoofer dimensions533 x 343 x 168 mm
Mass11.34 Kg
