Amplifier with DSP processor Awave DSP-12DMAX

12-channel amplifier with DSP processor, 12 x 80 W RMS (4 Ω), class D
More about the product
We will help you with your purchase
Amplifier with DSP processor Awave DSP-12DMAX

Amplifier with DSP processor Awave DSP-12DMAX

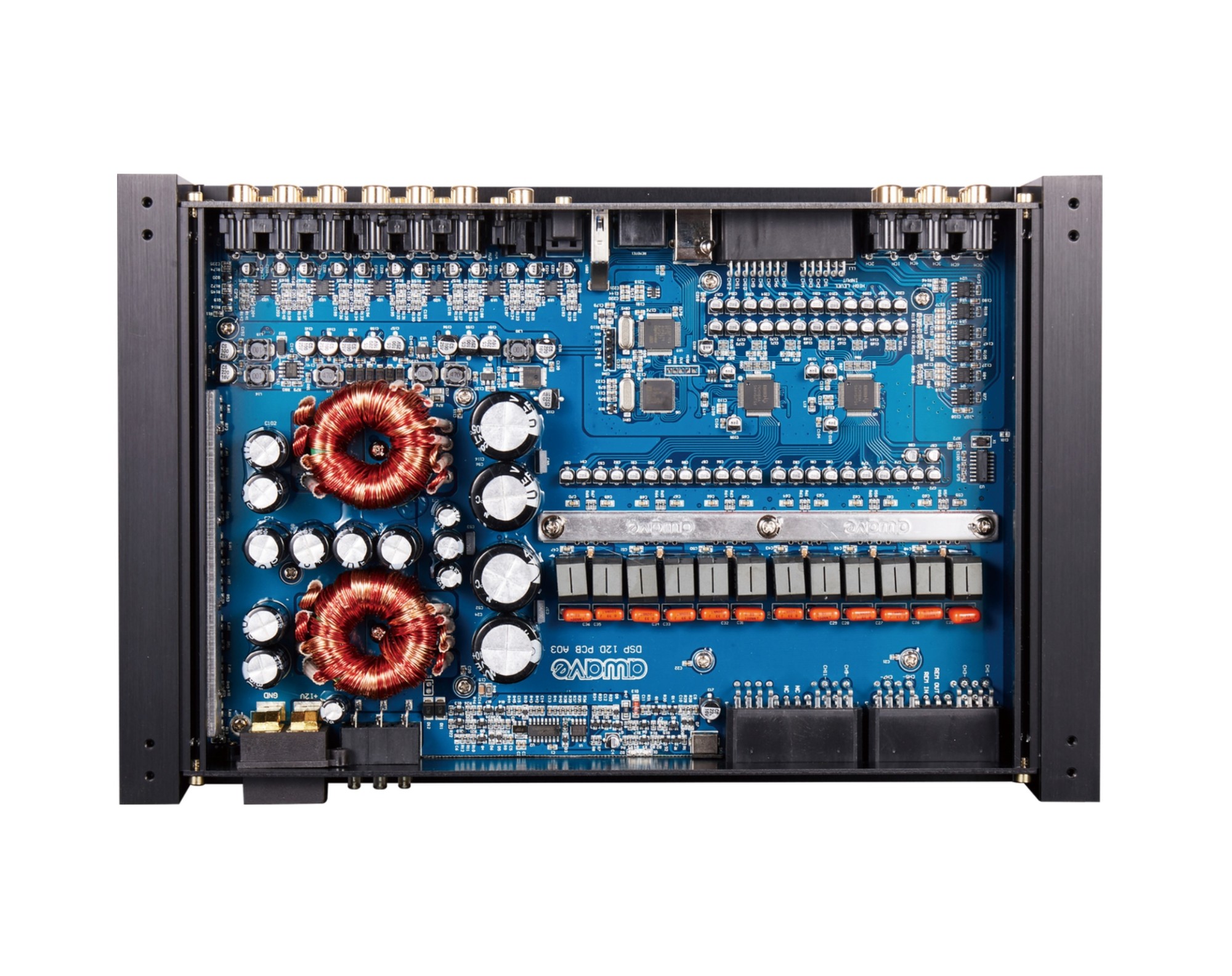

The Awave DSP-12DMAX is a 12-channel amplifier with an integrated DSP processor that combines quality sound, sophisticated DSP processor software and easy integration into factory systems. The amplifier offers a high power of 12 x 80 W RMS and rich connectivity, which makes the amplifier suitable even for complex factory add-on systems. This includes 12 high-level inputs for convenient connection to original car radios, 6 RCA inputs or optical and coaxial input. The DSP processor has a high-quality ADAU chip, AKM signal converters and a sampling frequency of 192 kHz. Gain, time correction, bandpasses, filters, 31-band parametric equalizer and other important functions can be intuitively set in the DSP processor program. It is also possible to purchase a remote control for the amplifier to adjust the overall volume, subwoofer volume and preset selection. The amplifier is compatible with Hi-res files thanks to the extended frequency response. The modern digital platform ensures a high efficiency of 84%, sufficient performance for intermediate speakers and very compact dimensions.

Main features of the Awave DSP-12DMAX amplifier

  • 12-channel amplifier with integrated DSP processor.
  • Class D amplifier with 12 x 80 W RMS (4 Ω) and 84% efficiency.
  • DSP Processor with advanced chip ADAU1462.
  • AKM AK5538 and AK4458VN A/D and D/A signal converters.
  • High sampling rate of 192 kHz, core operating speed of 32 bits.

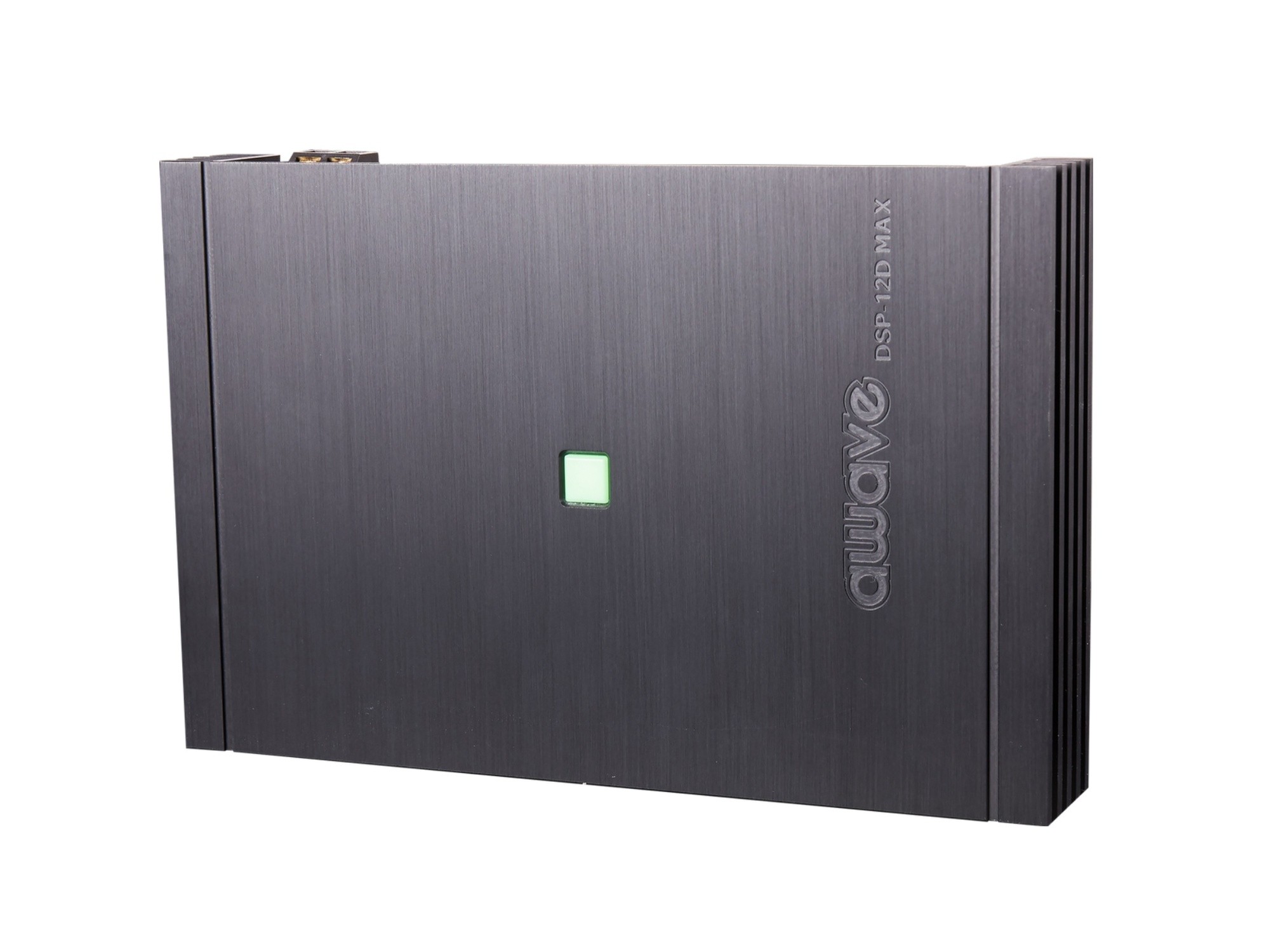

  • Brushed aluminum chassis with compact dimensions.

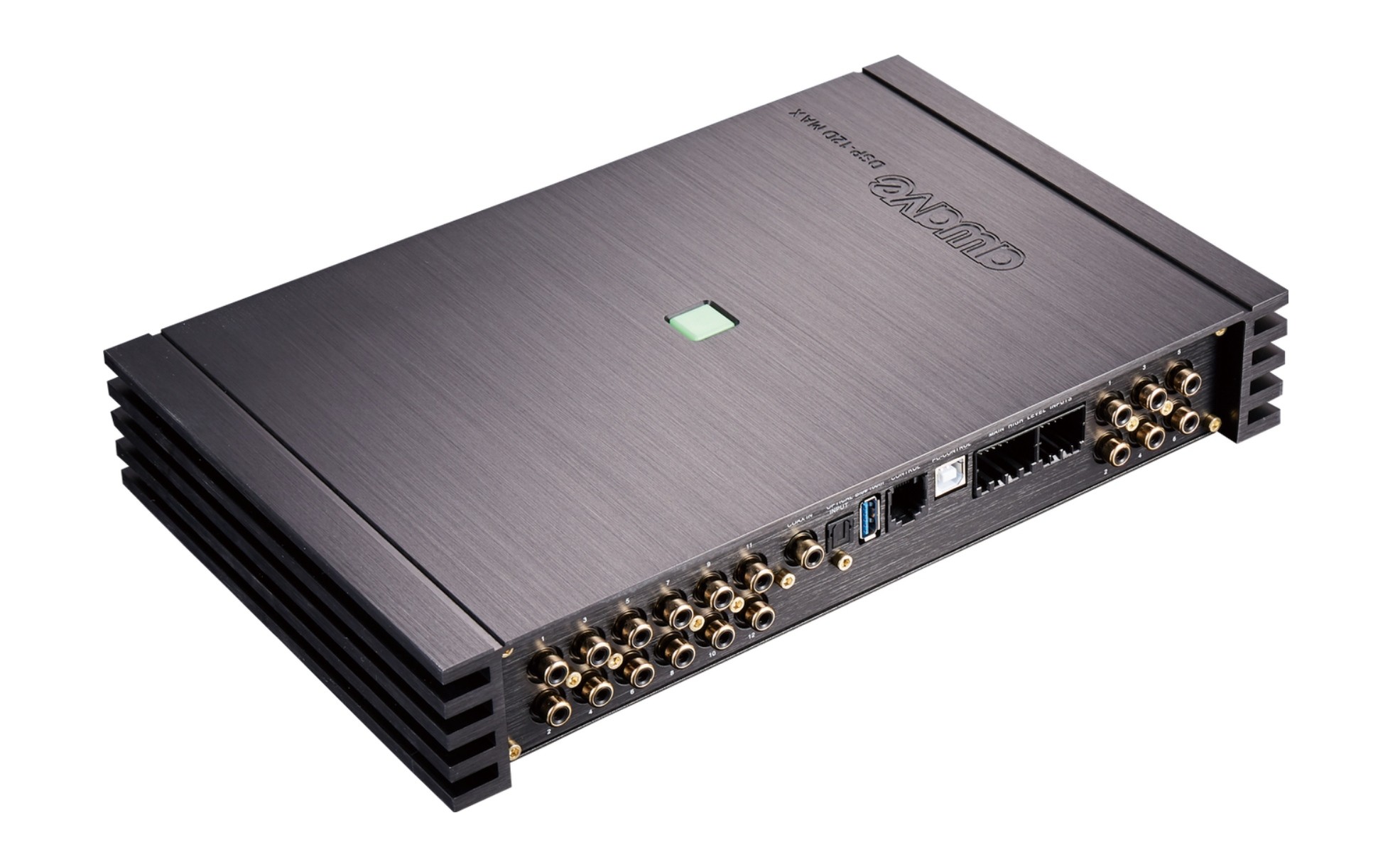

  • Inputs: 6 x low level (RCA), 12 x high level, optical and coaxial input.
  • Outputs: 12 x low level (RCA), 12 x speaker.
  • 31-band parametric equalizer.
  • Setting gain, filters, bandpasses, time corrections or detailed equalizer.
  • Optional Bluetooth module for wireless music streaming.
  • Option to connect an optional remote control.
Catalog numberDSP-12DMAX
BrandAwave
LinksOfficial web presentation
