JL Audio MAX-KIT sound measurement system
Tip

JL Audio MAX-KIT sound measurement system

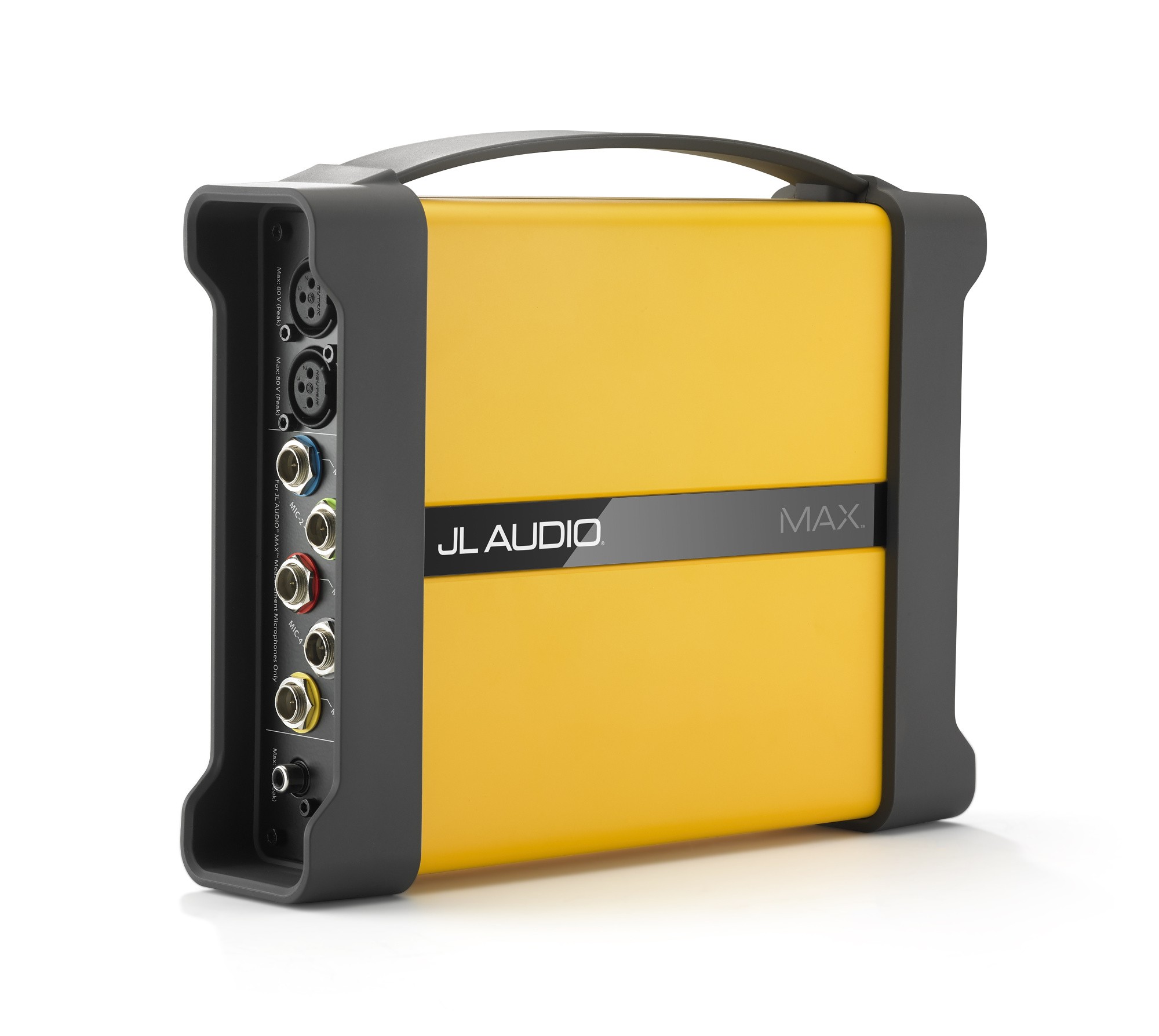

The JL Audio MAX™ is a professional dual FFT measurement system with five microphones. It is ideal for general audio system measurements, DSP system tuning, device troubleshooting and testing, and OEM integration troubleshooting. MAX™ has countless applications for home, automotive, marine and professional sound systems. With full integration of VXi and MVi DSP controls, MAX™ simplifies your measurement setup, allowing you to perform measurements and DSP adjustments using one computer and one TüN® 4.0 software application, featuring micro-automators that speed up EQ and channel delay settings.

Main features of JL Audio MAX™

  • Test, troubleshoot and analyze any audio system with full details on the three dimensions of sound: level, frequency and time... all in real time!

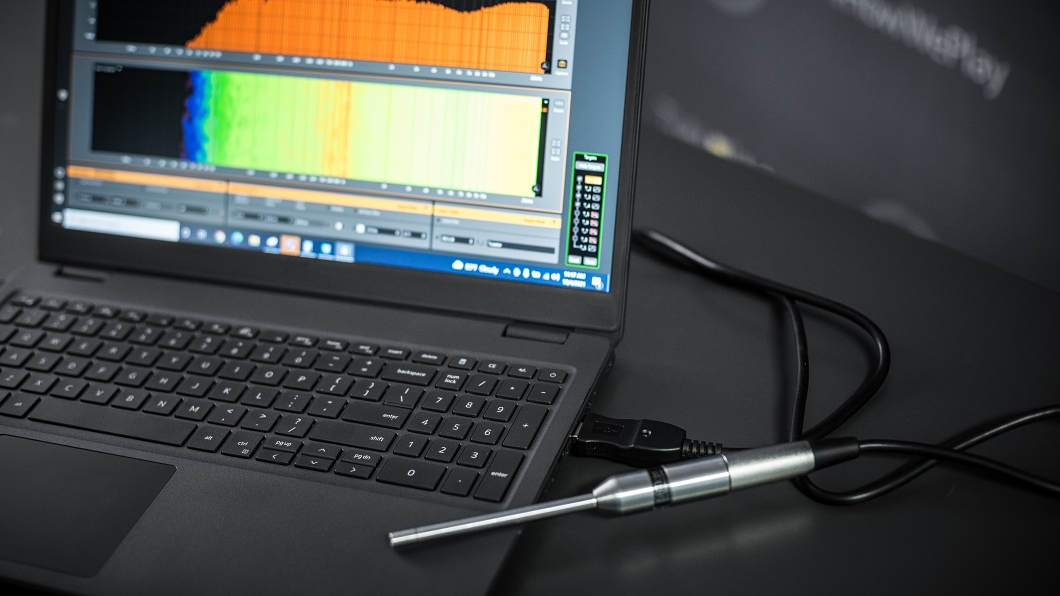

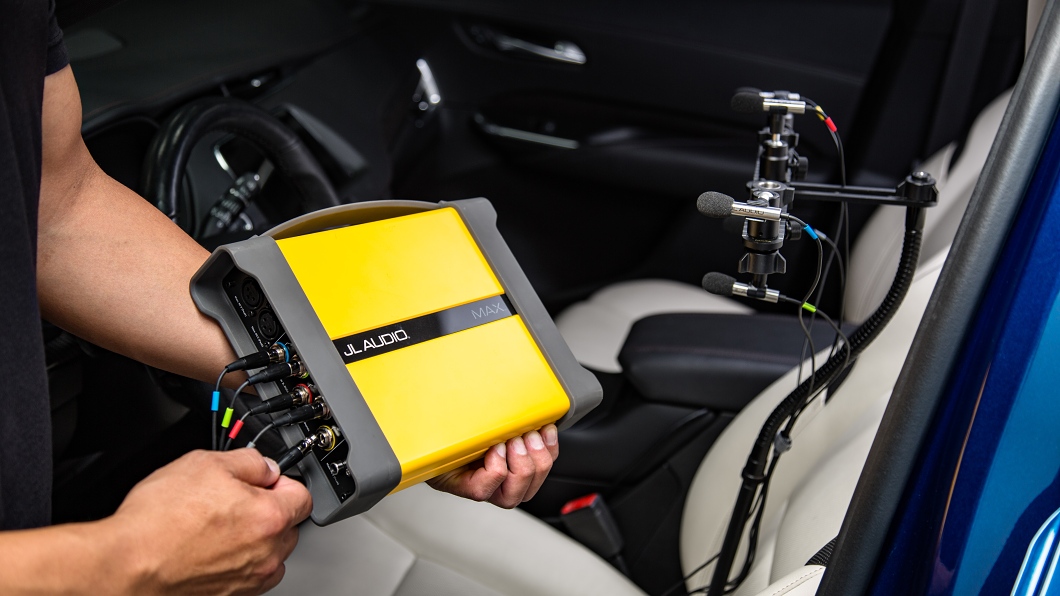

  • Simplify the tuning of in-car DSP products in a real environment. Simply connect the hardware, position the microphone array, launch the TüN® software and tune.
  • Quickly test the home audio and home theater subwoofer placement space modes and fine-tune the crossover and phase controls for a seamless transition to the subwoofer.
  • Evaluate individual or multiple sound zones in a marine installation for frequency response and level.
  • Get the most accurate measurements possible with 5-microphone averaging! MAX™ multiplexes up to five included microphones to perform individual FFT measurements of level and frequency response (RTA and spectrograph).
  • Perform dual FFT measurements of up to five simultaneous transfer functions with accurate display of magnitude (frequency response), phase, impulse response (delay) and coherence (noise immunity).
  • Each transfer function captures all audio data for real-time or benchmark analysis.
  • Built-in test signal generator (pink and white noise, sine waves, square waves, etc.) and the ability to play WAV files.

Powerful automation with JL Audio VXi and MVi amplifiers:

  • The Automatic True Delay function sets the delay of VXi/MVi channels in a flash, much more accurately than any other method.
  • The Autoset EQ function sets the VXi/MVi parametric EQ to your selected target in seconds. You can also overlay the VXi/MVi EQ controls over the frequency response display to make precise, manual EQ adjustments with real-time visual feedback.

MAX is incredibly flexible and accurate!

  • The MAX™ measurement accuracy is comparable to professional testing equipment that sells for tens of thousands of dollars.

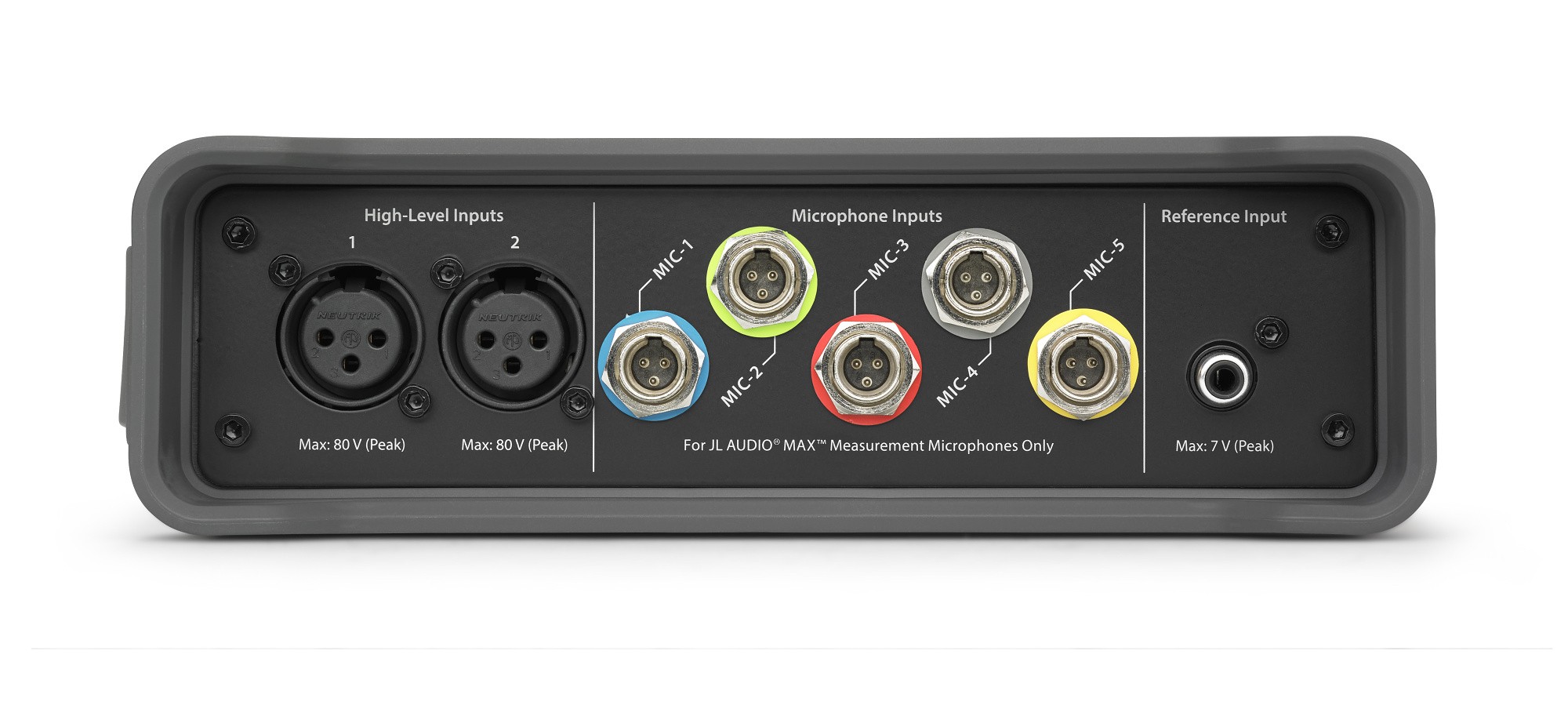

  • Wide range of inputs (up to five microphones, high-level analog signals up to 80V, low-level analog signals up to 7V, S/PDIF optical digital signals).

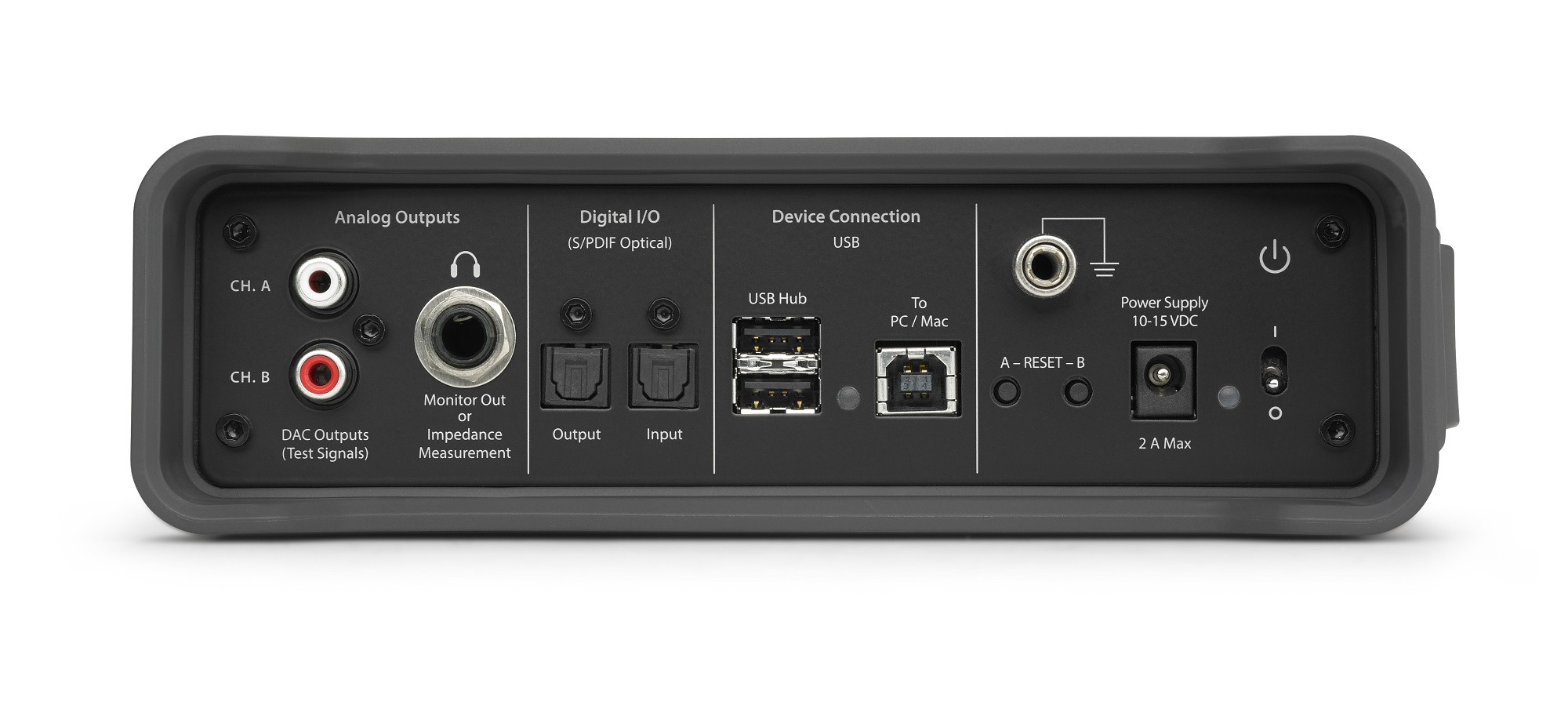

  • Multiple signal outputs (built-in DAC feeding analog line and headphone outputs, plus optical digital output)
  • The built-in USB Hub simplifies connection to a computer and DSP amplifiers or other USB devices (not intended for charging devices).

What is included in the JL Audio MAX-KIT package?

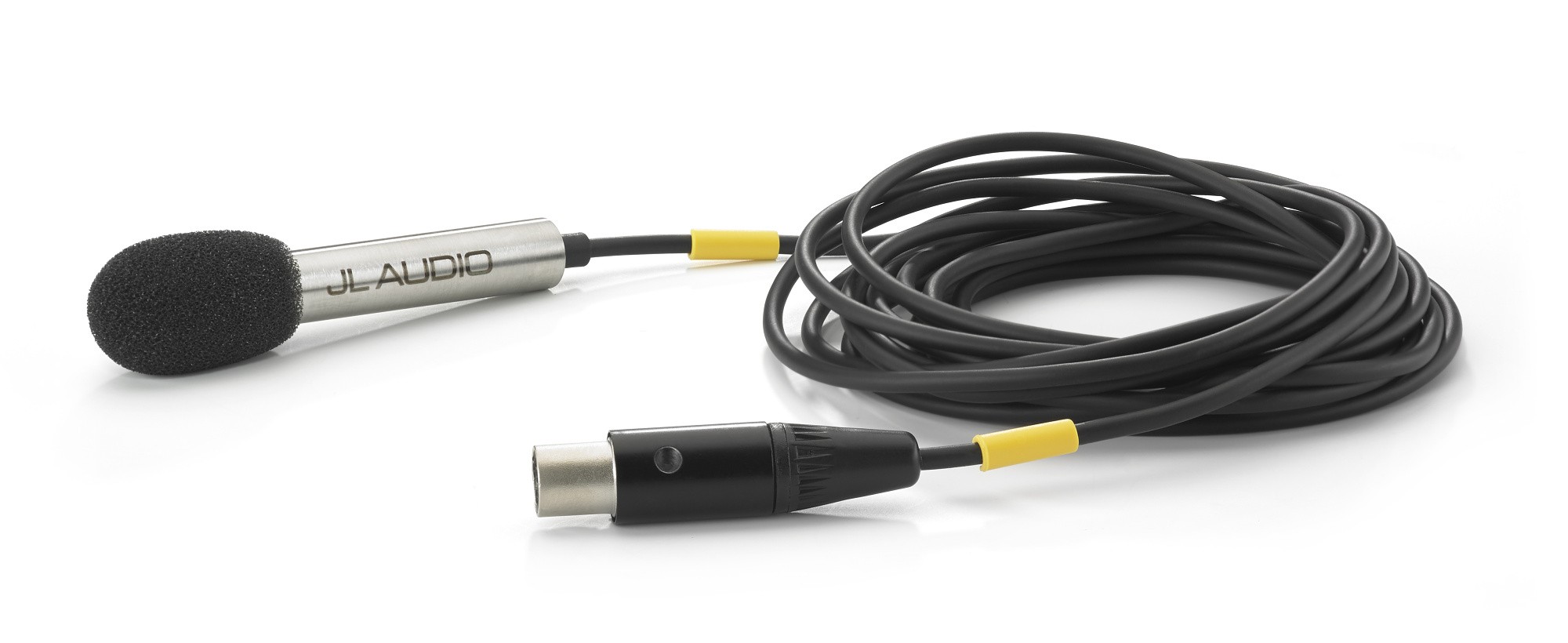

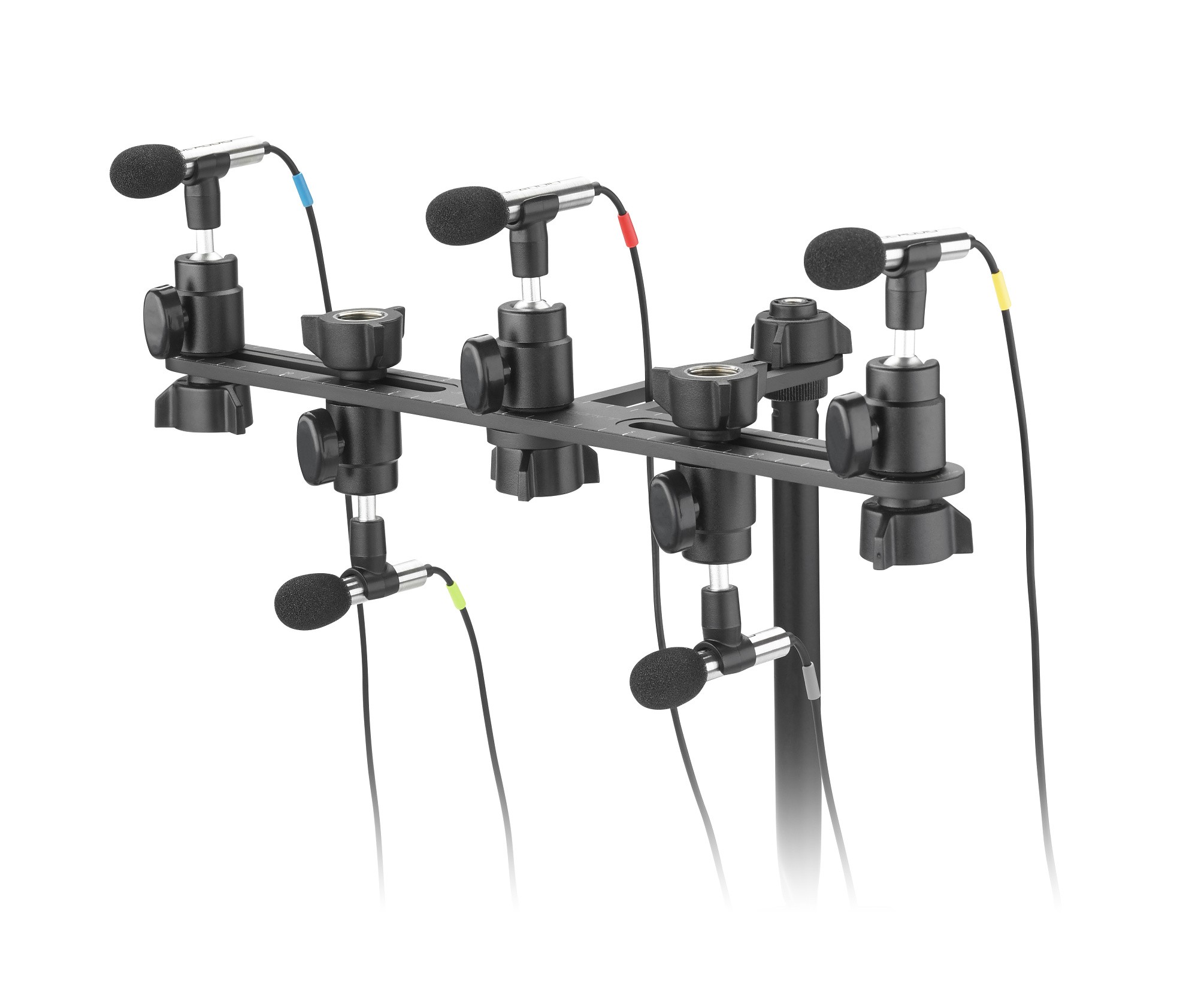

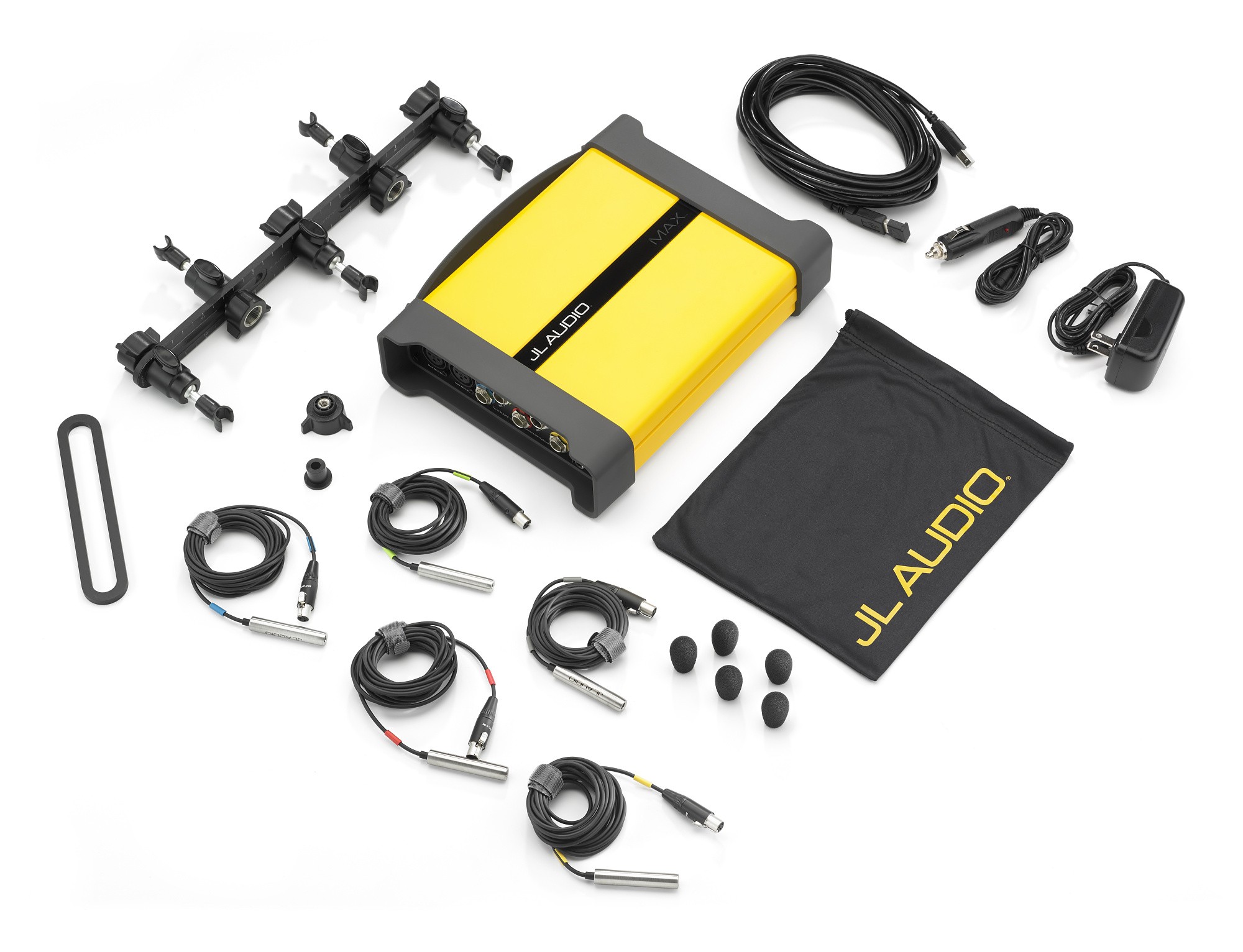

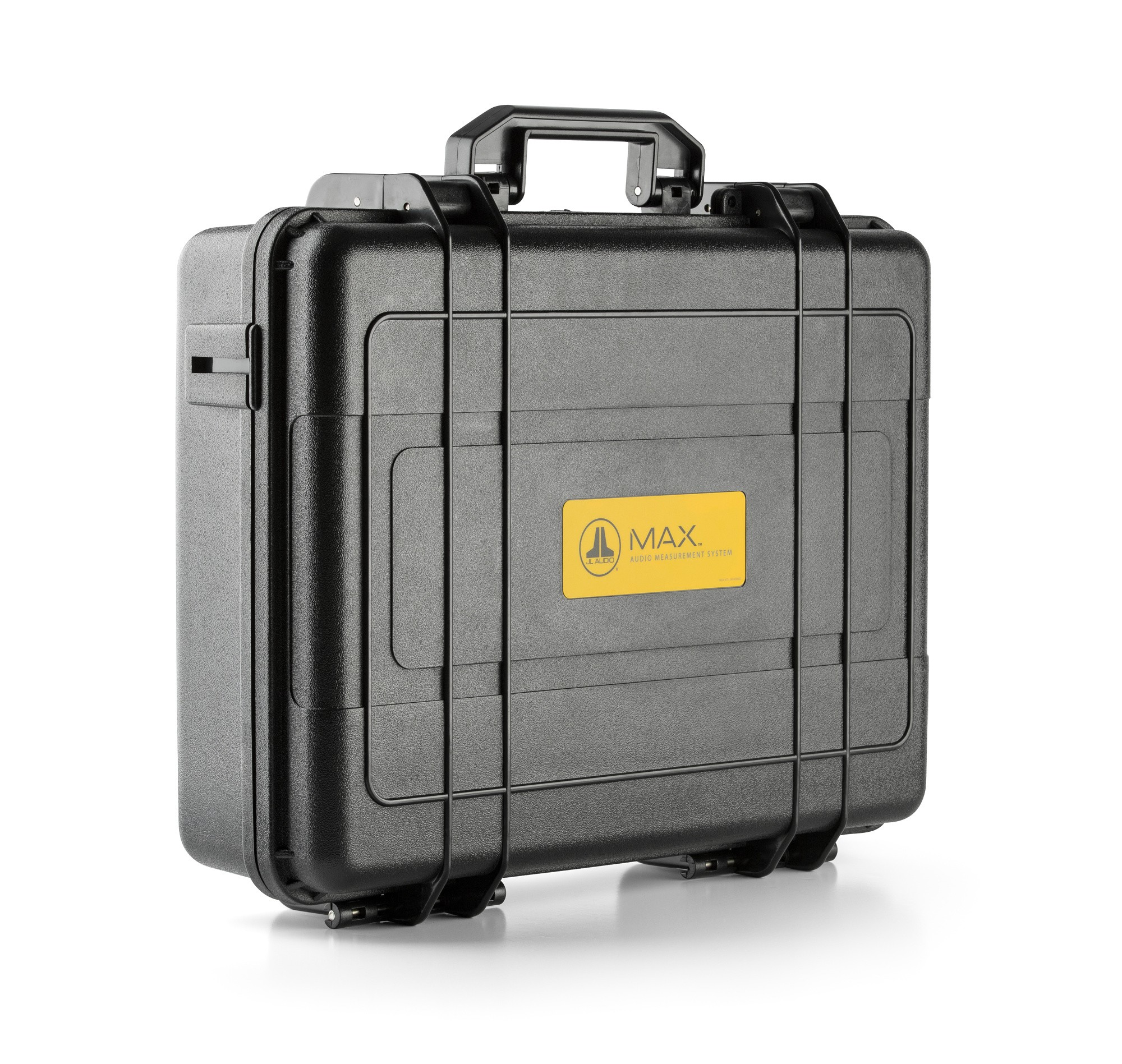

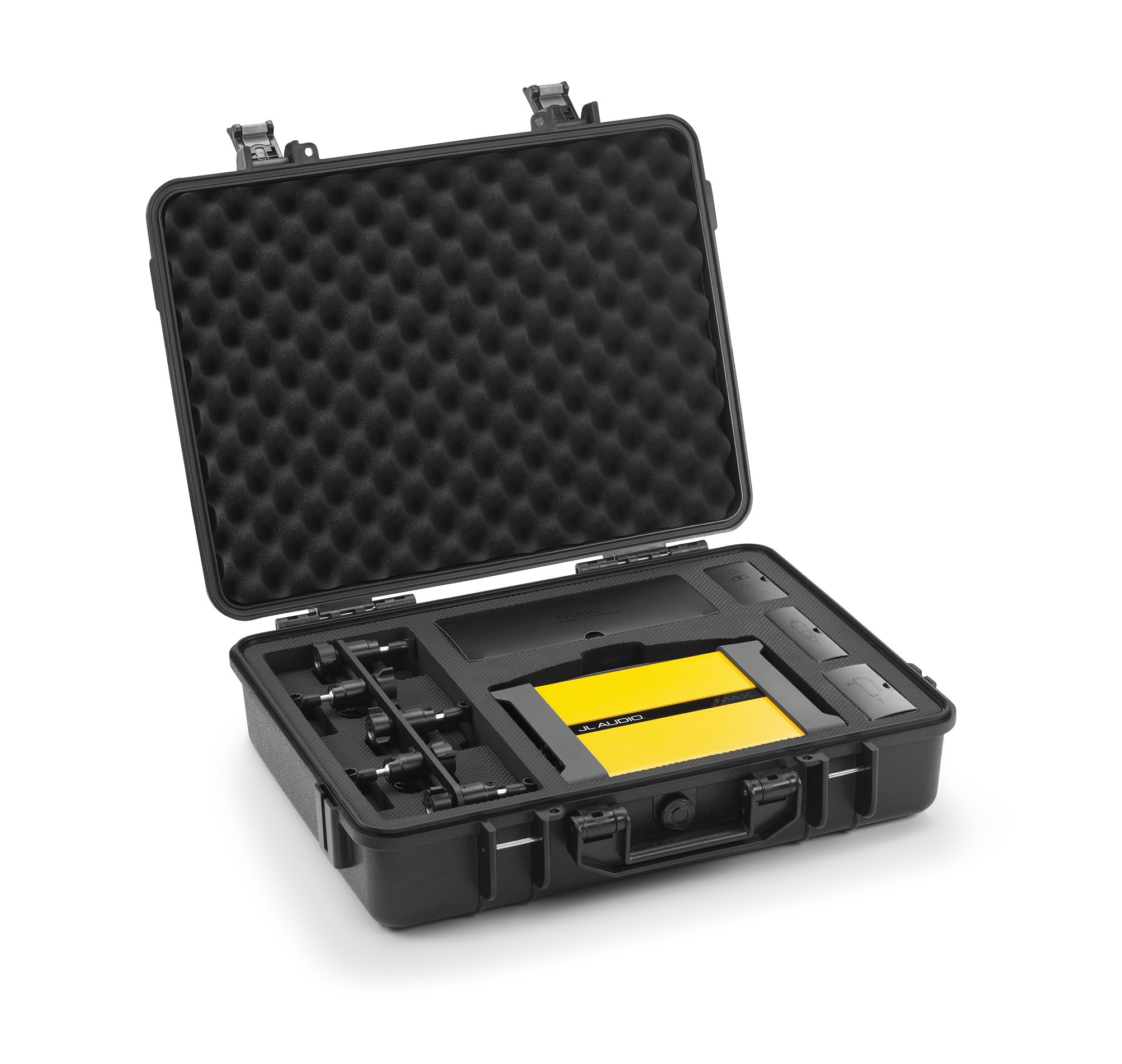

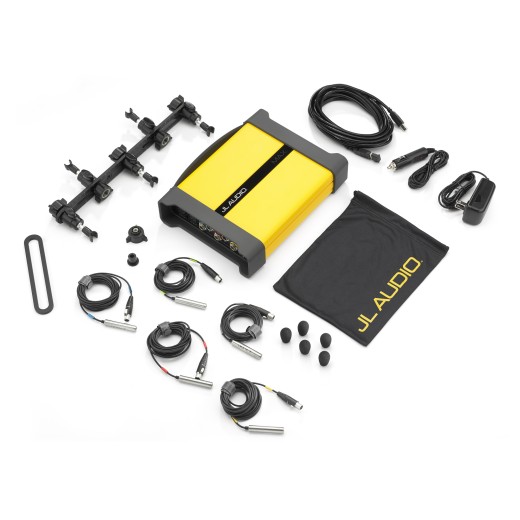

  • The MAX-KIT includes the MAX™ hardware interface, five measurement microphones, a multi-microphone jig, mounting accessories, cables and power supplies, all packaged in a lockable waterproof hard case.
  • An optional dedicated speaker impedance and high voltage probe kit is available separately: "MAX-PROBE KIT" (90922)

About the JL Audio brand

JL Audio is an American manufacturer of consumer audio equipment that specializes in home, vehicle and boat sound systems. It is one of the main pioneers of vehicle sound systems and is undoubtedly best known for its high-end subwoofers. The company was founded in 1975 and is therefore one of the oldest manufacturers in this field. The original focus was on home sound systems, but already at the turn of the seventies and eighties, they also started to deal with the car audio segment, the popularity of which grew rapidly at the time. During their rich history, JL Audio produced a lot of completely unique and patented subwoofers that had almost no competition at the time. And it is similar even now. Subwoofers from this manufacturer amaze with their performance and at the same time absolutely top sound quality, unique patents and excellent workmanship. In particular, the top W6 and W7 series have long been among the most interesting products on the market today. However, the revolutionary flat subwoofers of the TW1 and TW3 series, as well as the perfectly tuned subwoofer enclosures, will also impress. You can expect the same quality from the amplifiers, and it's also worth noting the high-end products designed for integration into factory audio systems. In short, you can't go wrong with JL Audio products and you can always rely on their high quality and uniqueness.

Catalog numberMAX-KIT
BrandJL Audio
LinksOfficial web presentation
