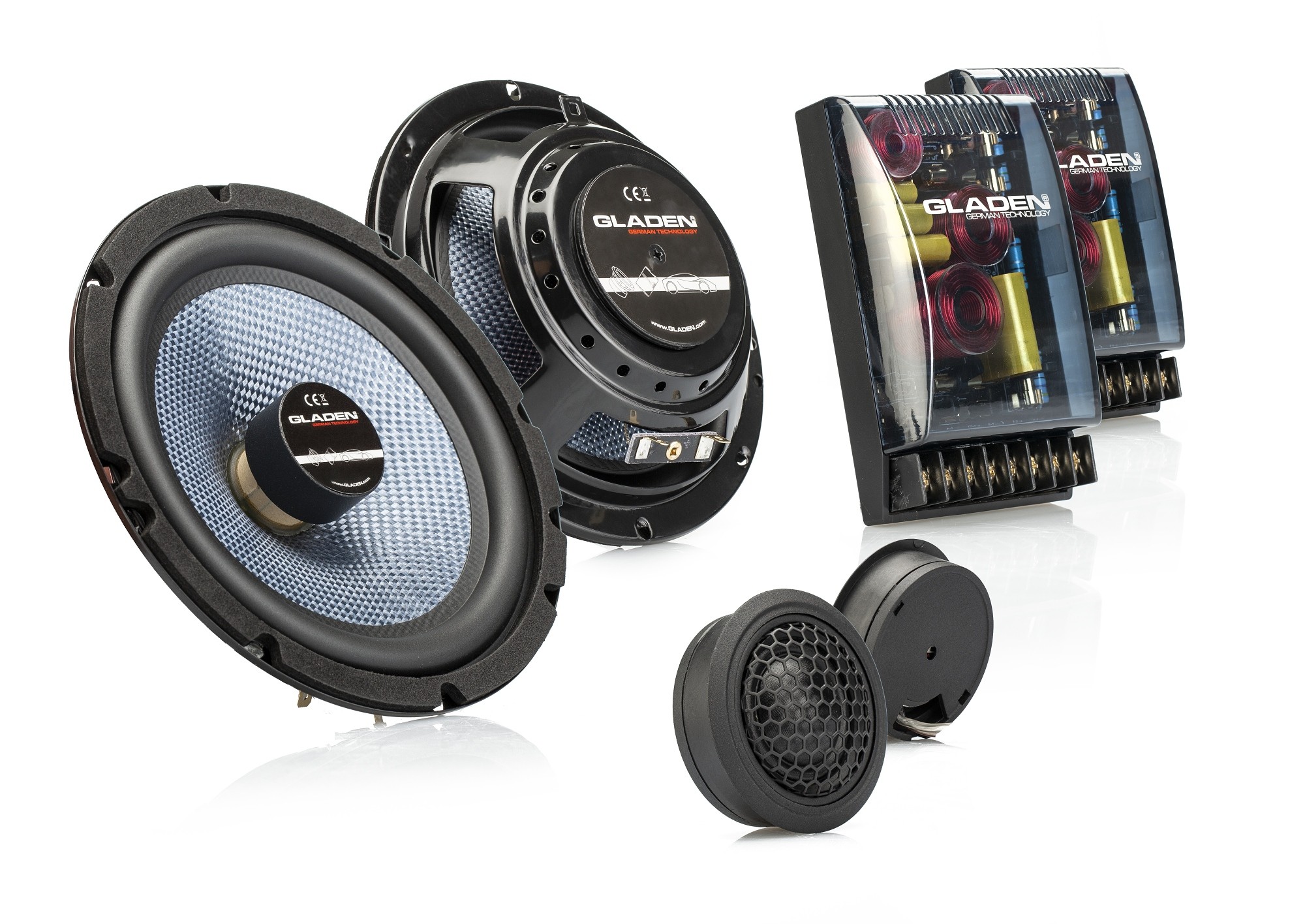

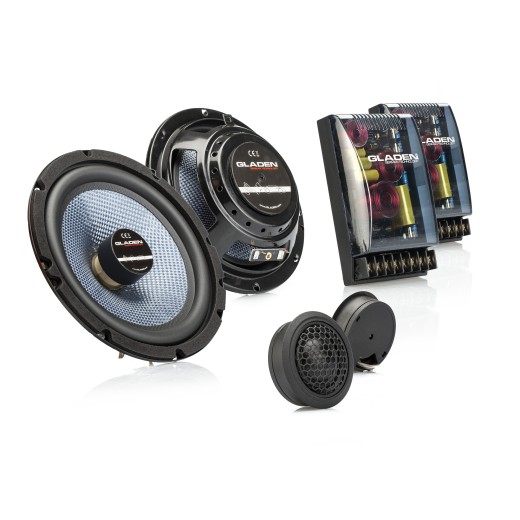

Gladen SQX 165 Slim speakers

The SQX model series from Gladen has always represented a reasonable ratio between performance and high sound quality, which is also confirmed by its inclusion between the RS and Zero series. It can be said that SQX products borrowed the main parameters from each series. However, since the speakers of the SQX series were already very close to the higher Zero series in terms of sound, they decided to keep only slim components in Gladen, which stand out for their very low mounting depth. The other speakers were left without a replacement, or rather, customers should find them in the Zero model line. In addition to the installation depth, the speakers impress with their installation depth with high performance and quality sound, which is contributed by the fiberglass membrane, silk tweeters and frequency crossovers with 504 combinations of sound settings and gold-plated terminals.

Main features of Gladen SQX 165 Slim speakers

2-way component speakers of the SQX series.
Installation depth of only 43 mm.

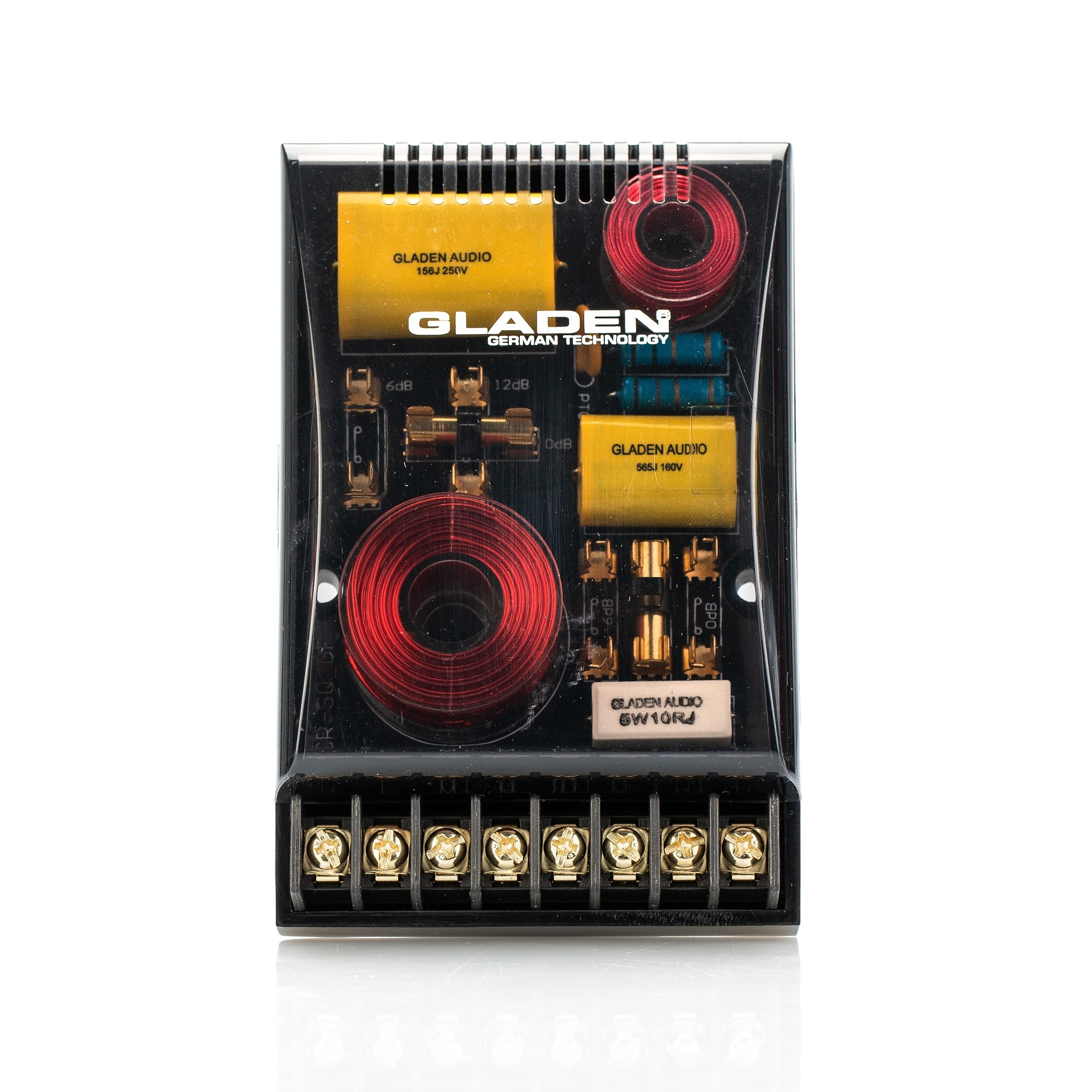

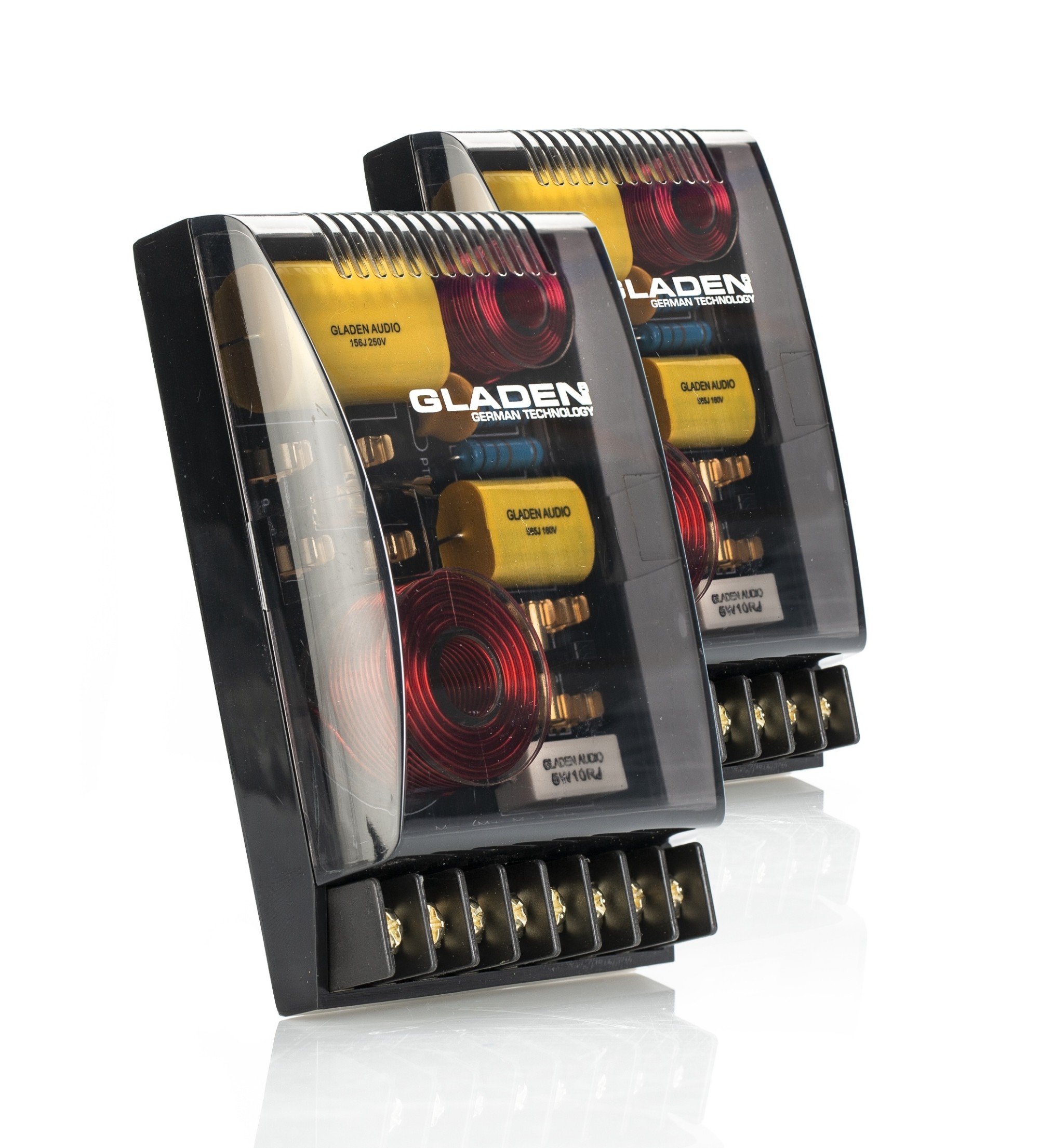

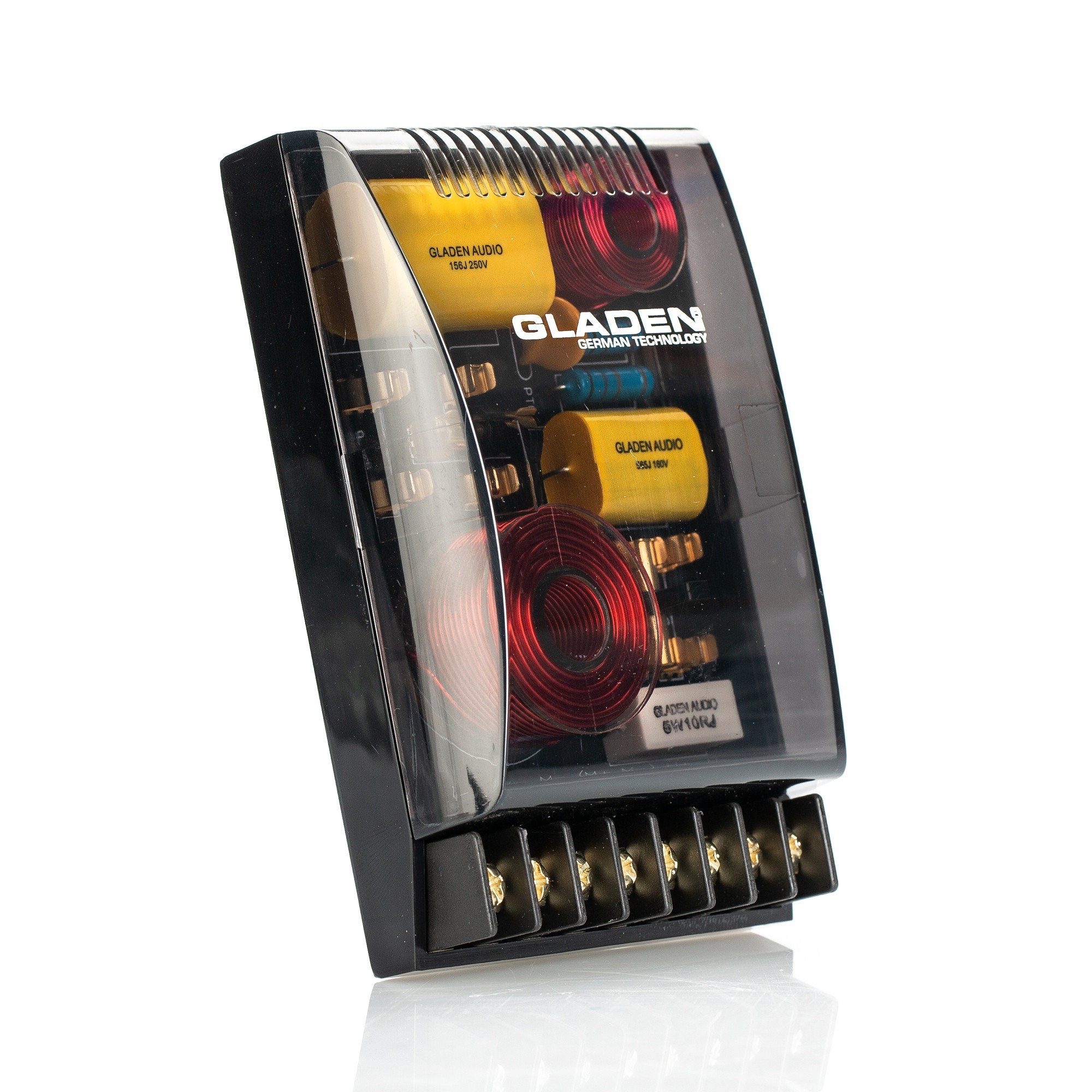

Frequency crossovers with 504 combinations of sound settings and gold-plated terminals.
High sensitivity and reduced impedance of 3 ohms.

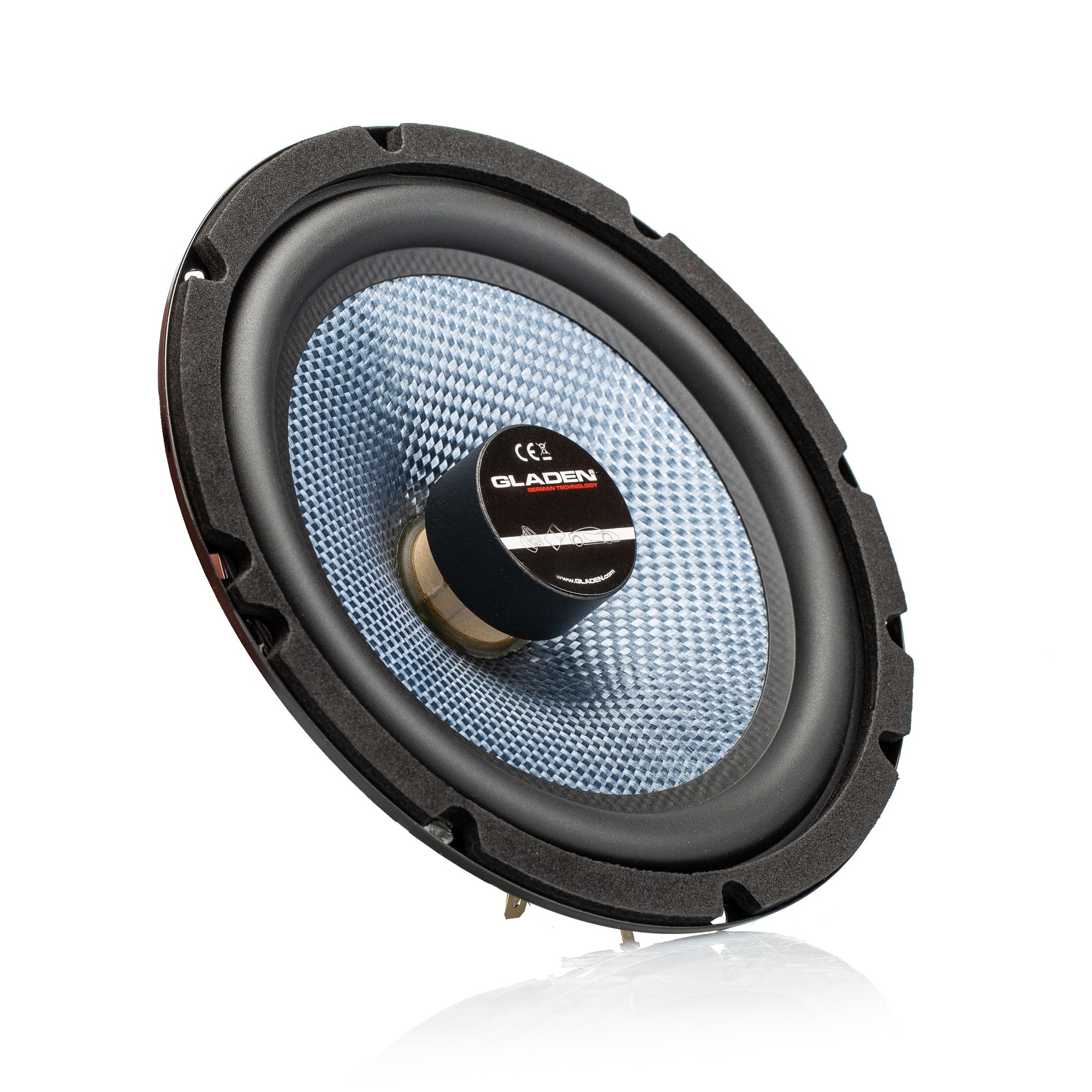

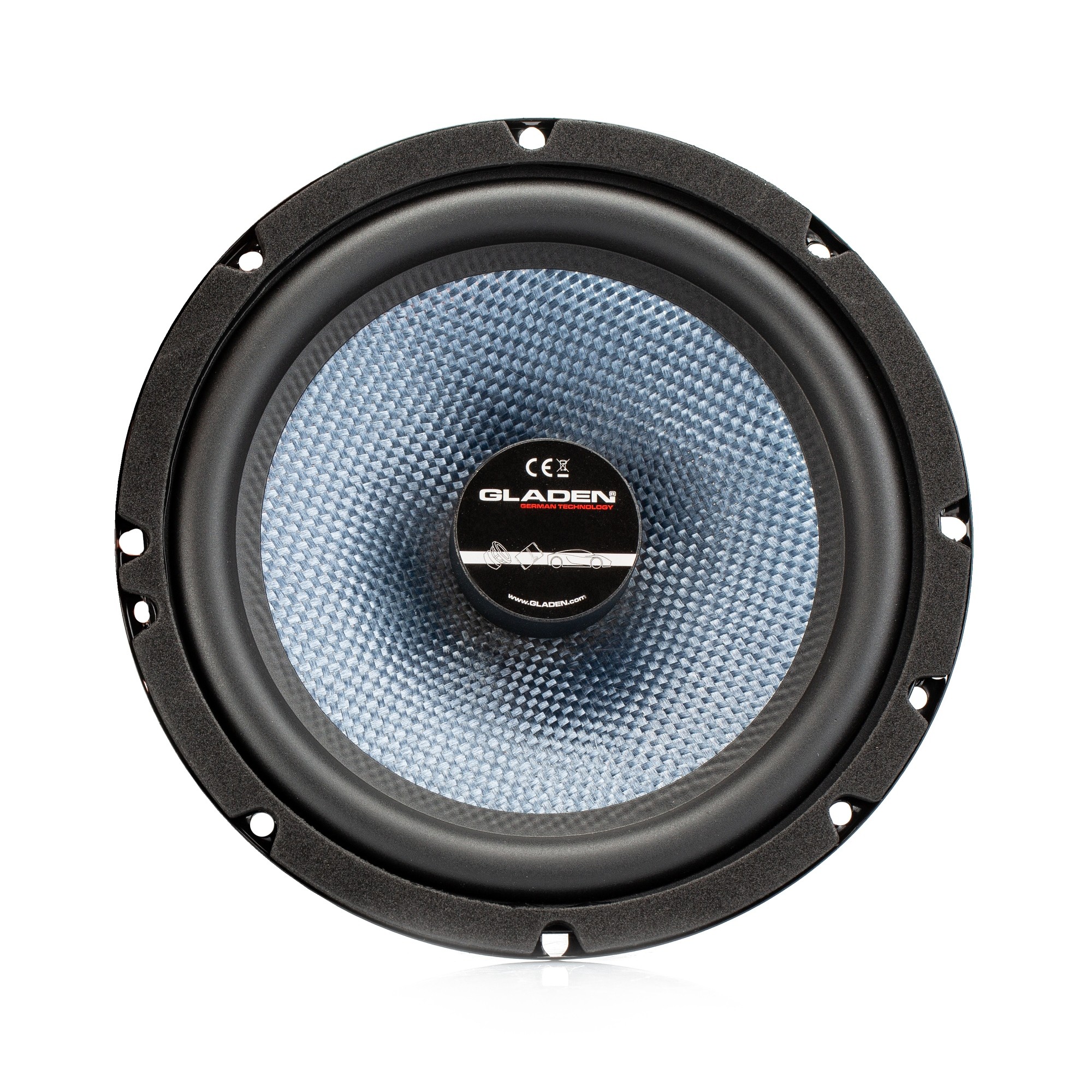

Light blue fiberglass membrane.

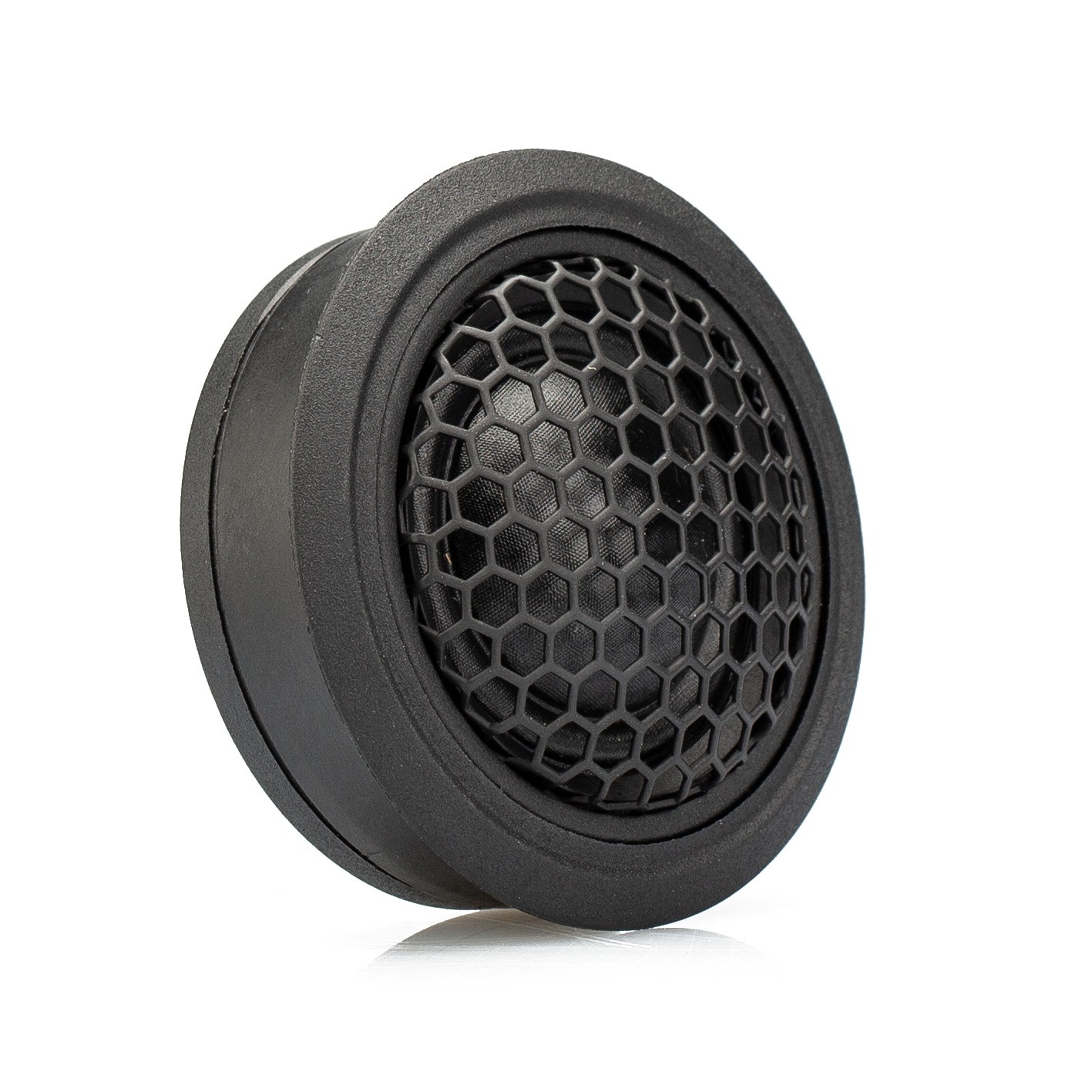

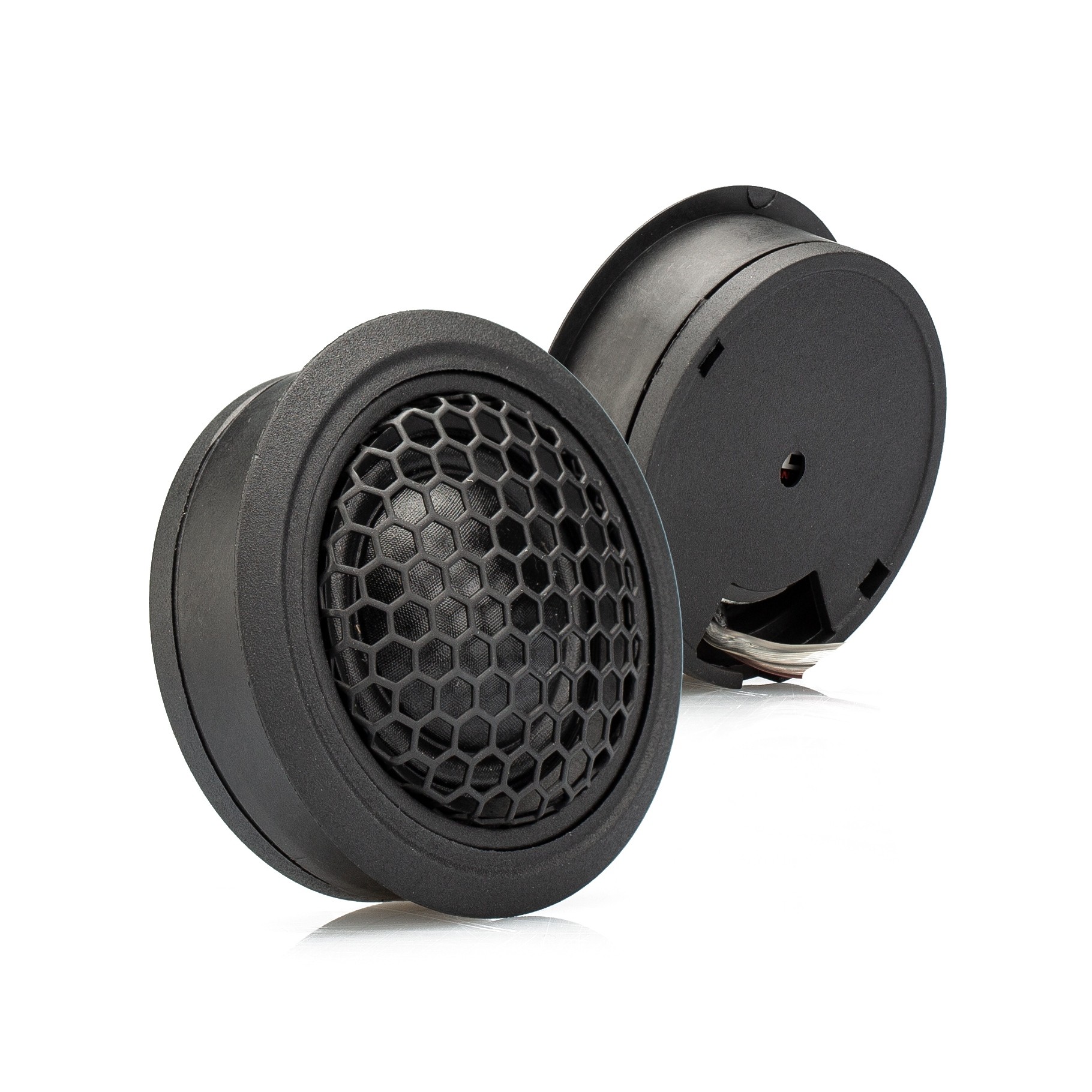

Tweeter with a diameter of 25 mm with a silk dome.

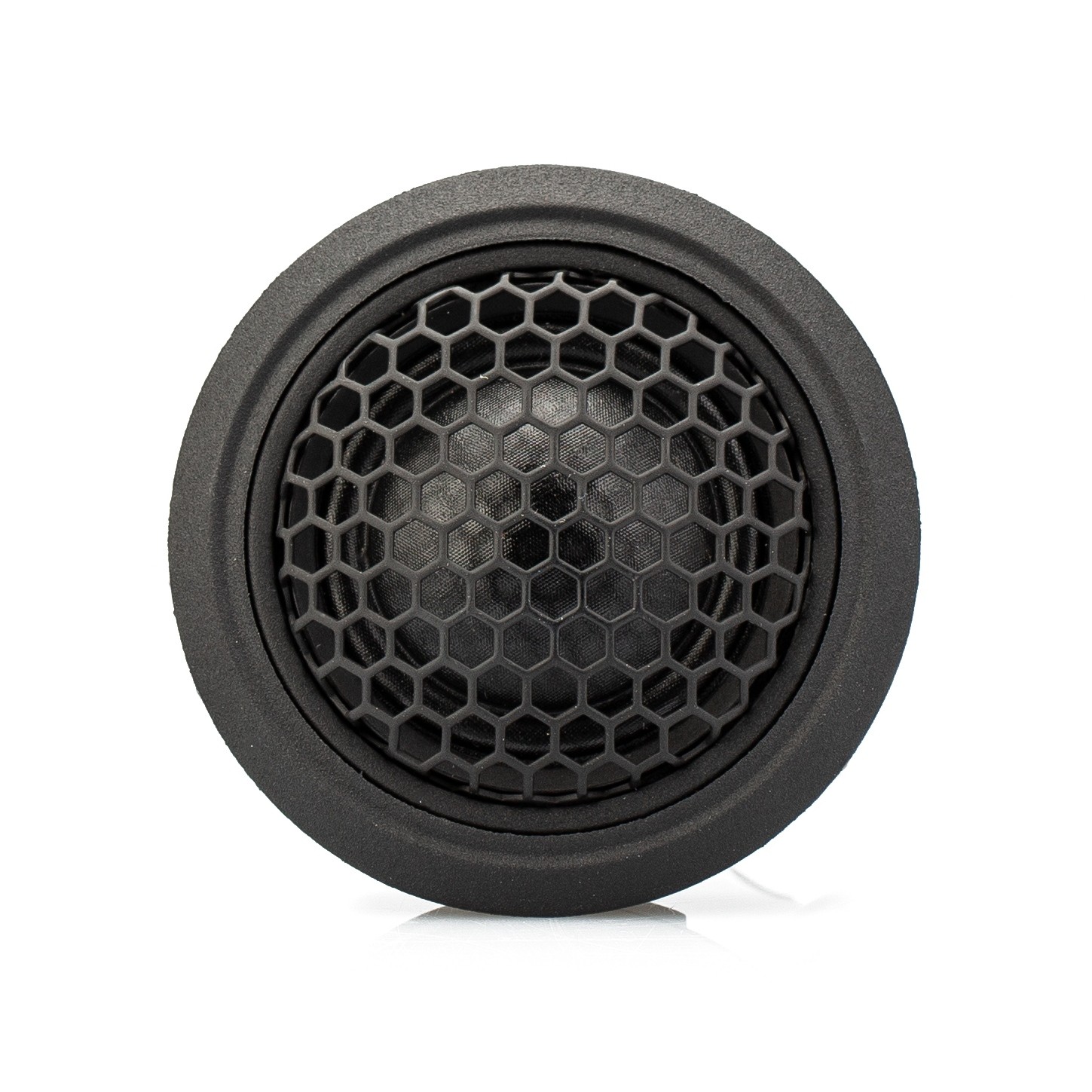

Design Hexagon tweeter grid for versatile installation.
Possibility to remove the tweeter from the plastic case.
Corduroy made of meta-aramid fiber with strong resistance (Nomex).

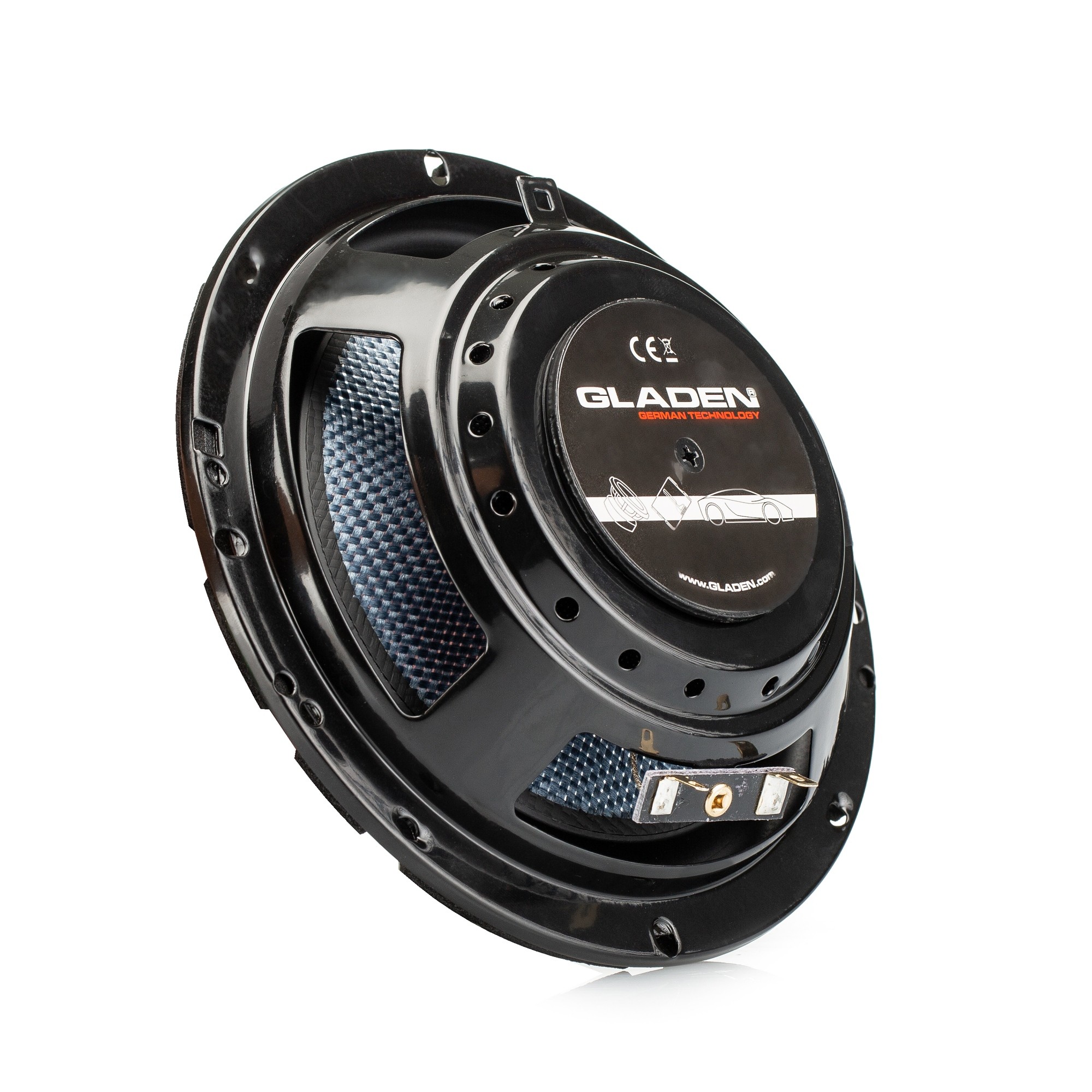

Solid steel basket with waterproof treatment.
Rubber hinge for long-term durability.

Catalog number	SQX 165 SLIM
Brand	Happy
Links	Official web presentation
Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.	Component 2-band
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged!	90 W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged!	135 W
Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.	90.2 dB
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.	4 Ω
The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm.	165 mm

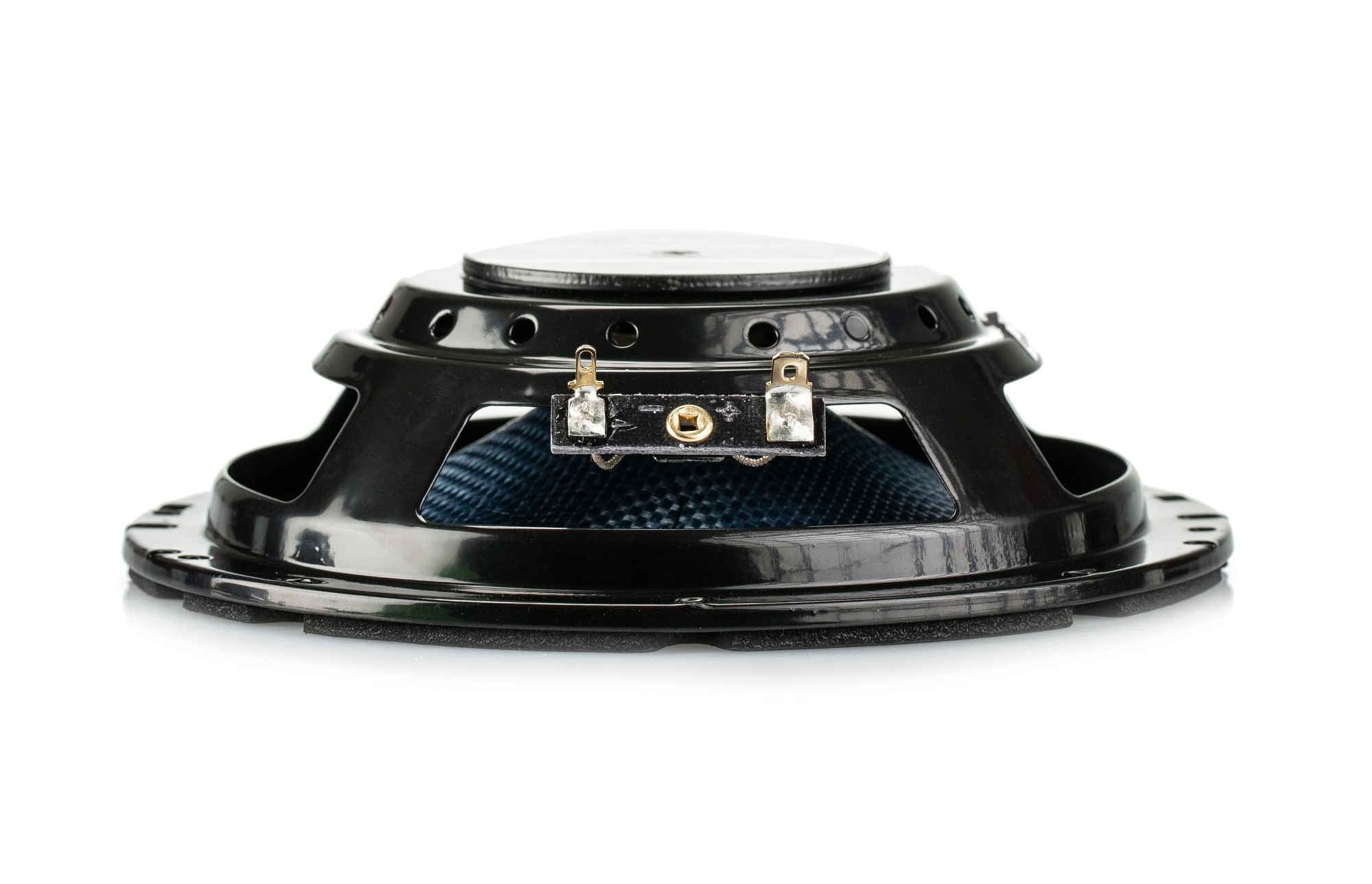

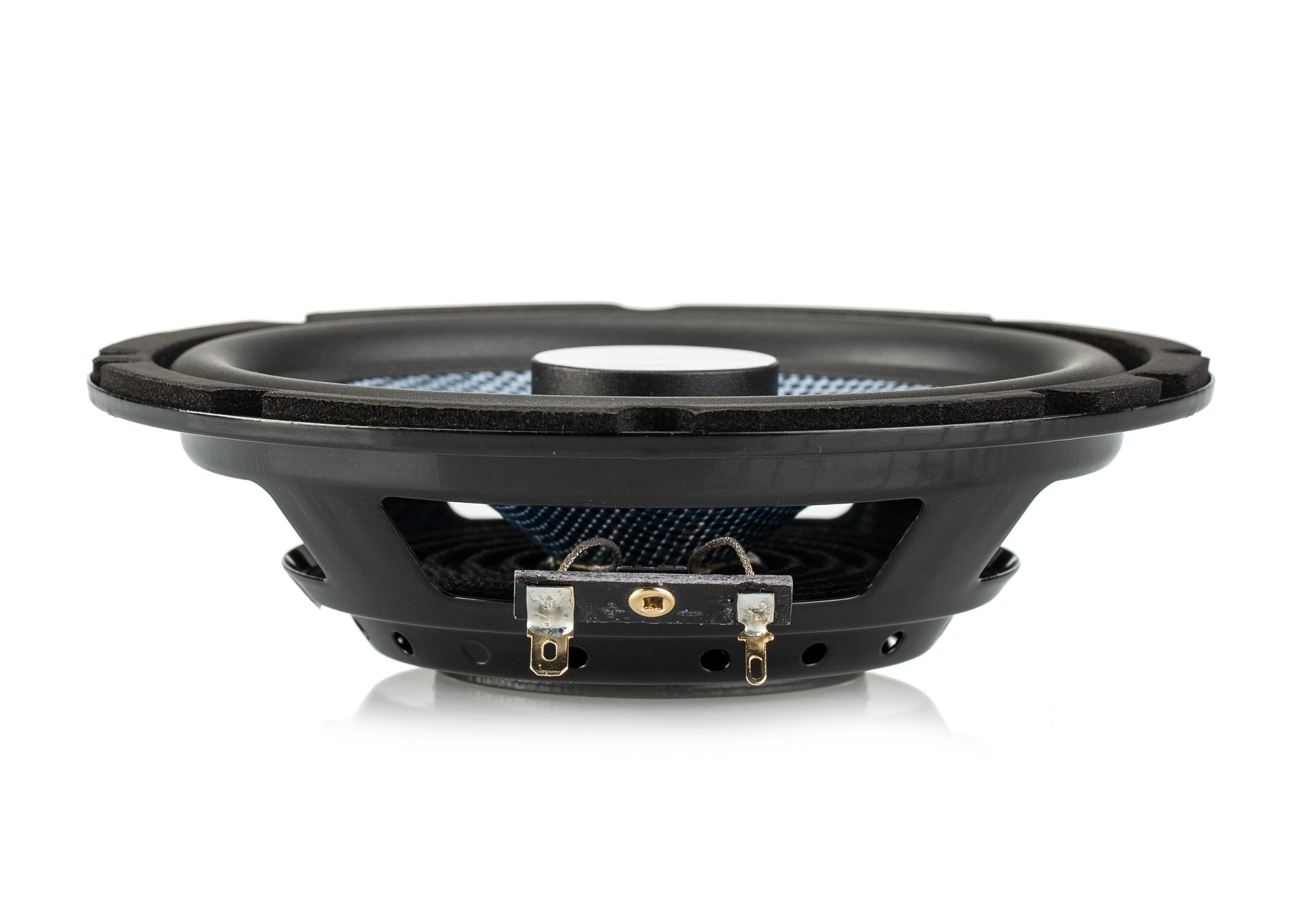

Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces.	40 mm
Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems.	Fiberglass
Overall tweeter diameterThe total diameter of the tweeter is given as the diameter of the individual tweeter without the installation houses.	46.05 mm
Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter.	25 mm
The overall depth of the tweeterThe total depth of the tweeter itself without the installation houses.	22.9 mm
Tweeter dome materialThe shell material that was used in the manufacture of the tweeter.	Silk
Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for. Component Speakers: A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion. Coaxial speakers: In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter.	Yes
Options for setting the frequency crossoverThe unwritten rule is that the more expensive the speakers, the more options the crossover has for adjusting the sound. The most common way to adjust the crossover is attenuation on the tweeter. More advanced crossovers also offer the option of setting the steepness on the mid-bass and tweeter or adjusting the frequency range.	Yes
Cover grids included in the packageOriginal cover grilles in speaker packaging.	No
Other	Slim version
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover.	Few
