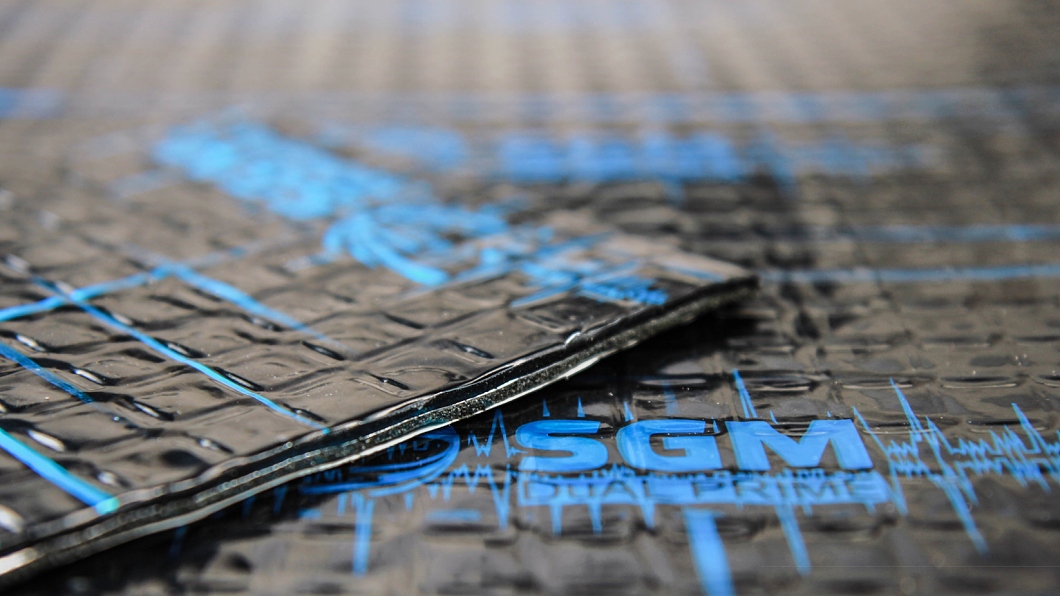

SGM Dual Prime anti-vibration material
Premium anti-vibration material from the highest model series Prime from SGM. New for 2020, it is currently the most effective and modern anti-vibration material on the market with a thickness of 4 mm. The extremely high acoustic loss factor of 0.66 units enables the prevention of vibrations even in the most delicate areas such as the floor or the wheel arches of the car. The composition of this material is also unique, which compared to the competition has a more viscous plastic structure that significantly facilitates application. Thanks to this, the material does not have to heat up, which is unimaginable for competing products of this thickness and efficiency. This is due to the use of two different sealants separated by a 100 micron aluminum foil. The first layer with extremely high efficiency enables maximum avoidance of body vibrations and high stability in a wide temperature range. The second layer with a reduced weight and a new formula of the composition of the sealant ensures a low weight of the material. The result is currently unsurpassed anti-vibration material with a thickness of only 4 mm. The beautiful design with black paint and blue print will also impress, which will stand out when installed in any vehicle. Like all SGM anti-vibration materials, Prime series materials are resistant to water, moisture, oils and extreme temperatures and have anti-corrosion properties.
The main properties of the SGM Dual Prime anti-vibration material
- Premium anti-vibration material with a thickness of 4 mm, which significantly reduces body vibrations and resonances.
- The highest Prime series from SGM, which stands out especially for its high efficiency.
- It is the most effective anti-vibration material in the world with a thickness of 4 mm.
- A unique composition of two layers ensuring excellent efficiency and at the same time low weight.
- High adhesion to metal, resistance to water, moisture, oils and extreme temperatures and anti-corrosion properties.
- Excellent elasticity even at very low temperatures below freezing - made for demanding conditions in Russia.
- Simple installation on all types of surfaces without the need for heating.
- High flexibility of the material for quick and easy application.
- A total of two aluminum foils with a thickness of 100 microns for increased strength of the material.
- A wide area of application for soundproofing all areas of vehicles.
Technical parameters of the SGM Dual Prime material
- Thickness: 4 mm
- Size: 800 x 500 mm
- Weight: 2.34 Kg (5.85 kg / m²)
- Acoustic Loss Factor (MLF): 0.66
- Operating temperature range: -40 °C to +100 °C
- Adhesion: 10 N / cm
- Aluminum foil thickness: 2x 100 µ
- Color: black with blue print
- Price for 1 piece

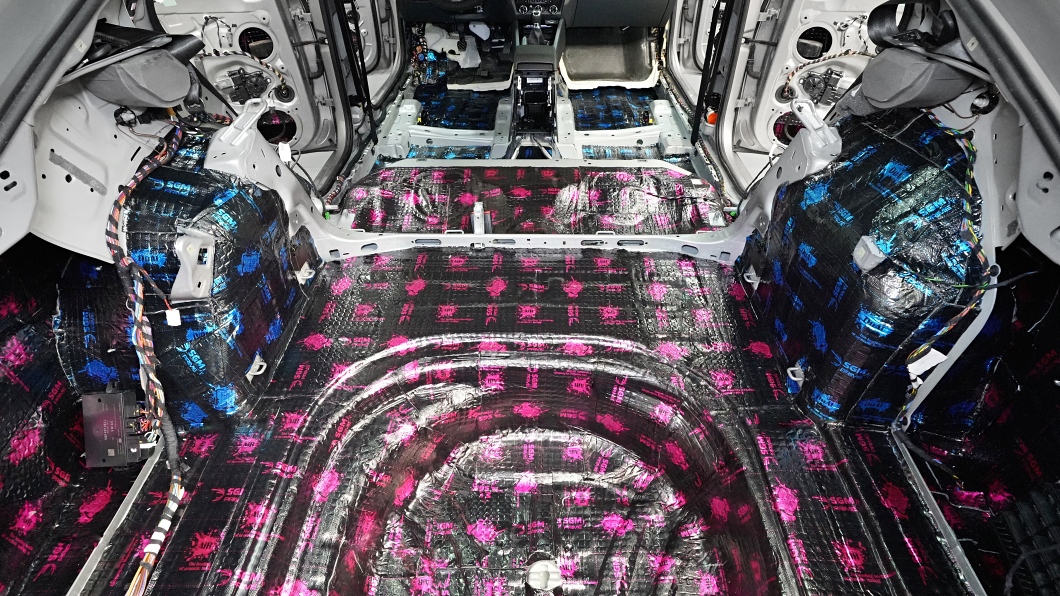

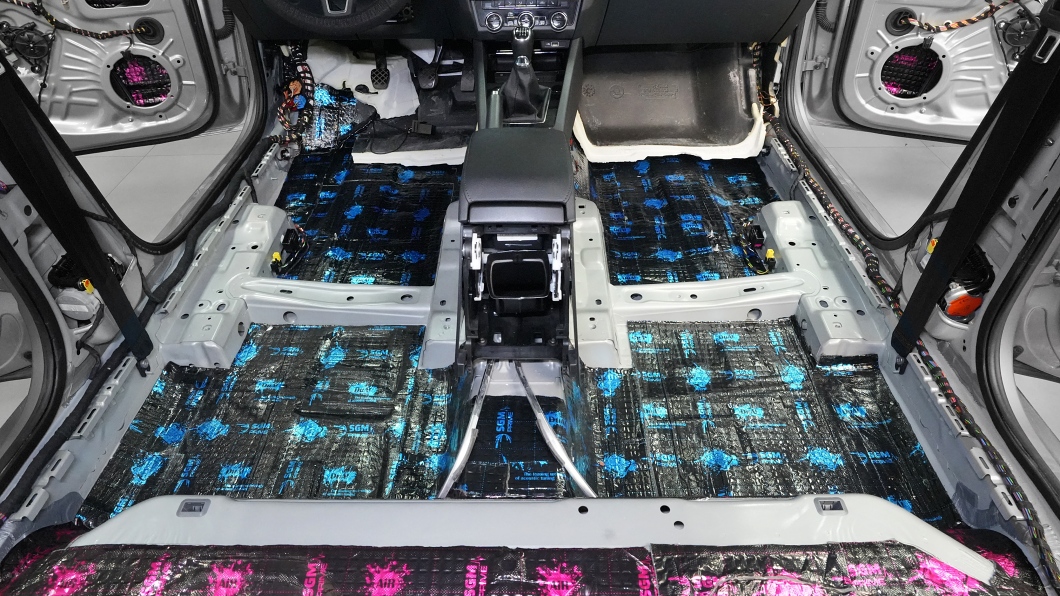

Where to apply the anti-vibration material SGM Dual Prime
Due to its 4 mm thickness and very high acoustic loss factor, the SGM Dual Prime anti-vibration material is suitable for areas with a very high vibration load. A typical example is the floor and the front and rear wheel arches. A thickness of 4 mm is unnecessarily thick for other surfaces of the vehicle. The most common use of SGM Dual Prime anti-vibration material:- Floor
- Front metal wheel arches
- Rear metal wheel arches
- Engine bulkhead
- Central tunnel
- The bottom of the trunk
- Torpedo
About SGM damping materials
The Russian company SGM Technology was founded in 2006, and since then it has been one of the leading Russian manufacturers of sound and heat insulation materials for the automotive, shipbuilding, aviation and construction industries. The combination of excellent physical properties of materials and technological methods is the result of the highly efficient performance of the specialized workforce of SGM, which consists of specialists from the best technical universities of Russia. Currently, SGM offers over 200 types of materials that meet the strictest quality and stability standards with certification according to ISO 9001: 2008 and ISO / TS 16949. Long-term cooperation with such giants as Bosch or LG is proof of the highest quality of SGM products, which has long been one of the best on the market today. At the turn of 2019 and 2020, the SGM company presented hi-tech noise-reducing materials from the top Prime series, which in their performance slightly surpass even the premium materials of the market leader in noise reduction from Comfortmat. You can buy the products of both highly competitive manufacturers, who are constantly competing with innovations in the field of vehicle sound deadening, on our e-shop with a guarantee of the most technologically advanced and most effective products of today. Thanks to the official representation of our company for the Czech Republic and Slovakia, you can count on sufficient stock and professional service..jpg)
| Catalog number | SGM DUAL PRIME |
| Brand | SGM |
| Oversized shipment | Yes, |
| Links | Official web presentation |
| Material type | Anti-vibration |
| Thickness | 4 mm |
| Dimension | 800 x 500 mm |
| Weight 1 piece | 2.34 Kg |
| Basis weight | 5.85 kg / m² |
| Acoustic Loss Factor (MLF)The acoustic loss factor (in English, mechanical loss factor) expresses the ability of the material to absorb propagating sound and change the energy of vibrations created by the sound into thermal energy. The theoretical maximum loss factor is 1, which means no vibration. For example, non-sound-proof steel with a thickness of 1 mm has a loss factor of approx. 0.001 at 200 Hz. Therefore, the higher the loss factor, the better. By combining damping materials, it is possible to significantly increase the loss factor to values approaching 1. | 0.66 |
| Adhesion | 10N/cm |
| Aluminium foil | 2 x 100 μm |
| Water resistance | Yes |
| Color | Black with blue print |
| Price for | 1 piece |
| Layer order | 1st layer |
